54AC244L1M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 54AC244L1M

54AC244L1M: DescriptionBus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,; Categorylogic; File Size455KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54AC244L1M Overview

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,

54AC244L1M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
Is Samacsys	N
Control type	ENABLE LOW
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Humidity sensitivity level	2A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	250
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	12.5 ns
Certification status	Not Qualified
Minimum supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
Base Number Matches	1

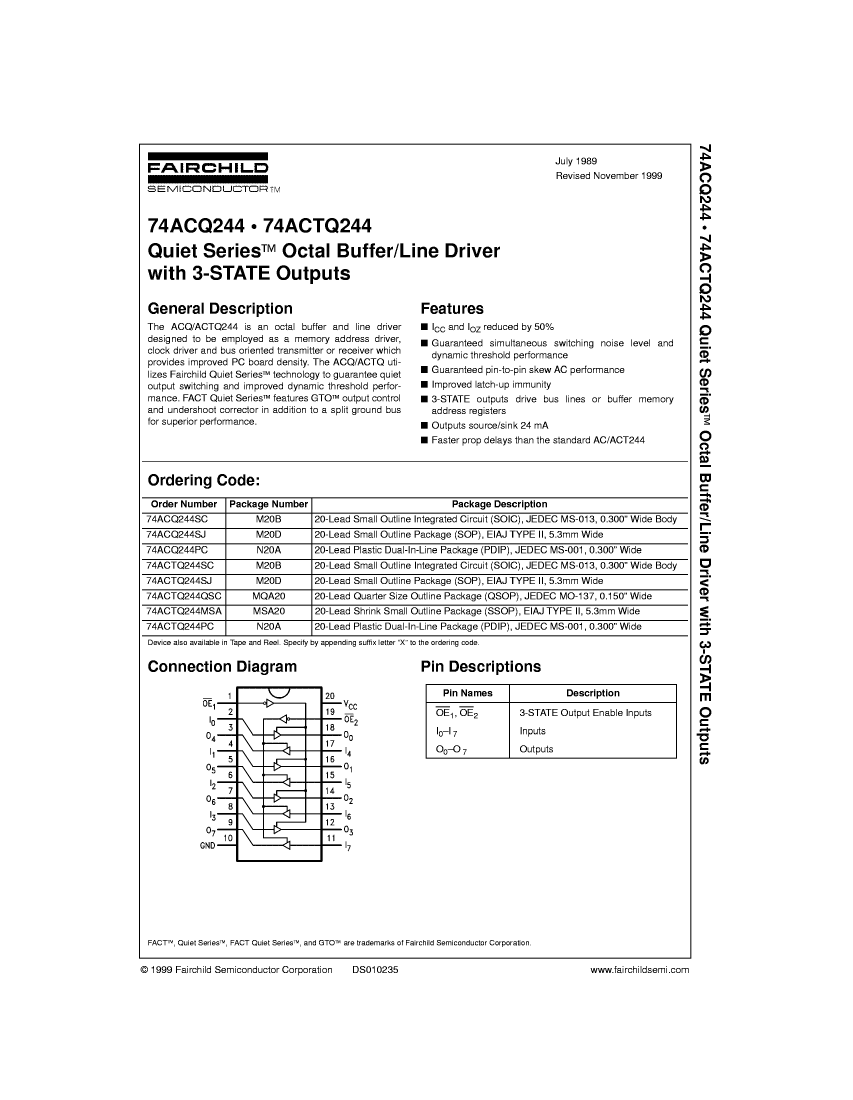

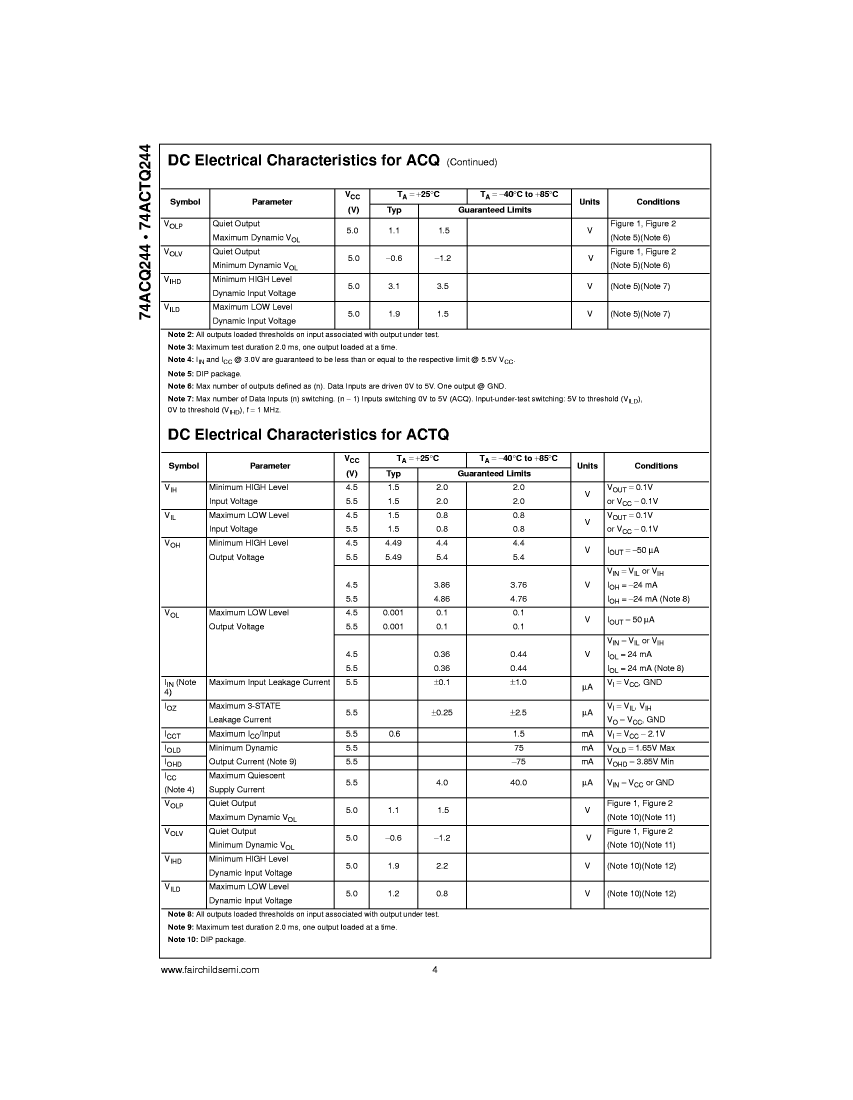

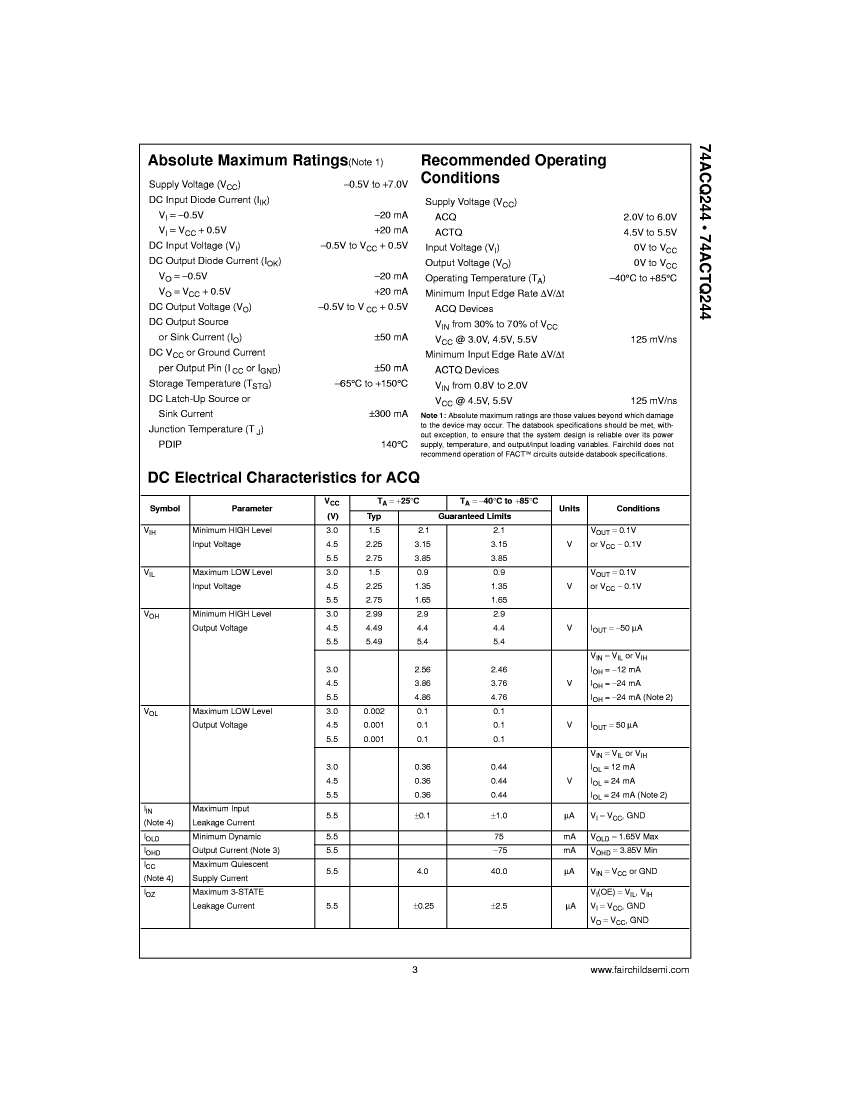

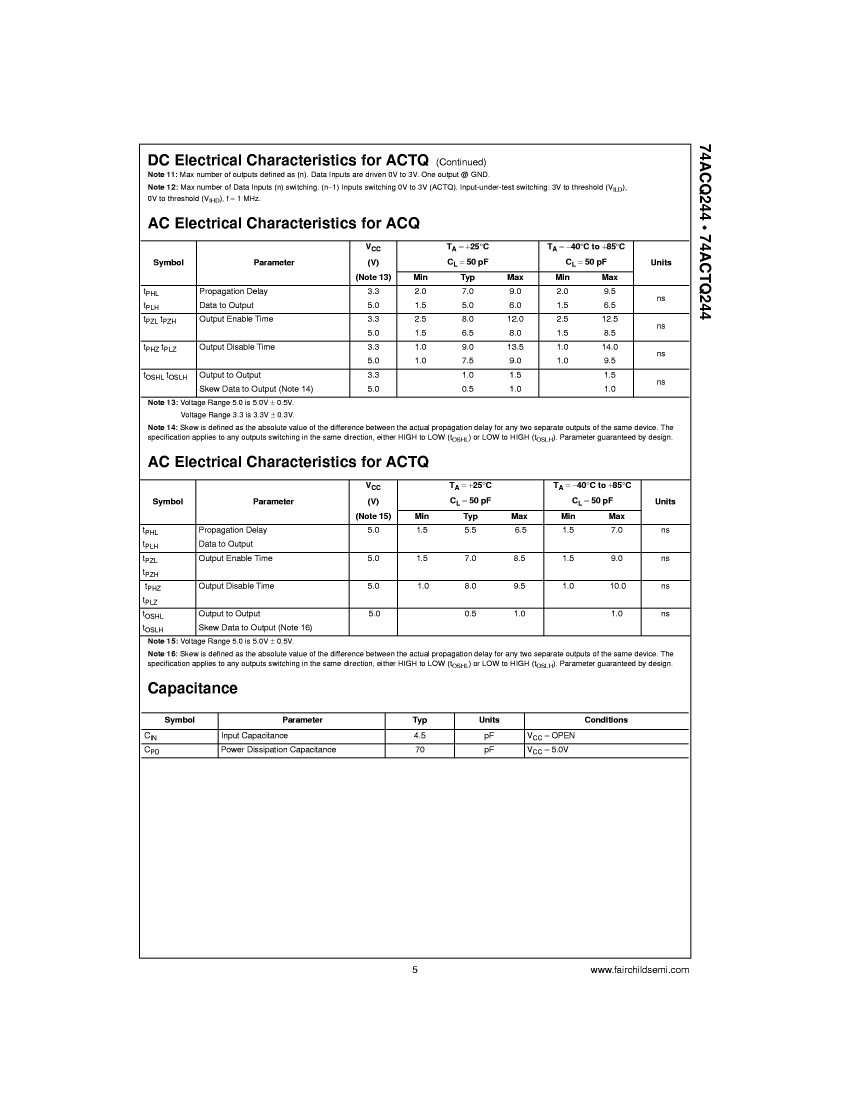

Preview

Download Datasheet

View All

54AC244L1M Related Products

	54AC244L1M	54AC244L1MQB	54ACT244L1MQB	74AC244L1CQR
Description	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	S-XQCC-N20	S-XQCC-N20	S-XQCC-N20	S-XQCC-N20
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	0.012 A	0.024 A	0.012 A
Humidity sensitivity level	2A	2A	2A	2A
Number of digits	4	4	4	4
Number of functions	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ	LCC20,.35SQ	LCC20,.35SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	250	250	250	250
power supply	3.3/5 V	3.3/5 V	5 V	3.3/5 V
Prop。Delay @ Nom-Sup	12.5 ns	12.5 ns	11.5 ns	10 ns
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	30	30	30	30
Is Samacsys	N	N	N	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Minimum supply voltage (Vsup)	3 V	3 V	-	3 V
Base Number Matches	1	1	1	-
