AM15WM-80024S-NZ

Description
DC/DC Converter; Product Weight (grams): 270; Input voltage min (V): 200; Input voltage max (V): 1500; Output voltage min: 24; Output voltage max: 24; Output voltage dual assymetric (y/n): Single; Output Power (W): 15; Max Output current (A): 0.625; Efficiency (%): 79; Max Capacitive load (µF): 470; Package type: 4.3x2.3; Mounting: PCB; W (in): 2.3; L (in): 4.29; H (in): 1.18; W (mm): 58.5; L (mm): 109; H (mm): 30; Min Operating temperature: -25; Max operating temperature (°C): 70; Isolation (VAC): 4000; EMC compliance 2: EN 55022 Class A; Case material: Plastic (flammability to UL 94V-0) ; Application 1 (PV): 1; Application 5 (Industrial): 1; MTBF (h): 300000; Derating : 50; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 150; Switching Frequency typ (KHz): 65; Short circuit protection: Continuous
CategoryThe power supply circuit
File Size532KB，3 Pages
ManufacturerAimtec
Websitehttp://www.aimtec.ca/
Environmental Compliance
Download Datasheet Parametric Compare View All

AM15WM-80024S-NZ Overview

DC/DC Converter; Product Weight (grams): 270; Input voltage min (V): 200; Input voltage max (V): 1500; Output voltage min: 24; Output voltage max: 24; Output voltage dual assymetric (y/n): Single; Output Power (W): 15; Max Output current (A): 0.625; Efficiency (%): 79; Max Capacitive load (µF): 470; Package type: 4.3x2.3; Mounting: PCB; W (in): 2.3; L (in): 4.29; H (in): 1.18; W (mm): 58.5; L (mm): 109; H (mm): 30; Min Operating temperature: -25; Max operating temperature (°C): 70; Isolation (VAC): 4000; EMC compliance 2: EN 55022 Class A; Case material: Plastic (flammability to UL 94V-0) ; Application 1 (PV): 1; Application 5 (Industrial): 1; MTBF (h): 300000; Derating : 50; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 150; Switching Frequency typ (KHz): 65; Short circuit protection: Continuous

AM15WM-80024S-NZ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAimtec
package instruction,
Reach Compliance Codecompliant
Is SamacsysN
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage1500 V
Minimum input voltage200 V
Nominal input voltage800 V
JESD-30 codeR-PDMA-P6
length109 mm
Number of functions1
Output times1
Number of terminals6
Maximum operating temperature50 °C
Minimum operating temperature-25 °C
Maximum output voltage24.48 V
Minimum output voltage23.52 V
Nominal output voltage24 V
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height30.5 mm
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output15 W
Fine-tuning/adjustable outputNO
width58.5 mm
Base Number Matches1

Preview

Download Datasheet

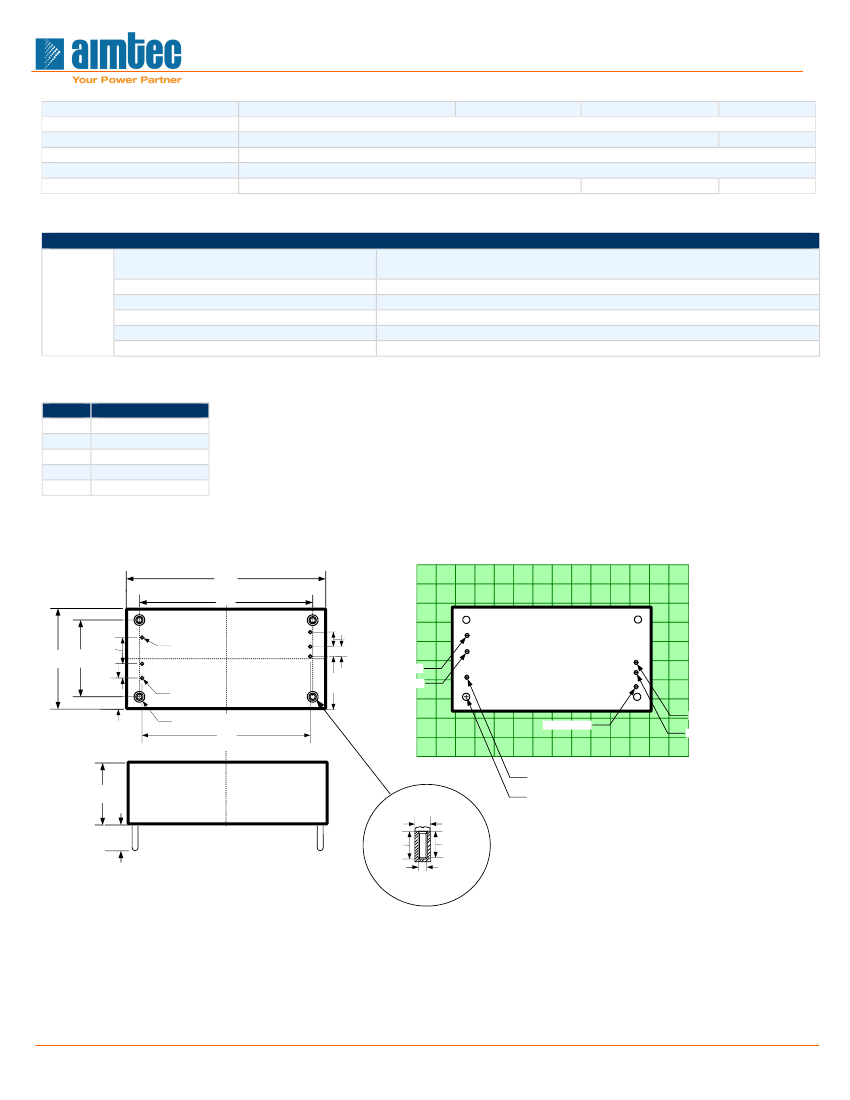

Series AM15WM-NZ
15 Watt | DC-DC Converter
FEATURES:
Super wide Input range 200-1500VDC
Operating temperature of -25 to +70°C
Input under voltage lockout
Over current and Over Voltage protection
No minimum load required
High efficiency of up to 79%
I/O Isolation of 4000VAC
Reversed connection protection
Models
Single output
Model
AM15WM-80012S-NZ
AM15WM-80015S-NZ
AM15WM-80024S-NZ
Input Voltage
(V)
200-1500
200-1500
200-1500
Output
Voltage
(V)
12
15
24
Output
Current max
(A)
1.25
1
0.625
Isolation
(VAC)
4000
4000
4000
Max
Capacitive
Load(uF)
2000
1200
470
Efficiency
(800VDC)
(%)
76
77
79
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Input Specifications
Parameters
Voltage range
Input current
Nominal
800VDC
200VDC input
800VDC input
1500VDC input
200VDC input
800VDC input
1500VDC input
Typical
Maximum
200-1500
130
30
25
50
80
150
Units
VDC
mA
Inrush current <2ms
External fuse
A
Slow blow, 15A/1500VDC
170-185
180-195
2
VDC
s
Lockout ON
Lockout OFF
Startup time*
Full load
*The cooling time between input under voltage ON and OFF is over 15s.
Input under voltage protection
Isolation Specifications
Parameters
Tested I/O voltage
Conditions
1 min
Typical
4000
Maximum
Units
VAC
Output Specifications
Parameters
Voltage accuracy
Line voltage regulation
Load voltage regulation
Over voltage protection
Over current protection
Short Circuit protection
Short circuit restart
Temperature coefficient
Ripple & Noise
Conditions
LL-HL, full load
0-100% load
Auto recovery
Typical
±2
±1
±1
Zener diode clamp
≥120
Continuous
Auto recovery
±0.02
150
Maximum
Units
%
% of Vin
%
% of Iout
20MHz Bandwidth
300
%/
o
C
mV p-p
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Cooling
www.aimtec.com
F 051e R14
Conditions
100% load
With derating
Typical
65
-25 to 70
-25 to 85
Maximum
Units
kHz
°C
°C
°C
95
Natural convection
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
