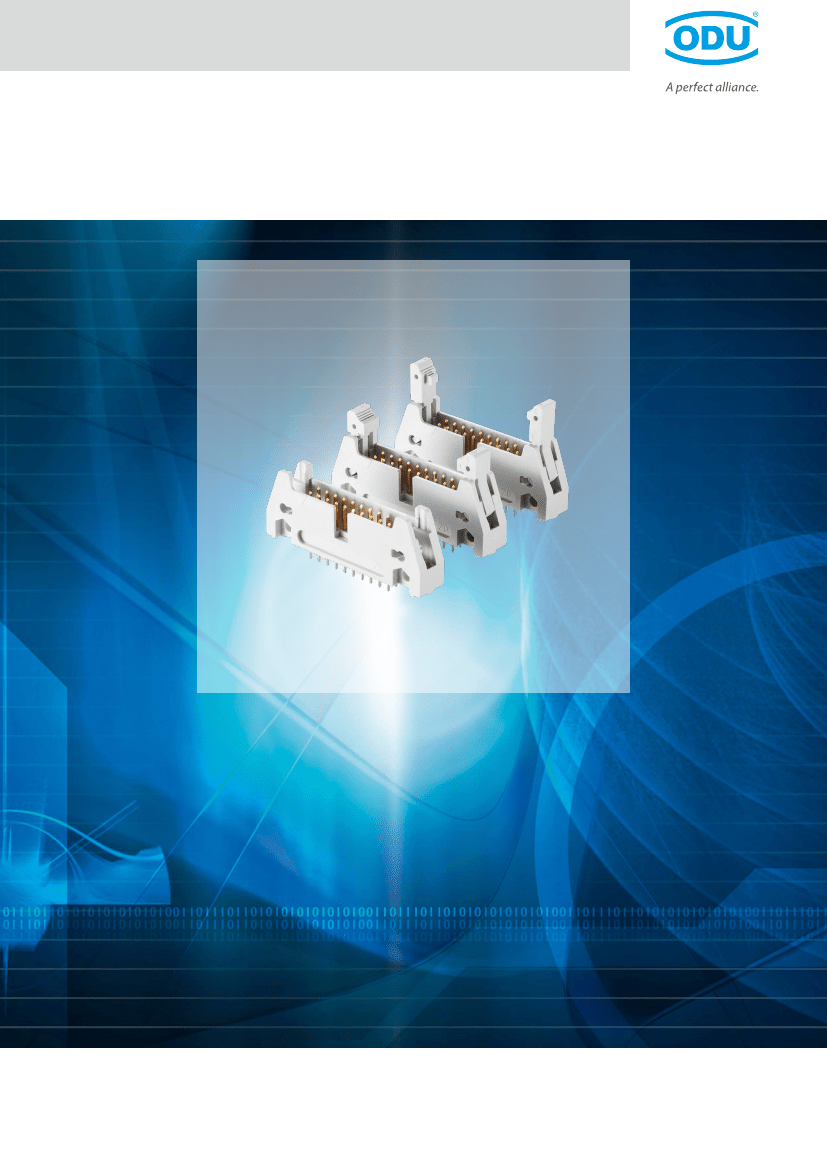

ODU PCB Connectors
ODU FLAKAFIX
www.odu.de
ODU FlakaFix
Contents
Chapter
1
2
3
4
IDC sockets, Series 517
Pin headers, Series 511
IDC PCB connectors, Series 533
Flat cable and processing tools
From page
3
12
49
52

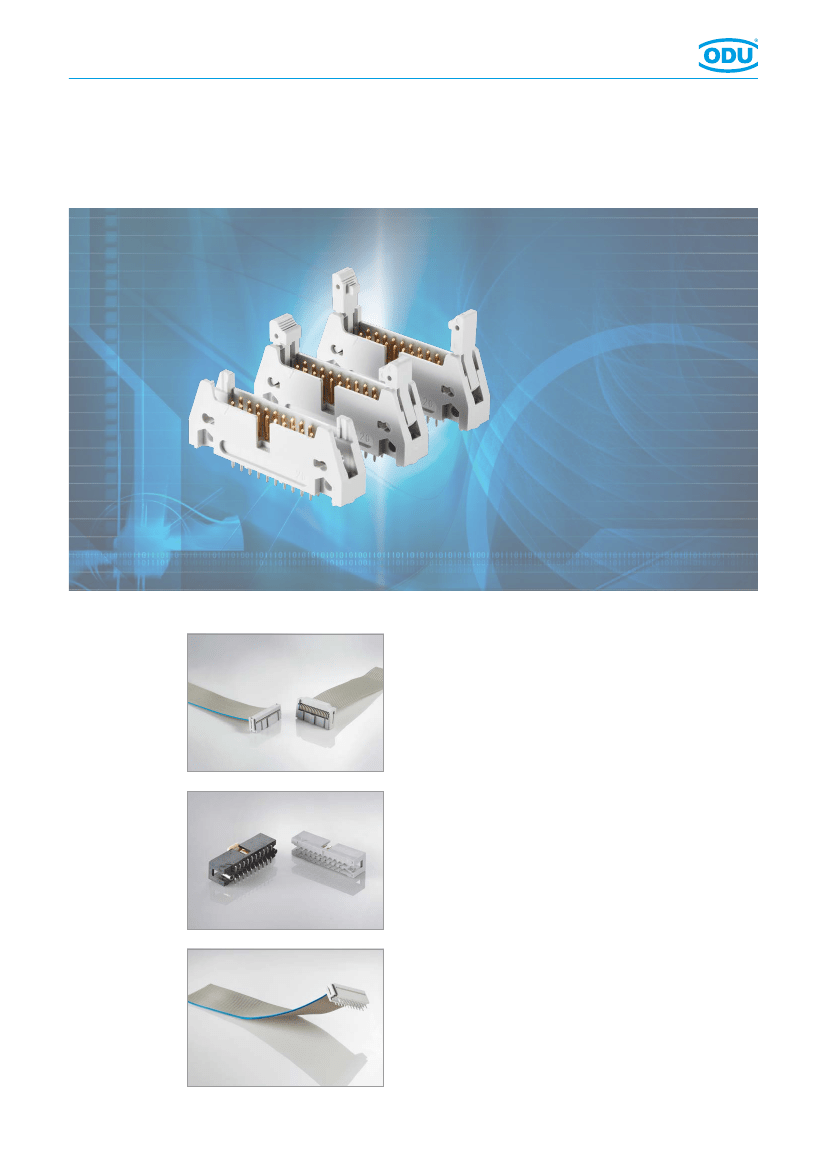

Description:
The ODU FLAKAFIX system offers a reliable
and economical solution for connecting
PCB´s. This board-to-wire connector features
contact stability, reliable long-term
behaviour, low contact resistances and
gas-proof contact points on the conductor.
Board-to-wire connector,
pitch 2.54 mm. ODU also offer
cable assemblies.
Features:
– Detachable connection using IDC sockets
and headers
– Non-detachable connection using IDC PCB
connector
– 2-row design
– 10 to 64 contacts
– UL approved
– Fully automatic placement (pick-and-place)
of the SMT models using vacuum adapter
plate and tape-and-reel packaging
– Extensive accessories and processing tools
– Assembly directly by ODU also possible
All dimensions in mm.
Some of the pictures are illustrations.
Errors and omissions excepted.
Issue: 2014 - 03
www.odu.de
Page 2
ODU FLAKAFIX
ODU FLAKAFIX
IDC sockets
Series 517
www.odu.de
Page 3
ODU FlakaFix
Contents
IDC sockets, Series 517
Chapter
1
2
3
4
Number codes for ODU FLAKAFIX, Series 517
Single-U IDC contact
Double-action spring contact
Single-U IDC contact
Single-action spring contact
Accessories
Strain relief
Locking latch
Spring clip
From page
5
6
8
10
10
10
11
www.odu.de
Page 4
ODU FlakaFix
Number codes
Explanation of number codes for ODU FLAKAFIX, Series 517
A
B
C
D
E
F
.
No.
Meaning
Coding
.
.
.
A
B
Series
Model
C
Type
D
Surface plating
E
F
Number of contacts
Packaging
517
= IDC sockets
0
= Cover plate, loose
1
= Cover plate, preloaded (upon request)
65
= Single-U IDC contact,
single action spring contact
66
= Single-U IDC contact,
single action spring contact
with strain relief
75
= Single-U IDC contact,
double action spring contact
76
= Single-U IDC contact,
double action spring contact
with strain relief
003
= In mating area 0.5 μm Au on Ni
in termination area min. 1.0 μm Sn on Ni
(standard)
009
= Flash-gold-plated (upon request)
035
= In mating area 0.75 μm Au on Ni
(upon request)
In termination area min. 1.0 μm Sn on Ni
(standard)
010
= 10 contacts (example)
010
= Cardboard box / box
Ordering example for Series 517
A
B
C
D
E
F
5 1 7
.
0 6 5
.
0 0 3
.
0 1 0
.
0 1 0
Series: 517 IDC sockets
Model: cover plate, loose
Type: Single-U IDC contact, single action spring contact
Surface plating: in mating area 0.5 μm Au on Ni
in termination area min. 1.0 μm Sn on Ni
E = Number of contacts: 10
F = Packaging: cardboard box / box
A
B
C
D
=
=
=
=
www.odu.de
