DF5A6.8F
TOSHIBA Diodes for Protecting against ESD
DF5A6.8F
Product for Use Only as Protection against Electrostatic
Discharge (ESD)
*
This product is for protection against electrostatic discharge (ESD) only
and is not intended for any other usage, including without limitation,
the constant voltage diode application.
The mounting of four devices on an ultra-compact package allows the
number of parts and the mounting cost to be reduced.
0.16
Unit: mm
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Power dissipation
Junction temperature
Storage temperature range
Symbol
P
T
j
T
stg
Rating
200
125
−55~125
Unit
MW
°C
°C
1.CATHODE 1
2. ANODE
3.CATHODE2
4.CATHODE3
5.CATHODE4
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
JEDEC
⎯
temperature, etc.) may cause this product to decrease in the
JEITA
⎯
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute
TOSHIBA
1-3H1A
maximum ratings.
Weight: 0.014 g (typ.)
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and
estimated failure rate, etc).
Electrical Characteristics
(Ta = 25°C)
Characteristic
Zener voltage
Dynamic impedance
Knee dynamic impedance
Reverse current
Terminal capacitance
(between Cathode and Anode)
Symbol
V
Z
Z
Z
Z
ZK
I
R
C
T
I
Z
= 5 mA
I
Z
= 5 mA
I
Z
= 0.5 mA
V
R
= 5 V
V
R
= 0, f = 1 MHz
Test Condition
Min
6.4
―
―
―
―
Typ.
6.8
10
30
―
45
Max
7.2
25
―
0.5
―
Unit
V
Ω
Ω
μA
pF
Guaranteed Level of ESD Immunity
Test Condition
IEC61000-4-2
(Contact discharge)
ESD Immunity Level
±
30kV
Criterion: No damage to device elements
1
2007-11-21

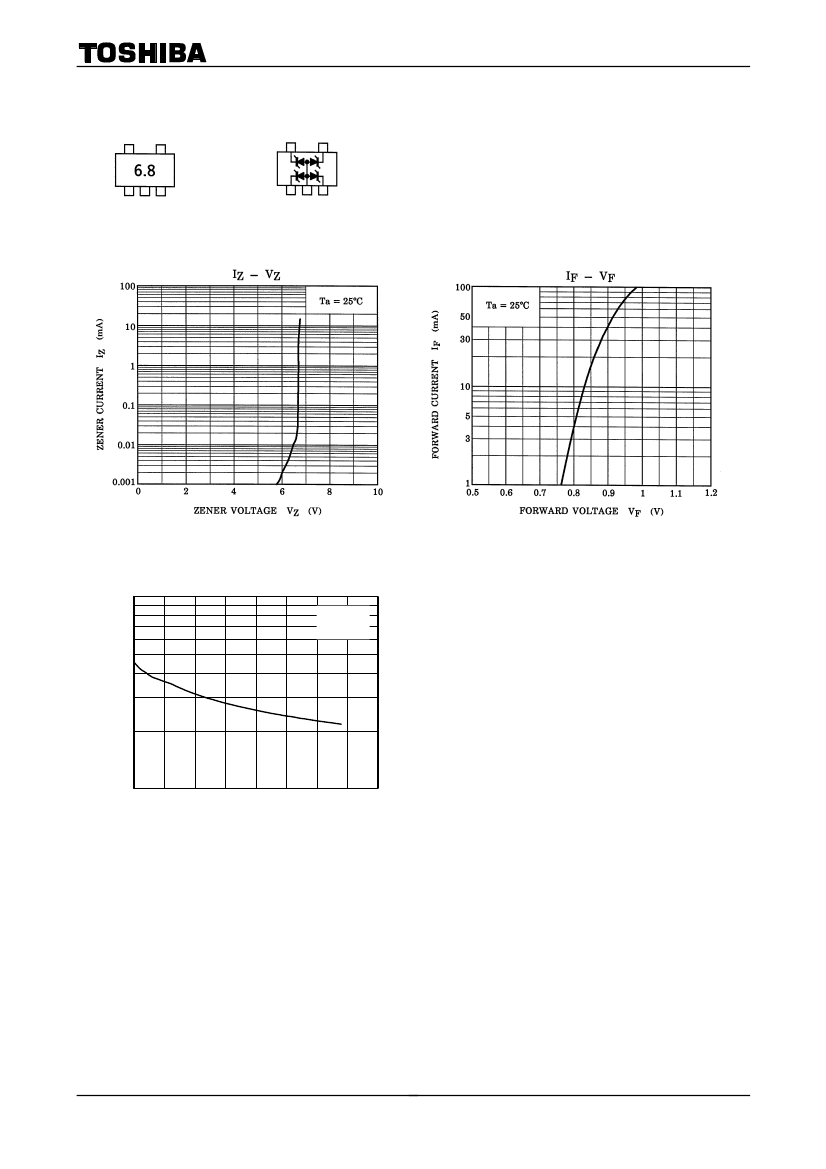

DF5A6.8F
RESTRICTIONS ON PRODUCT USE
•
The information contained herein is subject to change without notice.
20070701-EN
•
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor
devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical
stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of
safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of
such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as
set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and
conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability
Handbook” etc.
•
The TOSHIBA products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances,
etc.).These TOSHIBA products are neither intended nor warranted for usage in equipment that requires
extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or
bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or
spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments,
medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in his
document shall be made at the customer’s own risk.
•
The products described in this document shall not be used or embedded to any downstream products of which
manufacture, use and/or sale are prohibited under any applicable laws and regulations.
•
Please contact your sales representative for product-by-product details in this document regarding RoHS
compatibility. Please use these products in this document in compliance with all applicable laws and regulations
that regulate the inclusion or use of controlled substances. Toshiba assumes no liability for damage or losses
occurring as a result of noncompliance with applicable laws and regulations.
3
2007-11-21
