HN1C01FE

Description
Silicon NPN Epitaxial Type (PCT Process) Audio Frequency General Purpose Amplifier Applications
CategoryDiscrete semiconductor    The transistor
File Size189KB,3 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric View All

HN1C01FE Overview

Silicon NPN Epitaxial Type (PCT Process) Audio Frequency General Purpose Amplifier Applications

HN1C01FE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerToshiba Semiconductor
package instructionSMALL OUTLINE, R-PDSO-F6
Contacts6
Reach Compliance Codeunknow
ECCN codeEAR99
Maximum collector current (IC)0.15 A
Collector-emitter maximum voltage50 V
ConfigurationSEPARATE, 2 ELEMENTS
Minimum DC current gain (hFE)120
JESD-30 codeR-PDSO-F6
Number of components2
Number of terminals6
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)80 MHz
Base Number Matches1

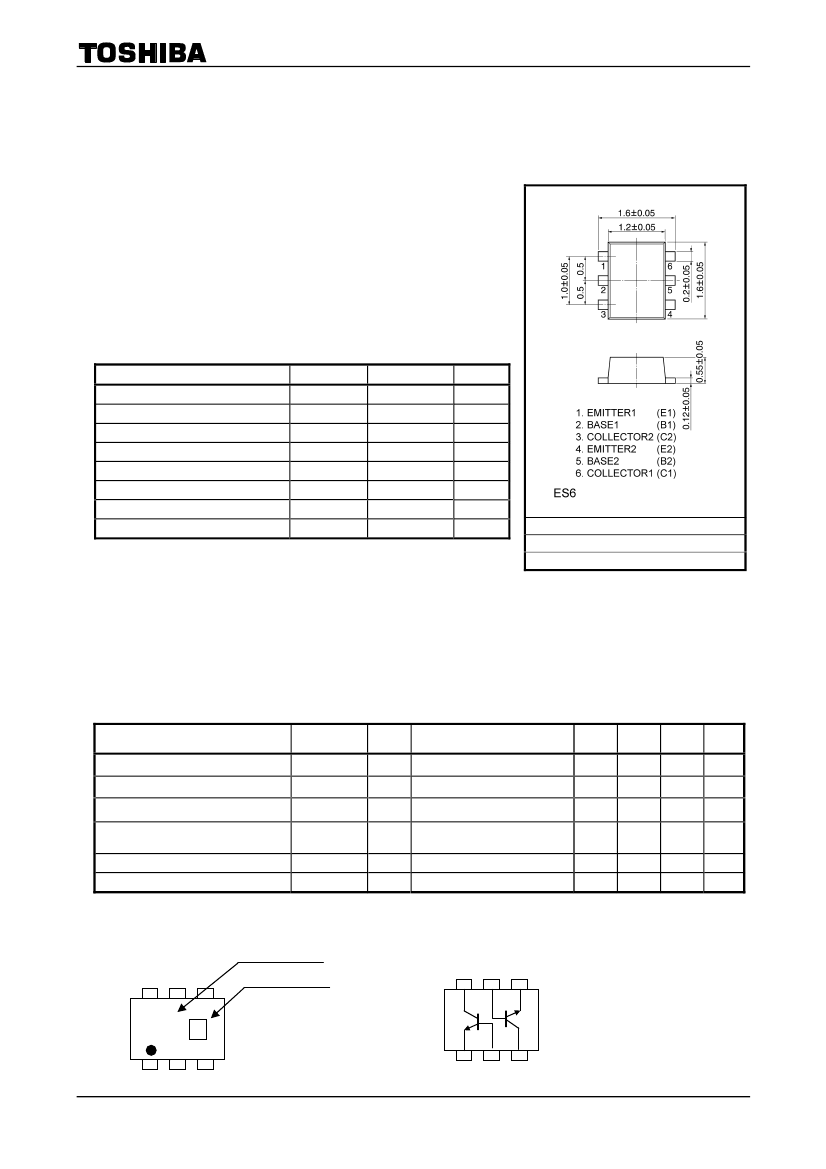

HN1C01FE
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process)
HN1C01FE
Audio Frequency General Purpose Amplifier Applications
Small package (Dual type)
High voltage and high current
: V
CEO
= 50V, I
C
= 150mA (max)
High h
FE
: h
FE
= 120~400
Excellent h
FE
linearity
: h
FE
(I
C
= 0.1mA) / h
FE
(I
C
= 2mA) = 0.95 (typ.)
Unit: mm
Absolute Maximum Ratings
(Ta = 25°C) (Q1, Q2 Common)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
*
T
j
T
stg
Rating
60
50
5
150
30
100
150
−55~150
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
JEITA
Note: Using continuously under heavy loads (e.g. the application of high
TOSHIBA
2-2N1G
temperature/current/voltage and the significant change in
Weight: 3.0mg(typ.)
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are
within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
* Total rating
Electrical Characteristics
(Ta = 25°C) (Q1,Q2 Common)
Characteristic
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter
saturation voltage
Transition frequency
Collector output capacitance
Symbol
I
CBO
I
EBO
h
FE (Note)
V
CE (sat)
f
T
C
ob
Test
Circuit
Test Condition
V
CB
= 60V, I
E
= 0
V
EB
= 5V, I
C
= 0
V
CE
= 6V, I
C
= 2mA
I
C
= 100mA, I
B
= 10mA
V
CE
= 10V, I
C
= 1mA
V
CB
= 10V, I
E
= 0, f = 1MHz
Min
120
80
Typ.
0.1
2
Max
0.1
0.1
400
0.25
V
MHz
pF
Unit
μA
μA
Note: h
FE
Classification Y (Y): 120~240, GR (G): 200~400
( ) Marking Symbol
Marking
Type Name
6
5
4
hFE Rank
Equivalent Circuit
(Top View)
6
5
4
C1
1
2
3
Q1
Q2
1
2
3
1

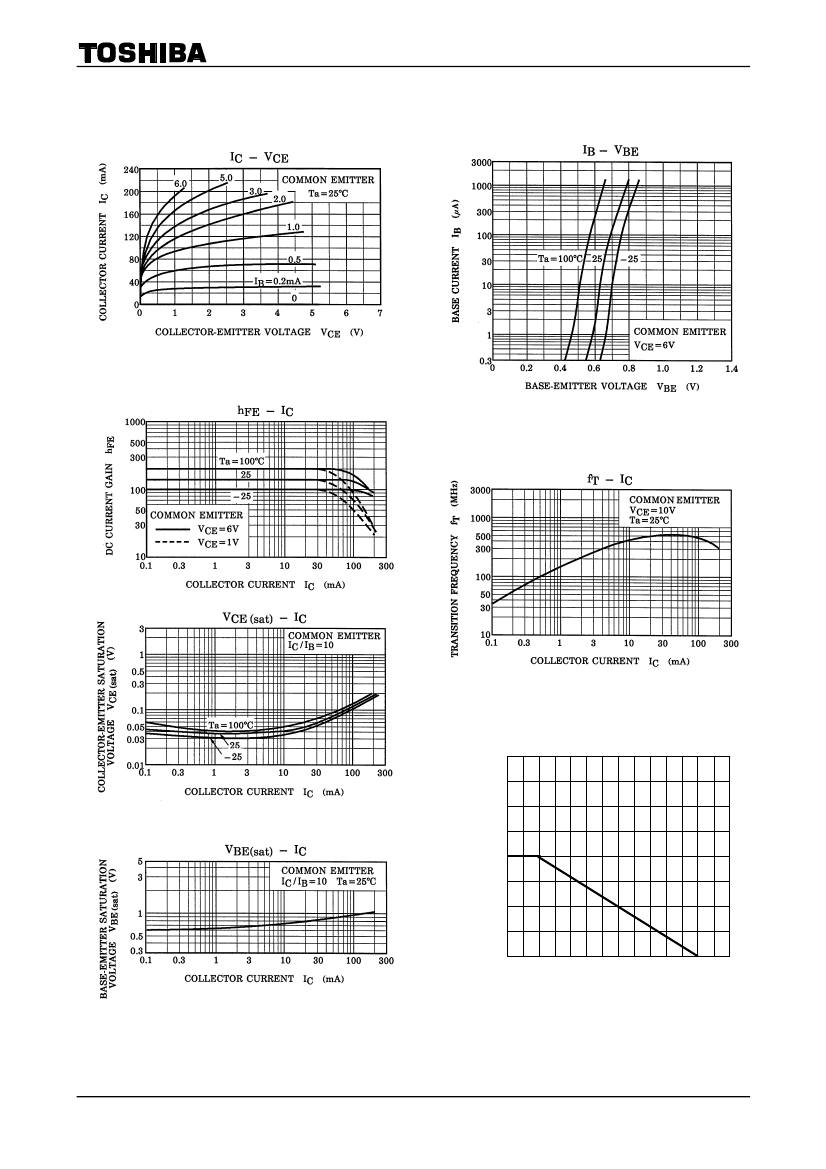

2007-11-01
