MAX Guard ESD Suppressor
(Low Capacitance Series)
Issued date
Page
1. Scope
Bi-directional MAX Guard ESD suppressors are designed for high frequency circuit applications. They are
specifically produced to protect sensitive electronic circuit data lines against electrostatic discharge (ESD, as
specified in IEC61000-4-2 and MIL-STD-883C). The low capacitances and leakage currents of these products
are contributed by “micro air space discharge technology” designed by TA-I.

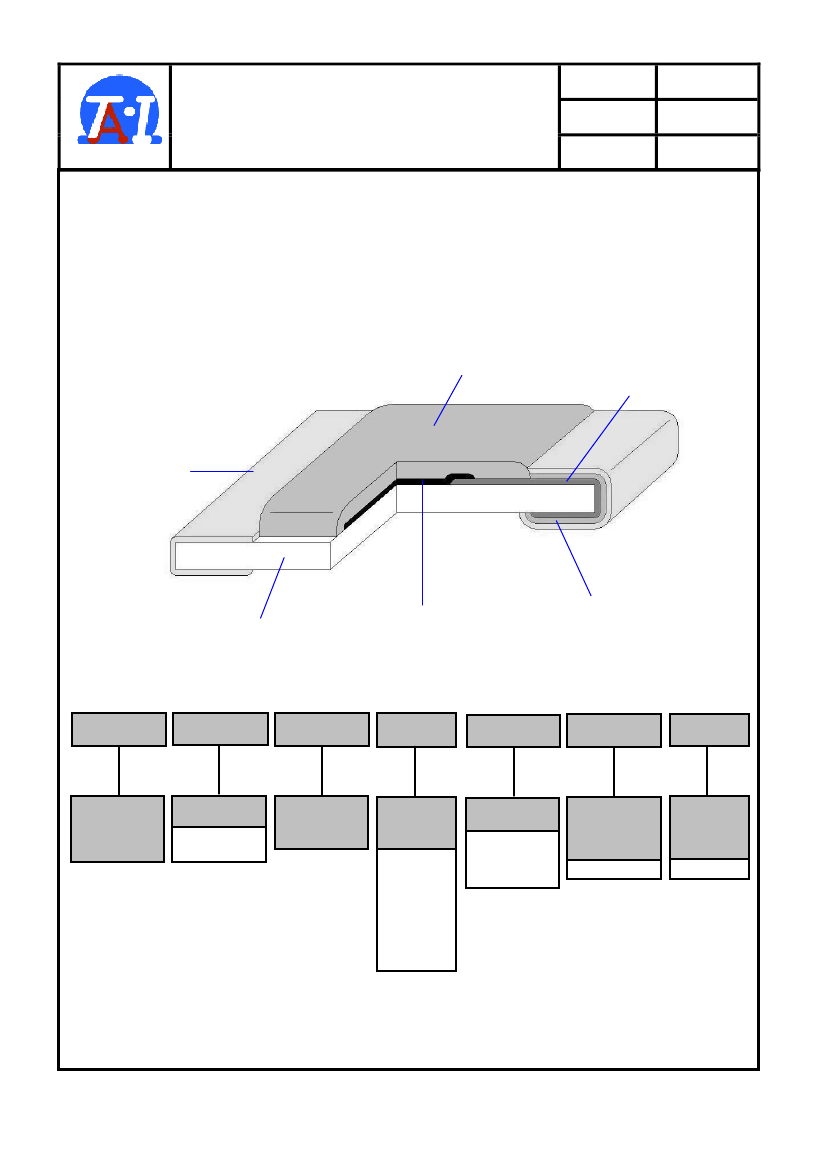

2. Construction
Over Coat
Conductor
Sn Plating
Suppressor Element
Ceramic Substrate
Ni Plating
3. Type Designation
GS
06
A
12
T
3
V3
MAX Guard
Suppressor
Size
04:0402(1005)
06:0603(1608)
A:Suit for
IEC61000-4-2
Operating
Voltage
12:12V
Max:24V
Packaging
T:Paper
tape(5K/10K)
Typical
Clamping
Voltage
3: 35V
Typical
Trigger
Voltage
V3: 350V
TA-I TECHNOLOGY CO., LTD
Document No
TGS-XX0S001C
2013/8/30
2/8
MAX Guard ESD Suppressor
(Low Capacitance Series)
Issued date
Page
4. Rating and Characteristics:
Type
GS04A03T3V3
GS06A03T3V3
GS04A05T3V3
GS06A05T3V3
GS04A12T3V3
GS06A12T3V3
GS04A24T3V3
GS06A24T3V3
Continuous
ESD
Trigger Clamping
Operating
Capacitance
Leakage
Pulse
1
ESD Capability Voltage Voltage
3
Voltage
(Typ.)
Current (Typ.) Withstand
2
2
(Typ.) (Typ.)
4
(Max.)
(Typ.)
3.3 VDC
5.5 VDC
Direct
Discharge: 8KV
350V
35V
<0.2 pF
Air
12 VDC Discharge:15KV
<30nA
(12VDC)
>500
pulses
24 VDC
Note:
(1)The function meets with the requirement of IEC 61000-4-2 specification.
(2)Trigger measurement made using Transmission Line Pulse method.
(3)Capacitance measured at 1 MHz.
(4)Performing under IEC 61000-4-2 level 4 (8KV contact discharge, 15KV air discharge). Leakage current <1A.
TA-I TECHNOLOGY CO., LTD
Document No
TGS-XX0S001C
2013/8/30
3/8
MAX Guard ESD Suppressor
(Low Capacitance Series)
Issued date
Page
5. Dimensions
Type
(Inch Size Code)
GS04
(0402)
GS06
(0603)
Dimensions (mm)
L
1.0±0.1
1.6±0.1
W
0.52±0.05
0.8±0.1
C
0.2±0.1
0.3±0.2
d
0.25±0.1
0.35±0.2
t
0.36±0.05
0.45±0.1
6. Reliability Test
Environmental
Specification
Operating temperature
Full load voltage
Resistance of solder heat
Thermal shock
Moisture resistance
MIL-STD-202 Method 210
MIL-STD-202 Method 107
MIL-STD-883, Method 1004.7
Reference Standard
Test Condition
-55℃ to 125℃
85℃ for 1000 hrs at working
voltage
260 ± 5℃ for 10 ± 1 sec
-55℃ to 125℃, 5 cycles
85%RH, 85℃ for 1000hrs at
working voltage
Specification
IL<1μA
1
Solderability
MIL-STD-202, Method 208
245 ± 5℃ solder, 2 ± 0.5 sec dwell.
95% coverage
Solder: Sn96.5/Ag3.0/Cu0.5
Note: 1. IL is the simplification of Leakage Current
TA-I TECHNOLOGY CO., LTD
Document No
TGS-XX0S001C
2013/8/30
4/8
MAX Guard ESD Suppressor
(Low Capacitance Series)
Issued date
Page
7. Taping and Reel

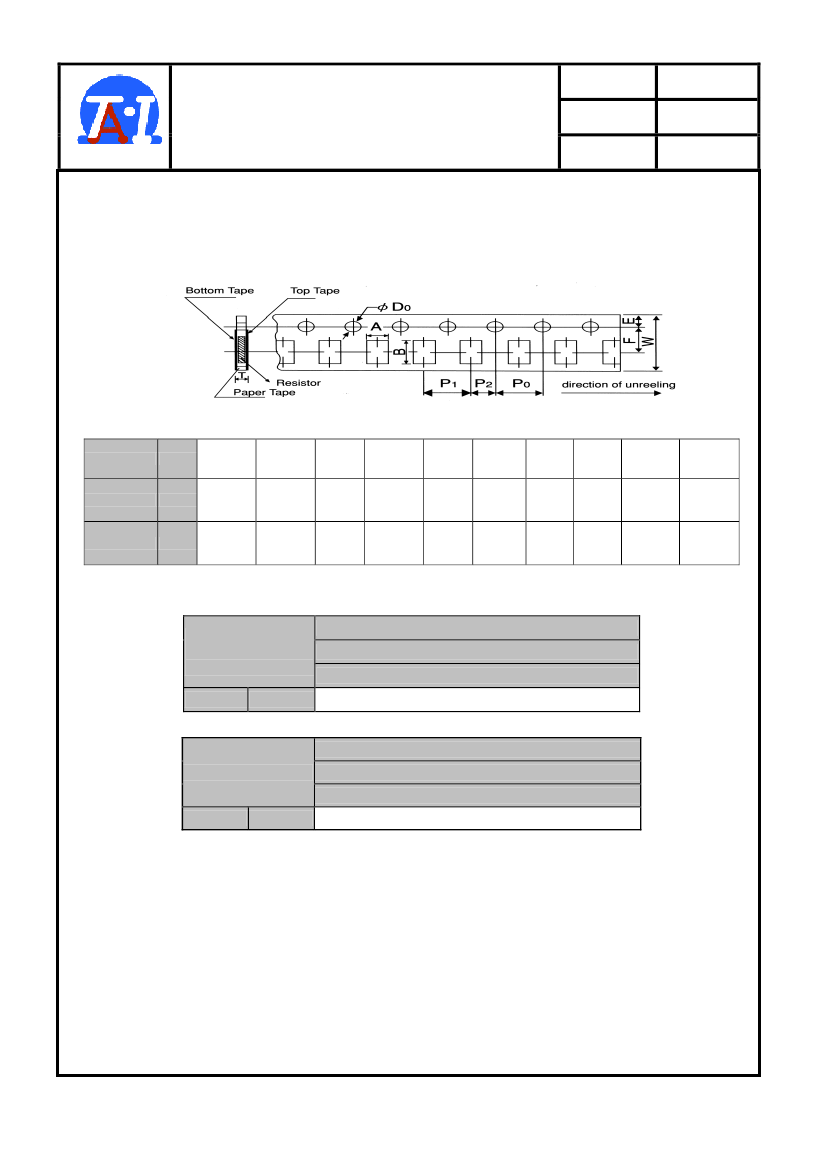

7.1 Taping Dimensions
4 mm pitch paper
Packing
Type
A
B
W
F
E
P
1
P
2
P
0
D
0
T
Paper Tape
GS04
0.7±0.05
1.2±0.05
8.0±0.2
Paper Tape
GS06
1.1±0.1
1.9±0.1
8.0±0.2
+0.1
1.5
0
+0.1
3.5±0.05 1.75±0.1 4.0±0.1 2.0±0.05 4.0±0.1
1.5
-0
3.5±0.05 1.75±0.1 2.0±0.1 2.0±0.05 4.0±0.1
0.45±0.1
0.64±0.1
Unit: mm
Paper Tape
2 mm Pitch
Type
GS
Size
04
180mm/R
10000
Paper Tape
Type series
GS
06
4 mm Pitch
180mm/R
5000
Unit: pcs
TA-I TECHNOLOGY CO., LTD
Document No
TGS-XX0S001C
2013/8/30
5/8
MAX Guard ESD Suppressor
(Low Capacitance Series)
Issued date
Page
7.2 Reel Specifications
Unit: mm
Series
GS04
GS06
A
180
+0
-3
B
60 min
C
13.0±1.0
W
9.0±1.0
T
11.4±2.0
7.3 Peel –off force
Top cover tape
Pull
300mm/min
Carrier tape
10~15 , Standard :0.1~0.7N
o
8. Storage Conditions:
Temperature: 5℃~35℃, Humidity: 40%~75%
9. Shelf Life:
2 years from manufacturing date
