6PCR-22-009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 6PCR-22-009

6PCR-22-009: Description25A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT; CategoryThe connector; File Size517KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

6PCR-22-009 Overview

25A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT

6PCR-22-009 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1979463857
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.77
Other features	STANDARD: UL94V-0, POLYAMIDE
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	22
Rated current	25 A
Rated voltage	300 V
safety certificate	CSA; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	18 AWG

Preview

Download Datasheet

View All

Note:

All part numbers

are RoHS Compliant.

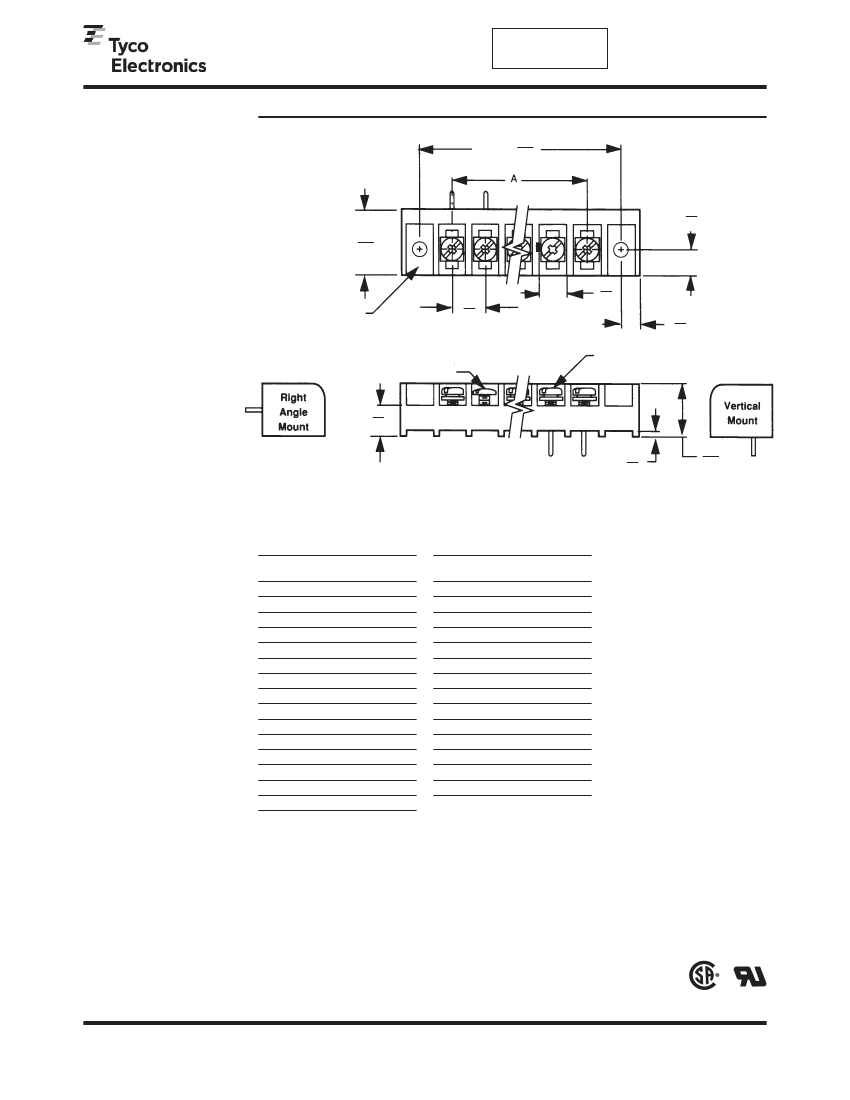

BUCHANAN Terminal Blocks

0.375” [9.53] Pitch, Series #6, Tri-Barrier

6PCV-03-006 & 6PCV-06-006

9,5

(.375)

9,5

(.375)

6,8

(.27)

6,8

(.27)

(For Dual Pin Configuration) 10,9

.433

1,8 Dia.

4,6

(.073)

10,9

(For Dual Pin Configuration)

(.18)

.433

1,8 Dia.

(.073)

4,6

(.18)

7,9

(.31)

3,8

Dia.

(.150)

7,9

(.31)

Material & Finish

Housing Material—Polyamide

Flammability—UL94V-0

Color—Black

Terminals—Bright

acid tin over

copper alloy

Screws—#6-32

steel, zinc plating with

clear chromate coating. Wire clamping

screws and binding head screws with

undercut available.

3,8

Right Angle

(.150)

Vertical

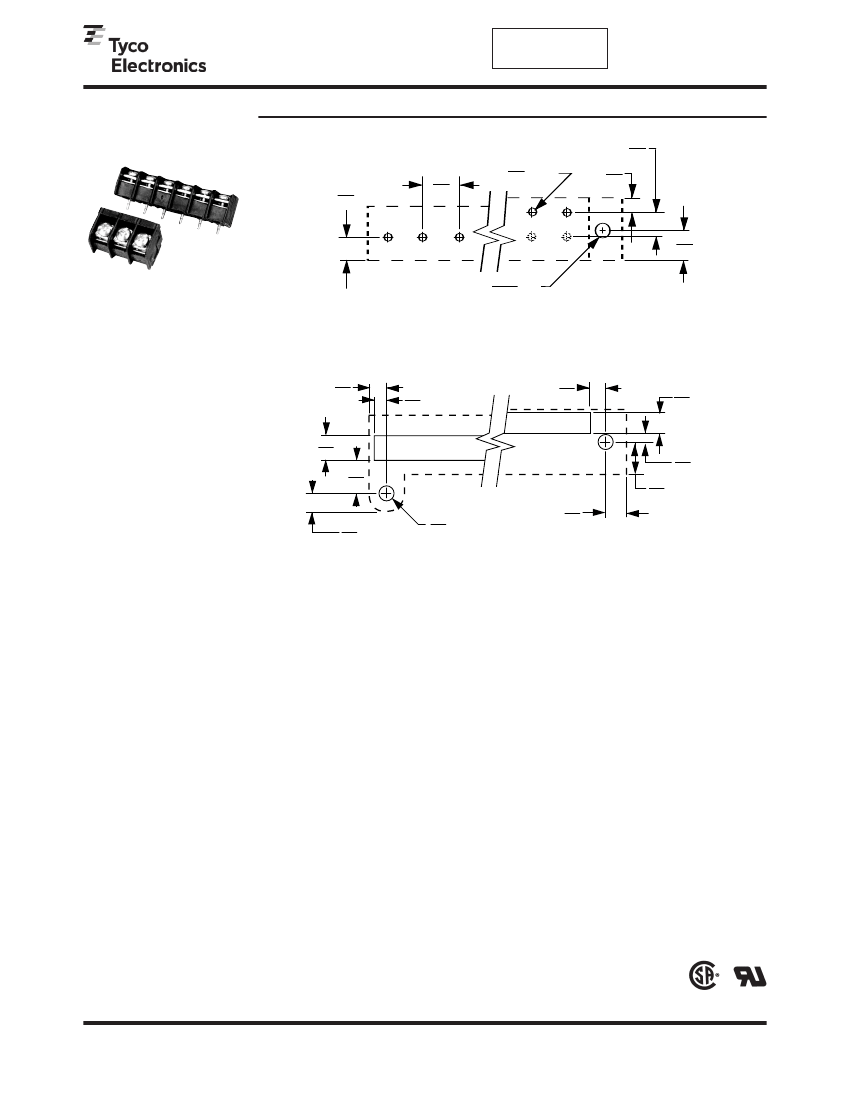

Printed Circuit Board Layout

Dia.

5,6

(.22)

5,6

(.22)

4,0

(.156)

4,0

(.156)

4,1

(.16)

Cut Out

4,1

(.16)

6,3

(.25)

6,3

(.25)

Cut Out

6,3

(.25)

Cut Out

Mechanical Properties

Pitch (Terminal Spacing)—

0.375" [.525]

Recommended PCB Hole Dia.—

1.8mm [.073"]

2,4

(.094)

8,4

(.33)

7,9

(.33)

5,6

(.22)

5,6

7,9

(.31)

Electrical Properties

Ratings—UL

Class C 25 Amps, 300V

UL Class D 5 Amps, 600V

CSA Type C 25 Amps, 300V

CSA Type D 5 Amps, 600V

Wire Range—18-22

AWG

4,8

(.19)

3,8

Dia.

(.15)

Right Angle

Vertical

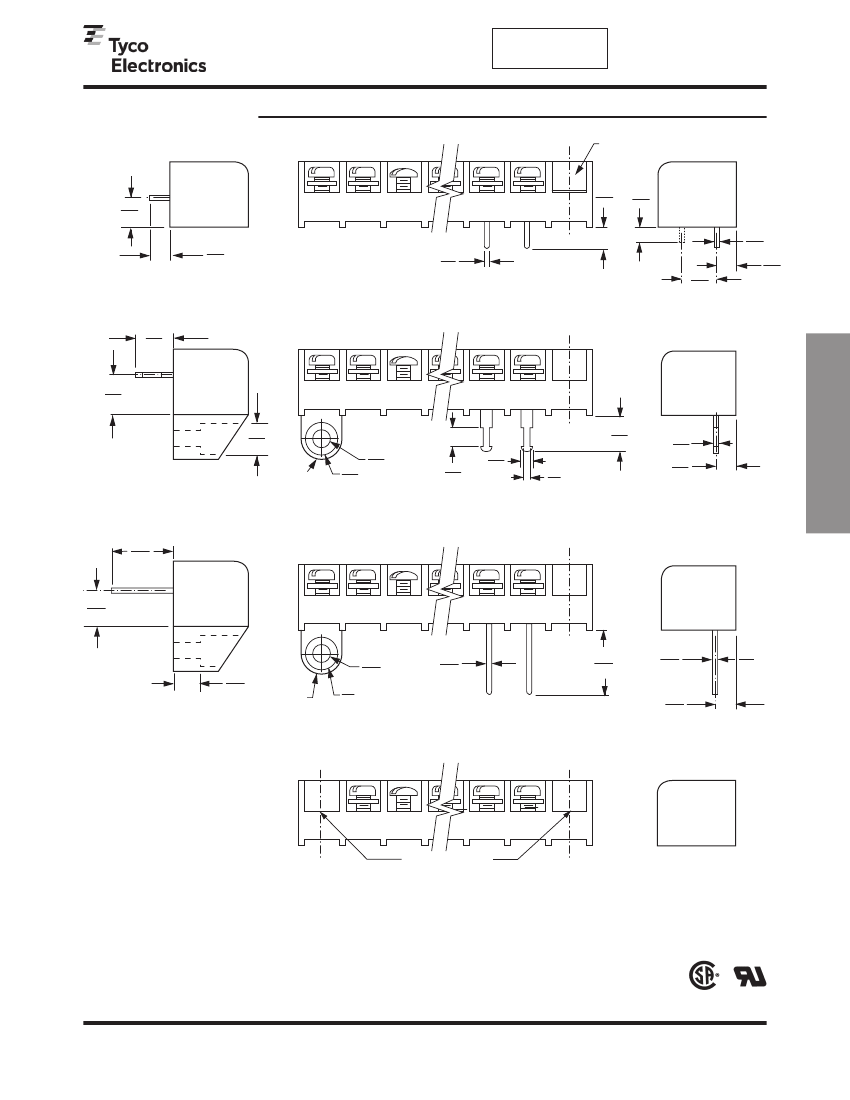

Mounting Panel Layout

Environmental Properties

Operating Temperature Range—

105°C [221°F] max.

Circuit Identification—See

page 179

Hardware Options

QC6—Quick

connects, see page 176

ST80—Single

sided solder tabs, see

page 176

J6—Jumpers,

see page 177

TC6—Safety

covers, see page 174

1437651-2—Wire

clamp screw, steel,

see page 178

1437651-5—Wire

clamp screw, brass,

see page 178

1437651-8—Binding

head screw,

steel, see page 178

LO3—Binding

head screw, stainless,

see page 178

LR30811

E54800

128

Catalog 1308389

Revised 6-07

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 8706-080-208
