ATC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> ATC

ATC: Description1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE; Categorysemiconductor Analog mixed-signal IC; File Size241KB，3 Pages; ManufacturerAstrodyne; Websitehttp://www.astrodyne.com/

Download Datasheet Parametric Compare View All

ATC Overview

1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE

ATC Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	6
Rated input voltage	115 V
Maximum total output power	10 W
Maximum limit input voltage	264 V
Minimum limit input voltage	90 V
Processing package description	PLASTIC, MODULE-6
state	ACTIVE
Craftsmanship	HYBRID
packaging shape	RECTANGULAR
Package Size	MICROELECTRONIC ASSEMBLY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Number of outputs	1
Maximum output voltage 1	3.37 V
Minimum output voltage 1	3.23 V
Rated output voltage 1	3.3 V
Analog IC other types	AC-DC REG PWR SUPPLY MODULE
Maximum load adjustment factor	0.5000 %

Preview

Download Datasheet

View All

VER :

A_0

update :

94.03.21

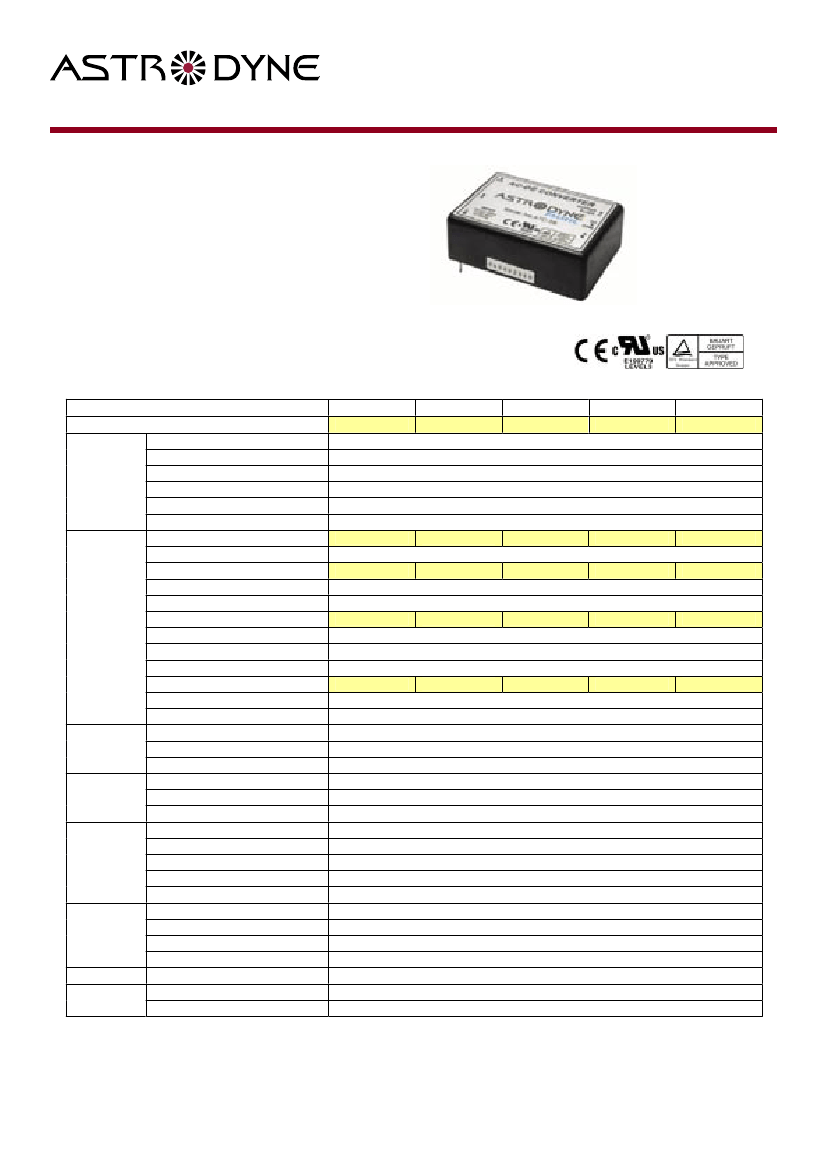

AC-DC Power Module

1 0 Wa

ATC

SERIES

t t U tram iniature Mo dular Switc hing P ower Suppli es

KEY FEATURES

Switching Power Module for PCB Mountable

Fully Encapsulated Plastic Case

Universal Input Range 90-264VAC, 47-440 Hz

Regulated Output

Low Ripple and Noise

High Efficiency

CE, cUL, TUV Approvals

2-Year Product Warranty

AT C

Watts

e r i e s

ELECTRICAL SPECIFICATIONS

Model No.

( Single Output )

ATC-3.3S

10W

47-440 Hz

200 mA max. (115 VAC) / 130 mA max. (230 VAC)

10 A max. (115 VAC) /20 A max. (230 VAC)

0.75 mA max.

1.5 A slow blow type

3.3V

±2%

3000

±0.3%.

±0.5%

470-23,000µF depending on model

<0.2% Vout +40mV max (Vp-p)

<0.5% Vout +50mV max (Vp-p)

65%

15 ms min.

100 kHz

Hiccup technique, auto-recovery

Zener diode clamp

Hiccup mode, indefinite (automatic recovery)

3000V

1500V

500V

-25°C…+70°C (with derating)

-40°C…+85°C

±0.02%/°C

95% RH

>250,000 h @ 25°C (MIL-HDBK-217F)

2.52 x 1.77 x 0.85 Inches

100 g

Free air convection

UL/cUL, CE, TUV

EN 55022 class B

EN 50082-1

All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.

ATC-5S

10W

ATC-12S

10W

ATC-15S

10W

ATC-24S

10W

Max Output Wattage (W)

Voltage

Frequency (Hz)

Input

90-264 VAC or 120-370 VDC

Current (Full load)

Inrush Current (<2ms)

Leakage Current

External Fuse (recommend)

Voltage (V.DC.)

Voltage Accuracy

Current (mA) max

Line Regulation (LL-HL) (typ.)

Load Regulation (5-100%) (typ.)

Minimum Load

Maximum Capacitive Load

Ripple

Noise

Efficiency

Hold-up Time

Switching Frequency

Over Power Protection

2000

12V

833

15V

666

24V

426

Output

71%

74%

71%

74%

Protection

Over Voltage Protection

Short Circuit Protection

Input-Output (V.AC)

Isolation

Input-FG (V.AC)

Output-FG (V.AC)

Operating Temperature

Storage Temperature

Environment

Temperature Coefficient

Humidity

MTBF

Dimension (L x W x H)

Case Material

Weight

Cooling Method

Agency Approvals

EMI

(Conducted & Radiated Emission)

EMS

(Noise Immunity)

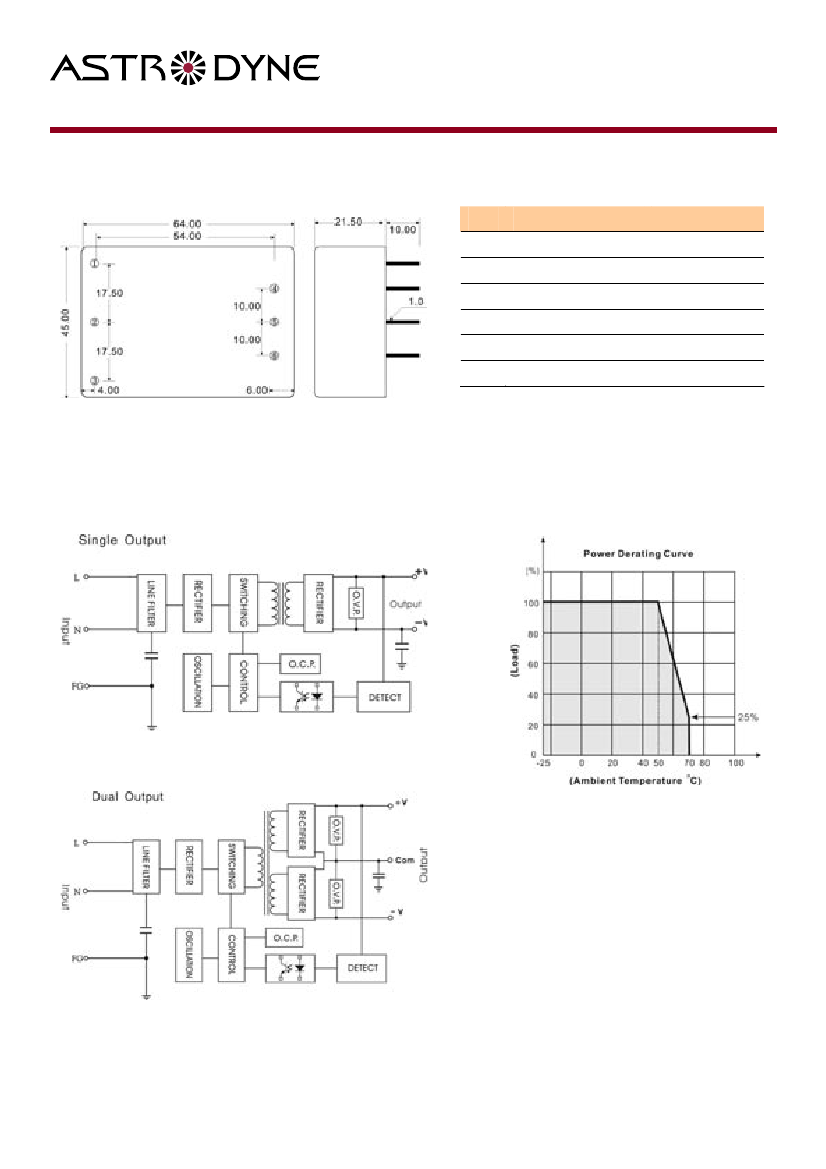

( 64.0 x 45.0 x 21.5 mm ) Tolerance

½0.5

Physical

Plastic resin with Fiberglass (flammability to UL 94V-0)

Safety

EMC

http://www.archcorp.com.tw

TEL: +886-2-26989508 FAX: +886-2-26981319

-1-

WWW.ASTRODYNE.COM

300 Myles Standish Blvd., Taunton, MA 02780

Ph: 1-800-823-8082

Fax: 508-823-8181

ATC Related Products

	ATC	ATC-3.3S	ATC-12S	ATC-5D	ATC-15S	ATC-15D	ATC-12D	ATC-24S
Description	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE	1-OUTPUT 10 W AC-DC REG PWR SUPPLY MODULE
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	6	6	6	6	6	6	6	6
Rated input voltage	115 V	115 V	115 V	115 V	115 V	115 V	115 V	115 V
Maximum total output power	10 W	10 W	10 W	10 W	10 W	10 W	10 W	10 W
Maximum limit input voltage	264 V	264 V	264 V	264 V	264 V	264 V	264 V	264 V
Minimum limit input voltage	90 V	90 V	90 V	90 V	90 V	90 V	90 V	90 V
Processing package description	PLASTIC, MODULE-6	PLASTIC, MODULE-6	PLASTIC, MODULE-6	PLASTIC, MODULE-6	PLASTIC, MODULE-6	PLASTIC, MODULE-6	PLASTIC, MODULE-6	PLASTIC, MODULE-6
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
Craftsmanship	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Number of outputs	1	1	1	1	1	1	1	1
Maximum output voltage 1	3.37 V	3.37 V	3.37 V	3.37 V	3.37 V	3.37 V	3.37 V	3.37 V
Minimum output voltage 1	3.23 V	3.23 V	3.23 V	3.23 V	3.23 V	3.23 V	3.23 V	3.23 V
Rated output voltage 1	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Analog IC other types	AC-DC REG PWR SUPPLY MODULE	AC-DC REG PWR SUPPLY MODULE	AC-DC REG PWR SUPPLY MODULE	AC-DC REG PWR SUPPLY MODULE	AC-DC REG PWR SUPPLY MODULE	AC-DC REG PWR SUPPLY MODULE	AC-DC REG PWR SUPPLY MODULE	AC-DC REG PWR SUPPLY MODULE
Maximum load adjustment factor	0.5000 %	0.5000 %	0.5000 %	0.5000 %	0.5000 %	0.5000 %	0.5000 %	0.5000 %
