3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
TURQUOISE, Ultra
BLUE, Ultra Bright Bright
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
TURQUOISE, Bright
B
3UTC-X
♦
♦
♦
♦
♦
♦
♦

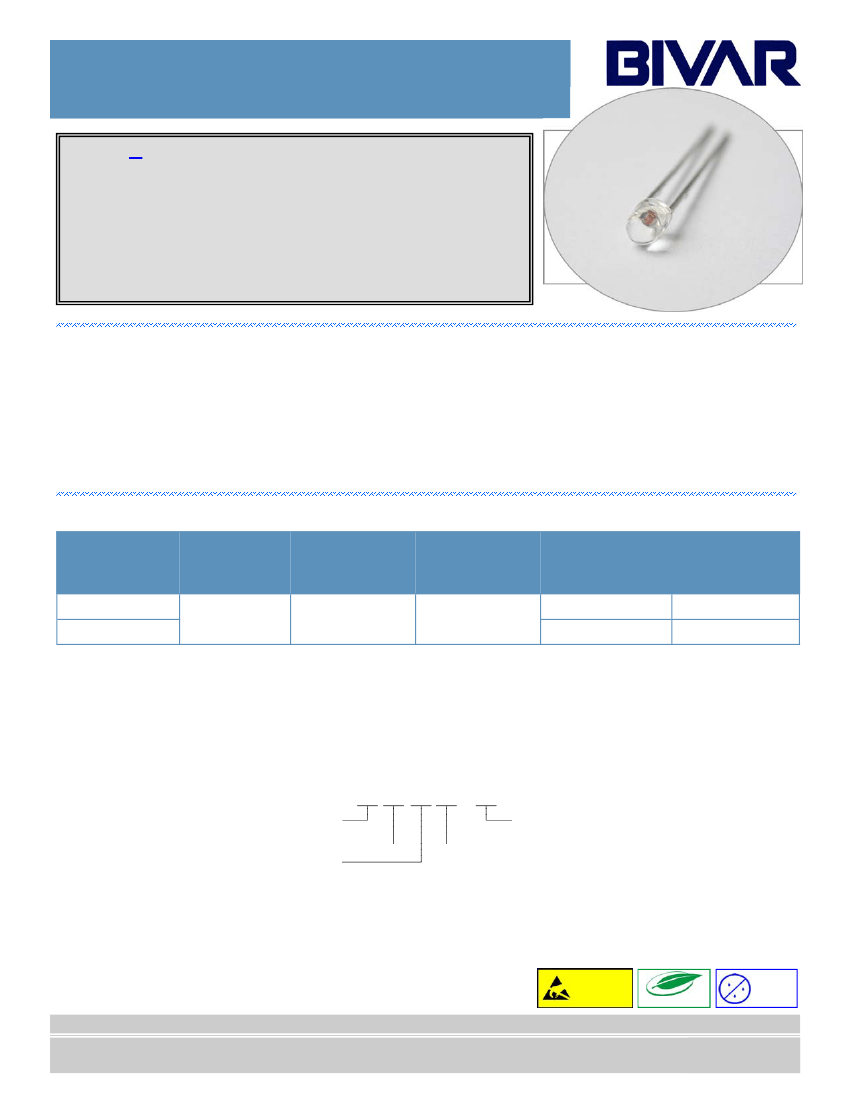

Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear Lens
Available in Flange (F) and Shouldered (S) Lead Frame
styles
Up to 800 mcd Luminous Intensity at 20 mA
Ideal for Back Lighting, Status Indication, and Display
Recommended for Bivar Flexible Light Pipe assemblies
Bivar 3mm T1 Package Ultra Bright LED is ideal for those applications where intensive ambient lighting
exists such as Back Lighting, Signage, and Sunlight Readable applications. Bivar offers water clear
LED lens for maximum light output. The Flanged LED is ideal for Panel Mount Clip & Ring assemblies.
The Shouldered Lead frame LED is ideal for vertical spacer assemblies without lead bends and also
has a built in strain relief feature which is ideal for right angle holder assemblies that require lead
bends.
Part Number
3UTC-F
3UTC-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
500nm
Lens Appearance
Water Clear
Water Clear
Viewing Angle
20°
30°
GaN/SiC
TURQUOISE
Part Number Designation
3 U X X -X
LED Body, mm
Ultra Bright
Emitted Color
Lead Frame & Body Style
i.e. -F, -S
Lens Appearance
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE, Ultra Bright
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
TURQUOISE, Bright

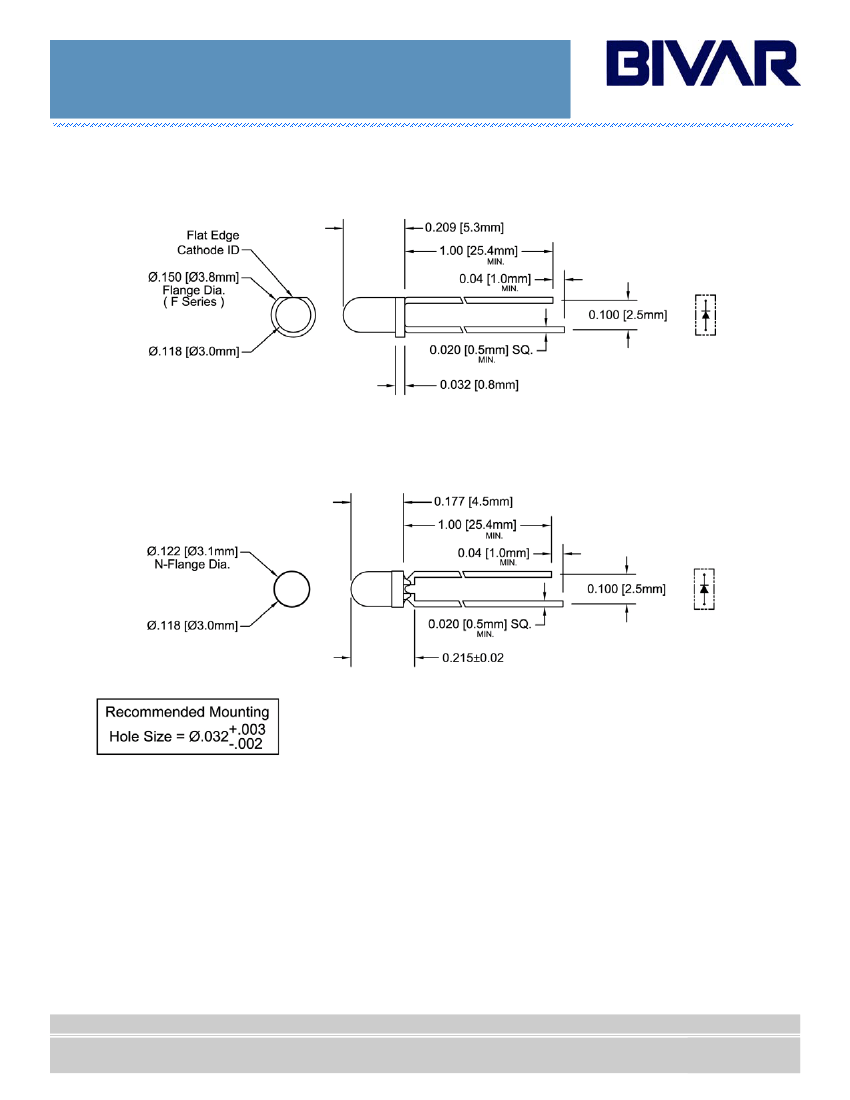

Outline Dimensions
Flanged “3UXX-F” LED
Shouldered Lead “3UXX-S” LED
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE, Ultra Bright
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
TURQUOISE, Bright
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
70 mW
30 mA
150 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
/
TYP
/
/
MAX
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
TYP
800
800
MAX
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
20
30
Part Number
MIN TYP MAX MIN TYP MAX
3UTC-F
3UTC-S
/
3.5
4.0
/
20
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE, Ultra Bright
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
TURQUOISE, Bright

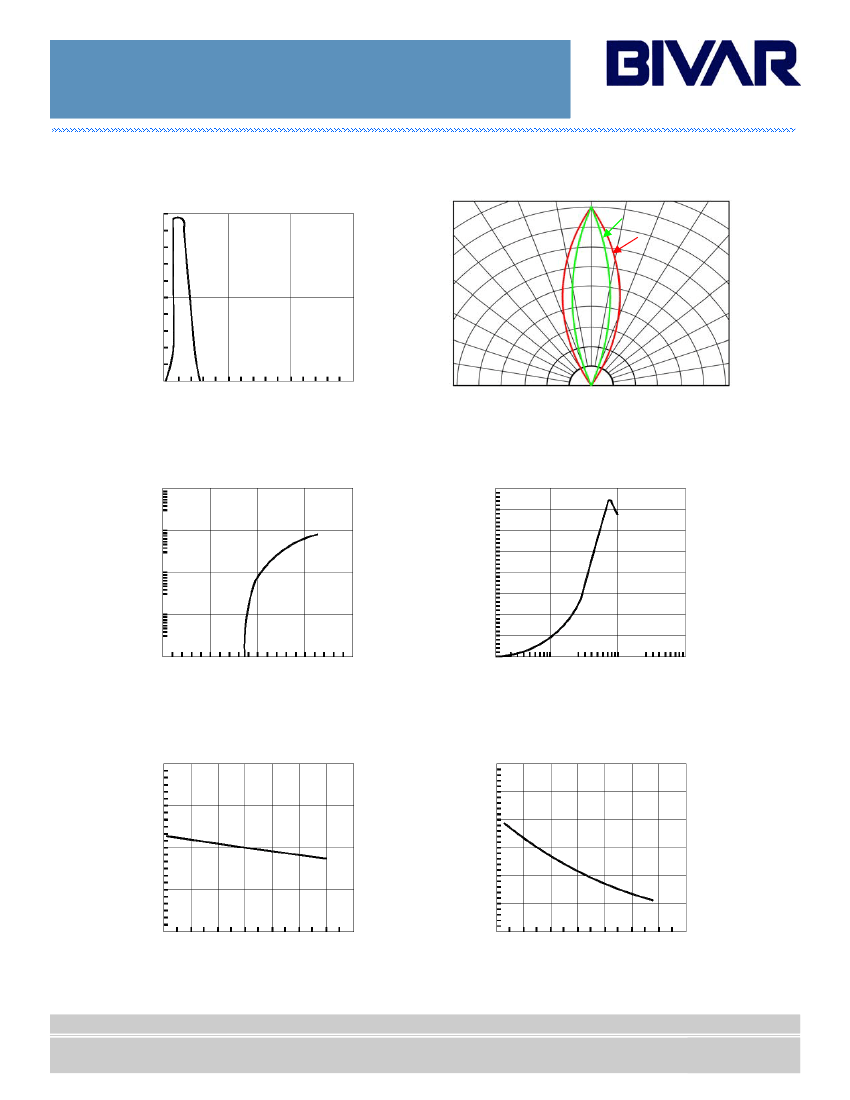

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
20°
30°
40°
50°
1.0
0.5
60°
70°
80°
0.0
480
λ(nm)
530
580
630
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
If (mA)
Iv
1000
100
10
1
0.1
1.0
2.0
3.0
4.0
5.0
Vf (V)
4.0
3.0
2.0
1.0
0.0
1
10
100
1000
If (mA)
Fig. 3 Forward Current vs. Forward Voltage
Fig. 4 Relative Luminous Intensity vs. Forward Current
Normalize @ 20 mA
Iv
Vf (V)
1.2
1.1
1.0
0.9
0.8
-40
T (°C)
3.0
2.0
1.0
80
0
Fig. 5 Forward Voltage vs. Temperature
0
40
0.0
T (°C)
-40
0
40
80
Fig. 6 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE, Ultra Bright
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
TURQUOISE, Bright
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
Anti-Static Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision C 06/15
Page 4 of 4
Page 5 of 5
