30.6mm (1.2 INCH) 5x7 DOT MATRIX DISPLAY
Part Number: TA12-11YWA
Yellow
Features
1.2 inch matrix height.
Dot size 3mm.
Low current operation.
High contrast and light output.
Column cathode and column anode available.
Easy mounting on P.C. boards or sockets.
Mechanically rugged.
Standard : gray face, white dot.
RoHS compliant.
Description
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.

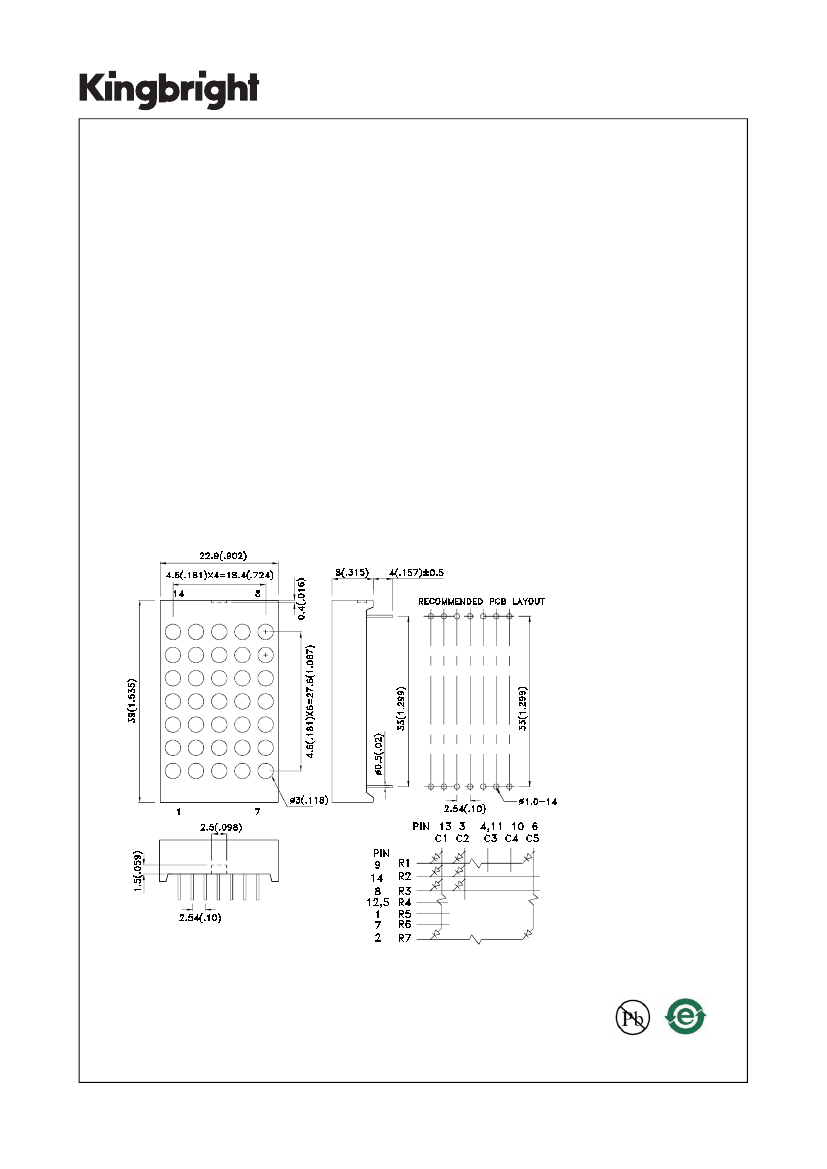

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAC4400
APPROVED: WYNEC
REV NO: V.11
CHECKED: Joe Lee
DATE: APR/02/2011
DRAWN: J.Yu
PAGE: 1 OF 6
ERP: 1332000083
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
TA12-11YWA
Yellow (GaAsP/GaP)
White Diffused
5600
Typ.
13000
Column Anode
Description
Note:
1. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Typ.
590
588
35
20
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Yellow
75
30
140
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAC4400
APPROVED: WYNEC
REV NO: V.11
CHECKED: Joe Lee
DATE: APR/02/2011
DRAWN: J.Yu
PAGE: 2 OF 6
ERP: 1332000083
