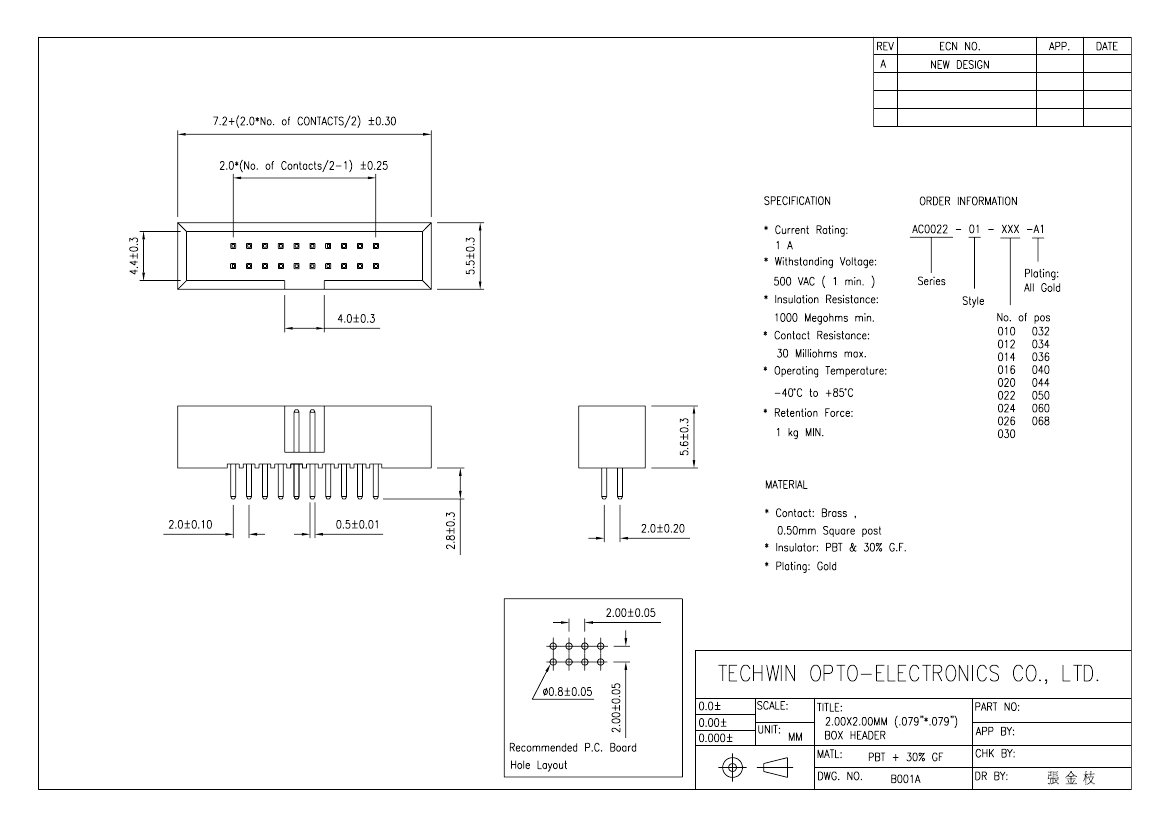

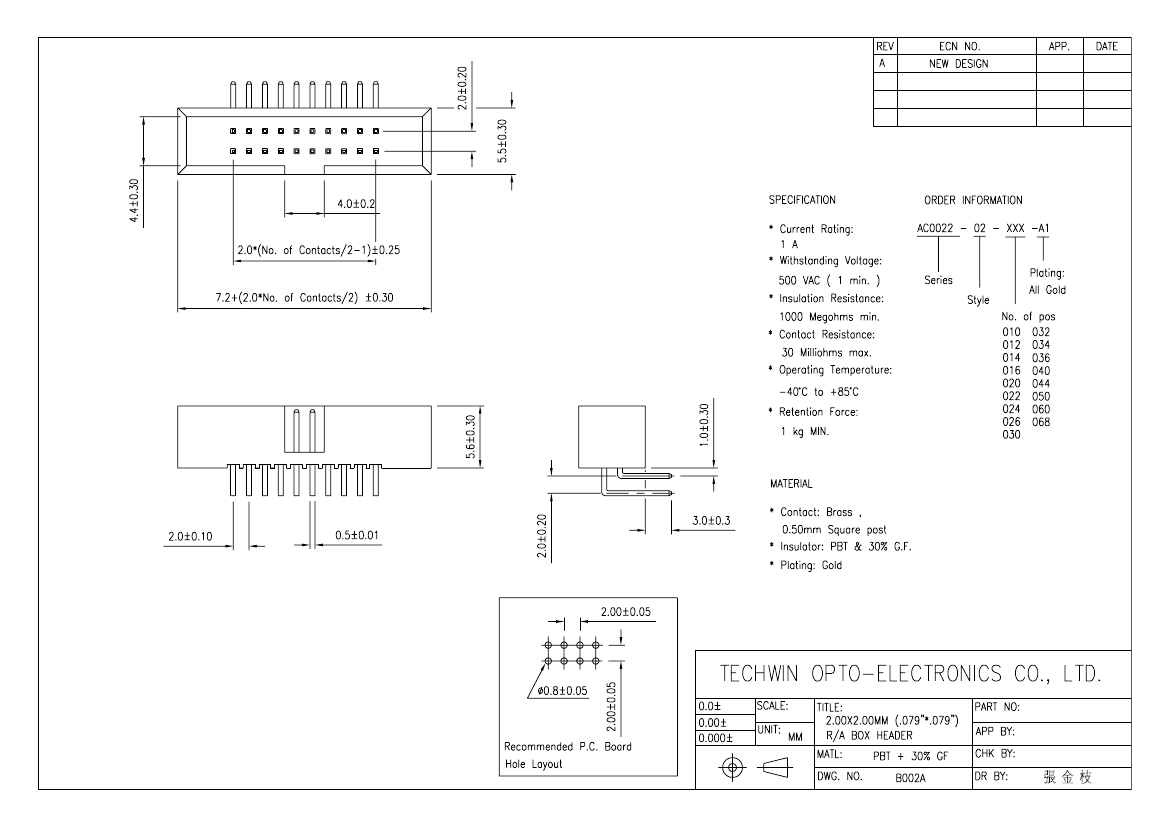

AC0022-01-040-A1

Description
Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle
CategoryThe connector    The connector
File Size86KB,2 Pages
ManufacturerTechwin Opto-Electronics Co., Ltd.
Download Datasheet Parametric View All

AC0022-01-040-A1 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle

AC0022-01-040-A1 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
body width0.217 inch
subject depth0.22 inch
body length1.858 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberAC0022
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1GUIDE SLOT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts40
Base Number Matches1
