507-4538-0933-630 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> 507-4538-0933-630

507-4538-0933-630: DescriptionPanel Mount Indicator Lamps NEON DATALITE; CategoryLED optoelectronic/LED; File Size64KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

507-4538-0933-630 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	507-4538-0933-630	-	-	View	Buy Now

507-4538-0933-630 Overview

Panel Mount Indicator Lamps NEON DATALITE

507-4538-0933-630 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	DIALIGHT
Product Category	Panel Mount Indicator Lamps
RoHS	N
Product	Neon Datalamps
Lamp Type	Neon
Lamp Base Type	Bi-Pin
Packaging	Bulk
Lamp Size	T-2
Lens Shape	Stovepipe
Factory Pack Quantity	5

Preview

Download Datasheet

View All

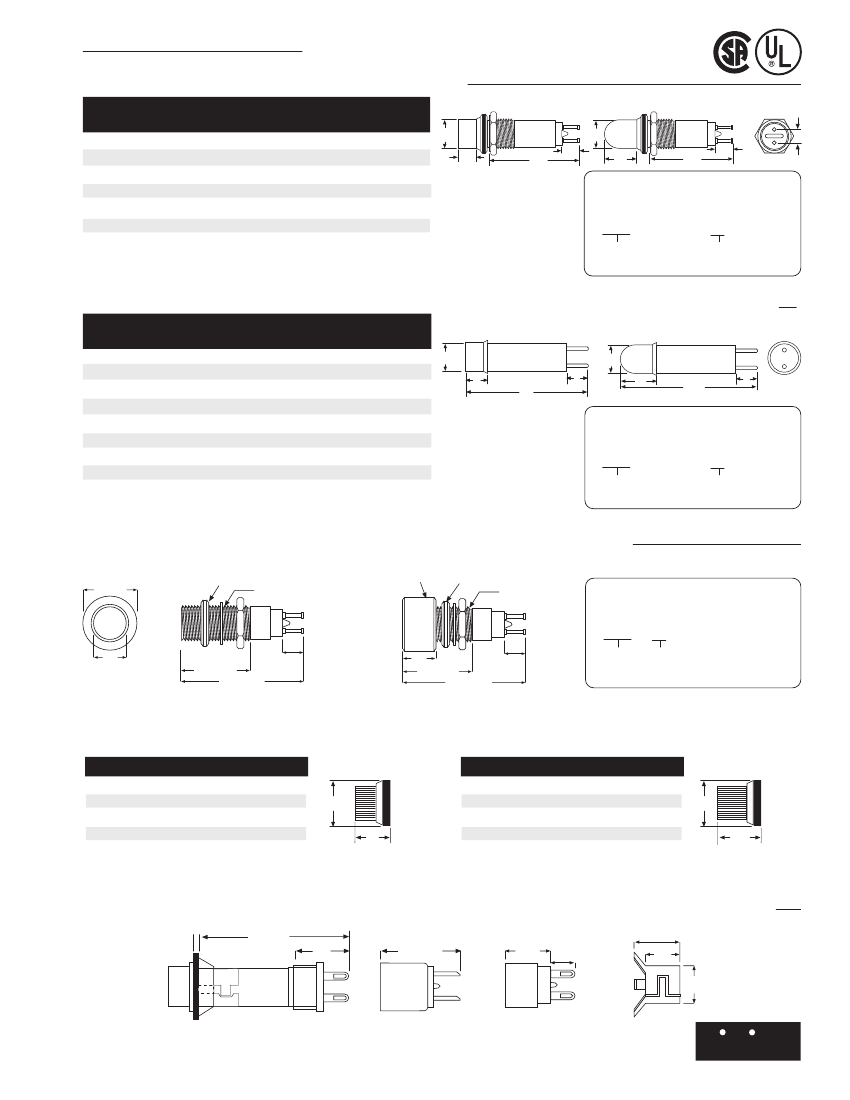

NEON PANEL MOUNT INDICATORS

249 SERIES FOR 3/8" MOUNTING HOLE

Fig. 1

Fig. 2

7.11

[.28]

4.76

[.19]

4.76

[.19]

SERIES

PART NUMBER

COLOR

RED

AMBER

CLEAR

RED

AMBER

CLEAR

VOLTAGE

105–125 AC-DC

110–125 AC-DC

mA OHMS FIG

0.7

1.9

100K

22K

249-7841-1431-574

249-7841-1433-574

249-7841-1437-574

249-7866-1431-514

249-7866-1433-514

249-7866-1437-514

7.11

[.28]

4.06

[.16]

9.92

[.39]

32.54

[1.28]

MAX

4.76

[.19]

37.34

[1.47]

MAX

PART NUMBER ORDERING CODE

249 – 7841 – xx3x – 574

249 – 7866 – xx3x – 514

Series

Lens Shape:

14 – Fig 1 = Cylindrical

09 – Fig 2 = Stovepipe

Material & Finish: Housing - Black Anodized

Aluminum. Cap - High Impact Plastic

507 SERIES CARTRIDGES FOR HOLDERS & CLIPS • 25,000 LIFE HOURS

SERIES

PART NUMBER

COLOR

RED

AMBER

WHITE

CLEAR

RED

AMBER

WHITE

CLEAR

VOLTAGE

105–125 AC-DC

110–125 AC-DC

mA OHMS

0.3

1.2

100K

47K

FIG

7.11

[.28]

6.73

[.27]

Fig. 3

7.11

[.28]

5.17

[.20]

32.13

[1.27]

MAX

Fig. 4

507-4537-1431-640

507-4537-1433-640

507-4537-1435-640

507-4537-1437-640

507-4538-1431-630

507-4538-1433-630

507-4538-1435-630

507-4538-1437-630

11.51

[.45]

36.91

[1.45]

MAX

5.17

[.20]

PART NUMBER ORDERING CODE

507 – 4537 – xx3x – 640

507 – 4538 – xx3x – 630

Series

Lens Shape:

14 – Fig 3 = Cylindrical

09 – Fig 4 = Stovepipe

Material & Finish: Housing - Clear Anodized

Aluminum. Cap - High Impact Plastic

250 & 508 SERIES HOLDERS FOR 3/8" MOUNTING HOLE

HOLDER WITHOUT COLLAR

13.1

[.515]

FLANGE NUT

3/8 - 32 NF THD

HOLDER WITH COLLAR

COLLAR

FLANGE

3/8 - 32 NF THD

PART NUMBER ORDERING CODE

250 – xx45 – 14 – 504

508 – xx45 – 504

Series

Terminal Type:

87 = Turret Terminals

74 = Solder Blade (Not Shown)

75 = Solder Cups (Not Shown)

7.90

[.310]

15.90 [.625]

32.54 [1.28]

MAX

5.00

[.197]

7.10

[.280]

15.90

[.625]

35.72 [1.406] MAX

5.00

[.197]

250-8745-14-504

508-8745-504

250 Series Caps for use with 507

cylindrical cartridges. (Fig. 3)

CAP PART NO.

COLOR

250-3531-500

250-3533-500

250-3535-500

250-3537-500

RED

AMBER

WHITE

CLEAR

FIG

13.10

[.52]

Fig. 5

250 Series Caps for use with 507

stovepipe cartridges. (Fig. 4)

CAP PART NO.

COLOR

250-1631-500

250-1633-500

250-1635-500

250-1637-500

RED

AMBER

WHITE

CLEAR

FIG

13.10

[.52]

Fig. 6

12.25

[.50]

MAX

18.26

[.72]

MAX]

Material & Finish: Holders – Black Anodized Aluminum,

Cap – Polycarbonate Fig. 5, High Impact Plastic Fig. 6, Cartridge – Clear Anodized Aluminum

515 SERIES CONNECTORS & SPEED CLIPS FOR 9/32" MOUNTING HOLE

CARTRIDGE WITH SPEED CLIP & CONNECTOR

1.59 [.06]

PANEL

30.02 [1.19]

15.88

[.625]

CONNECTOR

515-0012

15.88 [.625]

MAX

CONNECTOR

515-0074

13.89

[.547]

MAX

4.76

[.188]

SPEED CLIP 515-0051

9.14

[.360]

6.86

[.270]

7.49

[.295]

Green and Blue Lens Caps Not Available for Neon Indicators

Dimensions in mm [inches]

Dialight

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com
