Datasheet> All Categories > The connector> The connector> 52207-1733

52207-1733: DescriptionFFC & FPC Connectors 1.0 FPC ZIF 17Ckt Sn-Ag-Bi; CategoryThe connector The connector; File Size25KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52207-1733 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52207-1733	-	-	View	Buy Now

52207-1733 Overview

FFC & FPC Connectors 1.0 FPC ZIF 17Ckt Sn-Ag-Bi

52207-1733 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.106 inch
subject depth	0.299 inch
body length	0.854 inch
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	39u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

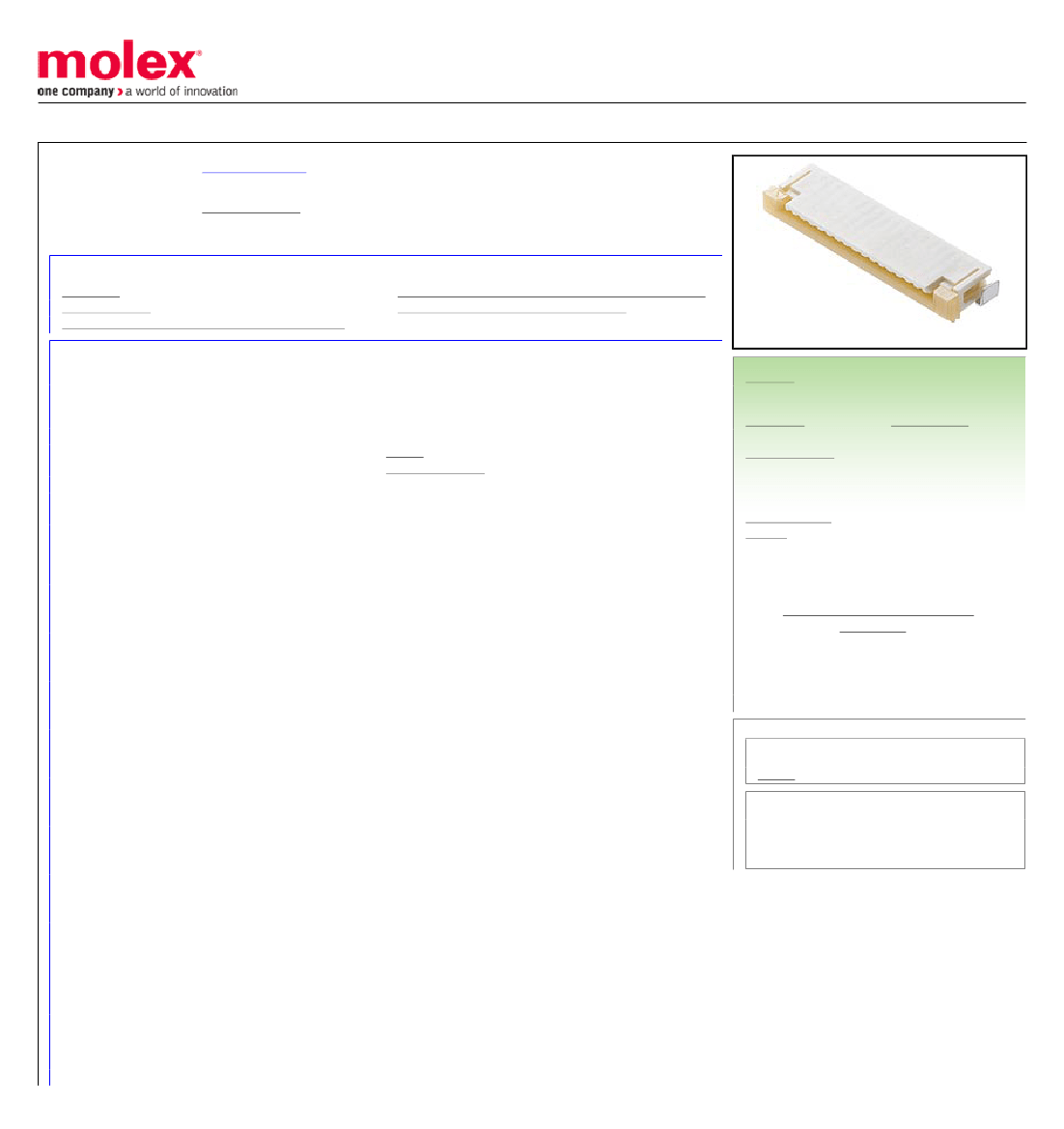

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0522071733

Active

FFC-FPC (SMT)

1.00mm Pitch Easy-On FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Top

Contact Style Receptacle, 17 Circuits, High Barrier Packaging

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52207-009-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Packaging Specification SPK-52207-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

FFC/FPC Connectors

52207

FFC-FPC (SMT)

Easy-On

Slider

887191277707

Natural

Top

90° Angle

94V-0

2.70mm

Phosphor Bronze

Silver, Tin-Bismuth

Nylon

636.400/mg

Right Angle

2.00mm

Yes

Embossed Tape on Reel

1.00mm

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

1.0A

125V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free
