2SC6096-TD-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC6096-TD-E

2SC6096-TD-E: DescriptionBipolar Transistors - BJT BIP NPN 2A 100V; CategoryDiscrete semiconductor The transistor; File Size322KB，7 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

2SC6096-TD-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2SC6096-TD-E	-	-	View	Buy Now

2SC6096-TD-E Overview

Bipolar Transistors - BJT BIP NPN 2A 100V

2SC6096-TD-E Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
package instruction	SC-62, TO-243, 3 PIN
Contacts	3
Manufacturer packaging code	419AU
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Shell connection	COLLECTOR
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	100 V
Configuration	SINGLE
Minimum DC current gain (hFE)	300
JEDEC-95 code	TO-243AA
JESD-30 code	R-PSSO-F3
JESD-609 code	e6
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
surface mount	YES
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	300 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

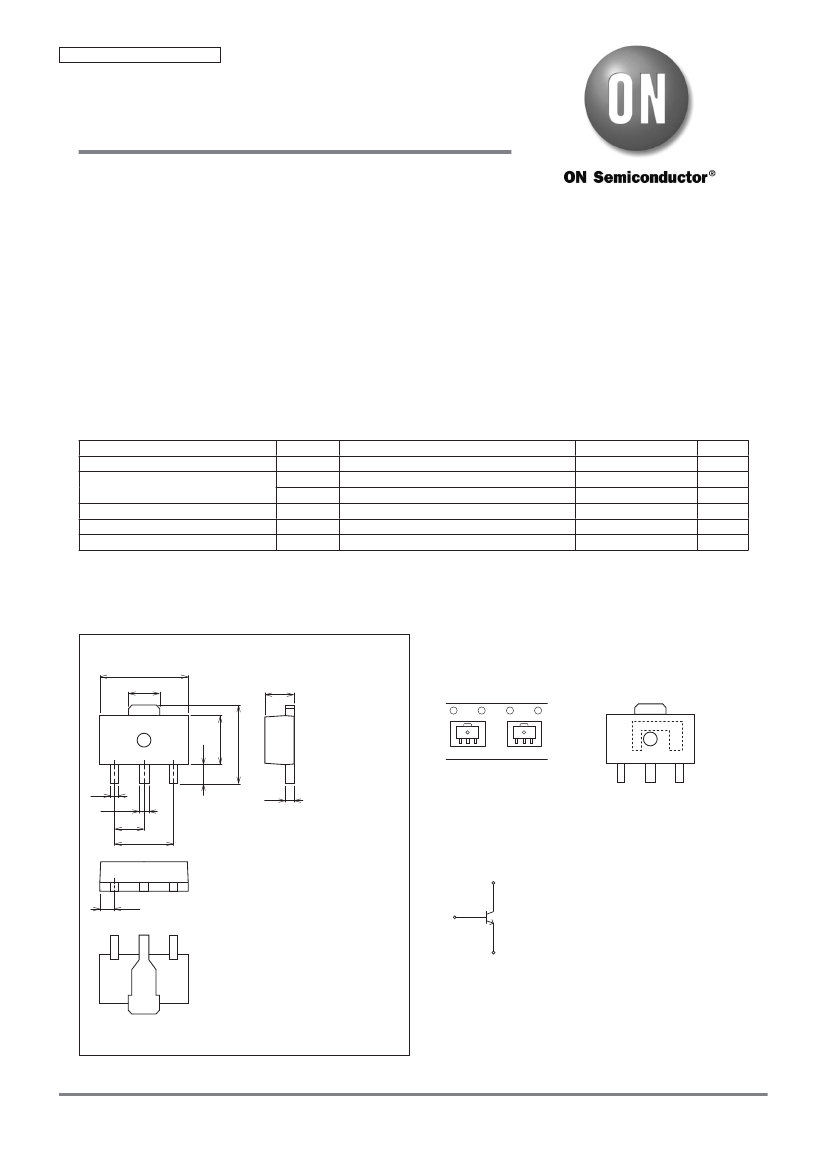

Ordering number : ENA0434A

2SC6096

Bipolar Transistor

100V, 2A, Low VCE(sat), NPN Single PCP

Applicaitons

•

http://onsemi.com

DC / DC converter, relay drivers, lamp drivers, motor drivers, inverter

Features

•

Adoption of FBET, MBIT process

Low collector-to-emitter saturation voltage

High allowable power dissipation

•

Large current capacity

High-speed switching

Halogen free compliance

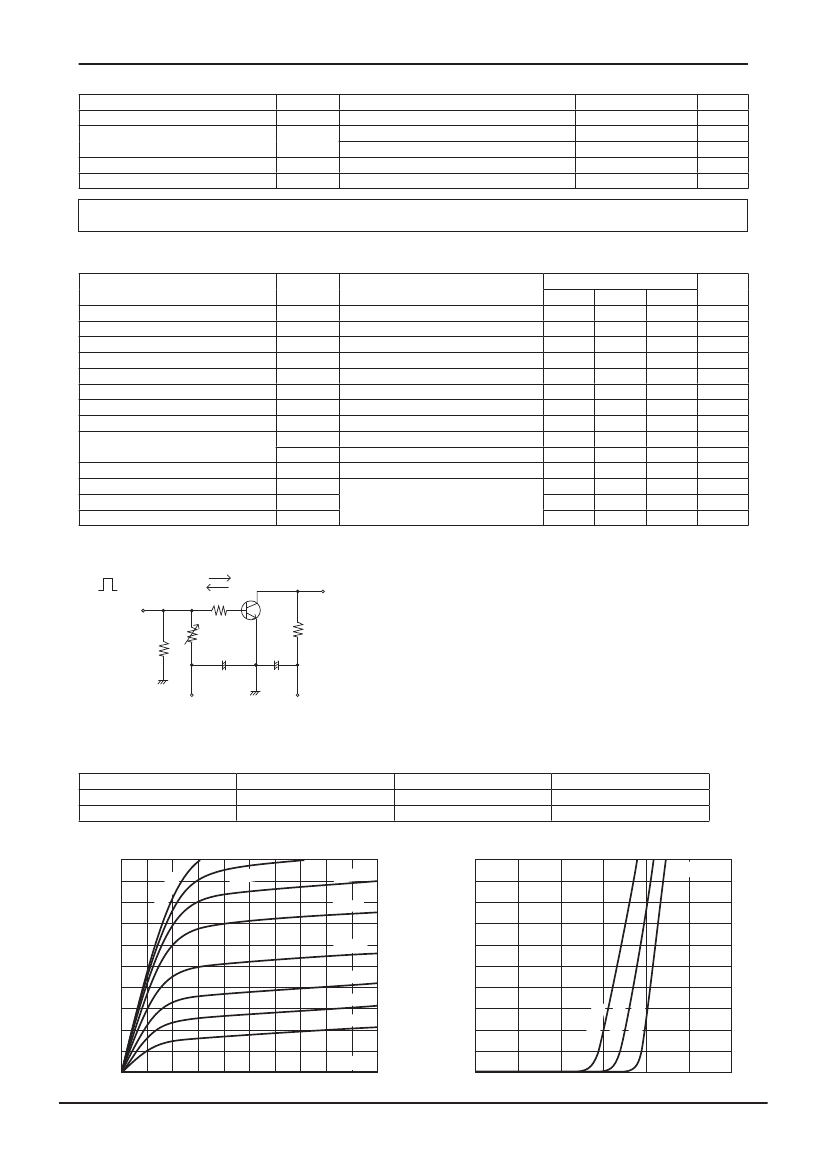

Speciﬁcations

Absolute Maximum Ratings

at Ta=25°C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Collector Current (Pulse)

Symbol

VCBO

VCES

VCEO

VEBO

ICP

Conditions

Ratings

120

100

6.5

Unit

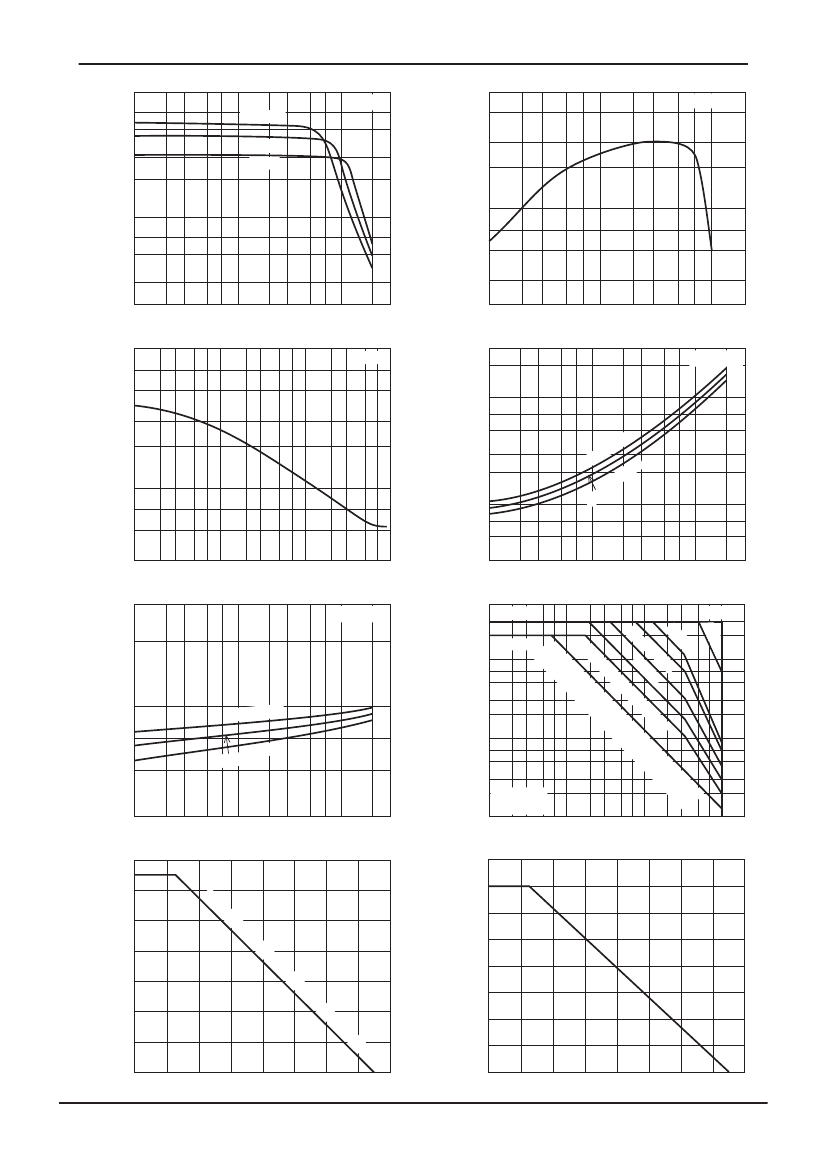

Continued on next page.

Package Dimensions

unit : mm (typ)

7007B-004

Top View

4.5

1.6

1.5

Product & Package Information

• Package

: PCP

• JEITA, JEDEC

: SC-62, SOT-89, TO-243

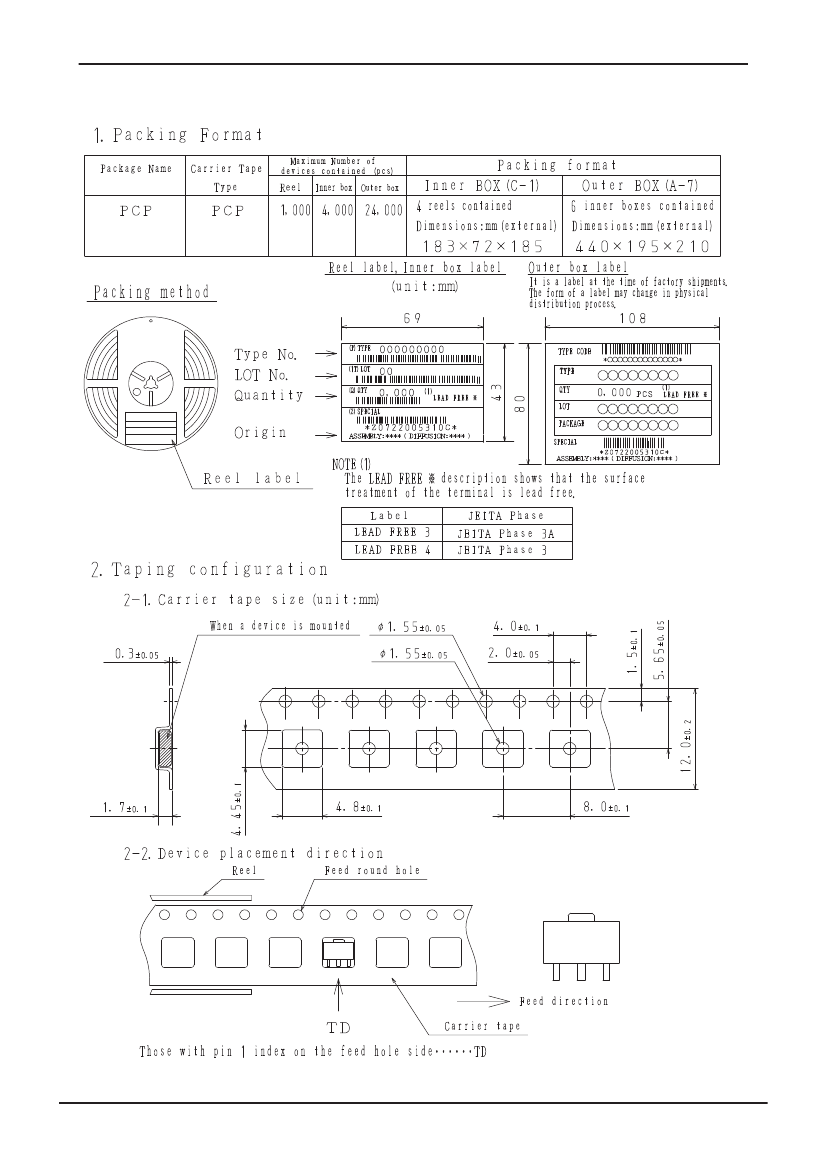

• Minimum Packing Quantity : 1,000 pcs./reel

2SC6096-TD-E

2SC6096-TD-H

Packing Type: TD

Marking

1.0

4.0

0.4

0.5

1.5

3.0

0.4

Electrical Connection

0.75

1 : Base

2 : Collector

3 : Emitter

Bottom View

PCP

Semiconductor Components Industries, LLC, 2013

September, 2013

82912 TKIM/62006EA MSIM TB-00002425 No. A0434-1/6

LOT No.

2.5
