BT830-SA-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> BT830-SA-01

BT830-SA-01: DescriptionBluetooth / 802.15.1 Modules Module BTv4.0 dual Mode UART HCI; CategoryModule/solution; File Size339KB，2 Pages; ManufacturerLaird; Environmental Compliance

Download Datasheet Parametric Compare View All

BT830-SA-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BT830-SA-01	-	-	View	Buy Now

BT830-SA-01 Overview

Bluetooth / 802.15.1 Modules Module BTv4.0 dual Mode UART HCI

BT830-SA-01 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Laird
Product Category	Bluetooth / 802.15.1 Modules
RoHS	Details
Class	Class 1
Version	Bluetooth 4.0
Data Rate	3 Mb/s
Operating Supply Voltage	1.8 V to 3.6 V
Output Power	7 dBm
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Sensitivity	- 89 dBm
Interface Type	UART
Packaging	Bulk
Antenna	Integrated
Frequency	2.4 GHz
Frequency Range	2.402 GHz to 2.48 GHz
Height	1.6 mm
Length	13 mm
Product	Bluetooth Modules
Width	8.5 mm
Protocol	Bluetooth 4.0
Factory Pack Quantity	135

Preview

Download Datasheet

View All

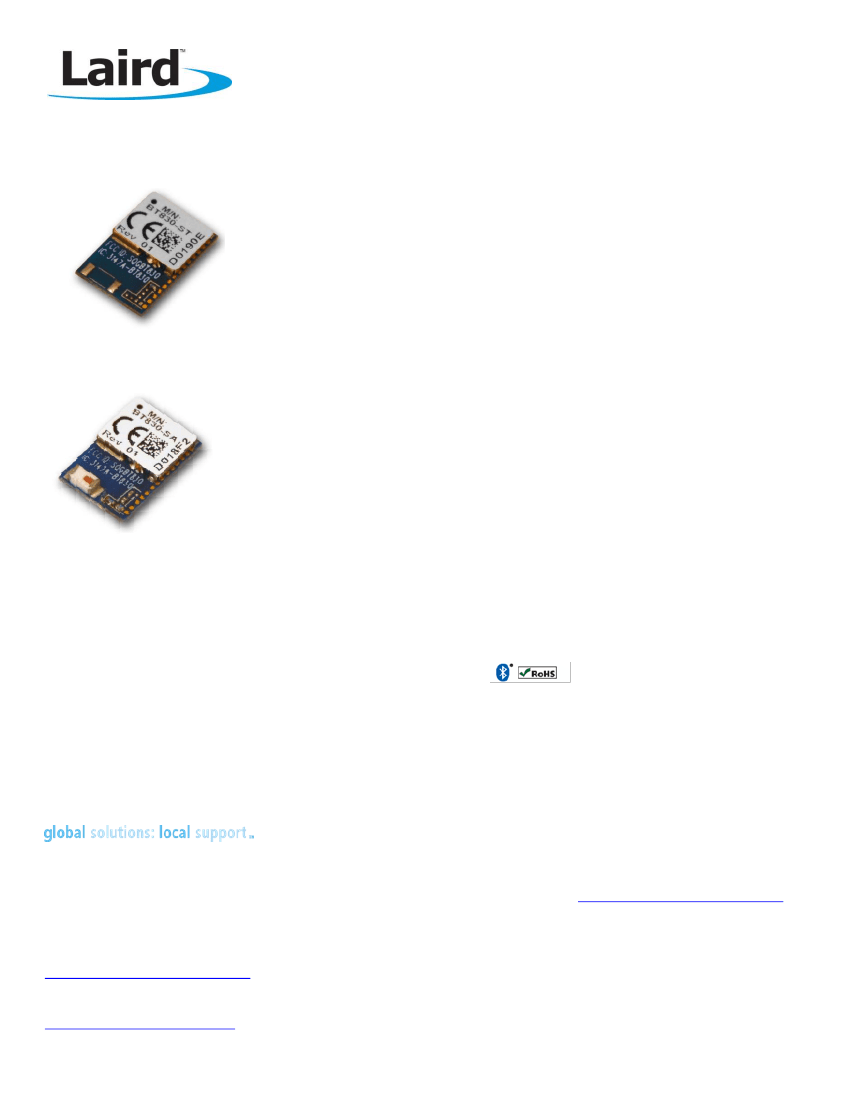

BT830 Series

Bluetooth v4.0 Class 1 UART HCI Modules

The BT830 series of UART HCI modules are a complement to Laird’s original

dual-mode Bluetooth v4.0 offerings (BT800 series), bringing support for

Classic Bluetooth and Bluetooth Low Energy (BLE) in a tiny footprint.

Leveraging the market-leading CSR 8811 chipset, the BT830 series

provides exceptionally low power consumption with outstanding range.

Supporting the latest Bluetooth v4.0 Specification with EDR (Enhanced

Data Rate), the Laird BT830 series enables OEMs to accelerate their

development time for leveraging either Classic Bluetooth or Bluetooth

Low Energy (BLE) into their operating system-based devices.

BT830-ST

The BT830 has a footprint as small as 8.5 x 13 mm, yet output power at 7

dBm. This makes these modules ideal for applications where designers

need both performance and minimum size. For maximum flexibility in

systems integration, the modules are designed to support a UART

interface plus GPIO and additionally I

S and PCM audio interfaces.

These modules present an HCI interface and have native support for

Windows CE/Mobile and Linux Bluetooth software stacks. All BT830 series

devices are fully qualified by the Bluetooth SIG as a Hardware Controller

Subsystem. This also allows designers to integrate their existing pre-

approved Bluetooth Host and Profile subsystem stacks to gain a Bluetooth

END product approval for their products.

The BT830 series is engineered to provide excellent RF performance with

options for an integrated antenna or for an external antenna via a trace

pin. Additionally, the modules have on-board band pass filters to further

reduce the regulatory and testing requirements for OEMs, ensuring a

hassle-free development cycle.

A fully featured, low-cost developer’s kit is available for prototyping,

debug, and integration testing of the BT830 series modules and further

reduces risk and time in development cycles.

BT830-SA

Features & Benefits



Application Areas



Bluetooth v4.0 - Dual Mode

Classic Bluetooth

Bluetooth Low Energy

Compact Footprint

Class 1 output 7 dBm

UART, GPIO, I2S, and PCM

Industrial Temperature Range

Bluetooth SIG approvals

FCC, IC, and CE approvals

AIDC products

Medical devices

ePOS terminals

Barcode Scanners

Industrial Cable

Replacement

M2M Connectivity

Automotive Diagnostic

Equipment

USA: +1.800.492.2320

Europe: +44.1628.858.940

Asia: +852.2923.0610

wirelessinfo@lairdtech.com

www.lairdtech.com/bluetooth

Support Portal:

http://ews-support.lairdtech.com

The details contained within this document are subject to change.

Download the product specification from

www.lairdtech.com/bluetooth

for the most current specification.

BT830-SA-01 Related Products

	BT830-SA-01	BT830-ST-01	BT830-ST-01-T/R	BT830-ST
Description	Bluetooth / 802.15.1 Modules Module BTv4.0 dual Mode UART HCI	Bluetooth / 802.15.1 Modules Module BTv4.0 dual Mode UART HCI	Bluetooth / 802.15.1 Modules BTv4.0 Dual Mode UAR T HCI Module - Class	Bluetooth / 802.15.1 Modules BTv4.0 Dual Mode UAR T HCI Module - Class
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Laird	Laird	Laird	Laird
Product Category	Bluetooth / 802.15.1 Modules	Bluetooth / 802.15.1 Modules	Bluetooth / 802.15.1 Modules	Bluetooth / 802.15.1 Modules
Class	Class 1	Class 1	Class 1	Class 1
Version	Bluetooth 4.0	Bluetooth 4.0	Bluetooth 4.0	Bluetooth 4.0
Data Rate	3 Mb/s	3 Mb/s	3 Mb/s	3 Mb/s
Operating Supply Voltage	1.8 V to 3.6 V	1.8 V to 3.6 V	3.3 V	3.3 V
Output Power	7 dBm	7 dBm	7 dBm	7 dBm
Minimum Operating Temperature	- 30 C	- 30 C	- 30 C	- 30 C
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Sensitivity	- 89 dBm	- 89 dBm	- 89 dBm	- 89 dBm
Interface Type	UART	UART	I2S, GPIO, UART	I2S, GPIO, UART
Frequency	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz
Frequency Range	2.402 GHz to 2.48 GHz	2.402 GHz to 2.48 GHz	2.402 GHz to 2.48 GHz	2.402 GHz to 2.48 GHz
Height	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Length	13 mm	13 mm	13 mm	13 mm
Product	Bluetooth Modules	Bluetooth Modules	Bluetooth Modules	Bluetooth Modules
Width	8.5 mm	8.5 mm	8.5 mm	8.5 mm
Protocol	Bluetooth 4.0	Bluetooth 4.0	Bluetooth 4.0	Bluetooth 4.0
Factory Pack Quantity	135	80	2500	80
RoHS	Details	Details	-	Details
Packaging	Bulk	-	Reel	Tray
