FXLE10-10M30 Overview

Fiber Optic Cable Assemblies 2-fiber OM3 10 GbE LC to LC Duplex, LSZH

FXLE10-10M30 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panduit
Product Category	Fiber Optic Cable Assemblies
Unit Weight	6.880000 oz

Preview

Download Datasheet

View All

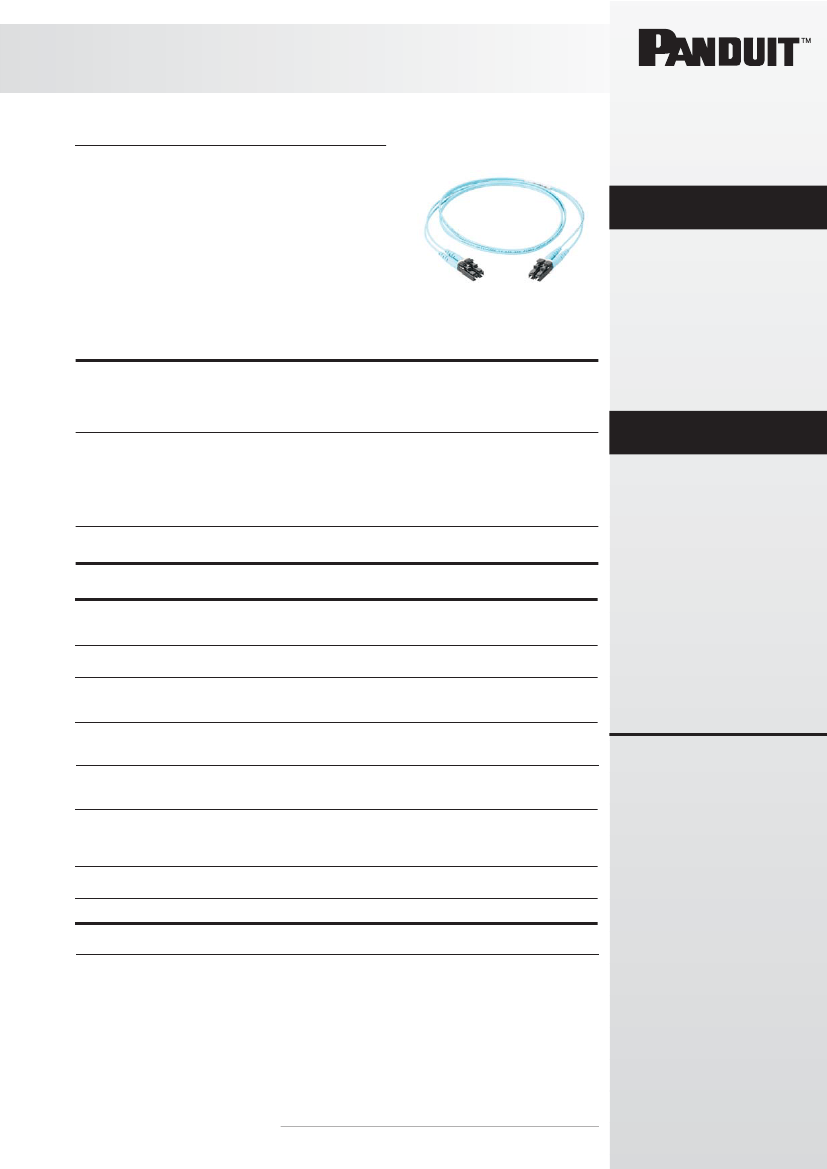

Opti-Core

™

Fibre Optic Patch Cords –

Low Smoke Zero Halogen (LSZH) Rated

specifications

RoHS compliant fibre optic patch cords shall include simplex or

duplex LC, SC, ST or MT-RJ connectors, or FJ or keyed FJ plugs or

jacks on both ends. RoHS compliant fibre optic pigtails shall include

simplex or duplex LC, SC, ST, or MT-RJ connectors, or FJ or keyed

FJ plugs or jacks on one end and open (unterminated) on the other

end. Patch cords and pigtails shall include laser optimised OM4, OM3

fibre or OM2, OM1 or OS1/OS2 fiber in 900µm tight-buffered fibre,

1.6mm or 3.0mm simplex or duplex zipcord jacketed cable, or 1.8mm

duplex zipcord jacketed cable. Jacketed cable shall be compliant with

IEC-60332-3 (LSZH) flame ratings. Patch cords and pigtails shall meet

or exceed requirements of TIA/EIA-568-C.3. The fibre connectors shall

be FOCIS compliant or compatible, and exceed the requirements of

TIA/EIA-455-21A for 500 mating cycles.

S P E C I F I C AT I O N S H E E T

technical information

Standards

requirements:

All connectors exceed TIA/EIA-455-21A: 500 mating cycles

Compliant with:

TIA/EIA-568-C.3 and ISO/IEC 11801

IEC-61754-7 (International)

TIA-604-5 (FOCIS-5)

IEC-60332-3 (LSZH) flame rating

Per connection:

0.10dB typical (multimode), 0.25db max. (OM1, OM2

and Standard OM3, OM4)

0.15db max. (optimized OM3 and Optimized OM4) for SC and LC

0.30db max. for other connectivity

0.50dB max. (MT-RJ multimode);

0.25dB typical singlemode, 0.35dB max., (SM-UPC) for LC,

0.50dB max. (SM-UPC) for other connectivity

Insertion

loss:

Return loss:

20dB min. (multimode); 26dB min. (10Gig

™

multimode);

55dB min. (singlemode)

key features and benefits

Factory terminated and 100%

tested for insertion loss (all)

and return loss (10Gig

™

and SM)

Low smoke zero halogen

rated jacket

Singlemode endface

geometry 100%

factory inspected

Singlemode endface

UPC polished

(55dB min. return loss)

Singlemode patch cords

include low water peak fibre

Certified 10 GbE performance

Assures high performance for increased up-time and lower

cost of ownership

Meets IEC-60332-3 (LSZH) flame rating for standard

compliant safety

Every singlemode endface is inspected in compliance with

Telcordia GR-326-CORE, Issue 3 requirements to assure

high performance

Ensure a high quality endface for higher return loss to meet

application requirements

Eliminates high attenuation in the E-band and allows

operation over the entire 1260nm – 1625nm wavelength

range; excellent for CWDM and DWDM applications

10Gig

™

Patch Cords and Pigtails are tested per IEEE 802.3ae 10

GbE to support network transmission speeds up to 10 Gb/s for link

lengths up to 300m for OM3 and up to 550 meters for OM4 at

850nm to assure high performance and reliability

Establishes a performance reference to streamline

maintenance and troubleshooting

Quality control reference provides lifetime traceability of test data

Opti-Core

™

Low Smoke Zero

Halogen (LSZH) Fibre Optic

Patch Cords

Duplex LC to LC

1.6mm

jacketed cable:

F^LE10-10M‡

Duplex SC to SC

3mm

jacketed cable:

F^LD3-3M‡

Duplex ST to ST

3mm

jacketed cable:

F^LD2-2M‡

Duplex MT-RJ to

MT-RJ 1.8mm

jacketed cable:

F^LZ12-12M‡

™

Opti-Core Low Smoke Zero

Halogen (LSZH) Hybrid

Fibre Optic Patch Cords

Duplex SC to LC

1.6mm

jacketed cable:

F^LE3-10M‡

Duplex ST to LC

1.6mm

jacketed cable:

F^LE2-10M‡

Duplex ST to SC

3mm

jacketed cable:

F^LD2-3M‡

Duplex SC to

MT-RJ 1.8mm

jacketed cable:

F^LZ3-12M‡

Duplex ST to

MT-RJ 1.8mm

jacketed cable:

F^LZ2-12M‡

™

Duplex FJ Plug

to MT-RJ 1.8mm

jacketed cable:

F^LZ6P-12M‡

Substitute for fibre type:

Z = OM4 – 10Gig

™

50/125µm

ZO = Optimized OM4 – 10Gig

™

50/125µm

X = OM3 – 10Gig

™

50/125µm

XO = Optimized OM3 – 10Gig

™

50/125µm

5 = OM2 – 50/125µm,

6 = OM1 – 62.5/125µm, or

9 = OS1 – 9/125µm

‡Substitute for length in metres:

Patch cords 1m – 10m, 15m, 20m, 25m

or 30m; pigtails – 1, 2, or 3.

Contact Customer Service for other

available lengths.

Test data supplied with each

patch cord

Q.C. identification label

applications

Opti-Core

™

Fibre Optic Patch Cords provide

interconnect and cross-connect of applications

over installations in entrance facilities,

telecommunications rooms, data centres and at

the desk. They support network applications to

interconnect pre-terminated cassettes in main

distribution, horizontal distribution, and equipment

distribution areas. These low smoke zero halogen

(LSZH) rated patch cords support installations

that require these flame ratings in specific

environments. Opti-Core

™

Fibre Optic Patch Cords

and Pigtails are available in OM4, OM3 fibre or

OM2, OM1 or OS1/OS2 fibre types to meet the

demands of Gigabit Ethernet, 10 Gigabit Ethernet

and high speed Fibre Channel systems while

maintaining compatibility with Ethernet, Fast

Ethernet, FDDI and ATM. If application requires

riser (OFNR) or Plenum (OFNP) rated fibre optic

patch cords or pigtails, refer to Opti-Core

™

Fibre

Optic Patch Cords or Pigtails – Riser (OFNR) and

Plenum (OFNP) Rated specification sheet.

w w w. p a n d u i t . c o m
