TB62600F: Description64BIT SHIFT REGISTER / LATCH DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size492KB，15 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TB62600F Overview

64BIT SHIFT REGISTER / LATCH DRIVER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP,
Contacts	100
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	STANDARD
Interface integrated circuit type	REGISTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PQFP-G100
length	20 mm
Number of functions	1
Number of terminals	100
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Output current flow direction	SOURCE
Nominal output peak current	0.062 A
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	3.15 mm
Maximum slew rate	6 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm

TB62600F

TOSHIBA Bi−CMOS INTEGRATED CIRCUIT SILICON MONOLITHIC

TB62600F

64BIT SHIFT REGISTER / LATCH DRIVER

The TB62600F is specifically designed for 64bit Thermal Head

drivers. And this IC is monolithic integrated circuits designed to

be used together with Bi−CMOS (DMOS) integrated circuit. The

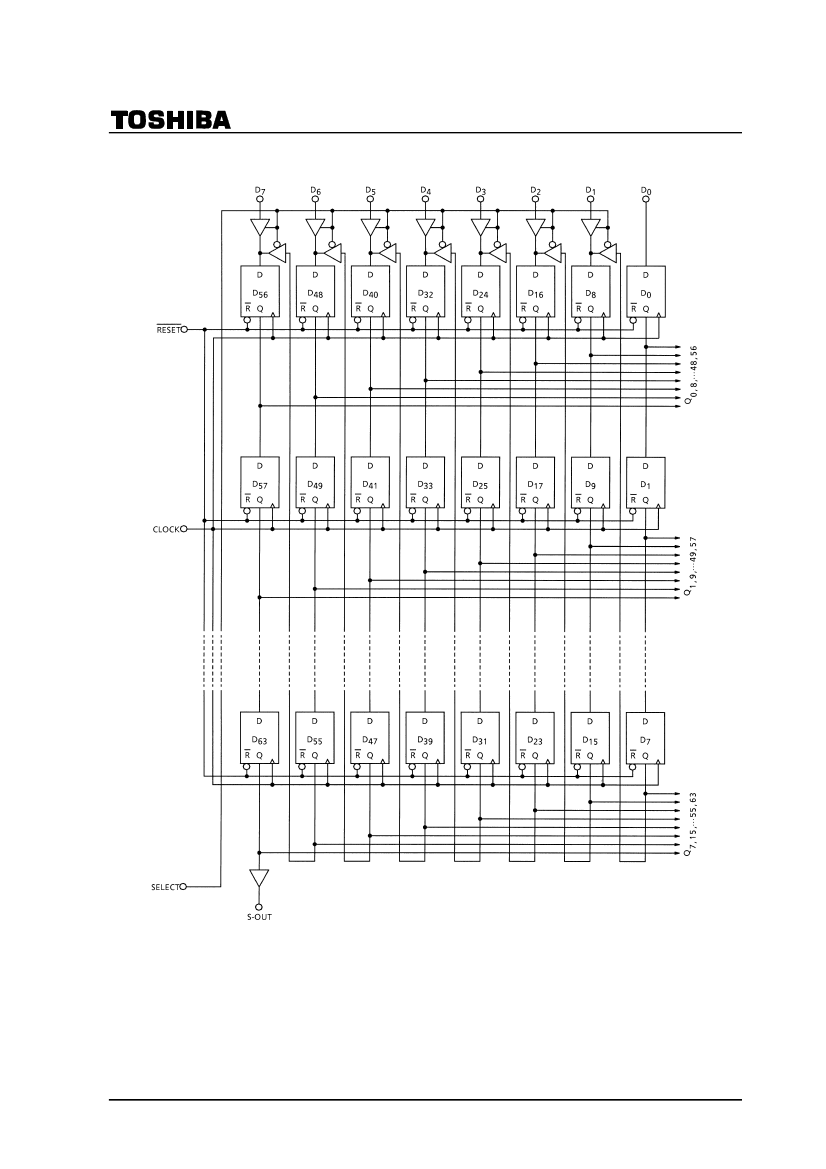

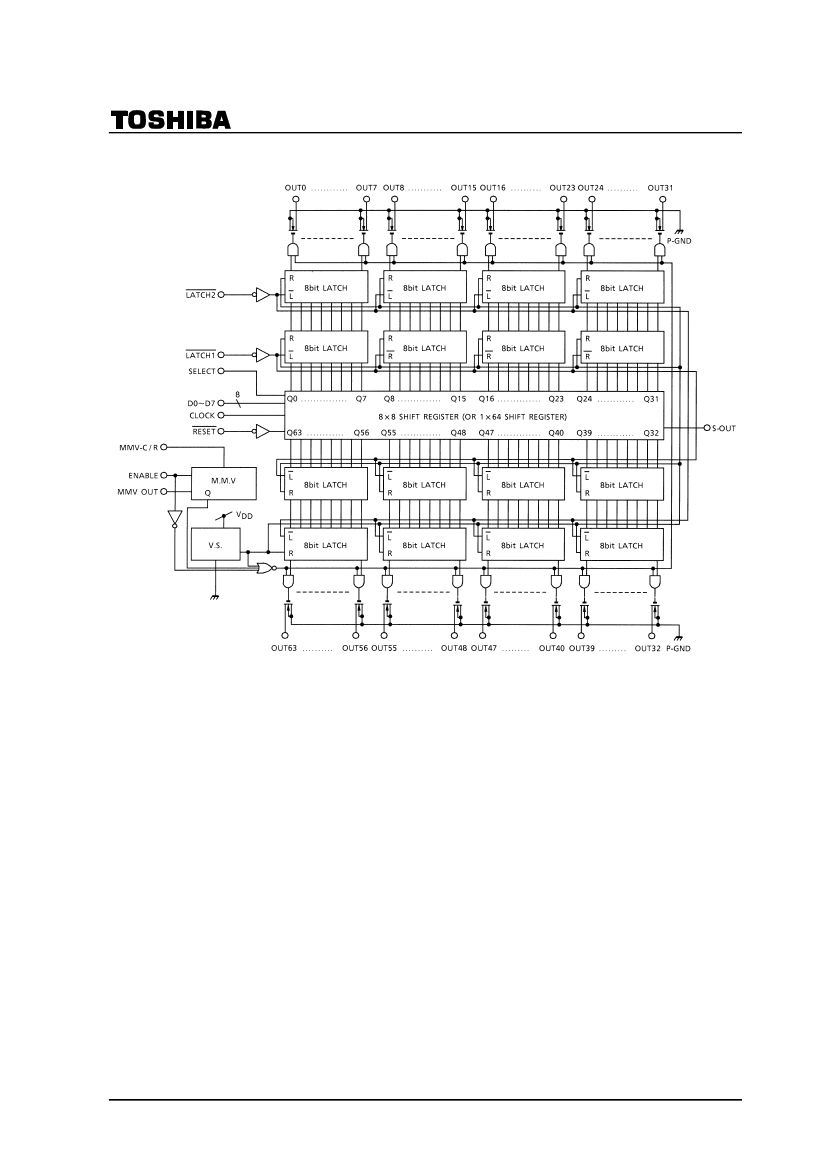

devices consist of a 64bit shift register, dual 64bit latches, and 64

output DMOS structures.

FEATURE

Built−in selection circuit : parallel−in parallel−out (8 × 8) or

serial−in parallel−out (1 × 64)

CMOS compatible inputs

Open−drain DMOS outputs

Low steady−state power consumption

Built−in mono stable multi−viblator for head protection

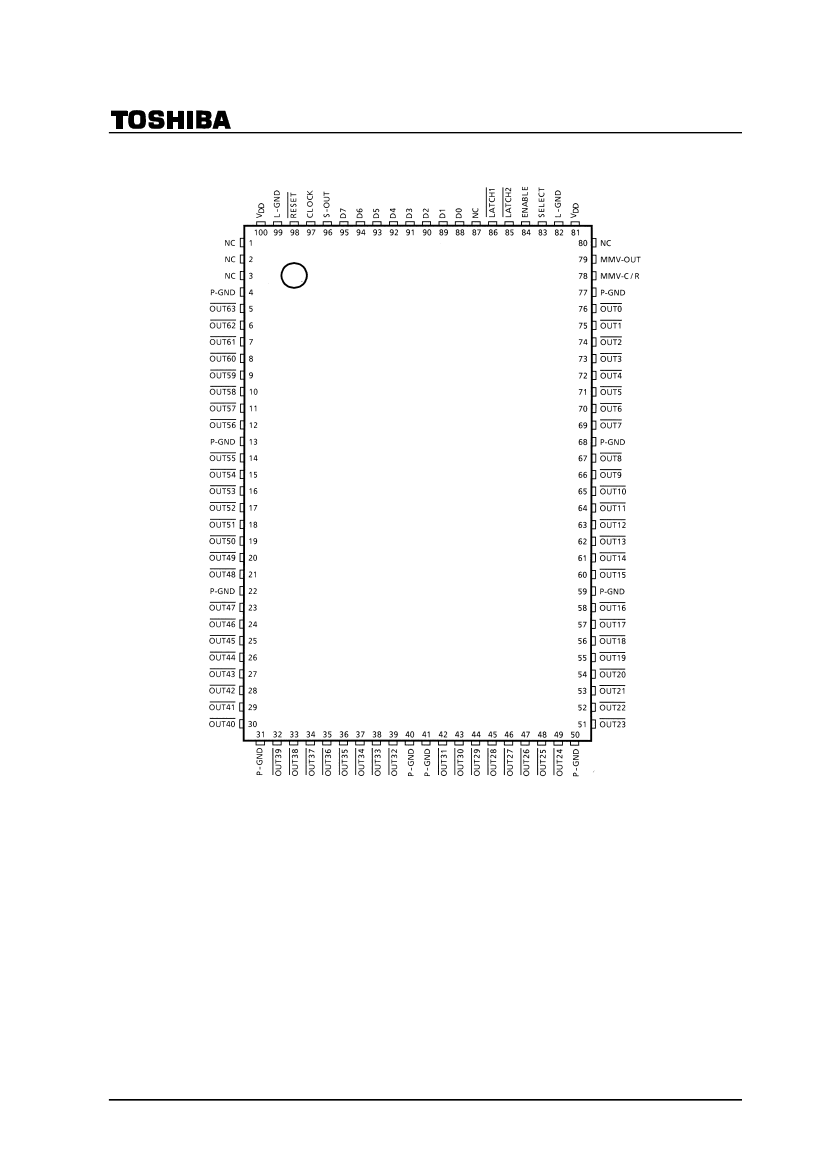

Package : QFP100−P−1420C

Weight: 1.6 g (typ.)

1

2006-06-14

	TB62600F	TB62600F_06
Description	64BIT SHIFT REGISTER / LATCH DRIVER	64BIT SHIFT REGISTER / LATCH DRIVER
