SW
-I
17
C-
IC series
Pushbutton switches for harsh environments •
short case • bushing Ø 12 mm • momentary

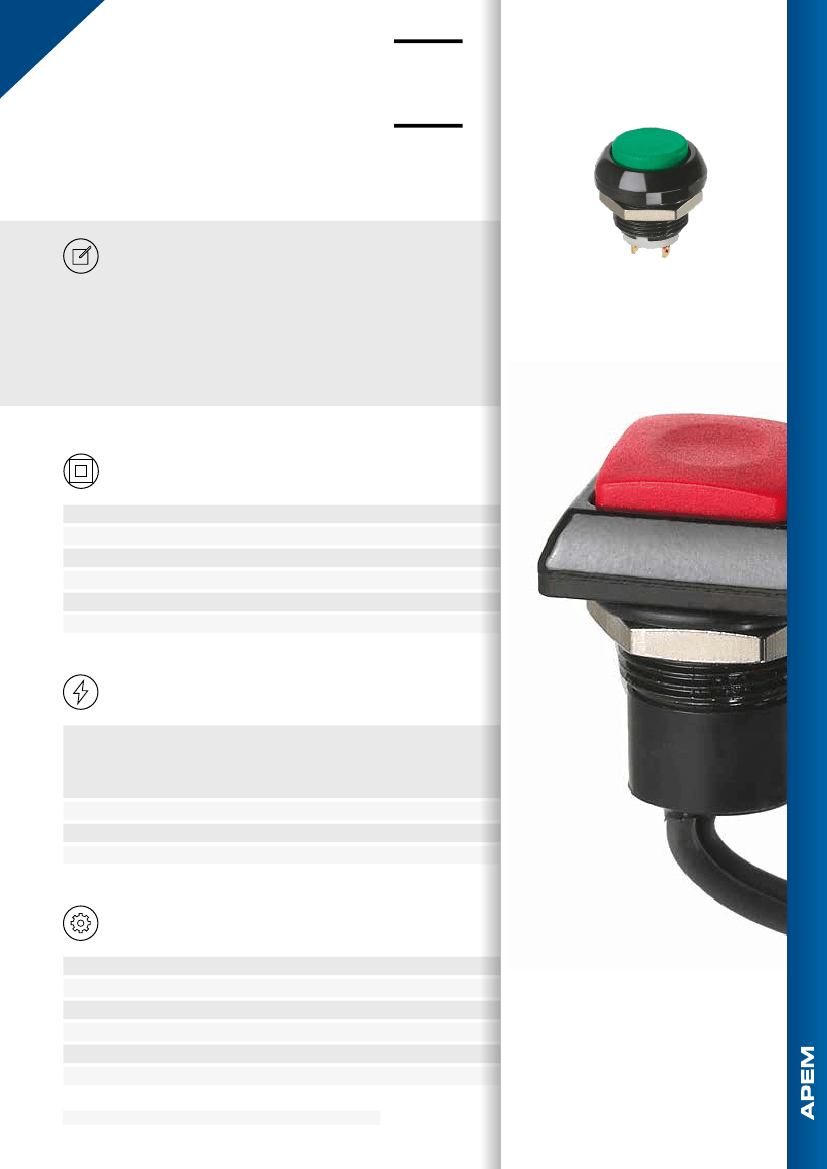

DISTINCTIVE FEATURES
Momentary with short case, reduced behind-panel depth
Tactile feedback
Flat round actuator for optional marking
Glossy actuator option (round curved only)
Sealed to IP67
ENVIRONMENTAL SPECIFICATIONS
• Front panel sealing : IP67 according to IEC 60529
• Shock resistance : 100 g according to IEC 512-4, test 6c
• Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
• Salt spray : IEC 512-6, test 11f
• Robustness : IK06 according to EN 50102 (1 joule)
• Operating temperature : -40 °C to +85 °C (-40 °F to +185 °F)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
5 A 28 VDC, 70,000 cycles
0.2 A 48 VDC, 500,000 cycles
0.5 A 48 VAC, 500,000 cycles
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1 GΩ min. at 500 VDC
• Dielectric strength : 1,500 Vrms 50 HZ between terminals
GENERAL SPECIFICATIONS
• Panel thickness : 1.5 mm (.059) min. - 4 mm (.157 max.)
• Total travel : 1.7 mm (.067) ± 0.3 mm
• Typical operating force : 4 N ± 2 N
• Low level or mechanical life : 1,000,000 cycles
• Torque : 1,5 Nm max. applied to nut
• Soldering : 320 °C (608 °F) max. for 3 sec.
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
09
PANEL SWITCHES
IC series
Pushbutton switches for harsh environments •
short case • bushing Ø 12 mm • momentary

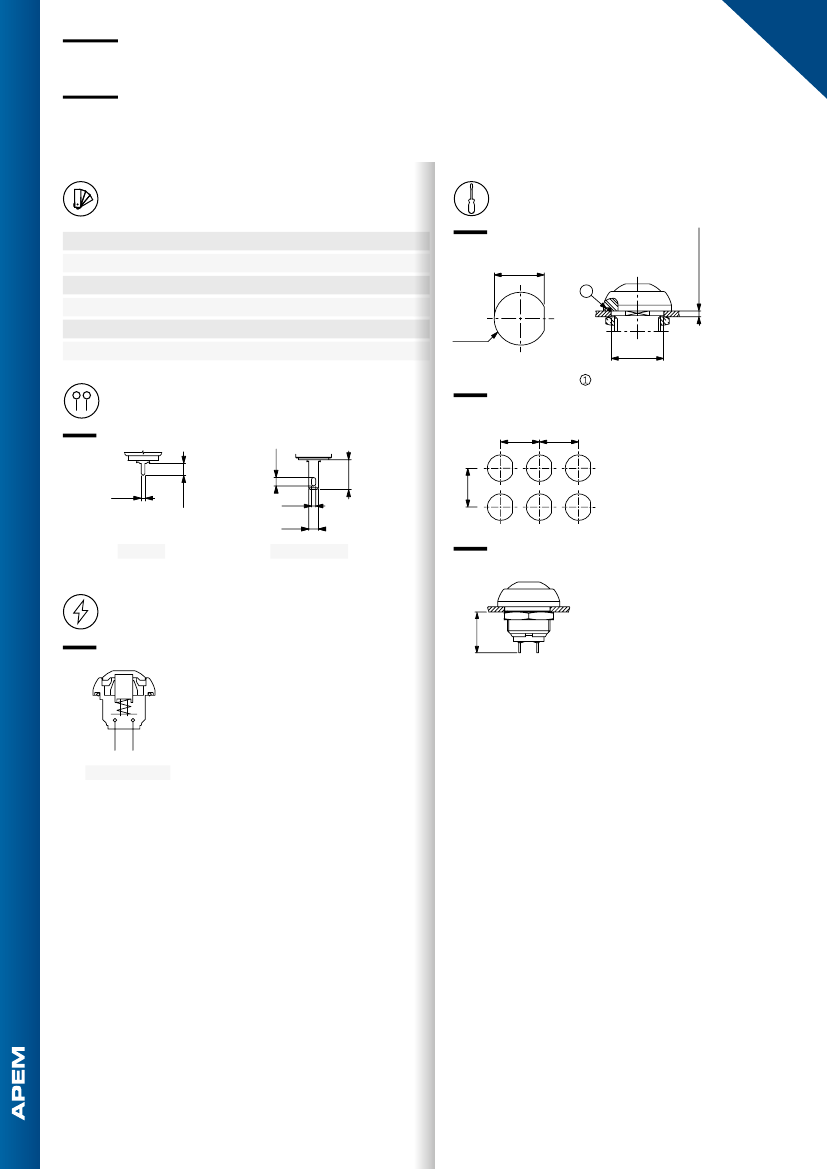

MATERIALS
• Case : thermoplastic UL94-V0
• Actuator : polyamide 6/6
• Bushing/bezel : zinc die-cast (zamac), black painted
• Contacts : silver, gold plated
• Multi-wire leads AWG20, section 0.6 mm
2
• Terminal seal : epoxy
Ø13.60
(.535DIA)
Ø13.50
(.531DIA)
MOUNTING
PANEL CUT-OUT
12.90
(.507)
1
1.50min-4Max
(.059 min-.157max)
- O-ring
TERMINALS
2.40
(.094)
MATRIX MOUNTING
20.00
(.787)
20.00
(.787)
8.40
(.330)
3.40
(.133)
1.00
(.039)
1.20
(.047)
2.80
(.110)
Straight
P
CISCOSP
ECH: 0.9
Quick-connect
Z1
CISCOSZ-A
DESSIN ECH 0.9
11.50
(.452)
ELECTRICAL FUNCTIONS
5-05-03
20.00
(.787)
BACK OF PANEL SPACE REQUIREMENT
5-05-03
CICCE-A
CICFCT-A
Function
3
(NO)
CICCE-A
ECH1
16/04/2014
CICFCT-A
ECH0.9
25-06-2014
2
IC series
Pushbutton switches for harsh environments •
short case • bushing Ø 12 mm • momentary
BUILD YOUR PART NUMBER
BASIC PART NUMBER
IC
SERIES
ACTUATOR SHAPES
ELECTRICAL FUNCTION
TERMINALS
CONTACTS
C
R
P
B
Square
Round, curved
Round, flat
Round curved
with gloss finish
3
Normally open
(NO)
S
F
P
Z1
Solder lugs
Flying leads
Straight PC
Quick-connect
2.8 x 0.5 mm
AD
Silver, gold
plated
Actuator marking
available on round flat
models (symbol 10 mm
max.). On request.
OPTIONS
ACTUATOR COLORS
OPTIONS
Red
White
Bright chrome
Orange
Satin chrome
1
B
2
3
4
5
Blue
Dark blue
Black
Green
Grey
Yellow
6
7/1
8
9
A
100
101
104
Satin chrome
bezel
Bright chrome
bezel

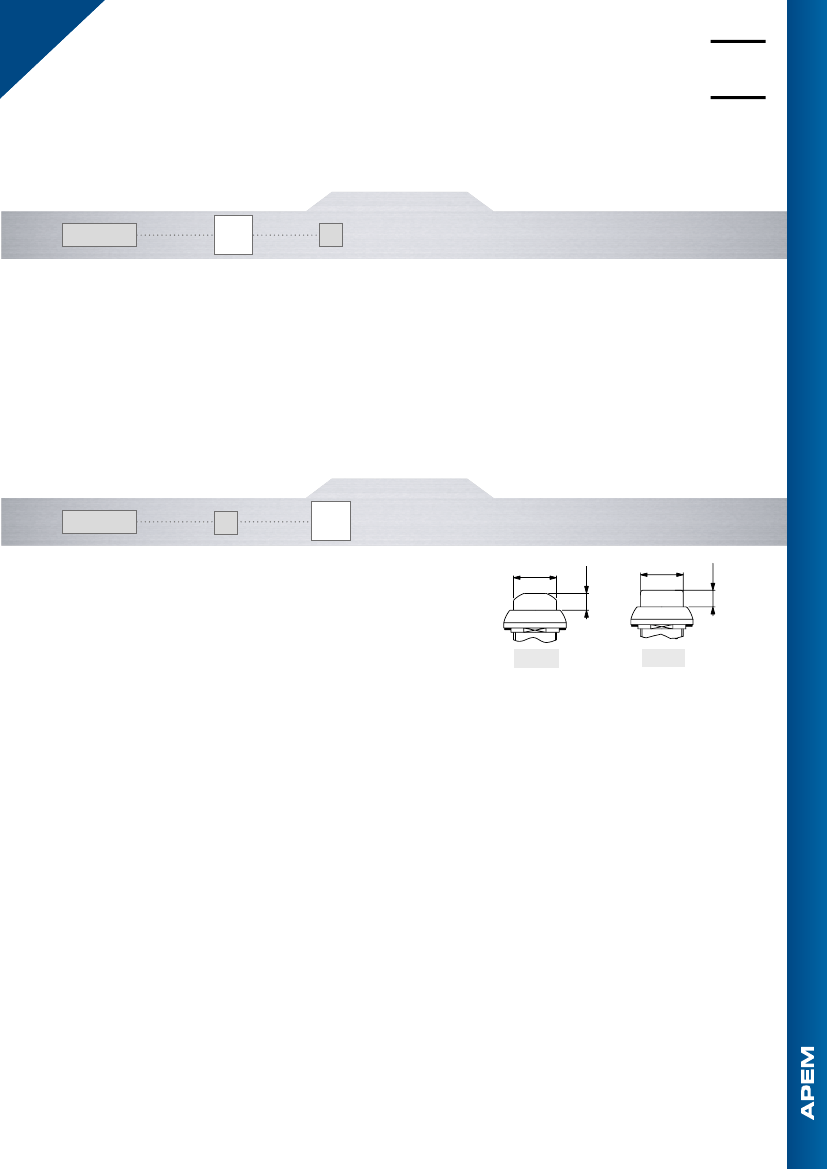

High actuator
(round models
only, except with
gloss finish)
ABOUT THIS SERIES
On the following pages, you will find successively basic part numbers of switches and options in the same order as in above chart.
Notice :
please note that not all combinations of above numbers are available. Refer to the following pages for further information.
A sealing boot
is available to protect the switches against frost and sand (P/N U5125). See "Sealing Boots" section of website.
Mounting accessories :
Standard hardware supplied : 1 hex nut 14 mm (.551) across flats and 1 O-Ring. Hex nut part number U166.
3
PANEL SWITCHES
PANEL SWITCHES
IC series
Pushbutton switches for harsh environments •
short case • bushing Ø 12 mm • momentary

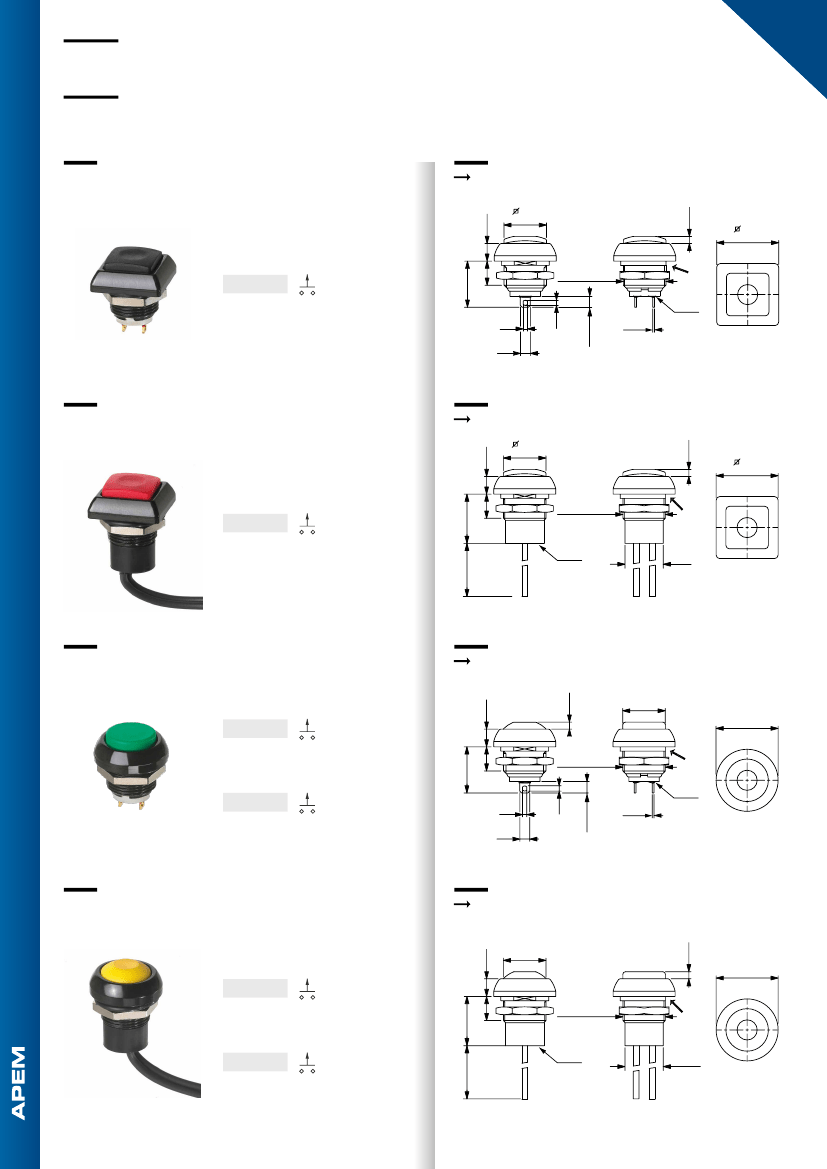

SQUARE - SOLDER LUG TERMINALS
FLAT
2.00
(.078)
12.00
(.472SQ)
5.00
(.196)
17.50
(.688SQ)
ICC3SAD
Normally Open
13.00
(.511)
6.80
(.267)
Ø12.00x0.75SI
(.472DIAx0.75IS)
1.50
(.059)
2.80
(.110)
Also available with straight PC terminals :
ICC3PAD
and quick-connect terminals :
ICC3Z1AD
3.20
(.126)
1.20
(.047)
0.50
(.019)
EPOXY
CICC3SDT-A
FLAT
5.00
(.196)
2.00
(.078)
12.00
(.472SQ)
SQUARE - FLYING LEAD TERMINALS
17.50
(.688SQ)
ICC3FAD
Normally Open
14.00
(.551)
6.80
(.267)
Ø12.00x0.75SI
(.472DIAx0.75IS)
500±10
(19.68±.39)
EPOXY
Ø10.80
(.425DIA)
CICC3FDT-A
ROUND - SOLDER LUG TERMINALS
Curved actuator
ICR3SAD
Normally Open
13.00
(.511)
FLAT
ECH0.9
16/04/2014
2.00
(.078)
Ø12.00
(.472DIA)
Ø12.00x0.75SI
(.472DIAx0.75IS)
1.50
(.059)
3.20
(.126)
1.20
(.047)
2.80
(.110)
0.50
(.019)
CICC3SDT-A
Ø17.50
(.688DIA)
Flat actuator
ICP3SAD
Normally Open
6.80
(.267)
5.00
(.196)
EPOXY
Also available with straight PC terminals :
IC•3PAD
and quick-connect terminals :
IC•3Z1AD
ROUND - FLYING LEAD TERMINALS
FLAT
5.00
(.196)
2.00
(.078)
Ø12.00
(.472DIA)
Curved actuator
ICR3FAD
Normally Open
14.00
(.551)
ECH0.9
25-06-2014
Ø12.00x0.75SI
(.472DIAx0.75IS)
CICC3FDT-A
CICR3SDT-A
Ø17.50
(.688DIA)
Flat actuator
Normally Open
500±10
(19.68±.39)
6.80
(.267)
ICP3FAD
EPOXY
Ø10.80
(.425DIA)
4
CICR3SDT-A
CICR3FDT-A
