8067-0-19-15-13-27-10-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 8067-0-19-15-13-27-10-0

Preview

8067-0-19-15-13-27-10-0: DescriptionCircuit Board Hardware - PCB 10u AU OVER NI 13 CON; CategoryThe connector terminals; File Size800KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8067-0-19-15-13-27-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8067-0-19-15-13-27-10-0	-	-	View	Buy Now

8067-0-19-15-13-27-10-0 Overview

Circuit Board Hardware - PCB 10u AU OVER NI 13 CON

8067-0-19-15-13-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	WIRE TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

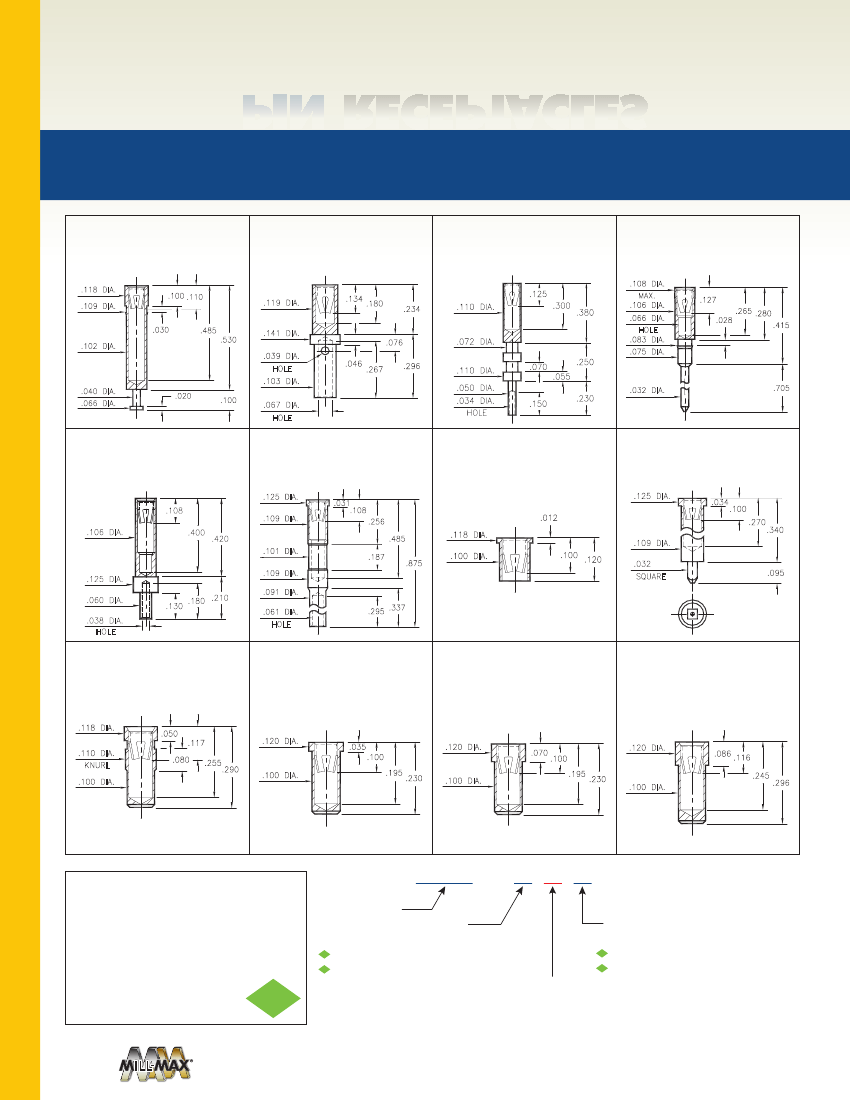

RECEPTACLES

FOR .048” - .064” DIAMETER PINS (#13 CONTACT)

FOR .045” - .065” DIAMETER PINS (#23 CONTACT)

0496

.118 DIA.

.109 DIA.

0496-0-15-XX-23-XX-10-0

Press-fit in .106 mounting hole

0368

0368-0-33-XX-13-XX-10-0

8067

Wire crimp termination. Accepts wire

sizes 16 AWG Max. / 20 AWG Min.

.134

8067-0-19-XX-13-XX-10-0

1105

.108 DIA.

MAX.

.106 DIA.

.066 DIA.

HOLE

.083 DIA.

.075 DIA.

Wire Termination. Accepts wire sizes

24 AWG Max. / 28 AWG Min.

.125

1105-0-15-XX-13-XX-04-0

Press-fit in .080 mounting hole

.100 .110

.119 DIA.

.180

.234

.110 DIA.

.300

.127

.028

.265 .280

.415

.380

.030

.102 DIA.

.485

.530

.141 DIA.

.039 DIA.

HOLE

.103 DIA.

.076

.046

.267

.296

.072 DIA.

.110 DIA.

.050 DIA.

.034 DIA.

HOLE

.150

.230

.070

.250

.055

.040 DIA.

.066 DIA.

.020

.032 DIA.

.705

.100

.067 DIA.

HOLE

8730

8730-0-19-XX-23-XX-10-0

3667

.125 DIA.

Wire crimp termination. Accepts wire

sizes 22 AWG Max. / 26 AWG Min.

.108

.106 DIA.

.400

.420

3667-0-19-XX-23-XX-10-0

9372

Wire crimp termination. Accepts wire

sizes 18 AWG Max. / 22 AWG Min.

.031

.108

.256

.485

.101 DIA.

.109 DIA.

.187

.875

9372-0-15-XX-23-XX-10-0

Solder mount in .102 min. mounting hole

4582

.125 DIA.

4582-0-15-XX-23-XX-10-0

Square press-fit in .040 plated through-hole

.034

.109 DIA.

.012

.118 DIA.

.100 DIA.

.100

.120

.109 DIA.

.032

SQUARE

.100

.270

.340

.125 DIA.

.060 DIA.

.038 DIA.

HOLE

.130

.180 .210

.095

.091 DIA.

.061 DIA.

HOLE

.295

.337

5834

.118 DIA.

.110 DIA.

KNURL

.100 DIA.

5834-0-15-XX-23-XX-10-0

Press-fit in .107 mounting hole

9401

9401-0-15-XX-23-XX-10-0

Solder mount in .102 min. mounting hole

Also available on 24mm wide carrier tape:

1,100 parts per 13” reel

Order as: 9401-0-57-XX-23-XX-10-0

.120 DIA.

9801

9801-0-15-XX-23-XX-10-0

Solder mount in .102 min. mounting hole

Also available on 16mm wide carrier tape:

1,200 parts per 13” reel

Order as: 9801-0-57-XX-23-XX-10-0

8829

8829-0-15-XX-23-XX-10-0

Solder mount in .102 min. mounting hole

Also available on 24mm wide carrier tape:

950 parts per 13” reel

Order as: 8829-0-57-XX-23-XX-10-0

.050

.117

.255

.290

.035

.100

.195

.120 DIA.

.080

.070

.120 DIA.

.100

.195

.230

.100 DIA.

.086

.116

.245

.296

.100 DIA.

.230

.100 DIA.

PAGE 190 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

XX

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

27

30

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#13 or #23

CONTACT (DATA ON PAGE 260)

(For alternate contact choices, see group G on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
