ARV12N4H datasheet, PDF - EEWORLD Datasheet

ARV12N4H: DescriptionCoaxial Switches ARV12N4H; CategoryMechanical and electronic products relay; File Size479KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

ARV12N4H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ARV12N4H	-	-	View	Buy Now

Coaxial Switches ARV12N4H

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	15.9 mm
body height	11.2 mm
Body length or diameter	15.9 mm

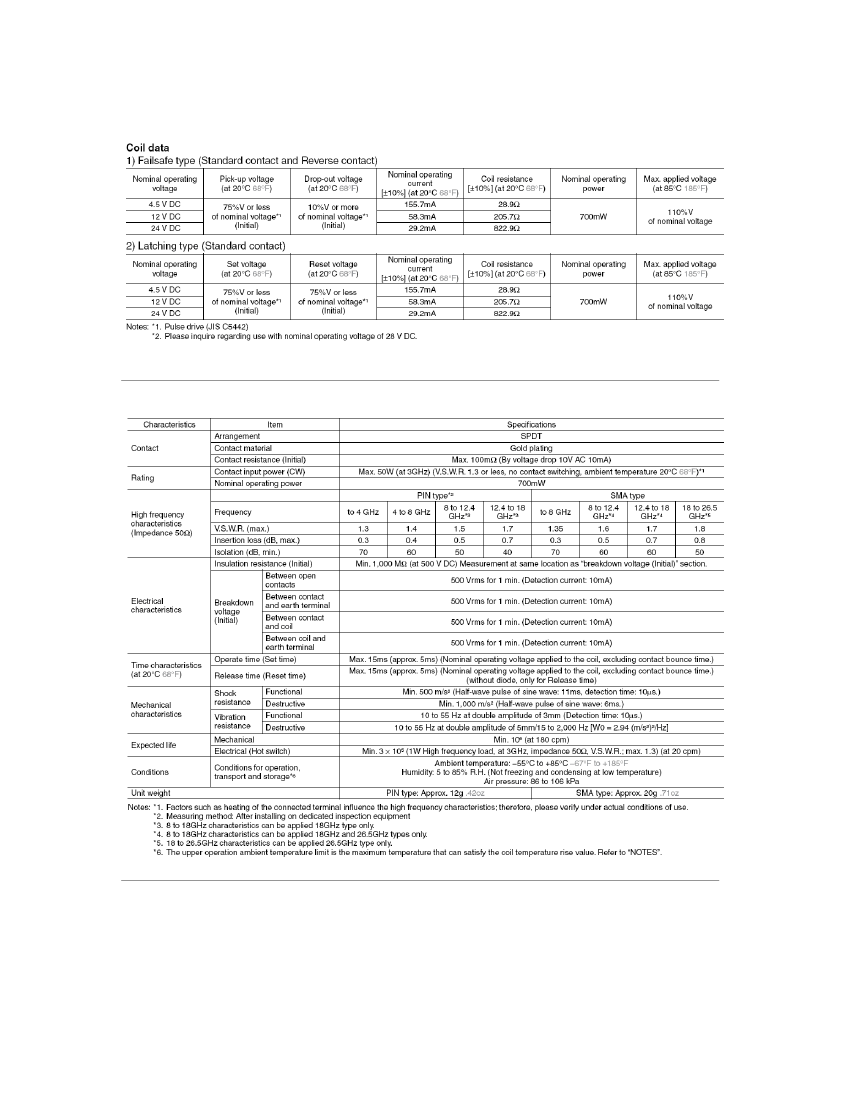

Characteristic impedance	50 Ω
Maximum coil current (DC)	0.156 A
Coil operating voltage (DC)	3.38 V
Coil power	700 mW
Coil release voltage (DC)	3.38 V
Coil resistance	28.9 Ω
Maximum coil voltage (DC)	4.5 V
Coil/Input Power Type	DC
Electrical life	300000 Cycle(s)
Maximum input power	30 W
Maximum insertion loss	0.4 dB
Maximum isolation	60 dB
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	15 ms
Maximum operating frequency	8000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
method of packing	BOX
physical size	15.9mm x 15.9mm x 11.2mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
release time	15 ms
surface mount	NO
switching time	30 ms
Termination type	SOLDER
voltage standing wave ratio	1.4
Base Number Matches	1

July 28, 2010

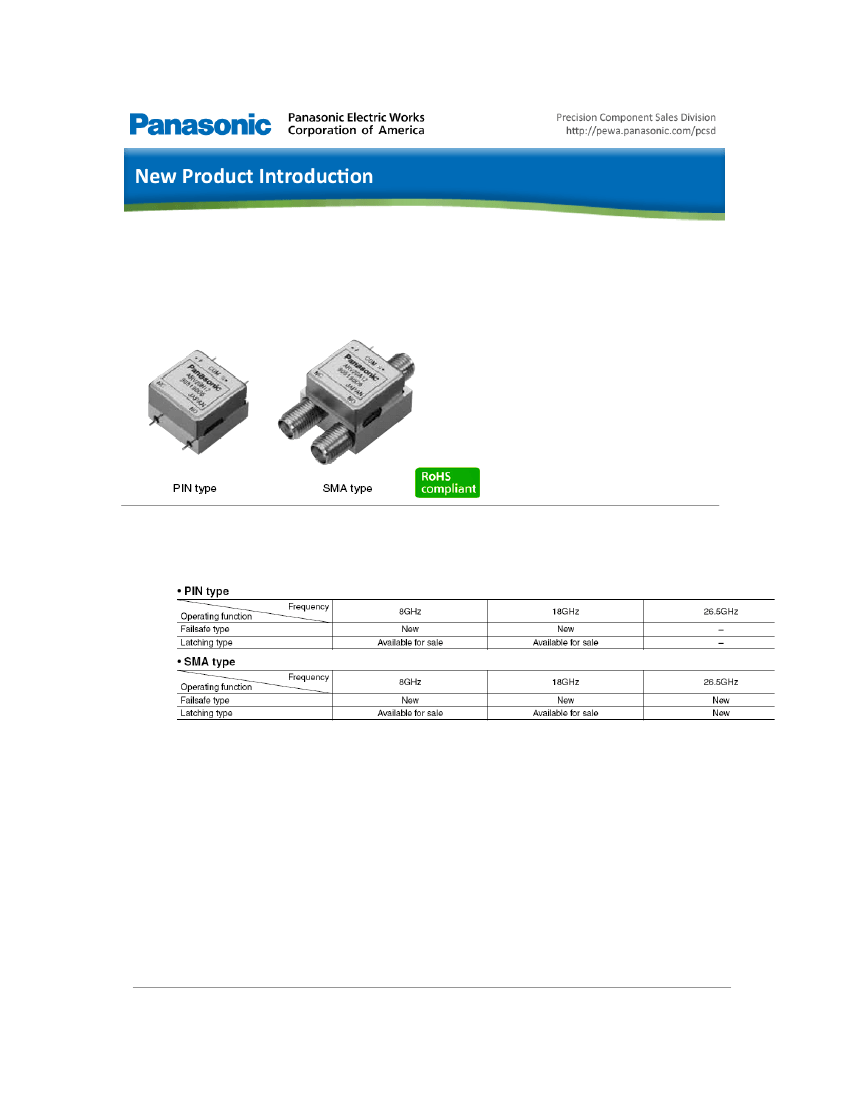

ARV Coaxial Switches:

26.5 GHz and Failsafe Versions

1. Features:

26.5 GHz and Failsafe versions are now available.

Excellent high frequency characteristics (to 8, 18, 26.5GHz, 50Ω)

Compact size (Approx.85% less volume compared to previous product.*)

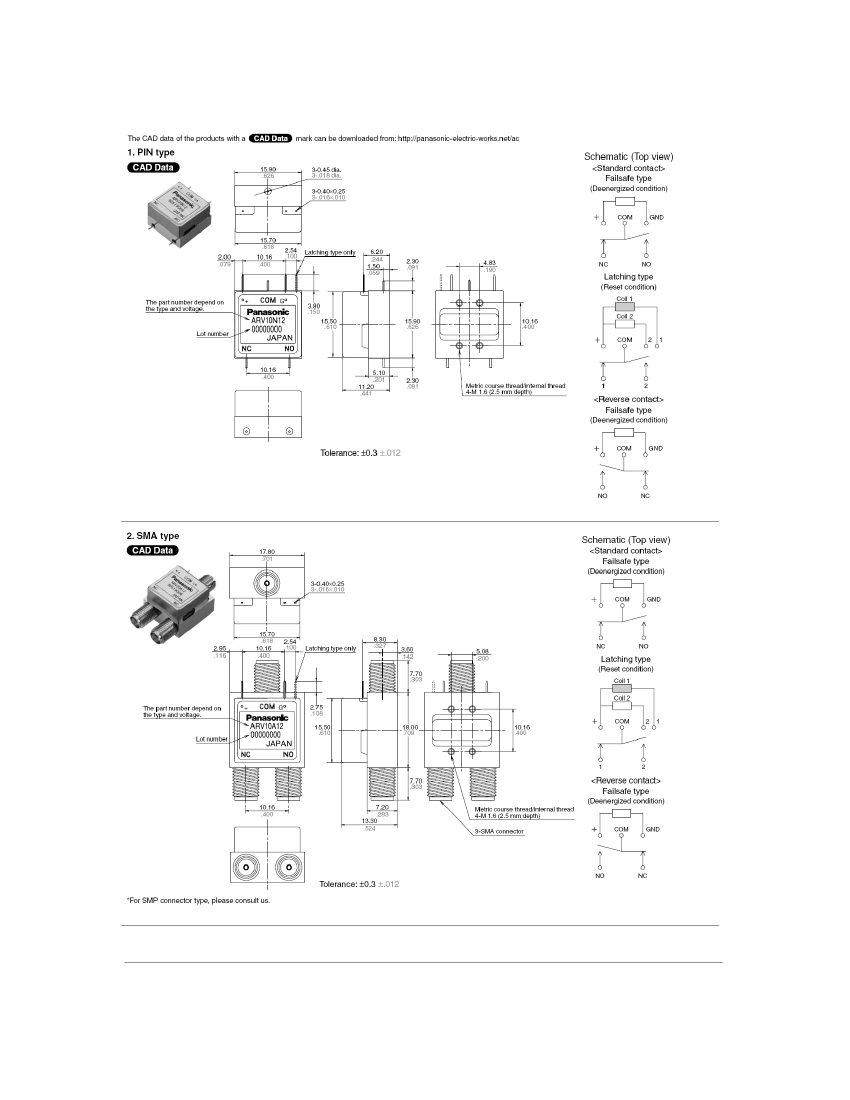

PIN type size: L 15.9 x W 15.9 x H 11.2 mm

L 0.626 x W 0.626 x H 0.441 inch

*Compared to previous product (ARD coaxial switch) and PIN type ARV coaxial switch.

Terminal shape options available (PIN and SMA)**

**For SMP connector type, please contact us.

Contact arrangement: SPDT (Standard/Reverse contact)
