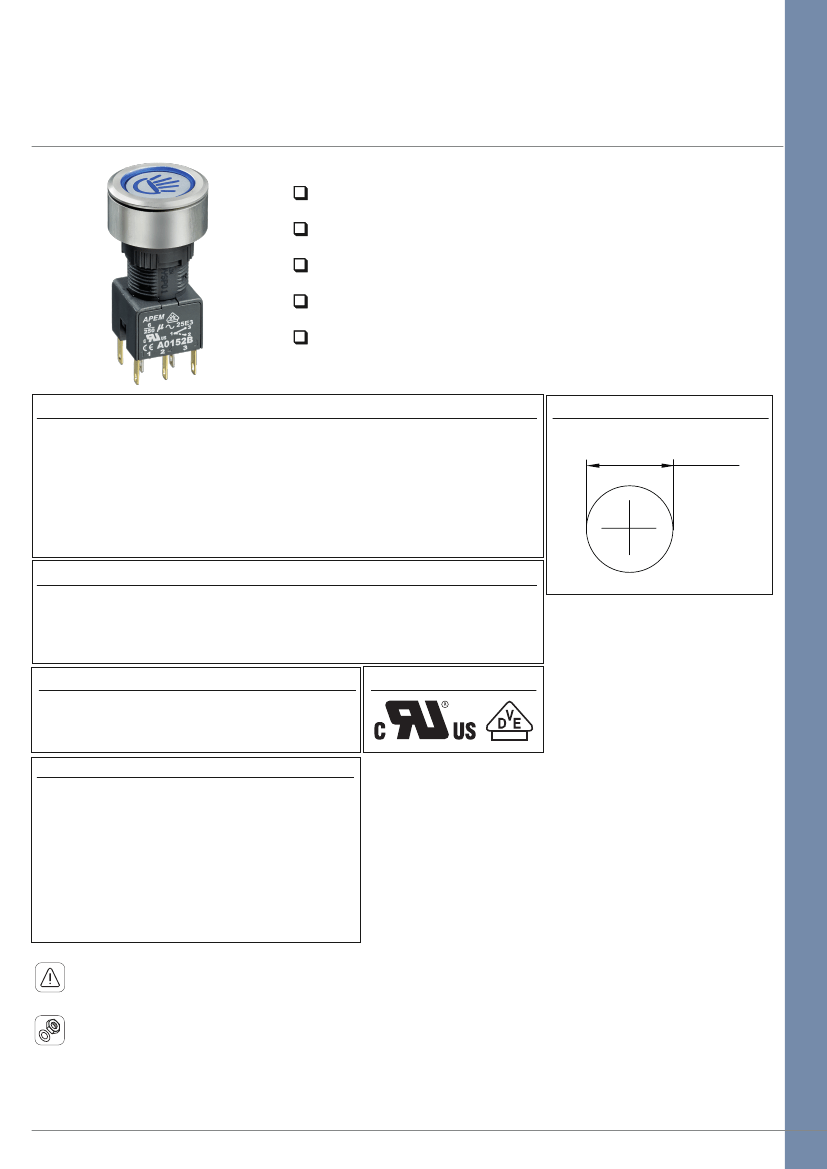

Pushbutton switches & indicators
Distinctive features and specifications
A1_AX1609US
A1 series
Panel Sealed to IP65
Single pole to four pole changeover
Custom chemically etched actuator
Push on tab terminals
6A 250VAC
ELECTRICAL SPECIFICATIONS
• Current/Voltage Rating :
10mA 5VAC min, 6A 250VAC, 6A 12VDC
• Initial Contact Resistance :
10m max at 1A 4VDC
• Insulation Resistance :
50M min
• Dielectric Strength :
750V between open contacts, 5KV live to accessible
• Electrical Life :
50,000 cycles min
• Contact Gap :
>1mm (0.039)
• Insulation :
Class 2
• Lamp Life :
LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours
neon, approx. 10,000 hours
MECHANICAL SPECIFICATIONS
• Mechanical Life (operator):
Momentary, 1 million cycles, maintained 100,000 cycles
• Lamp :
Midget grove T1 ¾ filament, neon or LED
• Terminals :
Solder/quick connect 2.8mm (0.110)
GENERAL SPECIFICATIONS
• Operating Temperature :
-20°C to +55°C
• Solder Heat resistance :
350°C for 5 seconds
• Sealing :
Panel sealed to IP65, rear of panel IP40
MATERIALS
• Screens :
Anodised aluminium
• Reflector Assembly :
Polycarbonate
• Operator :
PBT
• Bezel :
Anodised aluminium
• Nut :
ABS
• Camtrack Momentary :
PPE
• Camtrack Maintained :
PPSU
• Switch Block 1 & 2 Pole :
PBT
• Switch Block 3 & 4 Pole :
PEI
• Contacts :
Gold plated silver
Dimensions : first dimensions are in mm while inches are shown in brackets.
Refer to the following pages for further information.
Mounting accessories : standard hardware 1 nut and 1 sealing washer.
AGENCY APPROVALS
PANEL CUT OUT
Ø 22.20 +0.20/-0.0
The company reserves the right to change specifications without notice.
APEM
www.apem.com
1

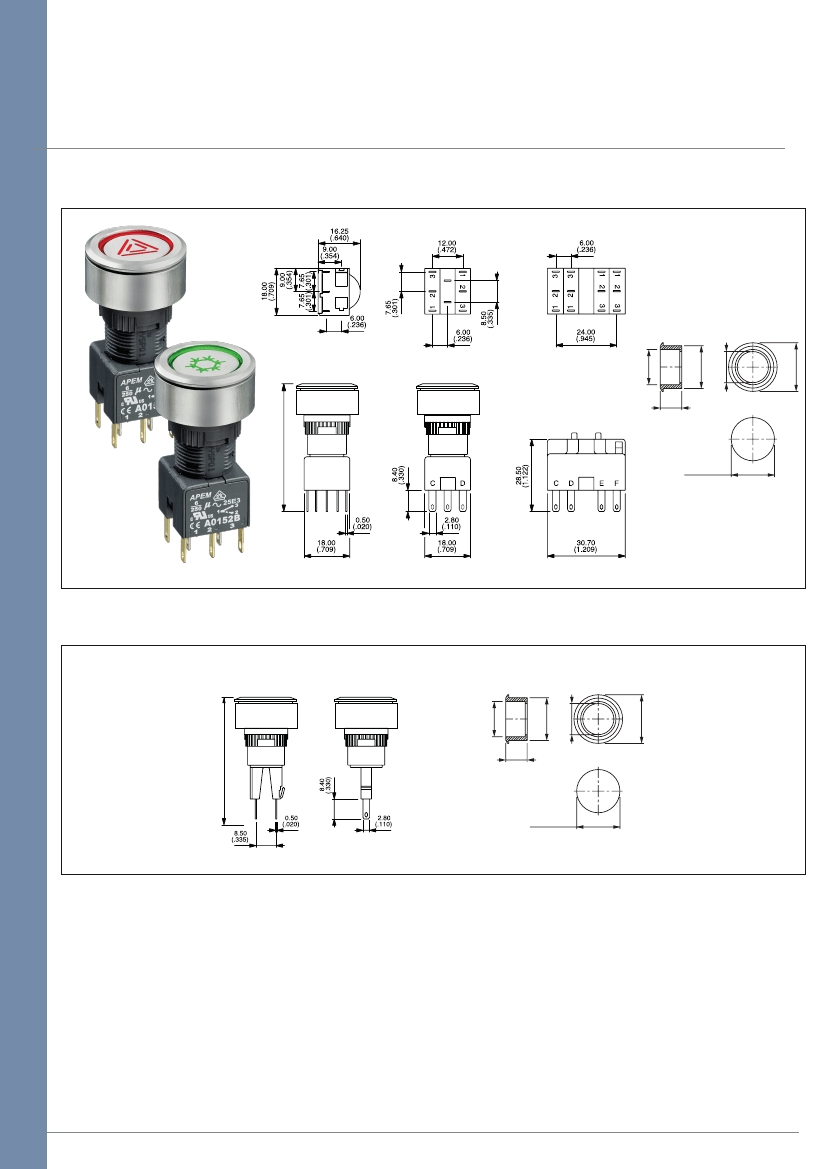

Pushbutton switches & indicators

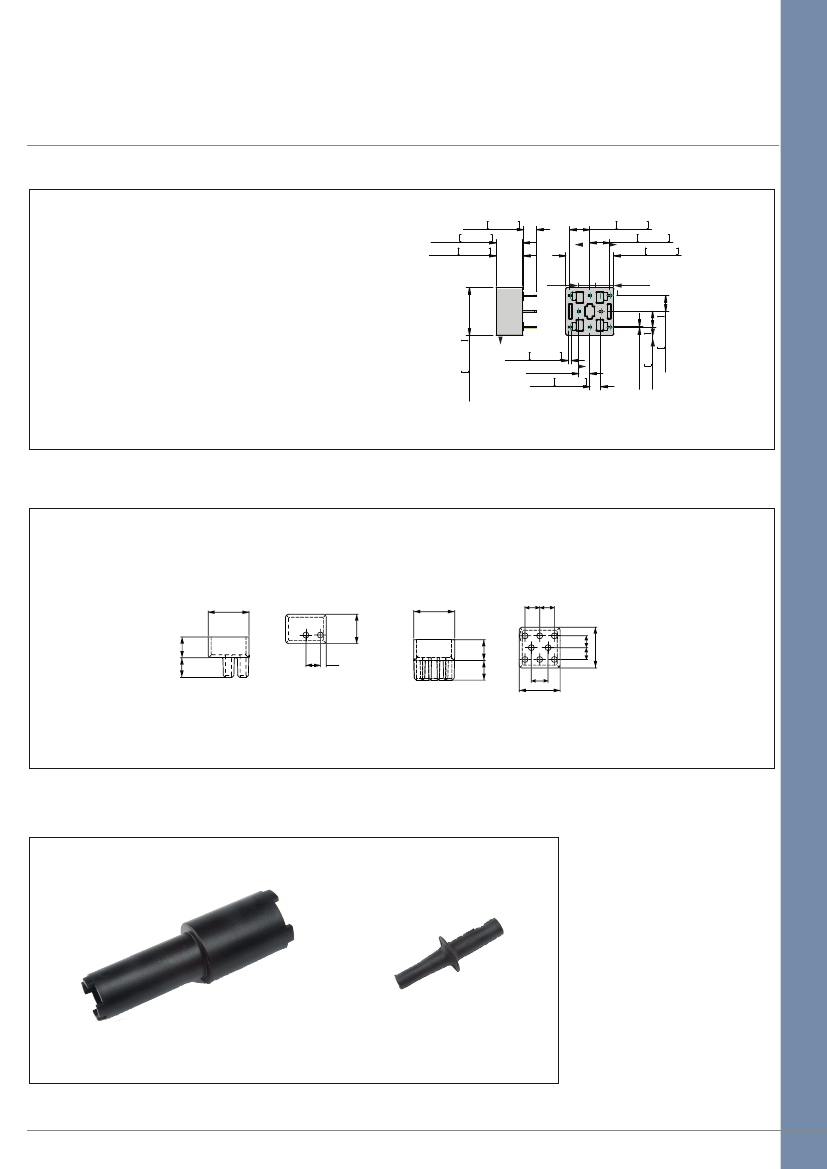

Accessories
A1 series
PCB Sockets
Number of Poles
Single pole, non illuminated :
Double pole, non illuminated :
Single pole, illuminated :
Double pole, illuminated :
Indicator :
Part No.
A01PC1
A01PC2
A01PC3
A01PC4
A01PC5
5,00 0,197
10,25 0,404
10,50 0,413
7,65 0,301
7,65 0,301
18,40 0,724
7.65
(.301)
18,25 0,719
1,10 0,043
4,25 0,167
4,25 0,167
Terminal guards
Two way
Eight way
20.75
20.75
7.45 7.45
7.45 7.45
20.75
20.75
14.85
14.85
3.02
7.357.35 3.02
10.00 10.50
10.00 10.50
10.00 10.50
10.00 10.50
8.50
8.50
20.75
20.75
Part number A01RTC2
Part number A01RTC8
Tools
0
Nut fixing key
Bulb remover
7.65
(.301)
0.80
(.031)
(.167)
30-0001
30-0002
The company reserves the right to change specifications without notice.
APEM
www.apem.com
236
6.00 6.00
20.75
6.00 6.00
20.75
6,00 0,236
6,00 0,236
4
