TC3W03FU datasheet, PDF - EEWORLD Datasheet

TC3W03FU: DescriptionCRYSTAL OSCILLATOR; CategoryThe embedded processor and controller Microcontrollers and processors; File Size194KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

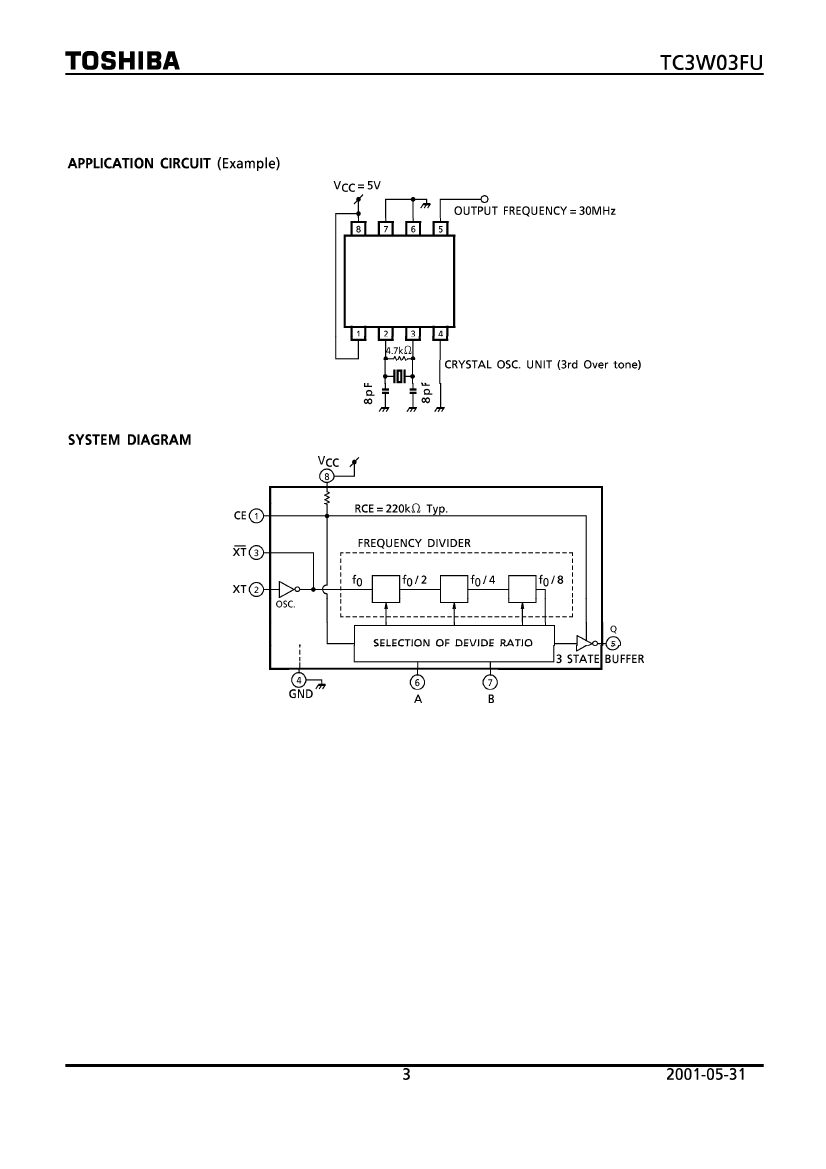

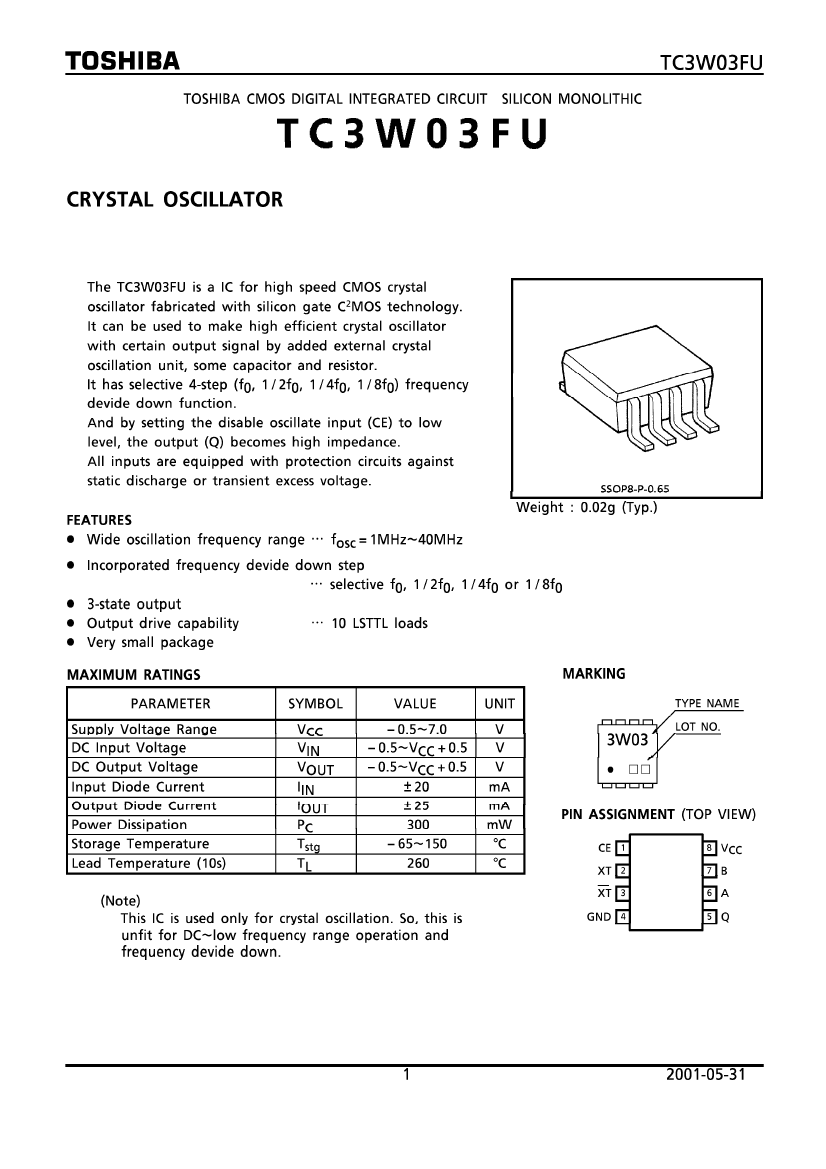

TC3W03FU Overview

CRYSTAL OSCILLATOR

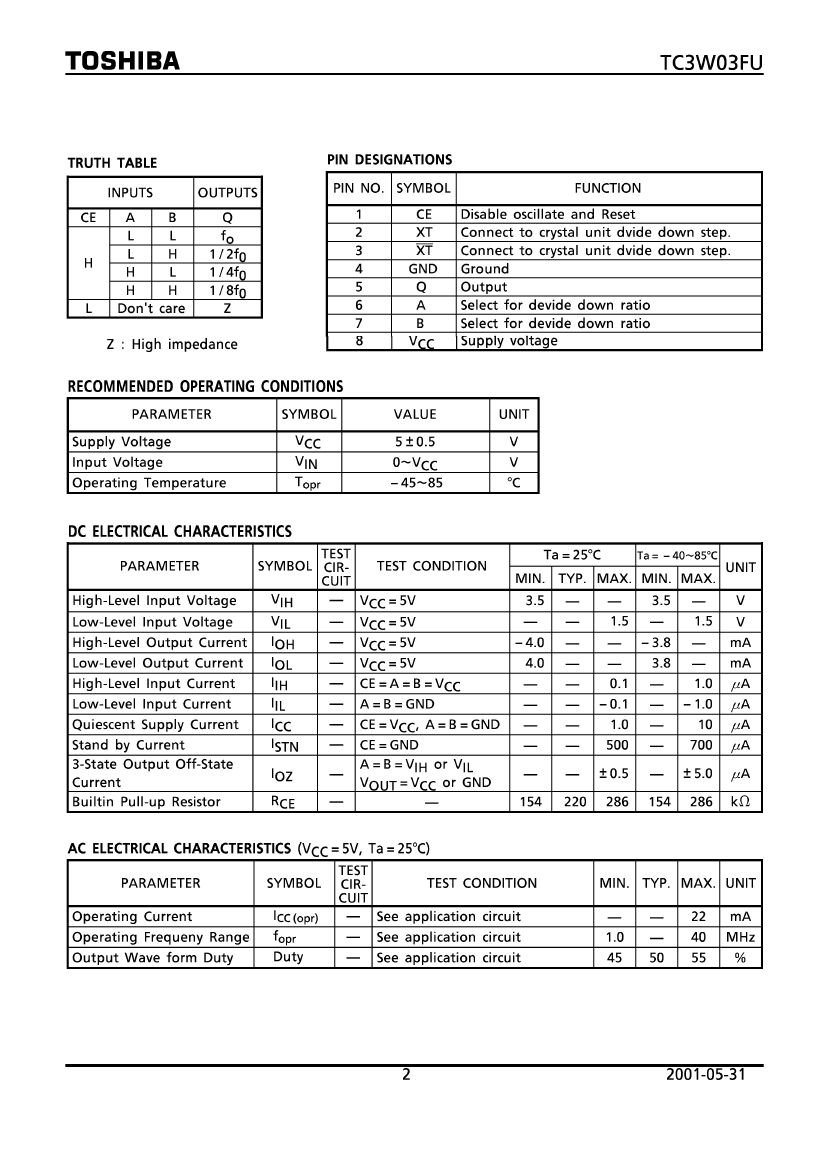

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	0.65 MM PITCH, PLASTIC, SSOP-8
Contacts	8
Reach Compliance Code	unknow
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	2.9 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Maximum output clock frequency	40 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Master clock/crystal nominal frequency	40 MHz
Certification status	Not Qualified
Maximum seat height	1.3 mm
Maximum slew rate	22 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	2.8 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER
Base Number Matches	1

	TC3W03FU	TC3W03FU_01
Description	CRYSTAL OSCILLATOR	CRYSTAL OSCILLATOR
