39-351 BLK Overview

Pushbutton Switches PushBtn Switch N.O. Black Btn Sealed

39-351 BLK Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Grayhill
Product Category	Pushbutton Switches
RoHS	Details
Product	Standard Switches
Contact Form	SPST
Switch Function	OFF - (ON)
Current Rating	500 mA
Voltage Rating AC	220 VAC
Mounting Style	Panel
Mounting Type	Bushing
Termination Style	Solder Lug
Actuator	Round
Color	Silver
Contact Plating	Gold over Silver
Height	9.53 mm
Housing Material	Aluminum
Length	7.92 mm
Material	Thermoset Plastic
Width	7.92 mm
Cap Color	Black
Life	250000 Cycles
Factory Pack Quantity	500
Unit Weight	0.352740 oz

Preview

Download Datasheet

View All

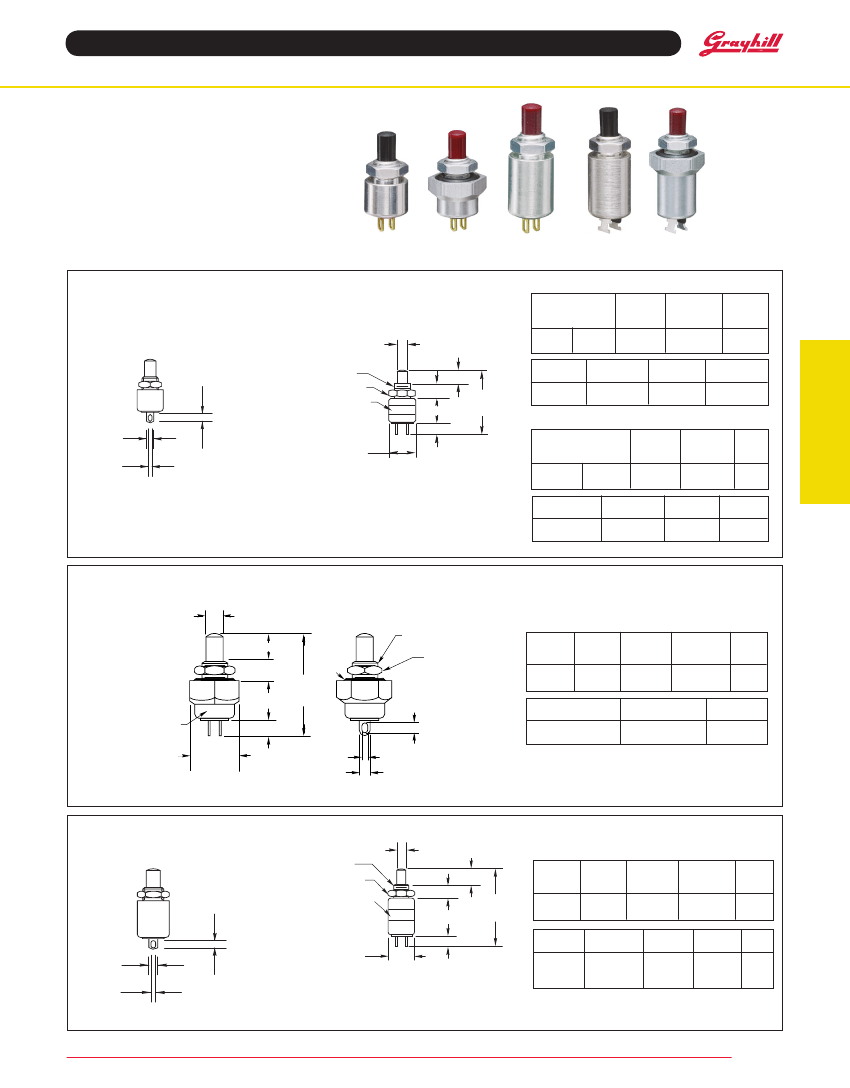

Butt Contact Pushbutton Switches

SerieS 39

SPSt, 150 ma to 1/2 amp

FeatureS

• Requires an Absolute Minimum of Space

• Molded-In Terminals in SPST–N.O.

• Solder Lug Terminals

diMenSiOnS

39-1

39-3

39-601*

.110

.005

(2,79

0,13) DIA.

8-40 UNS-2A

THREAD

H = HEX MTG NUT

.063

.010 (1,59

0,25)

THICK

.219

.010 (5,56

0,25)

ACROSS FLATS

.068 ±.005

(1,73 ± 0,13)

in inches (and millimeters)

normally Open–SPSt economy and Standard Version

economy Version

electrical

ratings

Operations *Complete

at rated

Part

Load

number

39-601 RED

39-601 BLK

Button

Color

Red

Black

At 5 Vdc At 20 Vdc

1,000,000

150 mA 20 mA

action

.615 (15,62)

REF.

.072 ±.005

(1.83± 0,13)

.036 ±.005

(0,91 ± 0,13)

E.I.A.

DATE

CODE

LABEL*

Momentary

actuating

Mtg.

total

Force (oz.)

Hole

travel

.035 ± .015

11/64"

4 + 4

- 2

(0,89 ± 0,38) (4,37) DIA.

Pushbutton Switches

Standard

electrical

ratings

Operations

at rated

Load

Complete

Part

number

Button

Color

.250 + .010/ –.005

(6,35 + 0,25/ – 0,13)

DIAMETER

A = .175 + .025/ –.020 (4,45 + 0,64/ – 0,51)

*Label increases

B = .125

. 010 (3,18

0,25)

nominal diameter

C = .215

.015 (5,46

0,38)

to .255 (6,48)

D = .100

.020 (2,54

0,51)

At 115 Vac At 220 Vac

1,000,000

Amp Res.

action

Momentary

39-1

Red

39-3 Black

Mtg.

Hole

11/64"

(4,37) DIA.

actuating

total

Force (oz.)

travel

+ 4

.035 ± .015

– 2

(0,89 ± 0,38)

normally Open–SPSt with Sealed Bushing and Button

39-351*

.110– .005 DIA.

(2,79 – 0,13)

A = .175 +.025/ .020

(4,45 +0,64/ 0,51)

B = .125 – .010

(3,18 – 0,25)

C = .250 –.015

(6,35 – 0,38)

D = .100 – .020

(1,54 – 0,51)

E.I.A.

DATE

CODE

.650

(16,51)

REF.

HEX MTG. NUT

.0625 (1,59) TYP.

THICK AND

.218 (5,54) TYP.

ACROSS FLATS

O = O RING

.068 – .005 (1,73 – 0,13)

.036 – .005 (0,91 – 0,13)

.072 – .005 (1,83 – 0,13)

#8-40 UNS-2A THREAD

rating at

115 Vac

resistive

rating at

220 Vac

resistive

Operations

at rated

Load

*Complete

Part

number

39-351 RED

39-351 BLK

Button

Color

Red

Black

Amp

Amp 250,000

total

travel

XXXX

action

Momentary

actuating

Force (oz.)

.312 –.005

(7,92 –0,13)

ACROSS

FLATS

.035 ± .015 16 ± 8

(0,89 ± 0,38)

Button is O-Ring

sealed internally.

normally Open–SPSt with Overtravel

39-12

39-24

8-40 UNS-2A

THREAD

H = HEX MTG NUT

.063 .010 (1,60 0,25)

THICK

.219 .010 (5,56 0,25)

ACROSS FLATS

.072 .005

(1.83 0,13)

.036 .005

(0,91 0,13)

.110 .005

(2,79 0,13) DIA.

.755 (19,18)

REF.

rating at

115 Vac

resistive

rating at

220 Vac

resistive

Operations

at rated

Load

Complete

Part

number

39-12

39-24

actuating

Force (oz.)

Button

Color

Red

Black

Mtg.

Hole

E.I.A.

DATE

CODE

LABEL*

Amp

Amp 100,000

Over

travel

action

.068 .005

(1,73 0,13)

.250 + .010/ – .005

(6,35 + 0,25/ – 0,13)

DIAMETER

A = .175 + .025/ –.020 (4,45 + 0,64/ – 0,51)

*Label increases

B = .125 .010 (3,18 0,25)

nominal diameter

C = .355 .015 (9,02 0,38)

to .255 (6,48)

D = .100 .020 (2,54 0,51)

total

travel

11/64"

Momentary .130 ± .025 .015 (0,38)

5 ± 3 (4,37)

(3,30 ± 0,64) Min.

DIA.

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

39-351 BLK Related Products

	39-351 BLK	39-1	39-24	39-352-BLK	39-2	39-12	39-352 RED
Description	Pushbutton Switches PushBtn Switch N.O. Black Btn Sealed	Pushbutton Switches PushBtn Switch N.O. Red Btn	Pushbutton Switches PushBtn Switch N.O. overtravel Black Btn	Pushbutton Switches PushBtn Switch N.C. Black Btn Sealed	Pushbutton Switches PushBtn Switch N.C. Black Btn	Pushbutton Switches PushBtn Switch N.O. overtravel Red Btn	Pushbutton Switches Pushbutton Switch, N.C., red button, sealed
Product Attribute	Attribute Value	Attribute Value	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Grayhill	Grayhill	-	Grayhill	Grayhill	Grayhill	Grayhill
Product Category	Pushbutton Switches	Pushbutton Switches	-	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches
RoHS	Details	Details	-	Details	Details	Details	Details
Product	Standard Switches	Standard Switches	-	Standard Switches	Standard Switches	Standard Switches	Standard Switches
Contact Form	SPST	SPST	-	SPST	SPST	SPST	SPST
Switch Function	OFF - (ON)	OFF - (ON)	-	ON - (OFF)	ON - (OFF)	OFF - (ON)	ON - (OFF)
Current Rating	500 mA	500 mA	-	250 mA	250 mA	500 mA	250 mA
Voltage Rating AC	220 VAC	220 VAC	-	220 VAC	220 VAC	220 VAC	220 VAC
Mounting Style	Panel	Panel	-	Panel	Panel	Panel	Panel
Mounting Type	Bushing	Bushing	-	Bushing	Bushing	Bushing	Bushing
Termination Style	Solder Lug	Solder Lug	-	Solder Lug	Solder Lug	Solder Lug	Solder Lug
Actuator	Round	Round	-	Round	Round	Round	Round
Color	Silver	Silver	-	Silver	Silver	Silver	-
Contact Plating	Gold over Silver	Gold Over Silver	-	Silver	Silver	Gold over Silver	Silver
Height	9.53 mm	8.64 mm	-	14.08 mm	13.09 mm	12.2 mm	14.08 mm
Housing Material	Aluminum	Aluminum	-	Aluminum	Aluminum	Aluminum	Aluminum
Length	7.92 mm	6.35 mm	-	7.92 mm	6.35 mm	6.35 mm	7.92 mm
Material	Thermoset Plastic	Thermoset Plastic	-	Thermoset Plastic	Thermoset Plastic	Thermoset Plastic	-
Width	7.92 mm	6.35 mm	-	7.92 mm	6.35 mm	6.35 mm	7.92 mm
Cap Color	Black	Red	-	Black	Black	Red	Red
Life	250000 Cycles	1000000 Cycles	-	100000 Cycles	250000 Cycles	100000 Cycles	100000 Cycles
Factory Pack Quantity	500	1000	-	25	100	25	25
