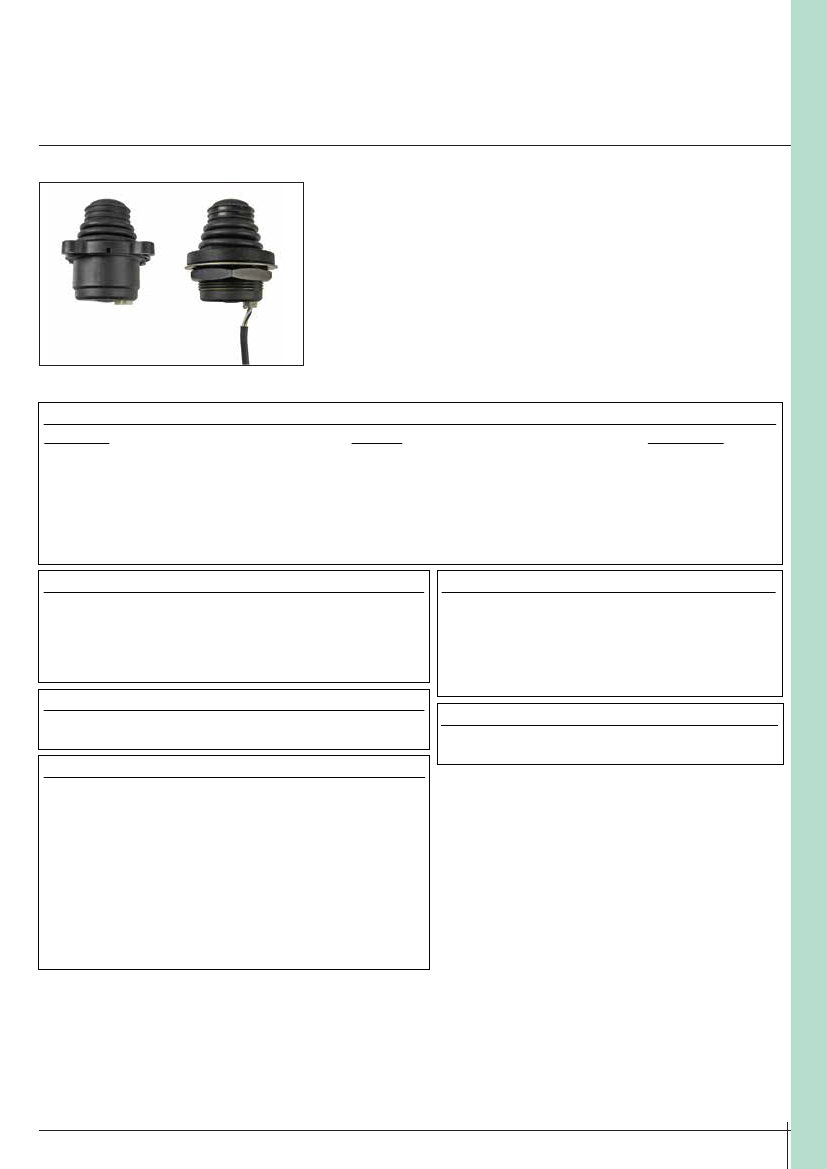

Sealed 5-way switch based miniature joystick
HS series
Distinctive features and specifications
5-way with center pushbutton option
Positive tactile feedback
MOM-OFF-MOM action
Threaded bush mount option
Sealed to IP68 and IP69K
Connectorized housing
CURRENT/VOLTAGE RATING WITH RESISTIVE LOAD
CONTACT
• Gold plated (G)
• Silver plated (S)
• Mechanical life
• Insulation resistance
• Voltage withstand
• Contact resistance
• Electrical function
MECHANICAL
–
–
–
–
–
–
–
RATING
LIFECYCLES
10mA @ 30VDC
– 200,000 operations
100mA @ 30VDC
– 100,000 operations
300,000 operations
Min 100MΩ (250VDC by insulation resistance meter)
500VAC for 1 minute
Max 200mΩ (by YHP4328A)
MOM-OFF-MOM
TERMINATION
• Operating Force: 5.56N±0.53N (1.25lbf±0.12lbf)
1
• Maximum Vertical Load: 200N (45lbf)
1
• Maximum Horizontal Load: 150N (33.7lbf)
1
• Lever travel: 30° (±15 )
• Mass/weight:
17g (0.0375lb) (Option HS1DXXXA)
ENVIRONMENTAL
• Manufacturer: Molex
• Manufacturer part number: 501331-0607
• Product range: Pico-Clasp ™
• Circuits: Six
• Pitch: 1.00mm
• Mating connector: Molex 501330-0600
OPTIONAL MATING HARNESS
3
• Sealing: IP68, IP69K²
• Operating temperature: -25 C to +80 C
(-13°F to +176°F)
PUSHBUTTON SWITCH (Option 6 Handle)
• Wire type : 28AWG 25cm PTFE
• Connector: Molex 501330-0600
• Electrical life: 100,000 cycles
• Rating: 50 mA,12VDC
• Terminal: Brass with silver plating
• Contact resistance: 100 milliohms max.
• Insulation resistance: 100 megohms min. 500VDC
• Dielectric strength: 250VAC /1 minute
• Contact arrangement: 1 pole 1 throw
• Operation force: 1.5lbf
• Stop strength: Max 3kgf vertical static load for 15 seconds
• Operating temperature: -25 C to +70 C
(-13°F to +158°F)
• Storage temperature: -30 C to +85 C
(-22°F to +185°F)
NOTES:
1.
2.
3.
Force applied to the top of the castle cap.
All options are IP68 and IP69K rated, however Drop-in mounting does not prevent panel ingress.
The HS Series tactile toggle switch is fitted with a six terminal Molex (501331-0607) connector. A mating harness is not included,
but may be specified at the time of order for an additional charge. The 4-function harness is part number 505-508. The 5-function
harness, necessary for the Option 6 Handle is part number 505-509.
All values are nominal.
-
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com

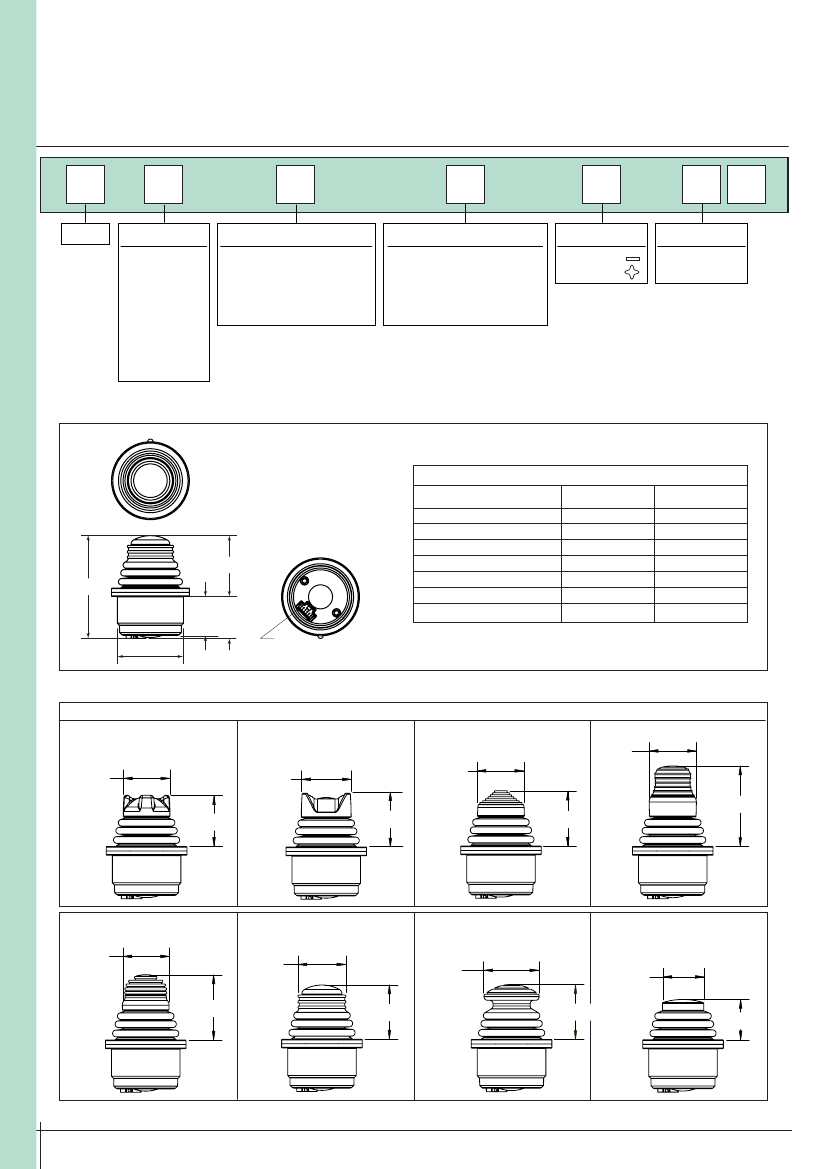

Sealed 5-way switch based miniature joystick

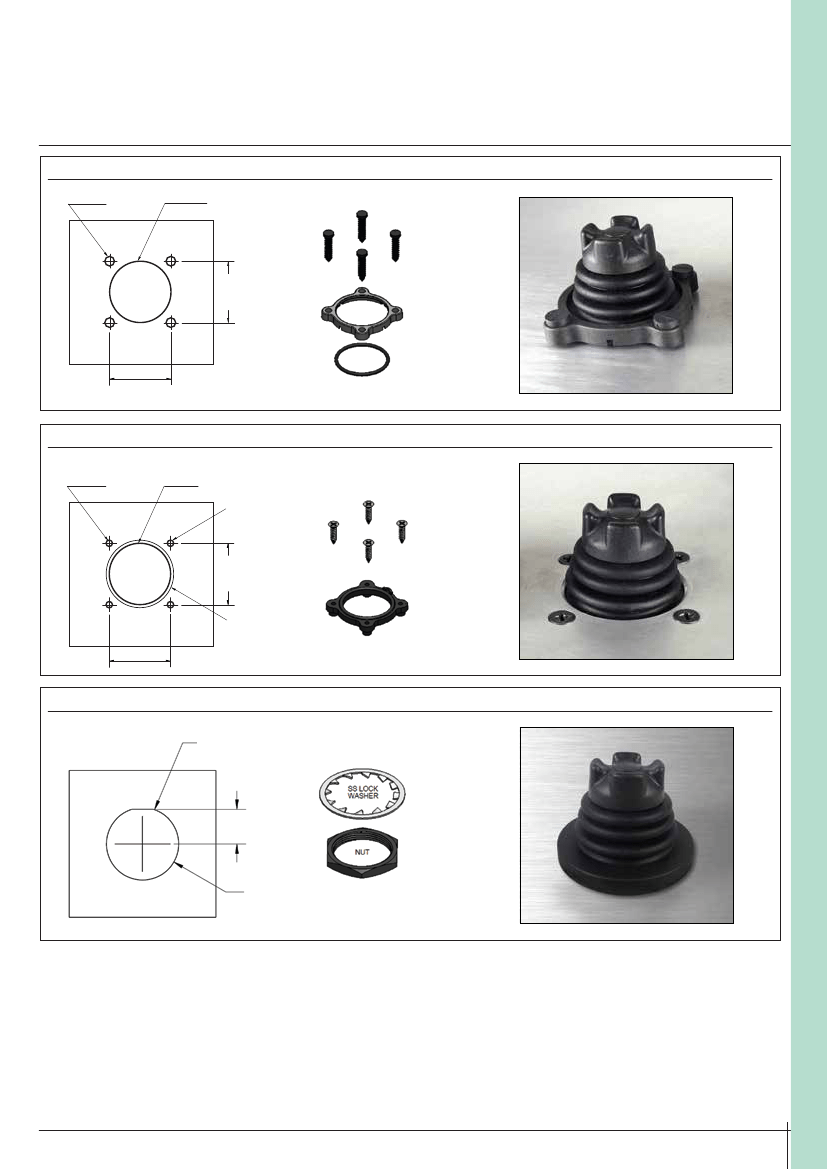

PLASTIC HOUSING – DROP-IN OPTION CUTOUT DIMENSIONS
Ø2.87
(0.113)
Ø25.65
(1.01)
4 x PUSH IN CONNECTORS
HS series
Mounting options and accessories
24.64
(0.97)
DROP-IN
BEZEL
O-RING
24.64
(0.97)
PLASTIC HOUSING – REAR MOUNT OPTION CUTOUT DIMENSIONS
Ø2.87
(0.113)
Ø25.65
(1.01)
CHAMFERED
FOR #4 FLAT
HEAD SCREW
(4 PLACES)
4 x 1/2 FH SS PHIL SCREW
24.64
(0.97)
1.00 (0.04) x 45º
CHAMFER
24.64
(0.97)
REAR MOUNT
BEZEL
METAL THREADED HOUSING – DROP-IN OPTION CUTOUT DIMENSIONS
R17.17 x 2
(0.063)
11.94
(0.47)
Ø25.02
(0.985)
NOTES:
1.
2.
3.
4.
The maximum panel thickness for the Rear Mount configuration is 2.032mm/(0.08in).
The under panel depth for the Drop-in configuration is 16.02mm/(0.631in).
The under panel depth for the Metal Threaded Housing configuration is 14.55mm/(0.573in).
Dimensions are in mm/(inch).
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
HS_JOYST1505R2US
