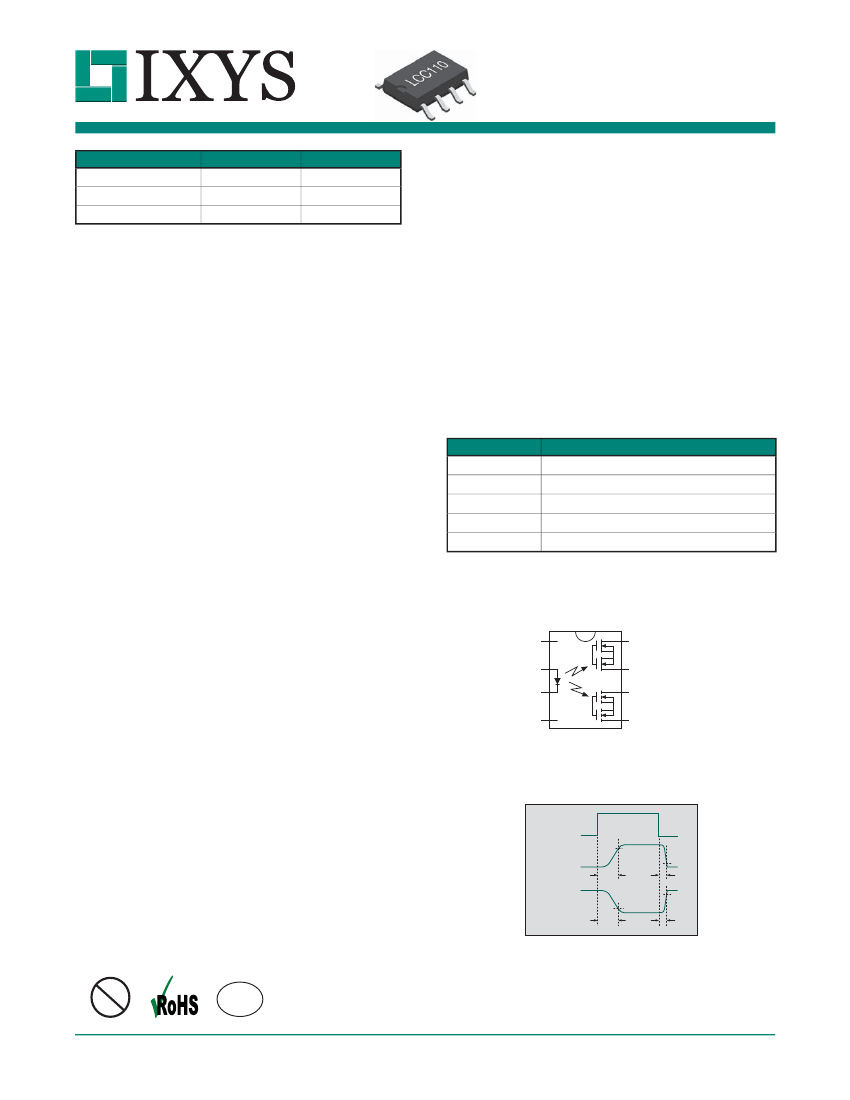

This device is ideal for applications where a signal
needs to be switched between two different lines. The
small 8-lead package makes it an ideal space-saving
replacement for a 1-Form-C electromechanical relay
(EMR).
Featurges
•
3750V
rms
Input/Output Isolation
•
1-Form-C Solid State Relay
•
Low Drive Power Requirements
(TTL/CMOS Compatible)
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Small 8-pin Packages
•
Machine Insertable, Wave Solderable
•
Surface Mount Tape & Reel Versions Available
Approvals
•
UL Recognized Component: File E76270
•
CSA Certified Component: Certificate 1175739
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 004
Ordering Information
Part #
LCC110
LCC110P
LCC110PTR
LCC110S
LCC110STR
Description
8-Pin DIP (50/Tube)
8-Pin Flatpack (50/Tube)
8-Pin Flatpack Tape & Reel (1000/Reel)
8-Pin Surface Mount (50/Tube)
8-Pin Surfact Mount Tape & Reel (1000/Reel)
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook,
Pocket Size)
•
Hook Switch
•
Dial Pulsing
•
Ground Start
•
Ringing Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment—Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Pin Configuration
Do Not Use
+ Control
– Control
Do Not Use
AC/DC Configuration
1
8
2
3
4
7
6
5
Normally Open Pole
Normally Closed Pole
Switching Characteristics for a
1-Form-C Device
I
F
90%
Form-A I
LOAD
t
on
10%
t
off
90%
10%
t
off
t
on
Form-B I
LOAD
Pb
DS-LCC110-R06
e
3
www.ixysic.com
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @ 25ºC
Parameter
Blocking Voltage
Reverse Input Voltage
Input control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage, Input to Output
Operating Temperature
Storage Temperature
1
2
LCC110
Min
-
-
-
-
-
-
3750
-40
-40
Max
350
5
50
1
150
800
-
+85
+125
Unit
V
P
V
mA
A
mW
mW
V
rms
ºC
ºC
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33mW / ºC.
Derate linearly 6.67mW / ºC.
Electrical Characteristics @ 25ºC
Parameter
Output Characteristics
Load Current
Continuous, AC/DC Configuration
Peak
On-Resistance, AC/DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics
Input Control Current to Activate
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Capacitance, Input to Output
Conditions
Symbol
Min
Typ
Max
Units
-
t=10ms
I
L
=120mA
V
L
=350V
P
I
L
I
LPK
R
ON
I
LEAK
t
on
t
off
C
OUT
I
F
I
F
V
F
I
R
C
I/O
-
-
-
-
-
-
-
-
0.4
0.9
-
-
-
-
23
-
-
-
25
-
0.7
1.2
-
3
120
±350
35
1
4
4
-
8
-
1.4
10
-
mA
rms
/ mA
DC
mA
P
µA
I
F
=8mA, V
L
=10V
V
L
=50V, f=1MHz
I
L
=120mA
-
I
F
=8mA
V
R
=5V
-
ms
pF
mA
mA
V
A
pF
Note: If both poles operate simultaneously, then load current must be derated in order not to exceed package power dissipation value.
2
www.ixysic.com
R06
I
NTEGRATED
C
IRCUITS
D
IVISION
COMMON PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical LED Forward Voltage Drop
(N=50)
30
Device Count (N)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
LED Forward Voltage Drop (V)
35
1.8
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
I
F
=50mA
I
F
=30mA
I
F
=20mA
I
F
=10mA
I
F
=5mA
LCC110
Typical LED Forward Voltage Drop
vs. Temperature
0.020
0.018
0.016
0.014
0.012
0.010
0.008
0.006
0.004
0.002
0
-40
Typical Leakage vs. Temperature
Measured across Pins 5&6 or 7&8
Leakage ( A)
-20
0
20
40
60
80
100
Temperature (ºC)
Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10 s 100 s 1ms 10ms 100ms
Time
Load Current (A)
1s
10s
100s
FORM-A RELAY PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Form-A
Typical Turn-On Time
(N=50, I
F
=8mA, I
L
=120mA
DC
)
Form-A
Typical Turn-Off Time
(N=50, I
F
=8mA, I
L
=120mA
DC
)
Form-A
Typical On-Resistance Distribution
(N=50, I
F
=8mA, I
L
=120mA
DC
)
25
20
15
10
5
0
1.2
25
20
15
10
5
0
35
30
Device Count (N)
25
20
15
10
5
0
Device Count (N)
2.0
2.8
3.6
4.4
5.2
Device Count (N)
0.05
0.14
0.23
0.32
0.41
0.50
19.5
20.5
21.5
22.5
23.5
24.5
25.5
Turn-On Time (ms)
Turn-Off Time (ms)
On-Resistance ( )
25
20
15
10
5
0
Form-A
Typical I
F
for Switch Operation
(N=50, I
L
=120mA
DC
)
25
20
15
10
5
0
Form-A
Typical I
F
for Switch Dropout
(N=50, I
L
=120mA
DC
)
Form-A
Typical Blocking Voltage Distribution
(N=50)
35
30
Device Count (N)
25
20
15
10
5
0
Device Count (N)
Device Count (N)
1.2
2.0
2.8
3.6
4.4
5.2
1.2
2.0
2.8
3.6
4.4
5.2
400
420
440
460
480
500
520
LED Current (mA)
LED Current (mA)
Blocking Voltage (V
P
)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
R06
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION
LCC110
FORM-A RELAY PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Form-A
Typical Turn-On Time
vs. LED Forward Current
(I
L
=120mA
DC
)
Form-A
Typical I
F
for Switch Operation
vs. Temperature
(I
L
=120mA
DC
)
Turn-On Time (ms)
1.0
0.9
Turn-On Time (ms)
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0
5
6
5
LED Current (mA)
4
3
2
1
0
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
I
F
=8mA
I
F
=10mA
I
F
=20mA
Form-A
Typical Turn-On Time
vs. Temperature
(I
L
=120mA
DC
)
10
15
20
25
30
35
40
45
50
-40
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
LED Forward Current (mA)
Temperature (ºC)
Temperature (ºC)
0.25
Turn-Off Time (ms)
0.20
0.15
0.10
0.05
0
0
5
Form-A

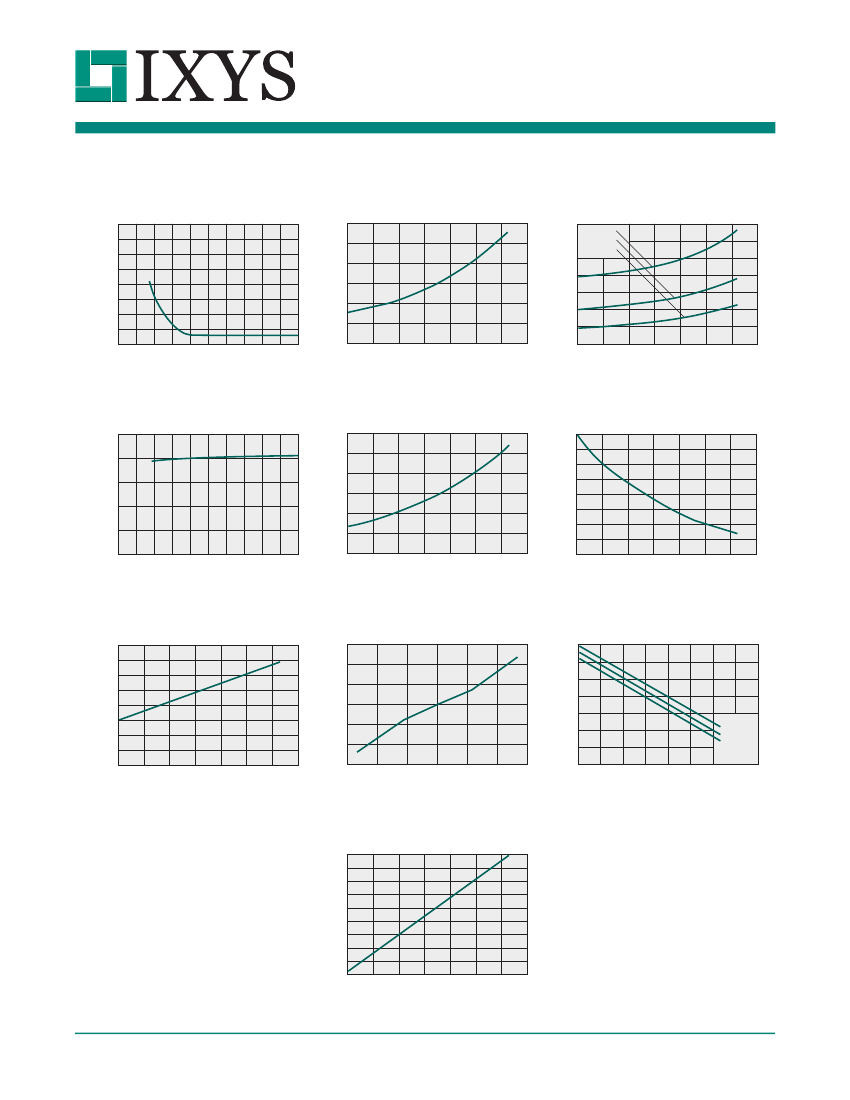

Typical Turn-Off Time
vs. LED Forward Current
(I
L
=120mA
DC
)
6
LED Current (mA)
5
4
3
2
1
0
-40
Form-A
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=120mA
DC
)
Turn-Off Time (ms)
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
Form-A
Typical Turn-Off Time
vs. Temperature
(I
F
=5mA, I
L
=120mA
DC
)
10
15
20
25
30
35
40
45
50
-20
0
20
40
60
80
100
0
-40
-20
0
20
40
60
80
100
LED Forward Current (mA)
Temperature (ºC)
Temperature (ºC)
40
35
On-Resistance ( )
Form-A
Typical On-Resistance
vs. Temperature
(I
F
=8mA, I
L
=120mA
DC
)
Load Current (mA)
150
100
50
0
-50
-100
-150
Form-A
Typical Load Current vs. Load Voltage
(I
F
=8mA)
Form-A
Maximum Load Current
vs. Temperature
180
160
Load Current (mA)
140
120
100
80
60
40
30
25
20
15
10
5
0
-40
-20
0
20
40
60
80
100
I
F
=20mA
I
F
=10mA
I
F
=8mA
-40
-20
0
20
40
60
80
100
120
-3
-2
-1
0
1
2
3
Temperature (ºC)
Load Voltage (V)
Temperature (ºC)
Form-A
Typical Blocking Voltage
vs. Temperature
420
415
Blocking Voltage (V
P
)
410
405
400
395
390
385
380
375
-40
-20
0
20
40
60
80
100
Temperature (ºC)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
4
www.ixysic.com
R06
I
NTEGRATED
C
IRCUITS
D
IVISION
LCC110
FORM-B RELAY PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Form-B
Typical Turn-On Time
(N=50, I
F
=8mA, I
L
=120mA
DC
)
Form-B
Typical Turn-Off Time
(N=50, I
F
=8mA, I
L
=120mA
DC
)
Form-B
Typical On-Resistance Distribution
(N=50, I
F
=8mA, I
L
=120mA
DC
)
30
25
Device Count (N)
30
25
Device Count (N)
30
25
Device Count (N)
20
15
10
5
0
20
15
10
5
0
0.03
0.05
0.07
0.09
0.11
0.13
Turn-On Time (ms)
20
15
10
5
0
0.21
0.28
0.35
0.42
0.49
0.56
Turn-Off Time (ms)
25.5
26.5
27.5
28.5
29.5
30.5
31.5
On-Resistance ( )
30
25
Device Count (N)
Form-B
Typical I
F
for Switch Operation
(N=50, I
L
=120mA
DC
)
25
20
15
10
5
0
Form-B
Typical I
F
for Switch Dropout
(N=50, I
L
=120mA
DC
)
Form-B
Typical Blocking Voltage Distribution
(N=50)
30
25
Device Count (N)
20
15
10
5
0
20
15
10
5
0
1.2
2.0
2.8
3.6
4.4
5.2
LED Current (mA)
Device Count (N)
1.2
2.0
2.8
3.6
4.4
5.2
365
375
385
395
405
415
425
LED Current (mA)
Blocking Voltage (V
P
)
0.075
Turn-On Time (ms)
0.074
0.073
0.072
0.071
0.070
0
5
Form-B
Typical Turn-On Time
vs. LED Forward Current
(I
L
=120mA
DC
)
6
5
LED Current (mA)
4
3
2
1
0
-40
Form-B
Typical I
F
for Switch Operation
vs. Temperature
(I
L
=120mA
DC
)
Turn-On Time (ms)
0.25
0.20
0.15
0.10
0.05
0
-40
Form-B
Typical Turn-On Time
vs. Temperature
(I
F
=5mA, I
L
=120mA
DC
)
10
15
20
25
30
35
40
45
50
-20
0
20
40
60
80
100
-20
0
20
40
60
80
100
LED Forward Current (mA)
Temperature (ºC)
Temperature (ºC)
0.40
Turn-Off Time (ms)
0.35
0.30
0.25
0.20
0.15
0
5
Form-B
Typical Turn-Off Time
vs. LED Forward Current
(I
L
=120mA
DC
)
6
5
LED Current (mA)
4
3
2
1
0
-40
Form-B
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=120mA
DC
)
Turn-Off Time (ms)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-40
-20
Form-B
Typical Turn-Off Time
vs. Temperature
(I
L
=120mA
DC
)
I
F
=8mA
I
F
=10mA
I
F
=20mA
10
15
20
25
30
35
40
45
50
-20
0
20
40
60
80
100
0
20
40
60
80
100
LED Forward Current (mA)
Temperature (ºC)
Temperature (ºC)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
The day before yesterday, I published a pure English blog about DS coding. I had never come across this kind of coding before, so I wanted to write it down in my blog. I would come and have a look whe...
The information I collected during the 2010 Jiangsu Province TI Analog Circuit Design Competition has nothing to do with the competition. Some of the information about C2000 in the TI official CD is t...
[i=s]This post was last edited by johnrey on 2015-9-28 12:55[/i] [size=4]Last time, I encountered an electronic design competition, so I didn’t dare to apply casually. Hoho, let’s continue this time. ...
The program can be downloaded and run, but the crystal oscillator does not oscillate. Neither the low frequency nor the high frequency oscillates. There is no response when using an oscilloscope to me...
As one of the passive components, the capacitor has the following functions: 1. It is used in power circuits to achieve bypass, decoupling, filtering and energy storage. The following categories are d...
linux arm Qt first part of the transplant configuration chapter [url=http://v.youku.com/v_show/id_XODUzMjQwMzUy.html][flash]http://player.youku.com/player.php/sid/XODUzMjQwMzUy/v.swf[/flash][/url] Fro...
From being a global leader to losing the market, Korean battery manufacturers have always wanted to regain the lost market and dignity, but facing Chinese battery manufacturers represented by CAT...[Details]
EtherCAT (Ethernet for Control Automation Technology) is a real-time industrial fieldbus communication protocol based on an Ethernet-based development framework. EtherCAT is one of the fastest indu...[Details]
The mass production process of the new generation of cockpit platform has started, and the smart cockpit market has entered a new bonus cycle of technology iteration and platform upgrade.
...[Details]
Electric motors and internal combustion engines of the same power have similar torque levels. High power requires high torque, and torque determines a vehicle's acceleration speed, commonly known a...[Details]
In recent years, the government has increasingly supported electric vehicles, and the number of electric vehicles has increased. Observant drivers will notice that there are many more green license...[Details]
Introduction to the principles of speech recognition technology
Automatic speech recognition (ASR) technology aims to enable computers to understand human speech and extract the textual inform...[Details]
On August 25th, TSMC, the world's leading contract chip manufacturer, attracted significant attention for its decision to build a chip manufacturing facility in Arizona. TSMC primarily manufactures...[Details]
On August 22, the National Energy Administration released the latest data, showing that by the end of July 2025, China's total number of electric vehicle charging infrastructure will reach 16.696 m...[Details]
1 Source of creativity
With the further development of electronic technology, electronic pets have gradually entered people's family life. At present, there are two main categories of relative...[Details]
With the development of science, the use of variable frequency technology is becoming more and more widespread, and it is used in both industrial equipment and household appliances. Inverter air co...[Details]
Teletrac Navman has launched the Multi IQ dashcam, a cloud-based solution designed for large commercial vehicle operators. It connects up to five cameras to cover the vehicle's interior, sides, and...[Details]
According to foreign media reports, Ford Motor has applied to the U.S. Patent and Social Security Office (USPTO) for a patent for a door anti-collision system that may be used in future Ford vehicl...[Details]
The difference between a series inverter and a parallel inverter is that they use different oscillation circuits. A series inverter connects L, R, and C in series, while a parallel inverter connect...[Details]
With the advancement of science and technology and the promotion of green, energy-saving, and circular development, the demand for precise control and accurate measurement is increasing. In the pow...[Details]
We often hear about the precautions for using pure electric vehicles in winter, and many owners even develop relevant strategies, such as adopting a "charge as you go" principle for their vehicles,...[Details]
Suggestions & Announcements
京公网安备 11010802033920号
EEWORLD
