Series SS
Toggles
Ultra-Miniature Slides
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Power Level (silver):
Logic Level (gold):
0.1A @ 30V DC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Programmable Illuminated PB
Pushbuttons
Other Ratings
Keylocks
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Contact Timing:
Total Travel:
20 milliohms maximum for power level; 40 milliohms maximum for logic level
100 megohms minimum @ 500V DC
500V AC minimum 1 minute minimum
10,000 operations minimum
10,000 operations minimum
SS12S & SS22S – Shorting (make-before-break)
.079” (2.0mm)
Materials & Finishes
Rotaries
Actuator:
Upper Case:
Lower Case:
Movable Contactor:
Slides
H
Interior Base:
Terminals:
Polyamide
Polyester for 3-On models; polyacetal for all other models
Glass fiber reinforced polyester for 3-On models;
glass fiber reinforced polybutylene terephthalate (thermoplastic) for other models
Phosphor bronze with silver plating (code 2) or
phosphor bronze with gold plating (code 4)
Phenolic resin (thermoset)
Brass with silver plating over copper plating or brass with gold plating
Tactiles
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
–15°C through +60°C (+5°F through +140°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Touch
PCB Processing
Soldering:
Indicators
Cleaning:
Wave Soldering: For non-supported through-hole, see Profile B in Supplement section.
For supported through-hole, 5 seconds maximum @ 250°C maximum.
Manual Solder: See Profile B in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
Standards & Certifications
Supplement
Accessories
The SS series devices have not been tested for UL recognition and CSA certification.
These switches are designed for use in a low-voltage, low-current circuit.
When used as intended in a low-voltage, low-current circuit, the results do not produce
hazardous energy.
H44
www.nkk.com
Ultra-Miniature Slides
Series SS
Toggles

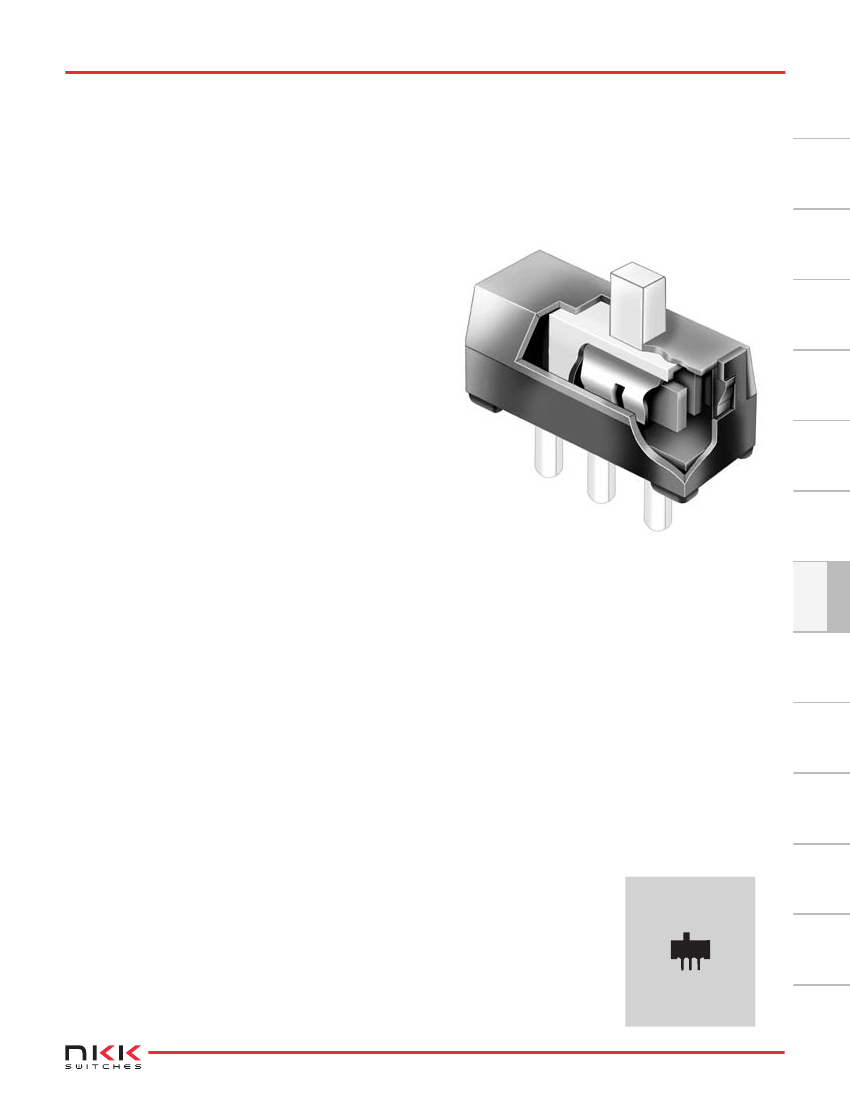

Crisp actuation positively indicates circuit status.
Double molded thermoset base and thermo-
plastic housing prevent loosening of terminals
due to high soldering temperatures.
Award-winning STC mechanism with benefits
unavailable in conventional mechanisms: smoother,
positive detend actuation, increased contact stability,
and unparalleled logic-level reliability. (Additional STC
details in Terms and Acronyms in the Supplement section.)
Insert molded terminals lock out flux, solvents, and other contaminants.
Inch or metric terminal spacing for standard PC board grid (.100” x .100” or 2.0mm x 2.0mm).
H
www.nkk.com
H45
Supplement
Accessories
Indicators
Actual Size
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Compact dimensions and low profile allow
high density mounting and close stacking of
PC boards.
Pushbuttons
Top or side actuation permits flexible board design.
Rockers
Distinctive
Characteristics
Series SS
Toggles
Ultra-Miniature Slides
TYPICAL SWITCH ORDERING EXAMPLE
Pushbuttons
Rockers
SS
Poles & Circuits
12S
* 14M
22S
SPDT
SP3T
DPDT
ON
ON
ON
NONE
ON
NONE
12S
D
Terminal Spacing
P
2
Contact Material
& Ratings
2
*4
Silver Rated 0.1A @ 30V DC
Gold Rated 0.4VA maximum
@ 28V AC/DC maximum
Programmable Illuminated PB
ON
ON
ON
B
D
Metric 2.0mm x 2.0mm
Inch .100” x .100”
SS12S model has shorting contacts.
SS22S model has shorting contacts.
See Poles & Circuits chart below.
*
14M Circuit with silver contacts only.
P
H
*
Gold not available with SS14M.
Actuation
Top Actuated
Side Actuated
Rotaries
Keylocks
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
SS12SDP2
Slides
H
Top Actuated
SPDT ON-NONE-ON Circuit
Terminals with .100” Spacing
Silver Contacts Rated 0.1A @ 30V DC
Tilt
Tactiles
POLES & CIRCUITS
Slide Position
Connected Terminals
Left
Right
Center
Left
Note: Terminal numbers are not actually on switch.
Throw & Schematics
Touch
Right
Pole
Model
SS12S
ON
Center
Indicators
SP
NONE
ON
2-1
NONE
2-3
SPDT
3
2 (COM)
1
Accessories
SP
SS14M
ON
ON
ON
3-4
3-2
3-1
SP3T
4
3 (COM)
2
1
ON-OFF-ON circuit
can be created by not
connecting terminal 2.
Supplement
DP
SS22S
ON
NONE
ON
2-1 5-4
NONE
2-3 5-6
DPDT
1
2 (COM)
3
4
5 (COM)
6
H46
www.nkk.com
Ultra-Miniature Slides

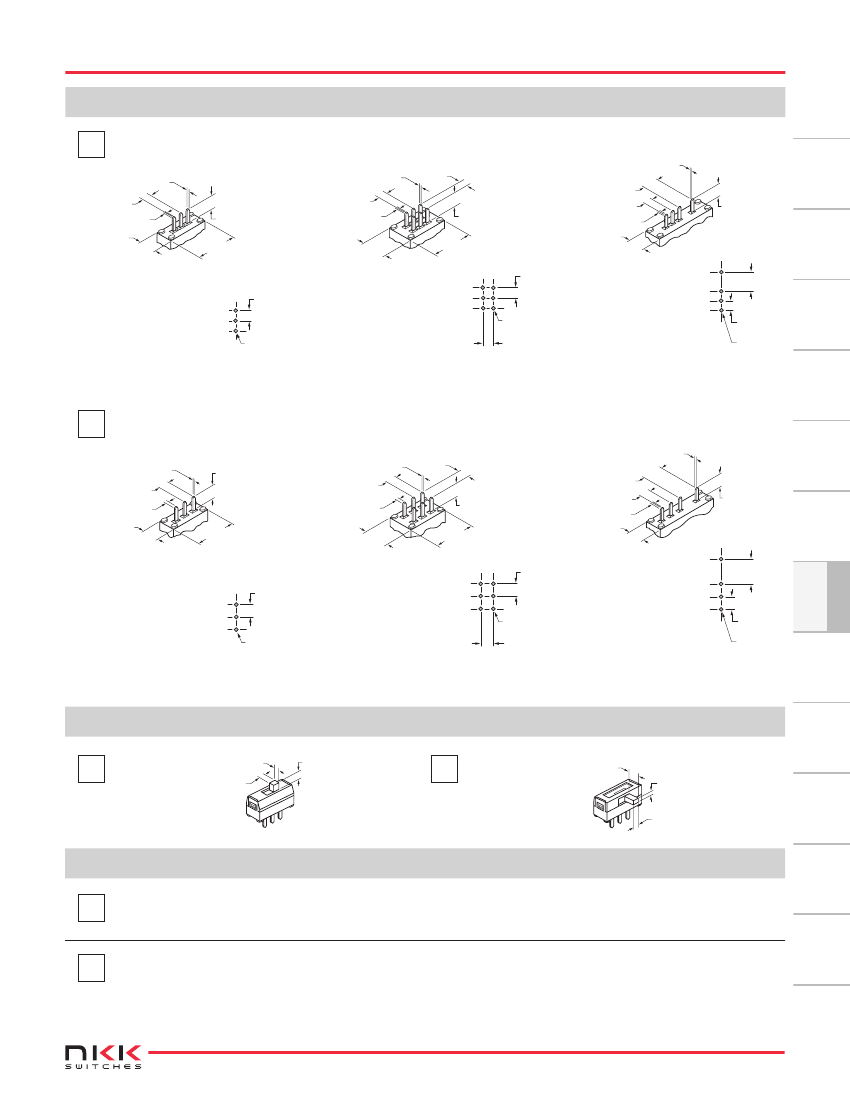

TERMINAL SPACING
B
Metric 2.0mm x 2.0mm with Black Base
(0.4) Typ
.016
(2.0) Typ
.079
(0.6) Typ
.024
(4.0)
.157
(3.4)
.134
(10.2)
.402
(0.4) Typ
.016
(2.0) Typ
.079
(0.6) Typ
.024
(6.0)
.236
(2.0)
.079
(4.0)
.157
(2.0) Typ
.079
(0.6) Typ
.024
(4.0)
.157
(2.0) Typ
.079
Series SS
Toggles
(0.4) Typ
.016
(3.4)
.134
4
3
2
1
(10.0)
.394
1
2
3
(2.0) Typ
.079
5
6
2
3
(0.8) Dia Typ
.031
(0.8) Dia Typ
.031
(2.0)
.079
(2.0) Typ
.079
(0.8) Dia Typ
.031
On-None-On Single Pole Models
On-None-On Double Pole Models
3-On Models
D
(10.2)
.402
(6.54)
.257
(10.2)
.402
(2.54) Typ
.100
4
4
1
2
3
1
2
3
3
2
1
(5.08)
.200
(2.54) Typ
.100
5
6
(0.8) Dia Typ
.031
(0.8) Dia Typ
.031
(2.54)
.100
(2.54) Typ
.100
(0.8) Dia Typ
.031
H
On-None-On Single Pole Models
On-None-On Double Pole Models
3-On Models
P
Top Actuated
(1.2)
.047
(1.5)
.059
(2.0)
.079
H
Side Actuated
(2.5)
.098
(1.2)
.047
(1.5)
.059
2
4
Gold over Silver/Phosphor Bronze
Logic Level
0.4VA max @ 28V AC/DC max
Complete explanation of operating range in Supplement section.
www.nkk.com
H47
Supplement
Accessories
Silver over Phosphor Bronze
Power Level
0.1A @ 30V DC
Indicators
CONTACT MATERIALS & RATINGS
Touch
Tilt
ACTUATION
Tactiles
Slides
Rotaries
(0.4) Typ
.016
(2.54) Typ
.100
(0.6) Typ
.024
(4.0)
.157
(3.4)
.134
(0.4) Typ
.016
(2.54) Typ
.100
(0.6) Typ
.024
(2.54)
.100
(0.4) Typ
.016
(5.08)
.200
(2.54) Typ
.100
(0.6) Typ
.024
(4.0)
.157
(3.4)
.134
(3.4)
.134
Keylocks
Inch .100” x .100” with Gray Base
Programmable Illuminated PB
4
1
(4.0)
.157
Pushbuttons
(3.4)
.134
Rockers
Series SS
Toggles
Ultra-Miniature Slides

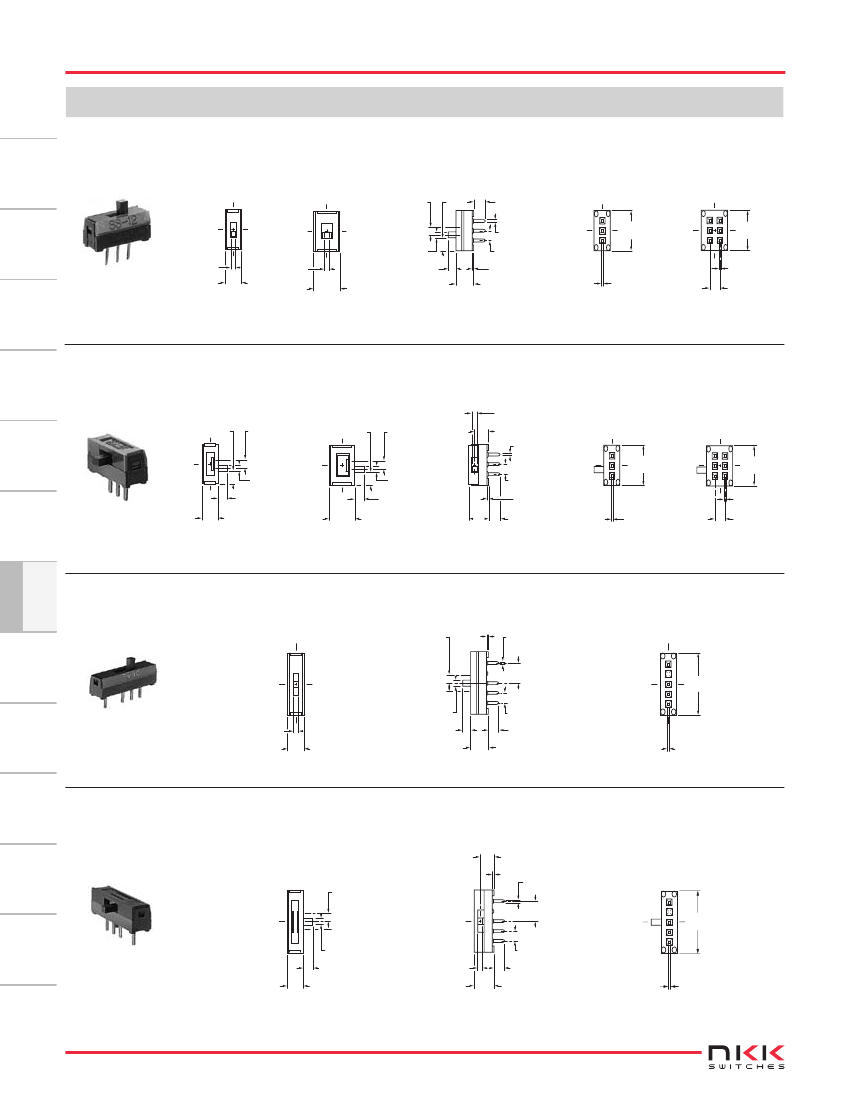

TYPICAL SWITCH DIMENSIONS
Top Actuated
Rockers
Single & Double Pole
(2.0) Travel
.079
(3.3)
.130
(3.0)
.118
(0.6) Typ
.024
(2.54) Typ
.100
(0.4)
.016
1
2
3
Pushbuttons
(10.2)
.402
1
2
3
4
5
6
(10.2)
.402
(0.4) Typ
.016
(2.54)
.100
(1.2)
.047
Programmable Illuminated PB
(4.0)
.157
(1.2)
.047
(6.54)
.257
(1.5)
.059
(2.0)
.079
(4.5)
.177
(0.4)
.016
SS12SDP2
Side Actuated
Single & Double Pole
(1.2)
.047
(3.5)
.138
Keylocks
(3.3)
.130
(2.0) Travel
.079
(3.3)
.130
(2.0) Travel
.079
(0.6) Typ
.024
1
2
3
(1.5)
.059
(2.5)
.098
(4.0)
.157
(6.54)
.257
(1.5)
.059
(2.5)
.098
(5.0)
.197
Rotaries
(2.54) Typ
.100
(0.4)
.016
(3.0)
.118
(10.2)
.402
1
2
3
4
5
6
(10.2)
.402
(0.4) Typ
.016
(2.54)
.100
(0.4)
.016
SS12SDH2
Slides
H
3-On Circuit • Top Actuated
Single Pole
(2.0) Travel Typ
.079
(0.4)
.016
(0.6) Typ
.024
(5.08)
.200
(2.54) Typ
.100
(3.0)
.118
4
Tactiles
3
2
1
(15.8)
.622
(1.2)
.047
(4.0)
.157
Tilt
(1.5)
.059
(2.0)
.079
(4.5)
.177
(0.4)
.016
SS14MDP2
Touch
3-On Circuit • Side Actuated
Single Pole
(3.5)
.138
(2.0) Travel Typ
.079
Indicators
(0.4)
.016 (0.6) Typ
.024
(5.08)
.200
4
3
2
1
Accessories
(15.8)
.622
Supplement
(1.5)
.059
(2.5)
.098
(4.0)
.157
(1.2)
.047
(5.0)
.197
(2.54) Typ
.100
(3.0)
.118
(0.4)
.016
SS14MDH2
H48
www.nkk.com
