561-F2520.100

Description
Screws & Fasteners 1/4-20 1 FILLISTER Metal Core Screw
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size164KB,1 Pages
ManufacturerEagle Plastic Devices
Environmental Compliance
Download Datasheet Parametric Compare View All

561-F2520.100 Overview

Screws & Fasteners 1/4-20 1 FILLISTER Metal Core Screw

561-F2520.100 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerEagle Plastic Devices
Product CategoryScrews & Fasteners
RoHSDetails
TypeMetal Core Nylon Screw
Thread Size250-20
Length1 in
MaterialNylon
Outside Diameter0.4 in
632 Series, 832 Series, 1032 Series, 1/4-20 Series

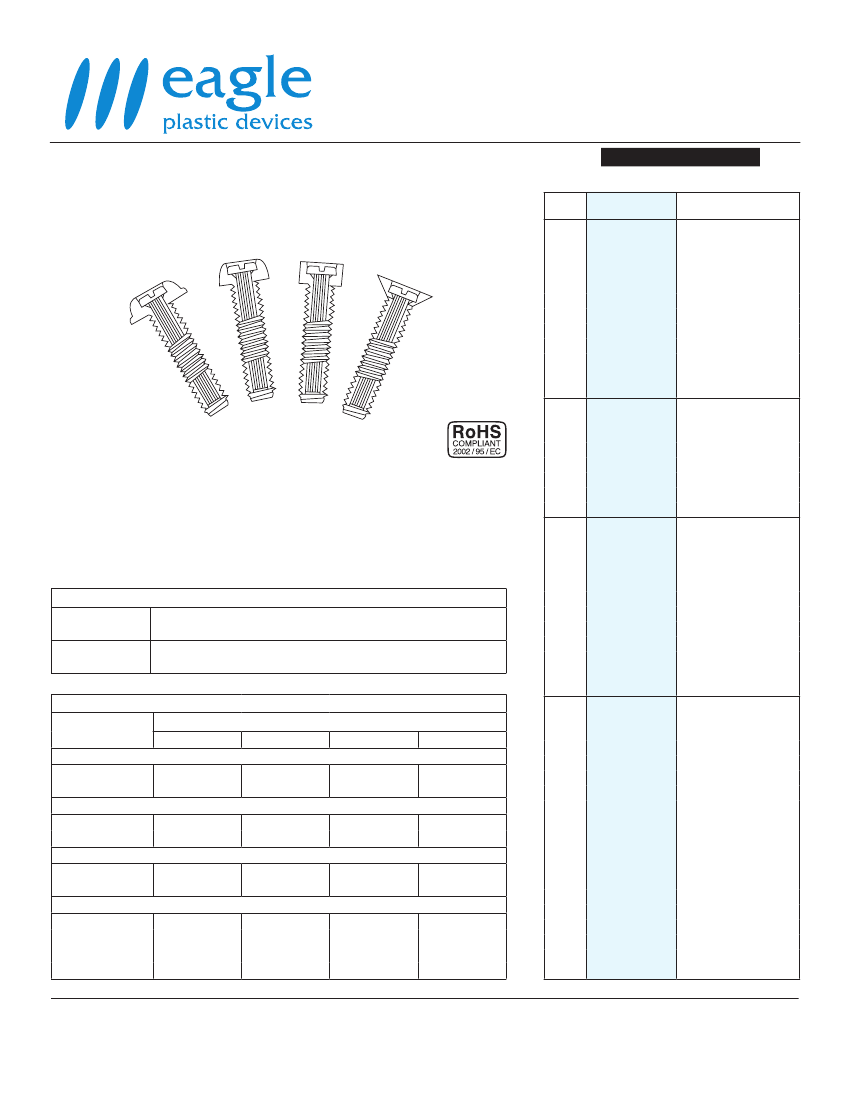

METAL CORE SCREWS
Date Last Revised: 4/3/13
DIMENSIONS: in
Thread
Size
Round
Round Washer
Fillister
82° Flat
MOUSER
STOCK NO.
561-A632.25
561-A632.375
561-A632.5
561-FMC632.25
561-FMC632.375
561-FMC632.5
632
561-R632.25
561-R632.375
561-R632.5
561-W632.25
561-W632.375
561-W632.5
561-A832.375
561-A832.5
561-FMC832.375
561-FMC832.5
832
561-R832.375
561-R832.5
561-W832.375
561-W832.5
561-A1032.375
561-A1032.5
561-A1032.75
561-F1032.375
561-F1032.5
561-F1032.75
1032
561-R1032.375
561-R1032.5
561-R1032.75
561-W1032.375
561-W1032.5
561-W1032.75
561-A2520.375
561-A2520.5
561-A2520.62
561-A2520.75
561-A2520.100
561-F2520.375
561-F2520.5
561-F2520.62
561-F2520.75
1/4-20
561-F2520.100
561-R2520.375
561-R2520.5
561-R2520.62
561-R2520.75
561-R2520.100
561-W2520.375
561-W2520.5
561-W2520.62
561-W2520.75
Description
(Thread x Length)
632x0.25
632x0.375
632x0.5
632x0.25
632x0.375
632x0.5
632x0.25
632x0.375
632x0.5
632x0.25
632x0.375
632x0.5
832x0.375
832x0.5
832x0.375
832x0.5
832x0.375
832x0.5
832x0.375
832x0.5
1032x0.375
1032x0.5
1032x0.75
1032x0.375
1032x0.5
1032x0.75
1032x0.375
1032x0.5
1032x0.75
1032x0.375
1032x0.5
1032x0.75
1/4-20x0.375
1/4-20x0.5
1/4-20x0.625
1/4-20x0.75
1/4-20x1
1/4-20x0.375
1/4-20x0.5
1/4-20x0.625
1/4-20x0.75
1/4-20x1
1/4-20x0.375
1/4-20x0.5
1/4-20x0.625
1/4-20x0.75
1/4-20x1
1/4-20x0.375
1/4-20x0.5
1/4-20x0.625
1/4-20x0.75
EPD-200916
Features:
•Protect
•Insulate
•Isolate
Replaces:
•Costly Brass and Stainless Steel Fasteners
•Costly Multiple Component Insulated Screw Assemblies
•Costly Sleeved and Cladded Screws
•Marginal Standard Nylon Fastener Applications
MATERIALS
Nylon Shell:
Reinforcing Core:
Nylon 6/6 Natural, High Dielectric Resistance, Corrosion Resistant,
Vibration and Abrasion Resistant
High Strength, High Carbon, C.H.Q. Steel, Precision Cold Formed
and Knurled, Electro Zinc or Cadmium Plated
DIMENSIONS: IN.
Head Style
82° Flat
Head ø
Head Height
Fillister
Head ø
Head Height
Round
Head ø
Head Height
Round Washer
Head ø
Head Height
Washer Thickness
Washer ø
Thread Size
632
0.265±0.005
0.085±0.005
0.230±0.005
0.135±0.005
0.225±0.005
0.095±0.005
0.230±0.005
0.100±0.005
0.025±0.005
0.300±0.005
832
0.305±0.005
0.100±0.005
0.260±0.005
0.140±0.005
0.300±0.005
0.120±0.005
0.265±0.005
0.110±0.005
0.032±0.005
0.370±0.005
1032
0.370±0.005
0.120±0.005
0.310±0.005
0.160±0.005
0.340±0.005
0.130±0.005
0.315±0.005
0.125±0.005
0.036±0.005
0.425±0.005
1/4-20
0.510±0.005
0.155±0.005
0.400±0.005
0.220±0.005
0.450±0.005
0.165±0.005
0.460±0.005
0.175±0.005
0.056±0.005
0.550±0.005
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Available from Mouser Electronics
1-800-346-6873 / www.mouser.com

561-F2520.100 Related Products

561-F2520.100 561-F440.5 561-W2520.375 561-F632.375 561-W2520.62 561-A2520.375 561-F832.25 561-F832.5 561-W632.5
Description Screws & Fasteners 1/4-20 1 FILLISTER Metal Core Screw Screws & Fasteners SCREW FLAT 440X1/2 Screws & Fasteners 1/4-20 3/8 RD WASHR Metal Core Screw Screws & Fasteners SCREW FLAT 632X3/8 Screws & Fasteners 1/4-20 5/8 RD WASHR Metal Core Screw Screws & Fasteners 1/4-20 3/8 FLAT Metal Core Screw Screws & Fasteners SCREW FLAT 832X1/4 Screws & Fasteners SCREW FLAT 832X1/2 Screws & Fasteners SCREW 632 1/2 WASHER
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Eagle Plastic Devices Eagle Plastic Devices Eagle Plastic Devices Eagle Plastic Devices Eagle Plastic Devices Eagle Plastic Devices Eagle Plastic Devices Eagle Plastic Devices Eagle Plastic Devices
Product Category Screws & Fasteners Screws & Fasteners Screws & Fasteners Screws & Fasteners Screws & Fasteners Screws & Fasteners Screws & Fasteners Screws & Fasteners Screws & Fasteners
RoHS Details Details In Transition Details Details In Transition Details Details Details
Type Metal Core Nylon Screw Machine Mounting Machine Mounting Metal Core Nylon Screw Machine Machine Mounting
Thread Size 250-20 4-40 1/4-20 6-32 1/4-20 250-20 8-32 8-32 6-32
Length 1 in 0.5 in 0.375 in 0.375 in 0.62 in 0.375 in 0.25 in 0.5 in 0.5 in
Material Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon
Outside Diameter 0.4 in - 0.46 in - 0.46 in 0.51 in - - 0.23 in
Product - Screws Screws Screws Screws - Screws Screws Screws
Screw Head - Slotted Slotted Slotted Slotted - Slotted Slotted Slotted
