Manual Switches
Buttons/Lens for Switches and Indicators

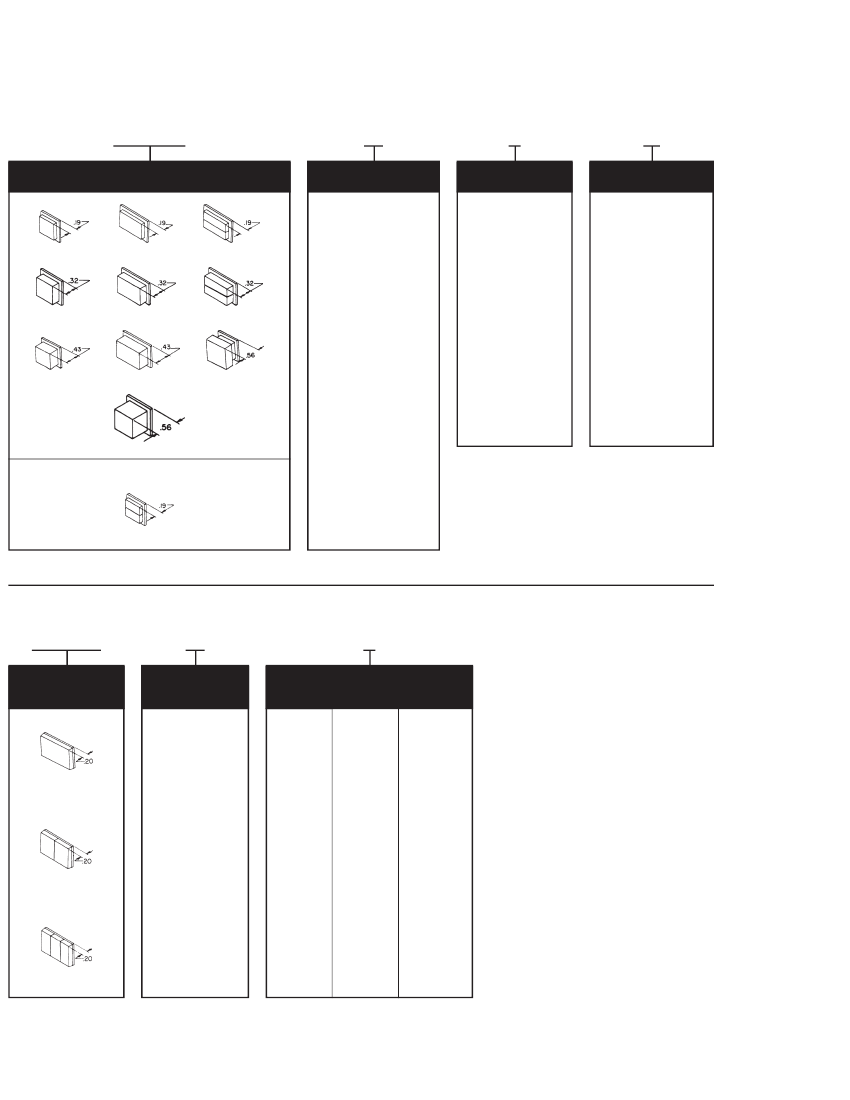

AML51 PUSHBUTTON ORDER GUIDE
(All possible color combinations may not be available.)
For Incandescent or non-lighted display switches and pushbutton style indicators.
AML51 Series
AML51-C
10
R
—
2nd
Color Split
R
Red
Y
Yellow
G
Green
B
Blue
W****
White
K***
Black
L***
Gray
A**
Amber
For AML11, 21, 31 switches and AML41 indicators:
Pushbutton Style
Display
Legend/Type
Transmitted Color
10
No legend
20
With legend
on cap.
Transmitted Color
(Clear cap and
color insert)
11
No legend
21
With legend
on insert
Dead Front
(Smoky gray cap
and color insert)
30
No legend
40
With legend
on insert
****Projected Color
(White cap and
color insert)
50
No legend
60
With legend
on cap
Full Color or
1st Color Split
R
Red
Y
Yellow
G
Green
B
Blue
W****
White
K***
Black
L***
Gray
A**
Amber
AML51-C
AML51-F
AML51-G
AML51-A
AML51-H
AML51-N
AML51-B*
AML51-E*
AML51-M*
AML51-R*
For AML41D indicators only:
Example:
AML51-C10R
Square full color button; with transmitted color,
no legend; red.
** Available with transmitted color and dead front only.
*** Black and gray not recommended for lighted display.
† AML51-N buttons not available with Display/Legend Types
10 and 20.
Note: Dimensions include the .060 in bezel.
AML51-D
* Available with transmitted color (10 or 20) only.
****Insert is clear for projected color when ‘‘W’’ is used.
AML51 LENS ORDER GUIDE
(All possible color combinations may not be available.)
AML51 lens buttons
provide added dis-
play area by snapping onto and covering
For incandescent display AML41J, K, and L lens style indicators only.
the bezel of AML41J, K, and L indicators.
AML51-J
10
R
They do not fit other indicators or switch-
es.
Lens style
Display/Legend
Type
Transmitted Color
10
No legend
20
With legend
AML51-J
Transmitted Color
(Clear cap and
color insert)
11
No legend
21
With legend
Dead Front
(Smoky gray cap
and color insert)
30
No legend
40
With legend
****Projected Color
(White cap and
color insert)
50
No legend
60
With legend
Full Color
or 1st
2nd
Color Split Color Split
R
Red
Y
Yellow
G
Green
B
Blue
W****
White
A**
Amber
R
Red
Y
Yellow
G
Green
B
Blue
W****
White
A**
Amber
3rd
Color Split
R
Red
Y
Yellow
G
Green
B
Blue
W****
White
A**
Amber
Example:
AML51-J10R
Rectangular lens type button; full color;
transmitted color, no legend; red.
HOW TO ORDER BUTTON LEGENDS
When specifying legended buttons, sub-
mit a legend order sheet to cover each
listing. To insure proper legend orienta-
tion, AML housings (when viewed from
the panel front) should have the ‘‘MICRO
SWITCH’’ identification facing UP on
square devices and UP or to the LEFT on
rectangular.

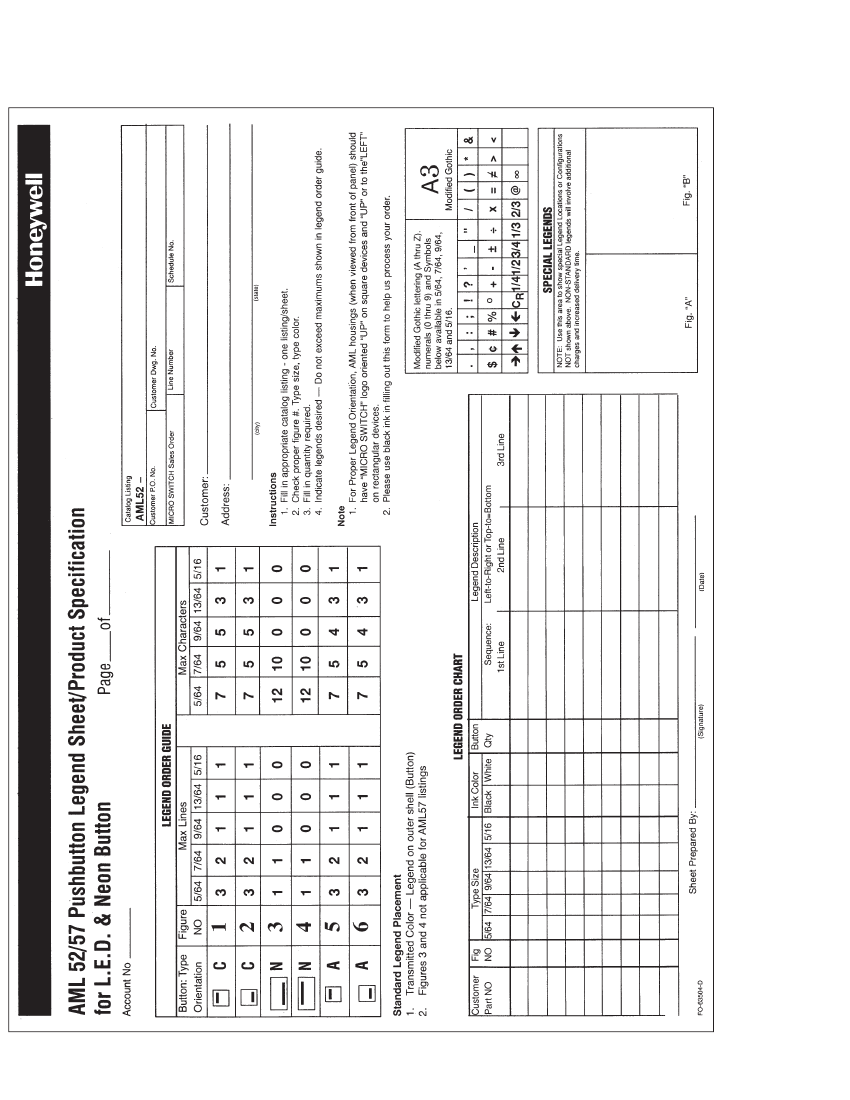

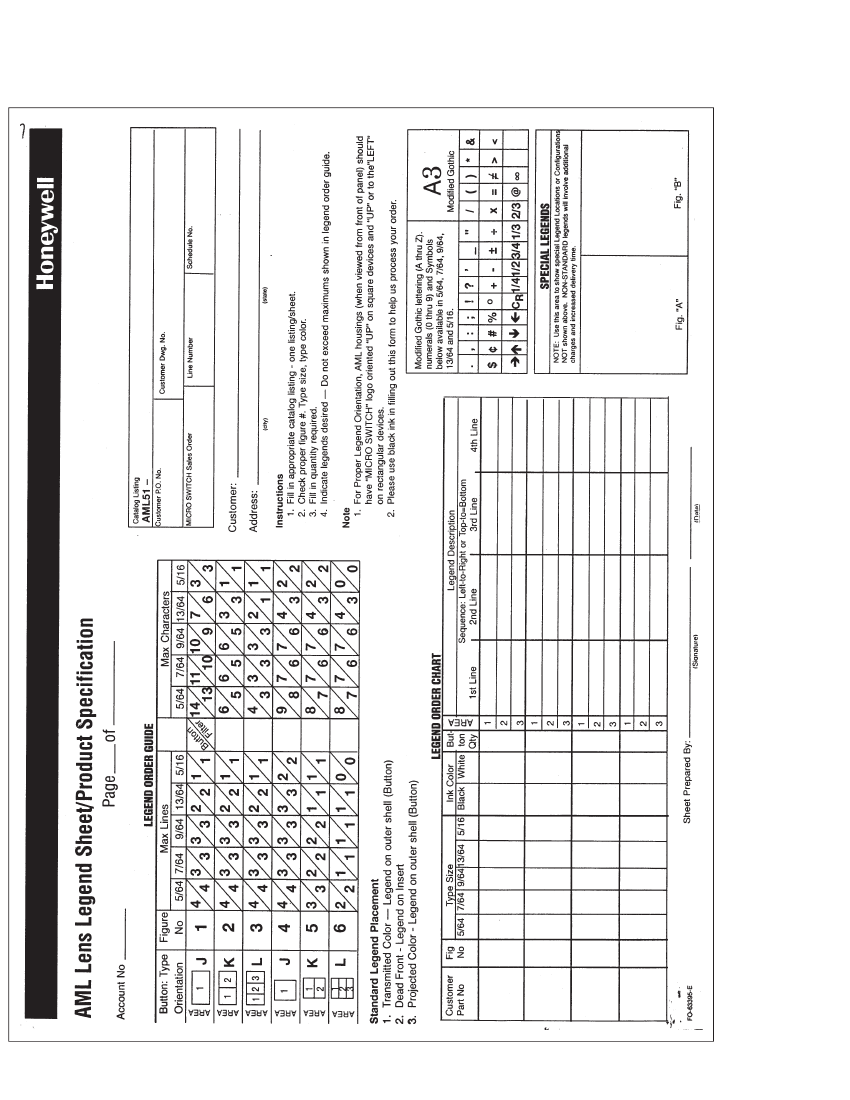

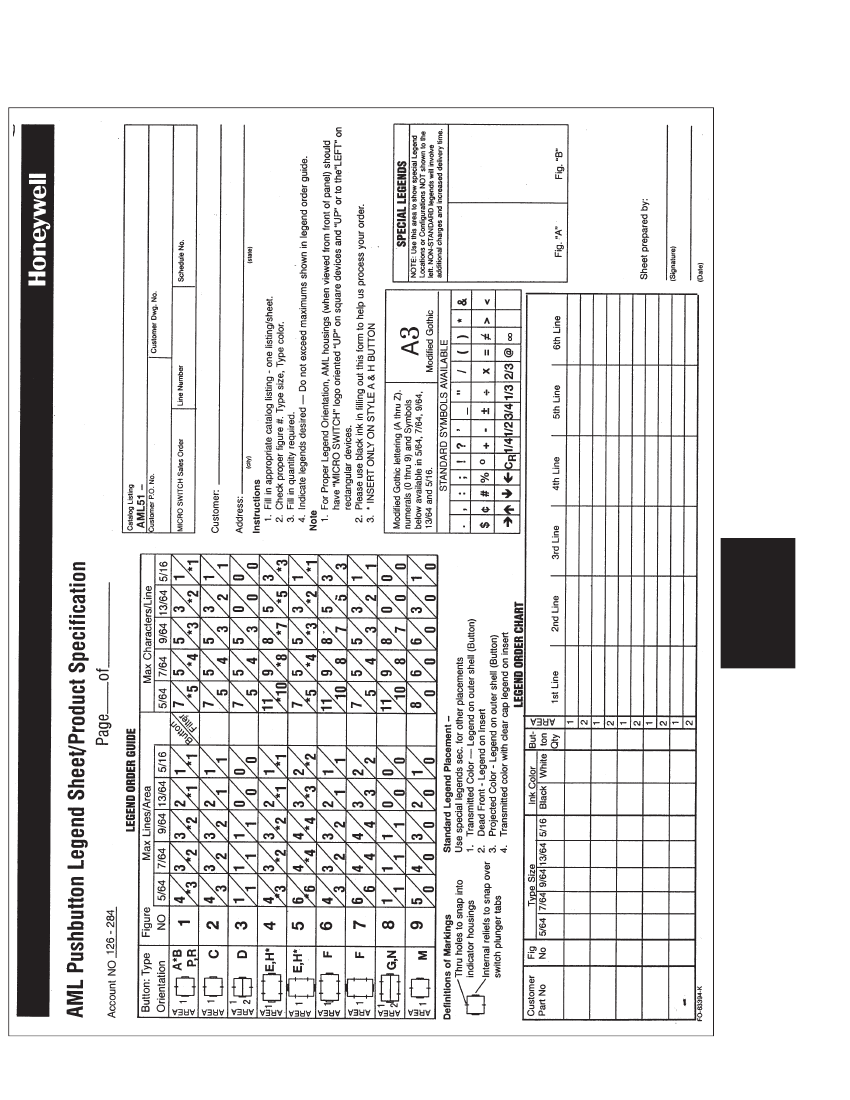

Button legend order sheets are shown on
the following pages. Reproduce them on
your office copier.
Legend Sheet
AML51 Pushbuttons
AML51 Lens buttons
AML52 Pushbuttons
AML53 Paddle switch covers
AML55 Paddle switch covers
AML54 Rockers
AML56 Rockers
Form No.
FO-63394
FO-63395
FO-63504
FO-63567
FO-63565
FO-63566
FO-63564
AML51-K
AML51-L
** Not available with projected color.
****Insert is clear for projected color when ‘‘W’’ is used.
42
Honeywell Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Manual Switches
Buttons for Switches and Indicators
AML52 BUTTON ORDER GUIDE
(All possible color combinations may not be available.)
For AML12, AML22 (w/o light pipe), AML32, AML42 LED display.
AML51/52 Series
AML52-N
Button
Type
For LED Devices
AML52-C
10
Display/Legend
Type
Transmitted Color
10
No Legend
20
With Legend
R
Button
Color
R
Red
Y
Yellow
G
Green
B
Blue
Examples:
AML52-N10R
Rectangular full screen; for use on neon
power switch with transmitted color, no
legend; red button.
AML52-C10K
Square full screen; for use with LED de-
vice; transmitted color, no legend; black
button.
AML52-A*
For AML32 Neon Devices
AML52-N
W
White
K
Black
A
Amber
L
Gray
Manuals
Honeywell Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
43
