JEWEL HILL ELECTRONIC CO.,LTD.
TABLE OF CONTENTS
LCM NUMBER SYSTEM ..................................................................... 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
GENERAL DESCRIPTION ........................................................... 3
FEATURES...................................................................................... 3
MECHANICAL SPECIFICATION .............................................. 3
MECHANICAL DIMENSION ....................................................... 4
MAXIMUM RATINGS .................................................................. 5
ELECTRICAL CHARACTERISTICS ......................................... 5
MODULE FUNCTION DESCRIPTION ...................................... 6
ELECTRO-OPTICAL CHARACTERISTICS .......................... 15
RELIABILITY............................................................................... 19
10. PRECAUTIONS FOR USING LCD MODULES ...................... 20
11. USING LCD MODULES .............................................................. 22
12. REVISION HISTORY .................................................................. 24
SAMPLE APPROVED REPORT ....................................................... 25
GT8002
VER: 1.0
-
1-
Issue date: 2006/02/01
JEWEL HILL ELECTRONIC CO.,LTD.
LCM Number System
GT 8002 F W D S P F N O-V00-L W C X
OTHER
C: WITH CONTROLLER
N: WITHOUT CONTROLLER;
BACKLIGHT COLOR:
A: AMBER; B: BLUE;
W: WHITE; Y: YELLOW-GREEN
R: RED; O: THER COLOR
BACKLIGHT MODE:
L: LED; E: EL; C: CCFL;
N: WITHOUT BACKLIGHT
VERSION NUMBER: V00~V99
CONNECTOR:
P: PIN; H: HEATSEAL; Z: ZEBRA;
F: FPC; O: OTHER
SILK-SCREEN
N: WIHTOUT SILK-SCREEN;
S: WITH SILK-SCREEN
POLARIZER TYPE:
R: REFLECTIVE; T:TRANSMISSIVE
F: TRANSFLECTIVE; OTHER
LCD DISPLAY MODE:
P: POSITIVE; N: NEGATIVE
TEMPERATURE RANGE:
N: NORMAL TEMPERATURE RANGE
M: MIDDLE TEMPERATURE RANGE
W: WIDE TEMPERATURE RANGE
S: SUPER WIDE TEMPERATURE RANGE
VIEWING DIRECTION:
U: UPPER(12:00); D: DOWN(6:00)
L: LEFT(9:00); R: RIGHT(3:00)
LCD COLOR MODE:
W: BLACK-WHITE; Y: YELLOW-GREEN;
G: GRAY; B: BLUE; O: OTHER
LCD TYPE:
T: TN; H: HTN; S: STN;
F: FSTN; C: CSTN; D: TFT
SERIAL NUMBER:0000~9999
PRODUCE TYPE:
GP: LCD PANEL; GC: COLOR STN;
GT: TAB LCM;
GG: COG LCM;
GF: COF & TFT LCM
GT8002
VER: 1.0
-
2-
Issue date: 2006/02/01
JEWEL HILL ELECTRONIC CO.,LTD.
1. GENERAL DESCRIPTION
The GT8002 is a 128 x 16 Dots Graphic LCD module. It has a FSTN panel composed of 128
segments and 16 commons. The LCM can be easily accessed by microcontroller via parallel 6800
timing interface.
2. FEATURES
Display Mode
Display Format
Input Data
Bias
Backlight
Transflective and positive
FSTN module
Graphic 128x16 dots
8 bit parallel input from MPU
1/6 Bias
LED(White)
Multiplexing Ratio 1/33 Duty
Viewing Direction 6 O’clock
3. MECHANICAL SPECIFICATION
Item
Dimensional outline
Resolution
Active area
Dots pitch
Dots size
Specifications
48.0(LED) x (14.0+14.4) x 3.9(max)
128segs x 16coms
37.1(W) x 5.1(H)
0.29 (W)×0.32(H)
0.27(W)×0.3(H)
Unit
mm
dots
mm
mm
mm
GT8002
VER: 1.0
-
3-
Issue date: 2006/02/01
JEWEL HILL ELECTRONIC CO.,LTD.

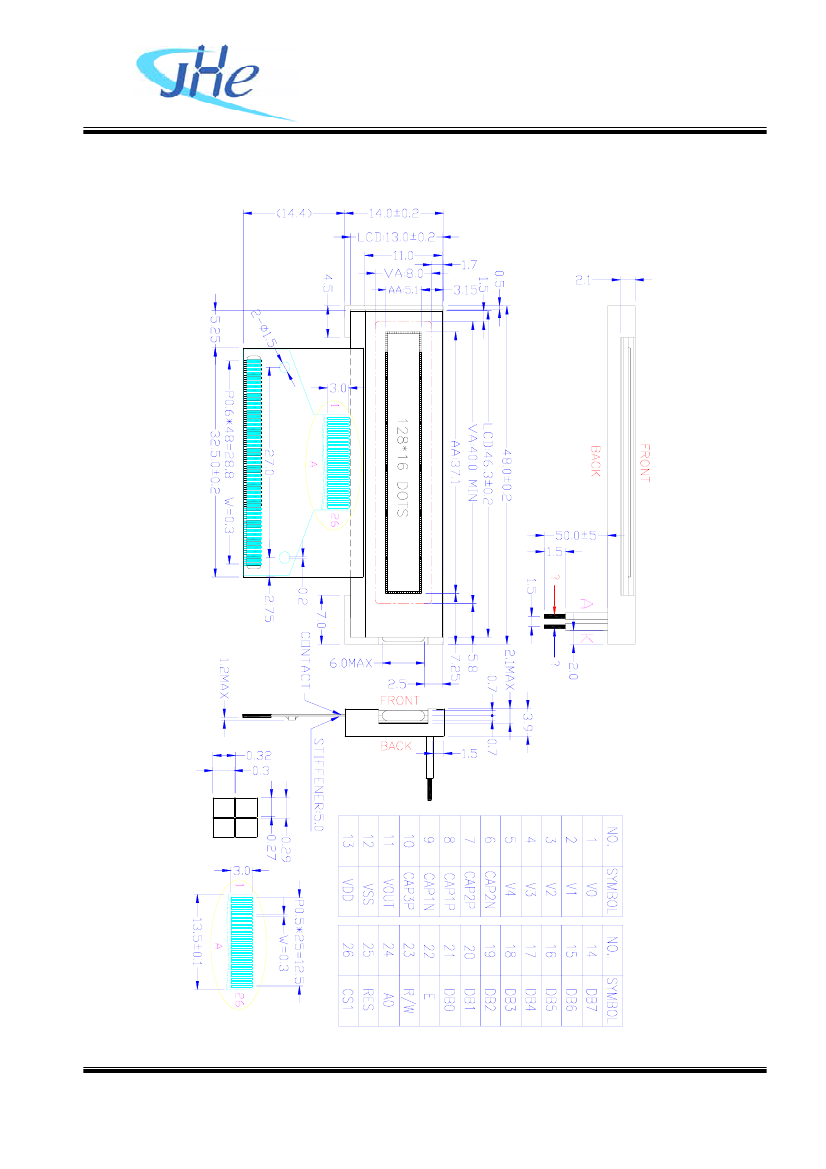

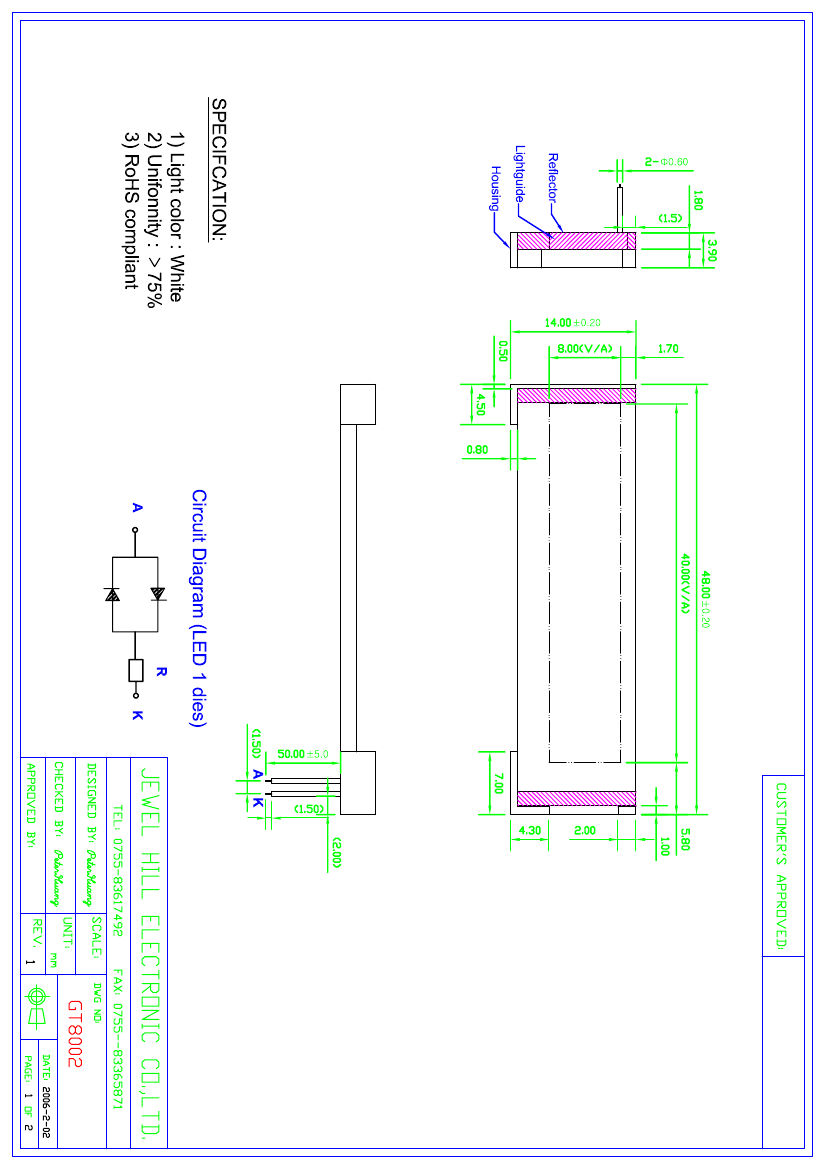

4. MECHANICAL DIMENSION
GT8002
VER: 1.0
-
4-
Issue date: 2006/02/01
