353-060-0040H: DescriptionRF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

353-060-0040H Overview

RF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle

353-060-0040H Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	353
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

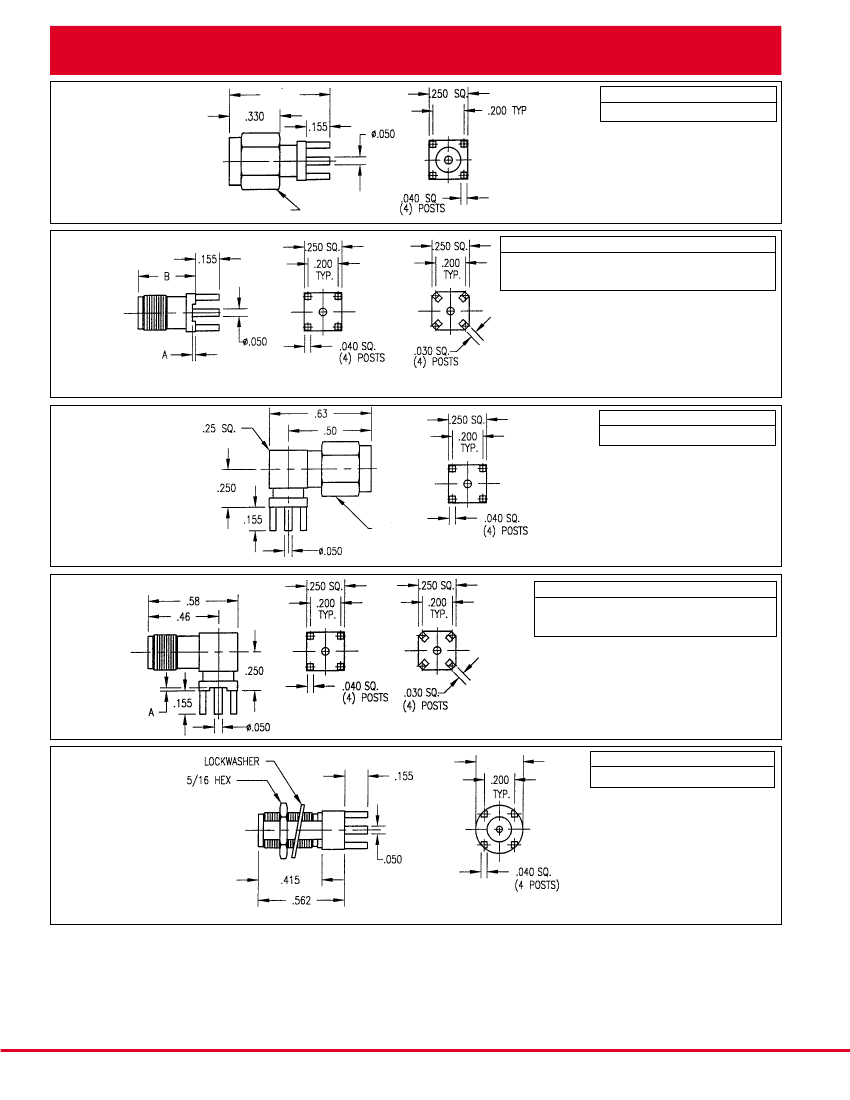

SMA Brass:

Straight Plug

Printed Circuit Receptacles

.66

Part Number

Mounting Hole

350-060-0040H

No. 060

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

5/16 HEX

Straight Jack

Part Number

Mounting Hole Figure A

B

351-060-0040H

No. 060

1 .000 .375

351-060-0046H

No. 060A

2 .020 .375

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

Figure 2

Figure 1

Right Angle

Plug

Part Number

Mounting Hole

352-060-0040H

No. 060

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

5/16 HEX

Right

Angle

Jack

Part Number

Mounting Hole

353-060-0040H

No. 060

353-060-0046H

No. 060A

Figure A

1 .000

2 .020

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

Figure 2

Figure 1

Straight Jack

Bulkhead

.312 D.

Part Number

Mounting Hole

351-060-7540H No. 060, No. 075

• See pages 83 for mounting hole layout.

• Part number shown is for gold plated.

Note: Dimensions shown in inches.

Winchester/Retconn

RF/22

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

353-060-0040H Related Products

	353-060-0040H	350-060-0040H	353-060-0046H	352-060-0040H
Description	RF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle	RF SMA Connector, Male, Board Mount, Solder Terminal, Receptacle	RF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle	RF SMA Connector, Male, Board Mount, Solder Terminal, Receptacle
Reach Compliance Code	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	MALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	353	350	353	352
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1
