251-060-0040G: DescriptionRF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

251-060-0040G Overview

RF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle

251-060-0040G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

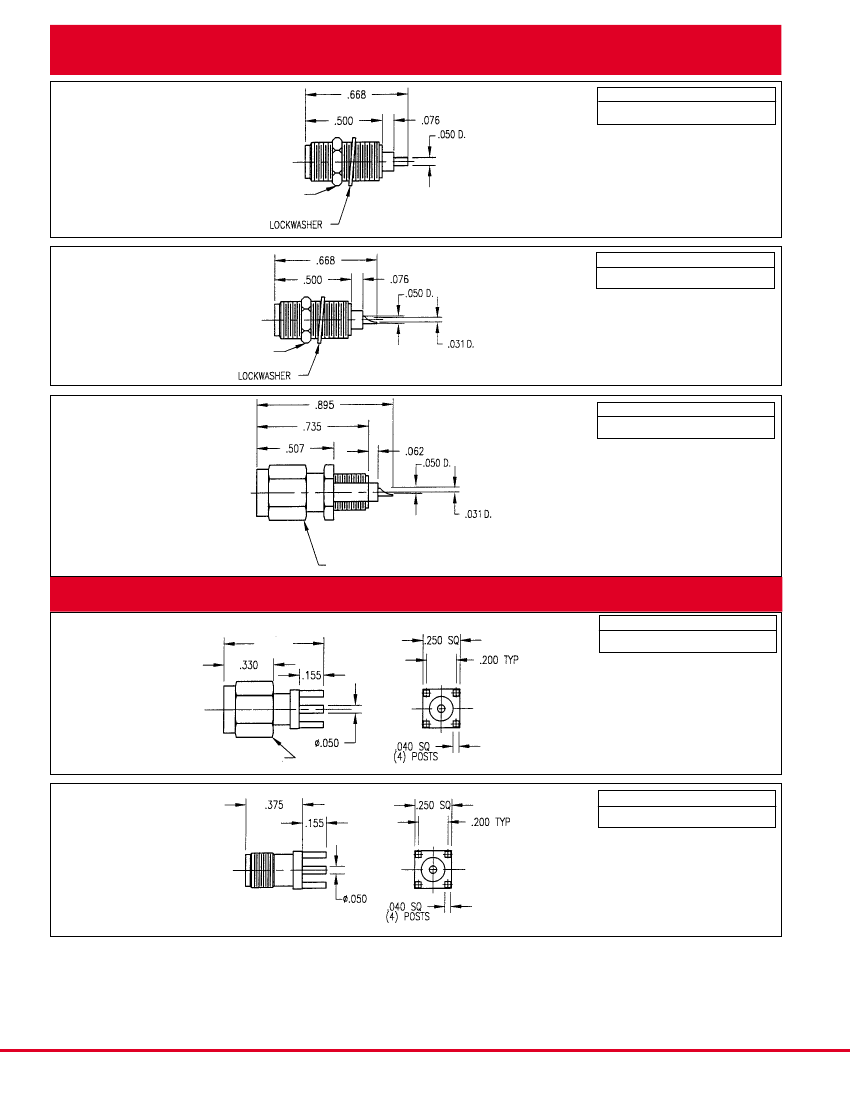

SMA STAINLESS STEEL:

Straight Jack

Feed-Thru

Straight Terminal

5/16 HEX

Bulkhead Mount Receptacle

Part Number

Mounting Hole

251-074-0040G

No. 074

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Straight Jack

Feed-Thru

Solder Pot

5/16 HEX

Part Number

Mounting Hole

251-074-0000G

No. 074

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Straight Plug

Bulkhead

Part Number

Mounting Hole

250-075-0002G

No. 075

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

5/16 HEX

SMA STAINLESS STEEL:

Printed Circuit Receptacles

Straight

Plug

.656

Part Number

Mounting Hole

250-060-0040G

No. 060

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

5/16 HEX

Straight

Jack

Part Number

Mounting Hole

251-060-0040G

No. 060

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

Note: Dimensions shown in inches.

Winchester/Retconn

RF/8

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

251-060-0040G Related Products

	251-060-0040G	251-074-0040G	250-075-0002G	250-060-0040G
Description	RF SMA Connector, Female, Board Mount, Solder Terminal, Receptacle	RF SMA Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF SMA Connector, Male, Panel Mount, Cable Mount, Solder Terminal, Receptacle	RF SMA Connector, Male, Board Mount, Solder Terminal, Receptacle
Reach Compliance Code	unknow	unknow	unknown	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	CABLE	BOARD
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	YES	YES	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1
ECCN code	-	EAR99	EAR99	EAR99
Manufacturer's serial number	-	251	250	250
