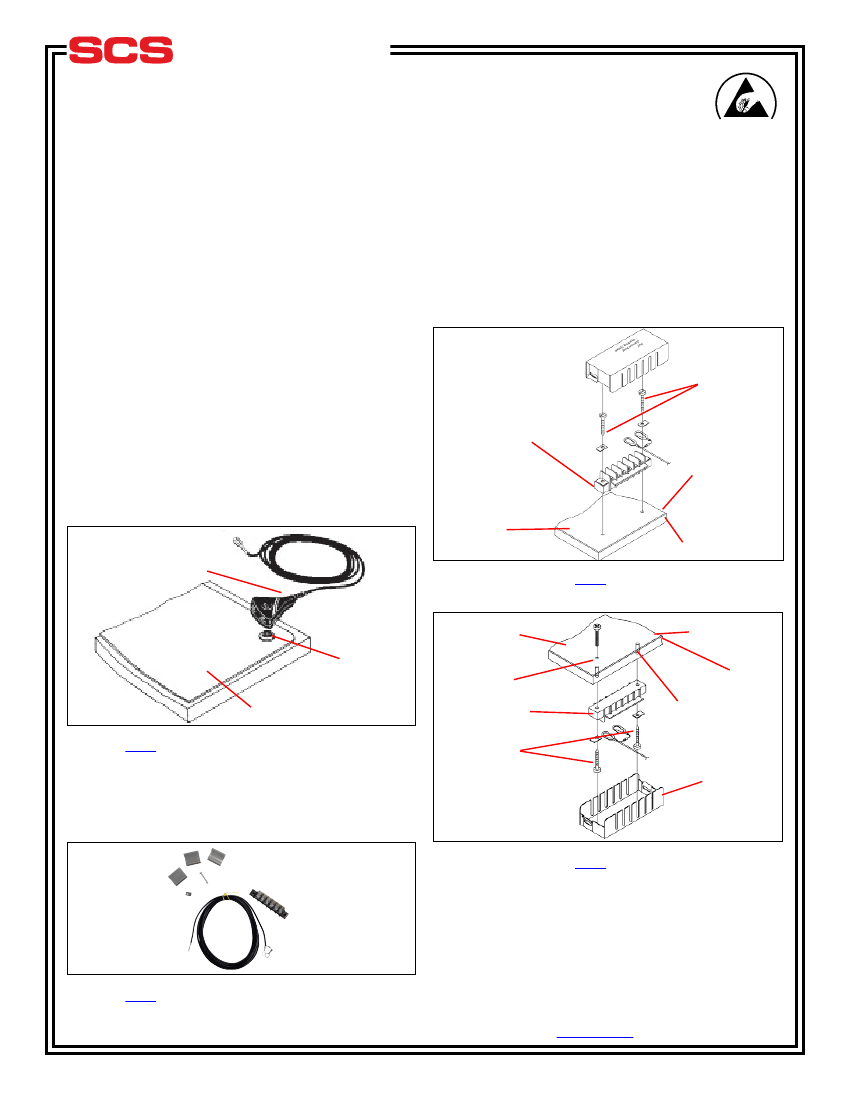

USER GUIDE TB-9039
Grounding Accessories 3000 Series
Instruction Sheet
Your choice of four kits to meet
almost any grounding need
To provide true common point grounding for all
workstation components, the kit 3047 offers a single-row,
six-terminal strip. No additional components offering
resistance are in the path on any link of the static
protection system. Hard grounds are available on the six
terminals. The system is easily accessible, and mounts on
any flat surface in new or existing workstation
environments. The protective cover is connected to
ground via a one-megohm resistor for the maximum
in personnel safety. In addition, three cable clips are
included to aid you in ground cord management.
In any area where static-sensitive electronic components
or boards are handled, proper static protection is
essential. A variety of static control devices is available
to meet the requirements necessary to protect both the
electronics and the people handling them. But these
devices require proper grounding to perform their
functions. These four kits cover a variety of possible
uses, from single-point grounding to multiple points
connected to a common ground.
3048 Wrist Strap/Table Mat Grounding
System
Two wrist straps can be connected to the Wrist Strap/
Table Mat Grounding System. The 15 foot (4.6 m)
ground cord is connected directly to hard ground.
Snapping the Grounding System to either of the two
connectors in the corners of the table mat provides
reliable, common point grounding for the wrist straps and
the table mat simultaneously.
Terminal Strip
#6 Double
Studded
Screw
Wear Layer
Laminate
Wrist Strap/Table Mat
Grounding System
Black Conductive Layer
Figure 3. Installing the
3047
Common Point Grounding
System (top).
3050 Snap
Fastener
Dissipative Table Mat
Laminate
Hole “A”
Terminal Strip
#6 Double
Studded Screw
Wear Layer
Black
Conductive
Layer
Hole “B”
Figure 1.
3048
Wrist Strap/Table Mat Grounding System.
3047 Common Point Grounding
System
Cover
Figure 4. Installing the
3047
Common Point Grounding
System (bottom).
Figure 2.
3047
Common Point Grounding System.
SCS
- 926 JR Industrial Drive, Sanford, NC 27332 • (919) 718-0000 • Website:
StaticControl.com
TB-9039
Page 1 of 2 August 2016
© 2016 DESCO INDUSTRIES, INC.
Employee Owned

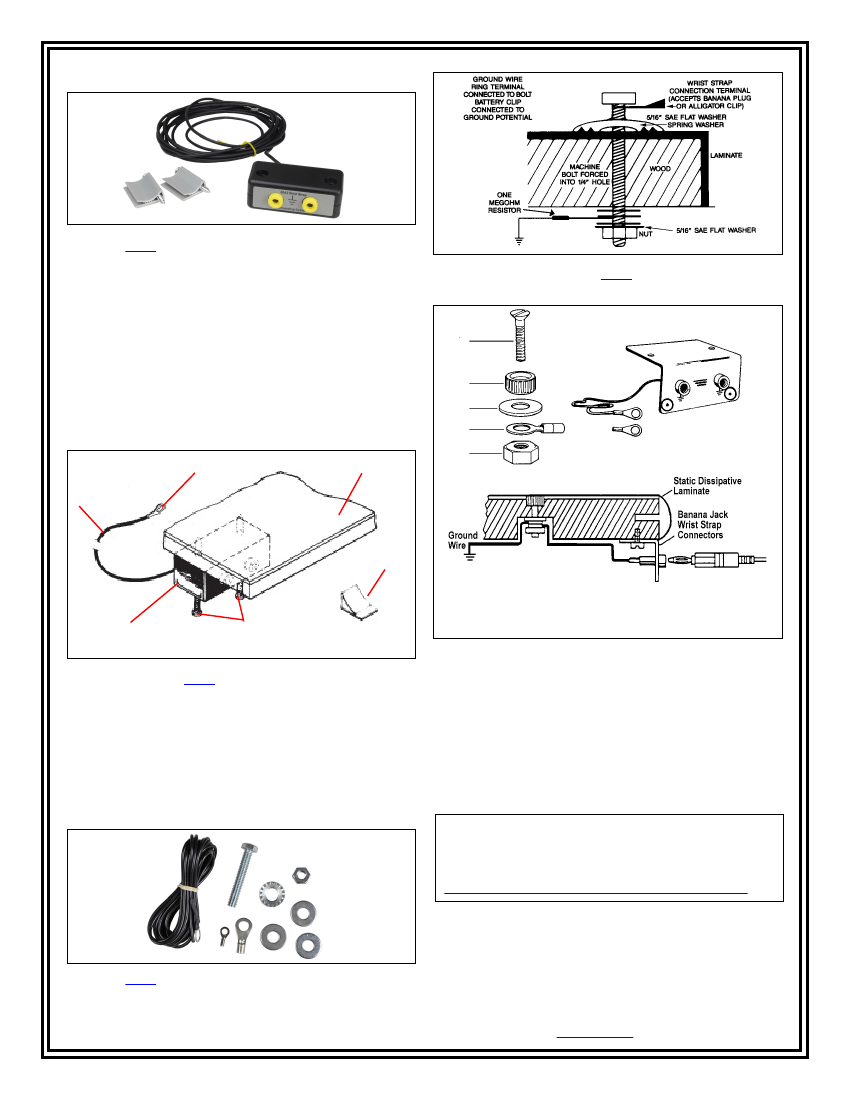

3042 Wrist Strap Grounding System
Figure 5.
3042
Wrist Strap Grounding System.
Grounding of two wrist straps using a common point to
ground is possible with the system 3042. It is easy to
identify for this purpose, with a clearly visible ground
symbol. Compact in size, it mounts to any flat surface
where a wrist strap needs to be connected to a reliable
ground. The kit may be mounted on new workstations or
retrofitted onto any existing workstation. Components of
the kit include one static dissipative engineering grade
plastic housing, one 10-foot (3 m) grounding cord with
multi stud ring terminal, strain relief for the grounding
cord, two banana jacks built into the housing, and two #8
galvanized, self-tapping Phillips screws.
Solderless
Ground Wire
Table Top
Figure 8. Installation of the
3044
Laminate Grounding
System.
A
B
C
D
E
F
Cable Clip
#8 x 1 1/2"
Self-tapping Phillips
Head Screws
A. 8-32-1 Cap screw
B. Brass insert 1/2" dia.
C. 1/2" dia. flat washer
D. Ring Terminal
E. 8-32 Nut
F. Bench Mounted Ground with 2 Banana Jacks
Ground
Receptacle
Figure 6. Installing
3042
Wrist Strap Grounding System.
Figure 9. Component Parts and Installation of the Flush
Mount Inserts and the Flush Mount Laminate Ground
Insert.
Important Notice
Before using this product, you must evaluate it and
determine if it is suitable for your intended application.
You assume all risks and liability associated with such
use.
3044 Laminate Grounding System
To properly ground a workstation with Static Protective
Hard Laminate, this kit gives you a choice of four methods
to provide proper grounding. This can be accomplished
from the top or the bottom of the work surface. Contents
of the kit include the hardware needed to establish reliable
connections to ground.
Limited Warranty, Warranty Exclusions, Limit of
Liability and RMA Request Instructions
See the SCS Warranty -
http://staticcontrol.descoindustries.com/warranty.aspx
Figure 7.
3044
Laminate Grounding System.
