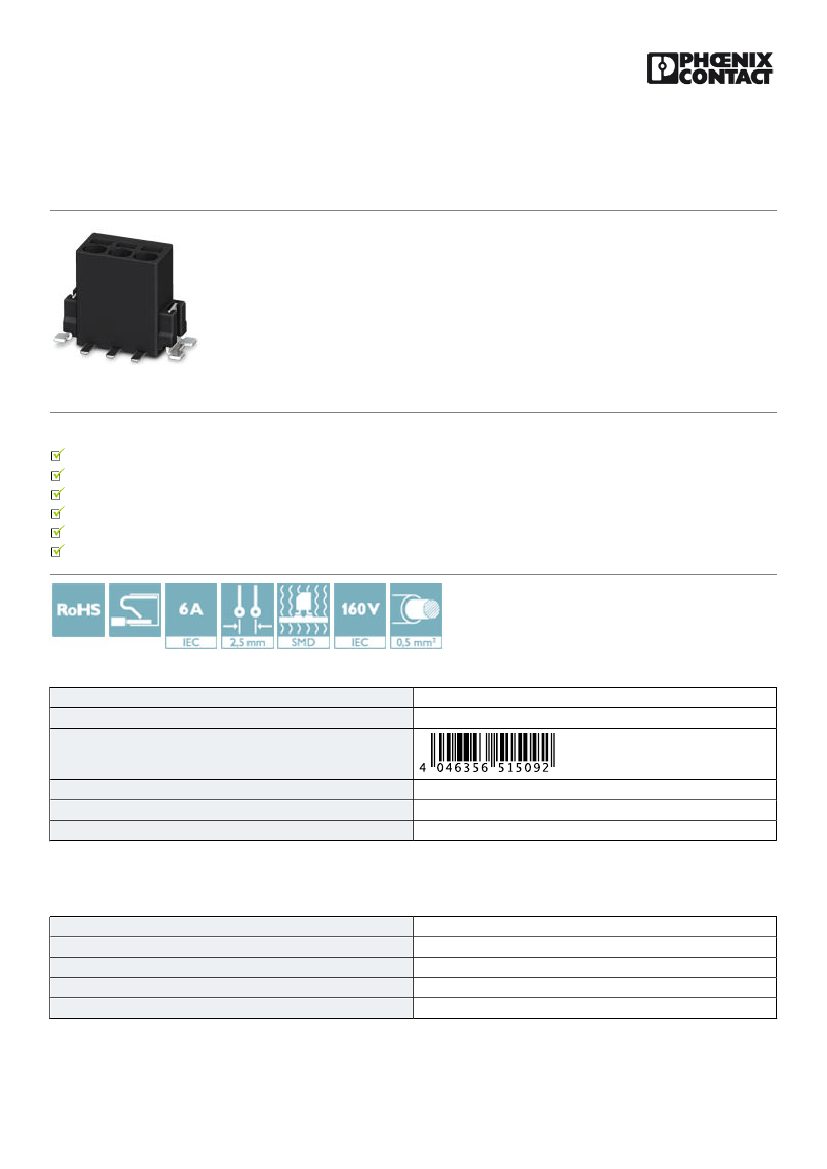

Sample set - SAMPLE PTSM 0,5/ 7-2,5-V-SMD - 1701089
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 7,
Connection method: Push-in spring connection, Mounting: SMD soldering, Conductor/PCB connection
direction: 90 °, Color: black
The illustration shows a 3-position
version
Why buy this product
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
High current carrying capacity of 6 A in very compact dimensions
Designed for integration into the SMT soldering process
Vertical connection enables multi-row arrangement on the PCB
Additional solder anchors reduce the mechanical strain on the soldering spots
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356515092
85369010
Made to Order (non-returnable)
5 STK
5 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Length of the solder pin
Pin spacing
5 mm
2.50 mm
15 mm
2 mm
2.5 mm
General
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1701089
Sample set - SAMPLE PTSM 0,5/ 7-2,5-V-SMD - 1701089
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Flammability rating according to UL 94
Stripping length
Number of positions
PTSM 0,5/..-V-SMD
IIIa
2.5 kV
2.5 kV
2.5 kV
32 V
160 V
160 V
EN-VDE
6A
0.5 mm²
6A
LCP
Sn
V0
6 mm
7
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
0.5 mm²
0.2 mm²
0.5 mm²
26
20
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

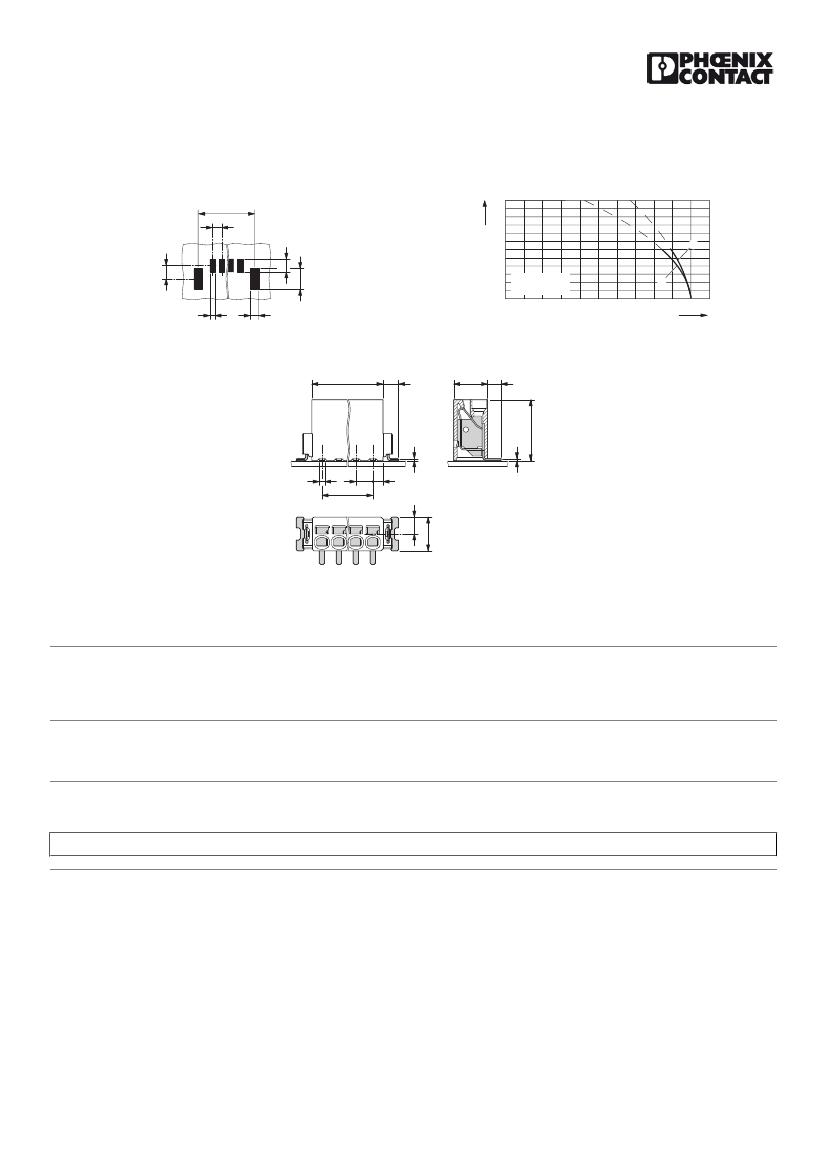

Drawings
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1701089
Sample set - SAMPLE PTSM 0,5/ 7-2,5-V-SMD - 1701089
Drilling diagram
M
2,5
Current strength [A]
Diagram
12
10
8
6
4
2
0
0
1
= 0,75 mm
2
2
= 0,5 mm
20
2
3,15
1
3,4
5,6
2
40
60
80
100
1,4
2,3
Ambient temperature [°C]
Dimensional drawing
a+3
2,3
5
2
0,3
0,8
a
2,5
1,5
2,5
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
5
0,3
9
11/14/2016 Page 3 / 3
