87427-1203 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87427-1203

87427-1203: DescriptionHeaders & Wire Housings 4.2mm WtB RAHdr HT / T /OMntFlg 4Sn 12Ckt; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87427-1203 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87427-1203	-	-	View	Buy Now

87427-1203 Overview

Headers & Wire Housings 4.2mm WtB RAHdr HT / T /OMntFlg 4Sn 12Ckt

87427-1203 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MINI-FIT JR
body width	0.449 inch
subject depth	0.72 inch
body length	1.039 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (394) OVER COPPER (315)
Contact completed and terminated	Tin (394) Over Copper (315)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLAR PIN POSITION
Rated current (signal)	9 A
Guideline	UL,VDE,CSA
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	3.0024 N
Base Number Matches	1

Preview

Download Datasheet

View All

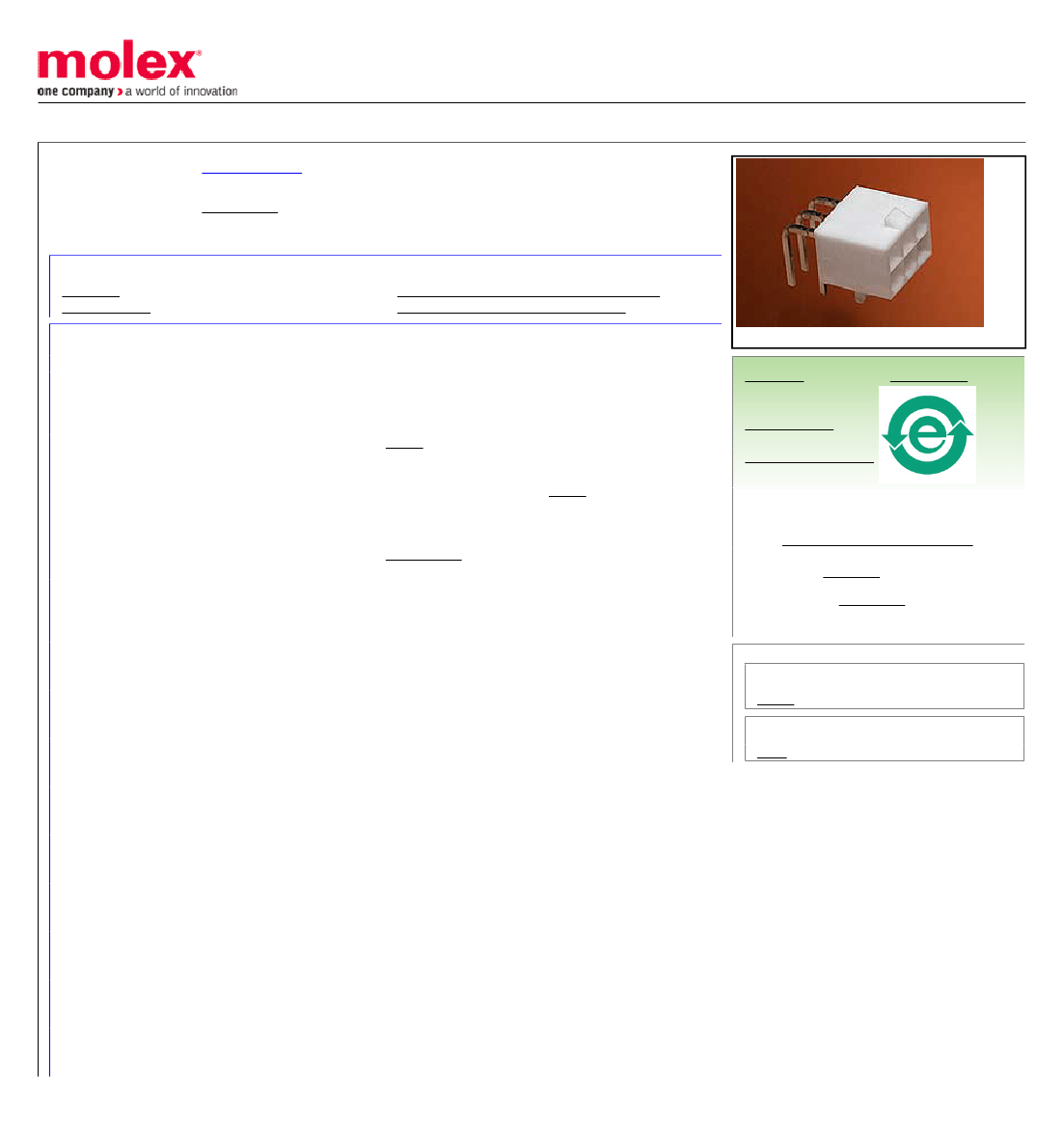

This document was generated on 07/30/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87427-1203

Active

Mini-Fit Jr.™

4.20mm Mini-Fit Jr.™ Header, Right Angle, Nylon, without Flange,12 Circuits, Tin (Sn)

over Copper (Cu) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87427-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

General

Product Family

Series

Application

Comments

PCB Headers

87427

Power, Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit® Plus HCS

Crimp Terminal Crimped to 16 AWG wire., See Molex

product specification PS-45750-001 for additional

current de-rating information.

Mini-Fit Jr.™

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Beige

94V-0

Yes

Brass

Tin

Nylon

Right Angle

3.30mm

None

1.60mm

Tray

4.20mm

5.080µm

Yes

Fully

Search Parts in this Series

87427Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing
