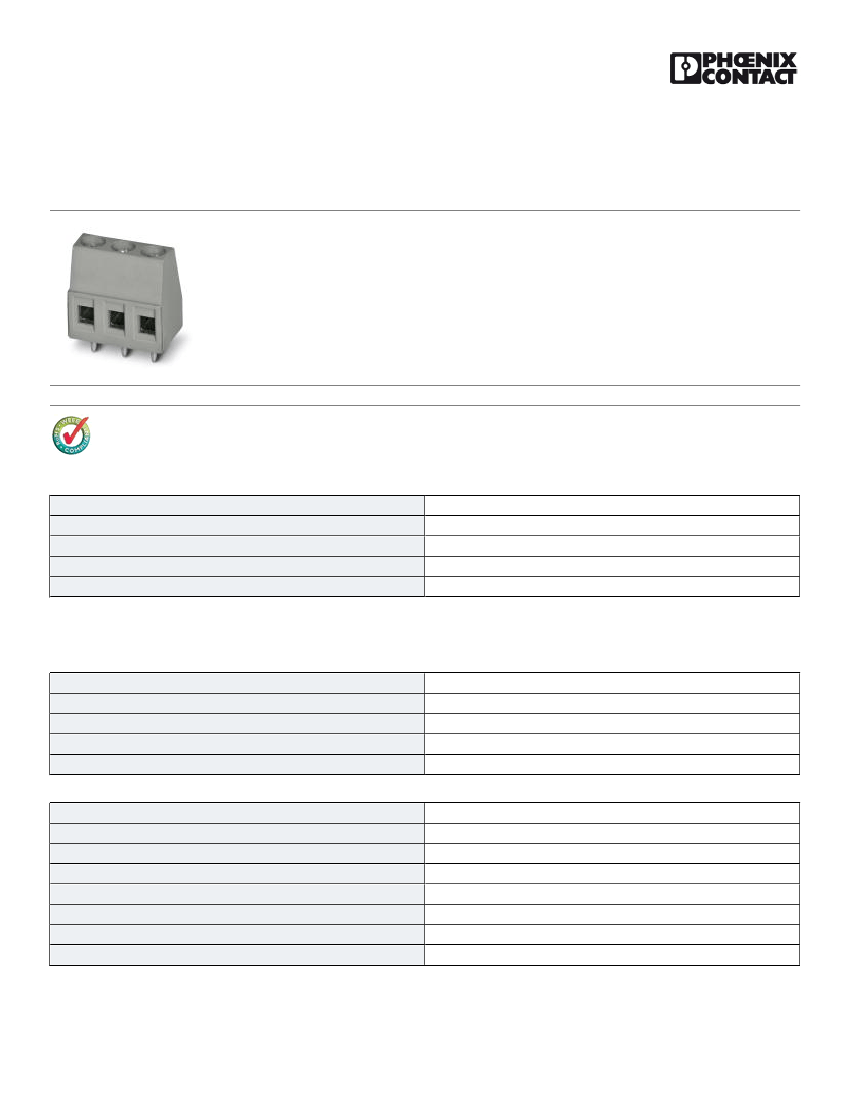

PCB terminal block - BC-500X14- 4 GY - 5442099
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 4,
Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color:
signal grey
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100 pc
5.6 GRM
85369010
China
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
9.8 mm
5 mm
15 mm
0,9 x 0,9 mm
1.3 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
BC-X14
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
11/05/2014 Page 1 / 3
https://www.phoenixcontact.com/us/products/5442099
PCB terminal block - BC-500X14- 4 GY - 5442099
Technical data
General
Nominal current I
N
Nominal cross section
Insulating material
Solder pin surface
Inflammability class according to UL 94
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
17.5 A
1.5 mm²
PA
Sn
V0
7 mm
4
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.14 mm²
2.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
26
14
0.14 mm²
1 mm²
0.14 mm²
0.75 mm²
0.25 mm²
0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
Classifications
eCl@ss
eCl@ss 4.0
27141111
11/05/2014 Page 2 / 3
