380AS006M1203M3 datasheet, PDF

Datasheet> All Categories > The connector> 380AS006M1203M3

380AS006M1203M3: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF DC LOW STRT MED DUTY; CategoryThe connector; File Size329KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

380AS006M1203M3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380AS006M1203M3	-	-	View	Buy Now

380AS006M1203M3 Overview

Circular MIL Spec Backshells NON ENV STRN RLF DC LOW STRT MED DUTY

380AS006M1203M3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
RoHS	Details
MIL Type	MIL-DTL-5015, MIL-DTL-26482 II, MIL-DTL-83723 I, II
Factory Pack Quantity	1

Preview

Download Datasheet

View All

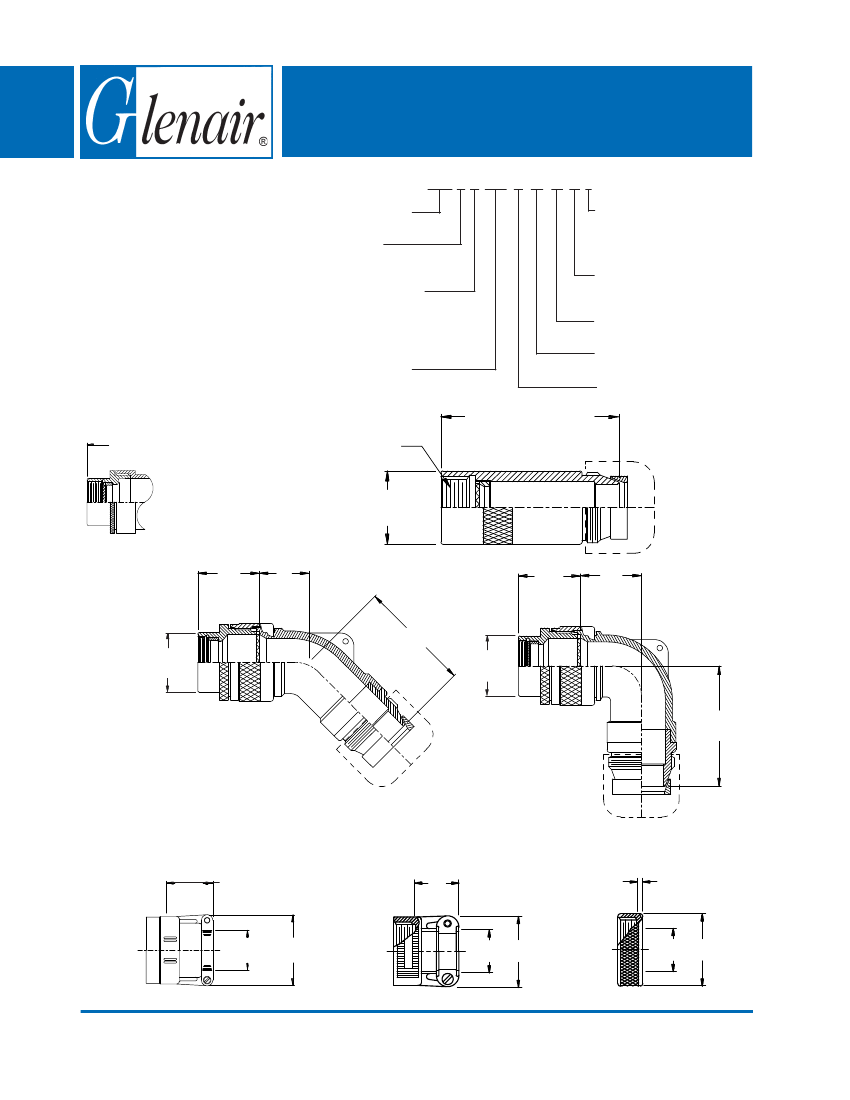

380-006

EMI/RFI Non-Environmental Backshell

Heavy-Duty with Strain Relief

Type C - Direct Coupling - Low Profile

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

380 F S 006 M 16 10 D 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Finish (Table II)

A Thread

(Table I)

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 4)

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(M, D)

Cable Entry (Table X)

Shell Size (Table I)

DIRECT

COUPLING

TYPE C OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

(Table III) (Table

IV)

F (Table IV)

(Table III)

(Table IV)

(Table I)

H (Table IV)

STYLE M

Medium Duty - Dash No. 01-04

(Table X)

.850 (21.6)

Max

STYLE M

Medium Duty - Dash No. 10-28

(Table X)

STYLE D

Medium Duty

(Table X)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 28
