30968-1247

Description
Automotive Connectors HDAC64 HYBRID MALE 2 ALE 24 CKT GRY POL A
CategoryThe connector    The connector
File Size27KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

30968-1247 Online Shopping

Suppliers Part Number Price MOQ In stock
30968-1247 - - View Buy Now

30968-1247 Overview

Automotive Connectors HDAC64 HYBRID MALE 2 ALE 24 CKT GRY POL A

30968-1247 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
body width0.805 inch
subject depth1.732 inch
body length1.924 inch
Connector typeCOMBINATION LINE CONNECTOR
Contact point genderMALE
empty shellYES
Filter functionNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
OptionsGENERAL PURPOSE
Shell materialGLASS FILLED SYNDIOTACTIC POLYSTYRENE
Total number of contacts24
Base Number Matches1
This document was generated on 03/02/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0309681247
Active
H-DAC 64™ Dual-Row High Density Automotive Connectors
2.54mm, 3.50mm Pitch, 0.64mm Width H-DAC 64 Hybrid Male High Density
Automotive Crimp Housing, Dual Row, 24 Circuits, Polarization Option A, Gray
Documents:
3D Model
Drawing (PDF)
Product Specification PS-30968-024-001 (PDF)
General
Product Family
Series
Application
Comments
Overview
Polarization
Product Name
UPC
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Electrical
Current - Maximum per Contact
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification PK-30907-760 (PDF)
RoHS Certificate of Compliance (PDF)

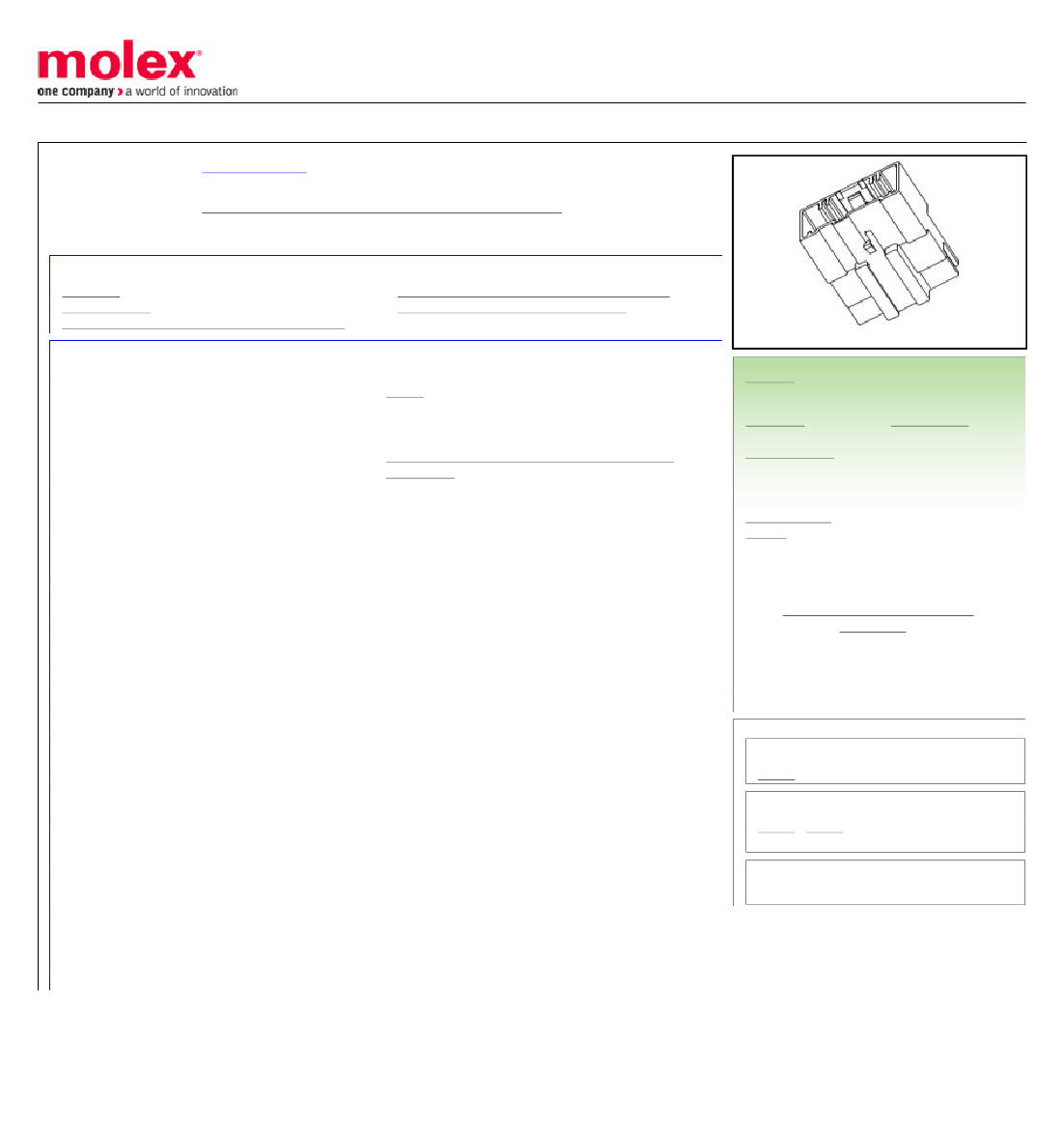

Series image - Reference only
Crimp Housings
30968
Power, Wire-to-Board, Wire-to-Wire
Polarization Option A<br><br>See Product Specification
for maximum current rating by terminal and wire AWG.
H-DAC 64™ Dual-Row High Density Automotive
Connectors
A
H-DAC 64
822348858958
24
Gray
Plug
No
None
Yes
Modified Polystyrene
16.432/g
2
Bag
No
2.54mm, 3.50mm
Yes
No
-40°C to +100°C
7.0A
N/A
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Compliant
Not Contained
Search Parts in this Series
30968 Series
Mates With
30700 , 31389 H-DAC 64 High Density
Automotive Connectors
Use With
Contact Molex for Terminal information.
PK-30907-760
PS-30968-024-001
SD-30968-124
This document was generated on 03/02/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
