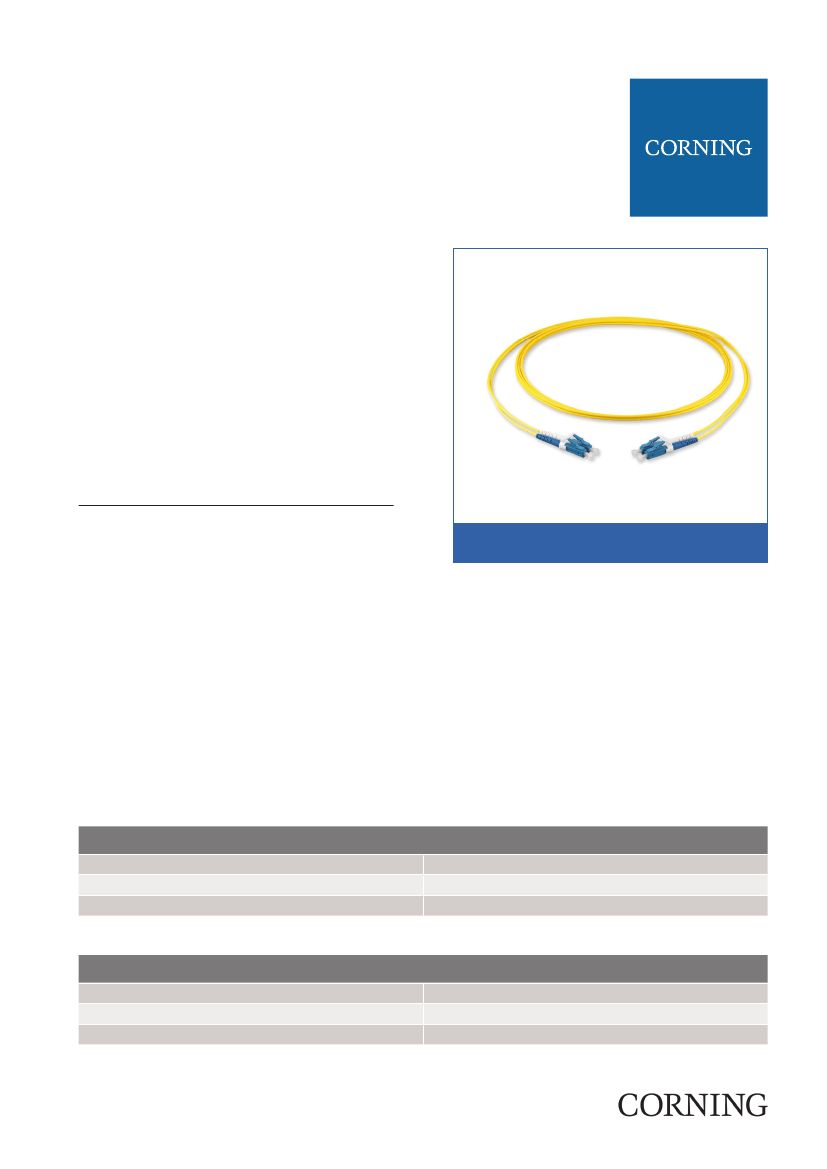

LC Duplex to LC Duplex Patch cord, 2 F,
Zipcord Tight-Buffered Cable, LSZH, 2.0 mm
legs
Single-mode (OS2), 6 m
Patch cables are used for non-permanent connections
between patch panels, transmission equipment, etc.
Preassembled cables allow for the implementation of
complete Plug & Play solutions. When such a solution
is adopted with accurate dimensioning and appropriate
cable routing, it is possible to install even large cabling
systems rapidly.
Features and Benefits
Connectors
- LC Duplex connector according to TIA/EIA-604 -10
- All connectors are tested to FOTP -21.
- Connectors are pre-radius polished to provide the opti-
mal end-face geometry for long-term performance.
Cable
Low smoke (IEC 61034) and zero-halogen (LSZH), flame
retardant to IEC 60332-3-24 (C) and noncorrosive to IEC
60754-2 (FRNC)
Cables are metal free; hence, there are no ground-loop
or potential-equalization problems. Completely dry de-
sign (without gel).
Color of outer sheath: OM1, OM2 – orange; OM3, OM4 –
aqua; OS2 – yellow
Part Number: 040402R5Z20006M
Standards
Intermateability
TIA/EIA-604-10 / TIA/
EIA-604-10
Specifications
General Specifications
Flame Rating
Cable Assembly Type
Fiber Category
LSZH™/FRNC
Two Fiber
Single-mode (OS2)
Temperature Range
Operation
Installation
Storage
-20 °C to 60 °C
-5 °C to 50 °C
-25 °C to 70 °C
Product Specification 040402R5Z20006M_CALA_AEN
Page 1 | Revision date 2016-02-18
LC Duplex to LC Duplex Patch cord, 2 F,
Zipcord Tight-Buffered Cable, LSZH, 2.0 mm
legs
Single-mode (OS2), 6 m
Design - Connector A
Connector Type
Ferrule Material
Polish
Housing Material
Housing Color
Boot Type
Boot Color
Keyed (security)
LC duplex
Ceramic
UPC
Composite
Blue
Individual
Blue / White
No
Mechanical Specifications - Connector A
Durability
Tensile Strength Jacketed Cable
≤ 0.2 dB 500 rematings, FOTP-21
44 N
Optical Specifications - Connector A
Insertion Loss, Typical
Insertion Loss, Max.
Reflectance, Typical
0.1 dB
0.3 dB
≤ -58 dB
Design - Connector B
Connector Type
Ferrule Material
Polish
Housing Material
Housing Color
Boot Type
Boot Color
Keyed (security)
LC duplex
Ceramic
UPC
Composite
Blue
Individual
Blue / White
No
Mechanical Specifications - Connector B
Durability
Tensile Strength Jacketed Cable
≤ 0.2 dB 500 rematings, FOTP-21
44 N
Product Specification 040402R5Z20006M_CALA_AEN
Page 2 | Revision date 2016-02-18
LC Duplex to LC Duplex Patch cord, 2 F,
Zipcord Tight-Buffered Cable, LSZH, 2.0 mm
legs
Single-mode (OS2), 6 m
Optical Specifications - Connector B
Insertion Loss, Typical
Insertion Loss, Max.
Reflectance, Typical
0.1 dB
0.3 dB
≤ -58 dB
Cable Design
Fiber Count
Outer Diameter
Outer Jacket Color
Outer Jacket Material
Minimum Bend Radius
Crush Resistance
Tensile Strength
2
2 mm 4.1 mm
Yellow
LSZH™/FRNC
30 mm
1000 N/10 cm
300 N
Chemical Characteristics
RoHS
Free of hazardous substances according to RoHS 2002/95/
EG
Ordering Information
Part Number
Product Description
EAN Code
Length
Weight
040402R5Z20006M
LC Duplex to LC Duplex patch cord on 2-fiber Zipcord ca-
ble, with 2 mm legs, and a low-smoke, zero-halogen sheath.
Length is variable.
4056418139920
6m
0.057 kg
Shipping Information
Packing Type
Packing dimensions (L x W x H)
Units per Delivery
Cardboard box
380 mm x 250 mm x 180 mm
1/1
Product Specification 040402R5Z20006M_CALA_AEN
Page 3 | Revision date 2016-02-18
LC Duplex to LC Duplex Patch cord, 2 F,
Zipcord Tight-Buffered Cable, LSZH, 2.0 mm
legs
Single-mode (OS2), 6 m
Notes
Corning Comunicacoes Opticas • Estrada do Camorim 633 • Jacarepagua CEP 22780-070 • Rio De Janeiro, RJ Brazil
+55 21 3416 5150 • FAX: +55 21 2441 2037 • www.corning.com/opcomm/csa
A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks.
All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified.
© 2016 Corning Optical Communications. All rights reserved.
