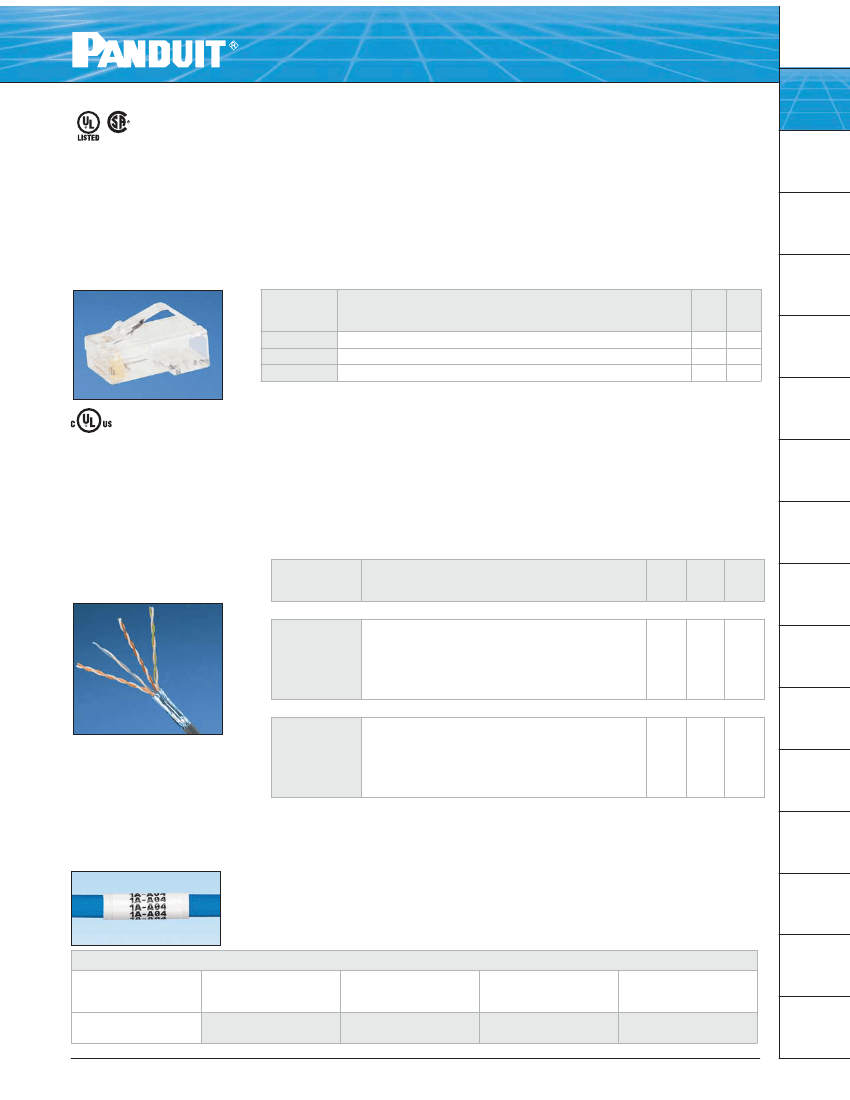

PHYSICAL INFRASTRUCTURE SYSTEMS
Pan-Plug
®
Category 5e UTP Modular Plugs
• Meet all applicable ANSI/TIA-968-A requirements and
exceeds IEC 60603-7 specifications
• Meet requirements of IEEE 802.3af and IEEE 802.3at for
PoE applications
• Used in UTPCH series patch cords providing
Category 5e performance
• Patented tangle-free plug latch prevents snags and
provides easy release saving time on frequent moves,
adds, and changes
• Simplified termination requires no loading bar; guide ramp
facilitates easy conductor insertion and termination
• Contacts plated with 50 microinches of gold for
superior performance
• Terminate 24 AWG, 100 ohm, stranded or solid conductor
with max. conductor insulation diameter of 0.040"
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
Part Description
MP588-L
8-position, 8-wire modular plug.
MP588-C
MP588-M
8-position, 8-wire modular plug.
8-position, 8-wire modular plug.
Std.
Pkg.
Qty.
50
Std.
Ctn.
Qty.
250
100 1000
1000 5000
F.
Wireless
MPT5-8A crimp tool required for termination, available on page B.93
of SA-NCCB51.
TX5500
™
Category 5e F/UTP Shielded Copper Cable
• Installation temperature range: 32°F to 122°F
(0°C to 50°C)
• Operating temperature range: -4°F to 140°F
(-20°C to 60°C)
• Descending length cable markings enable easy
identification of remaining cable which reduces installation
time and cable scrap
• Cable supplied on a reel
Part Description
Cable
Color
Blue
Std.
Pkg.
Qty.
1000
Std.
Ctn.
Qty.
20000
G.
Outlets
• Exceeds requirements of ANSI/TIA-568-C.2 Category 5e
and ISO 11801 2nd Edition Class D channel standards
• Exceeds requirements of ANSI/TIA-568-C.2 Category 5e
and IEC 61156-5 Category 5e component standards
• Meets requirements of IEEE 802.3af and IEEE 802.3at for
PoE applications
• Cable diameter: Riser 0.241 inch (6.1 mm), Plenum 0.229
inch (5.8mm)
Part Number
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
Riser
PFR5504BU-UY
Category 5e, riser (CMR), 4-pair, F/UTP copper cable.
Copper conductors are 24 AWG construction with
polyethylene insulation. Conductors are twisted in pairs,
surrounded by an overall polyester aluminum foil with a
stranded copper drain wire and protected by a flame-
retardant PVC jacket.
Riser
PFP5504BU-UY
Category 5e, plenum (CMP), 4-pair, F/UTP copper
cable. Copper conductors are 24 AWG construction
with FEP insulation. Conductors are twisted in pairs,
surrounded by an overall polyester aluminum foil with
stranded copper drain wire and protected by a low
smoke flame-retardant PVC jacket.
Blue
1000
20000
For other colors, replace BU (Blue) with WH (White), IG (International Gray), BL (Black), GR (Green), OR
(Orange), RD (Red), VL (Violet), or YL (Yellow).
Order number of pieces required, in multiples of 5,000 feet.
Labels for TX5500
™
Category 5e F/UTP Shielded Copper Cable
N.
Industrial
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Suggested Label Solutions for TIA/EIA-606-A Compliance
Cable
Part Number
PUR5504**-UY
PUP5504**-UY
Laser/Ink Jet Desktop
Printer Label
S100X150YAJ
TDP43ME Thermal
Transfer Desktop Printer
PanTher
™
LS8E
Label
Hand-Held Printer Label
S100X150VATY
S100X150VAC
Cougar
™
LS9
Hand-Held Printer Label
T100X000CBC-BK
Q.
Index
For complete labeling solutions and product information, reference charts on pages O.1 – O.22
of SA-NCCB51.
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
www.panduit.com
B.43
