PX0741/S/50OHM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PX0741/S/50OHM

PX0741/S/50OHM: DescriptionRF Connectors / Coaxial Connectors 50 OHM BNC SKT FRONT CAHS MOUNT; CategoryThe connector The connector; File Size3MB，9 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

PX0741/S/50OHM Overview

RF Connectors / Coaxial Connectors 50 OHM BNC SKT FRONT CAHS MOUNT

PX0741/S/50OHM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	APPLICABLE CABLE: RG 58/CU
Body/casing type	SOCKET
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	PX0741
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

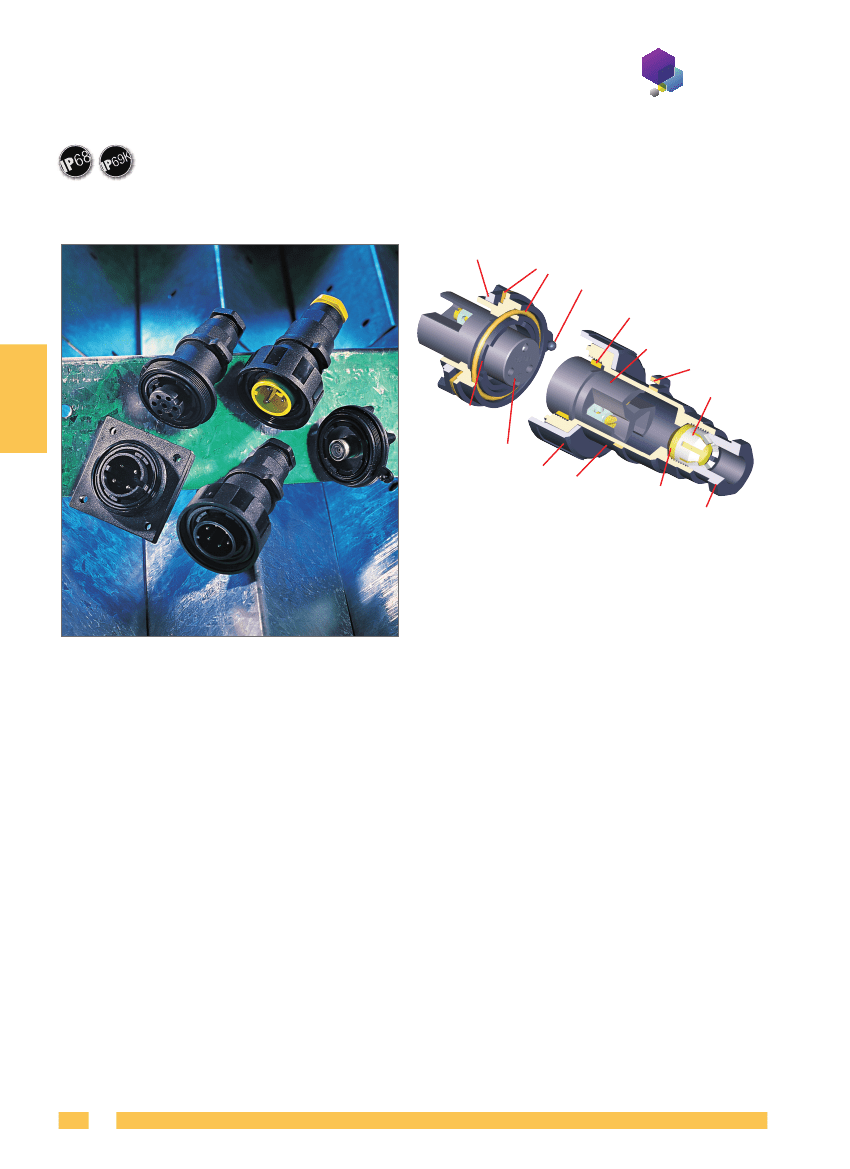

BUCCANEER FOR POWER

bulgin

a brand of Elektron Technology

Standard Buccaneer

Castellated/Hex Nut

Seals

Snap-on Connection for

Flexible Straps & Covers

Insert Retaining Ring

BUCCANEER POWER

Contact Insert

Sealing Cap Clip

Gland Cage

Insert Retaining

Ring

Contact Insert

Locking Ring

Flex Body Moulding

Gland

Gland Nut

IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m

depth for 2 weeks and 9.84kg/sq cm (140lb/sq in)

100m depth for 12 hours

IP69K rating tested to DIN 40050-9

Water and dustproof to IP68 & IP69K when mated

2, 3, 4, 6, 7, 9, 12 and 25 pole

12A, 277V ac/dc 2 pole screw terminal, 3 pole screw

terminal and crimp contacts

10A, 277V ac/dc 4 pole screw terminal

5A, 277V ac/dc 6 and 7 pole screw terminal

5A, 150V ac/dc 9 pole crimp contacts

5A, 50V ac/dc 12 pole crimp and solder contacts

1A, 50V ac/dc 25 pole crimp and solder contacts

BNC versions 50



and 75



Plug or socket connection in each body style

Compact design

Diameter over coupling ring 38mm

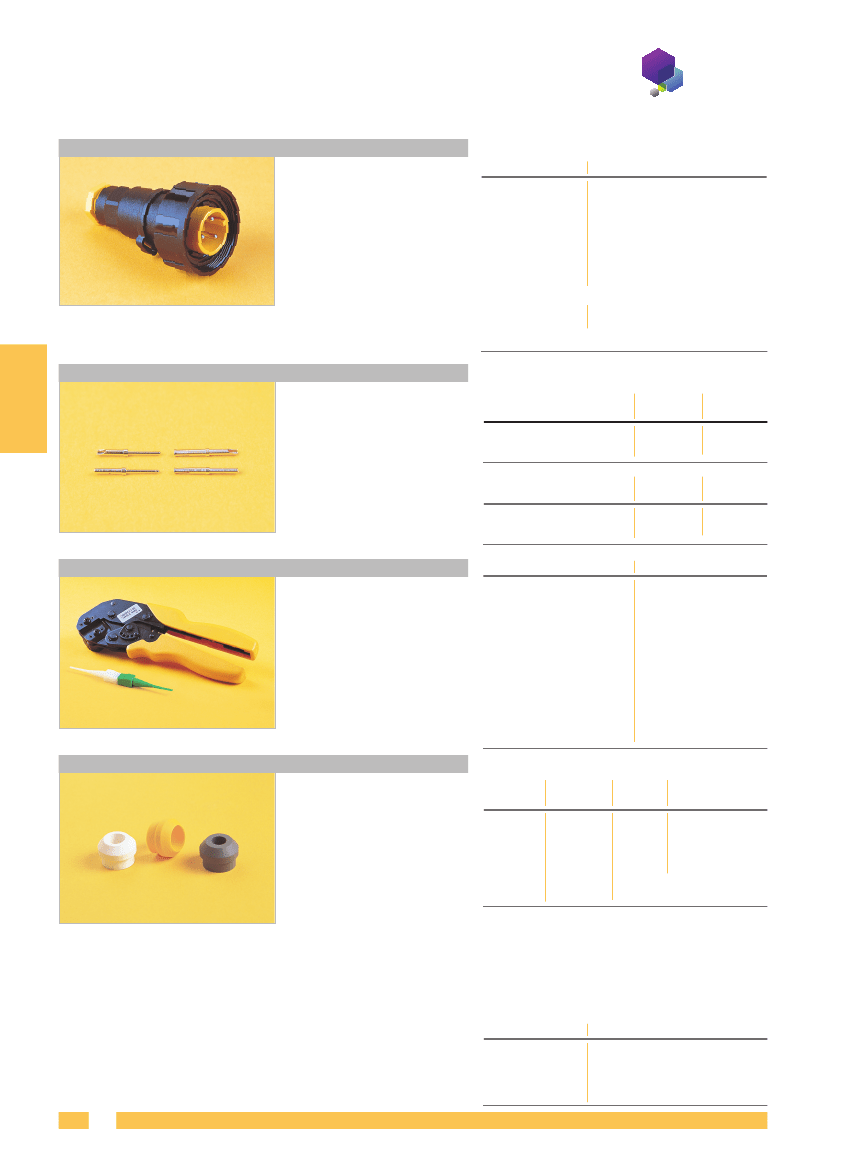

Sealing caps available to maintain IP68 rating of

unmated connectors

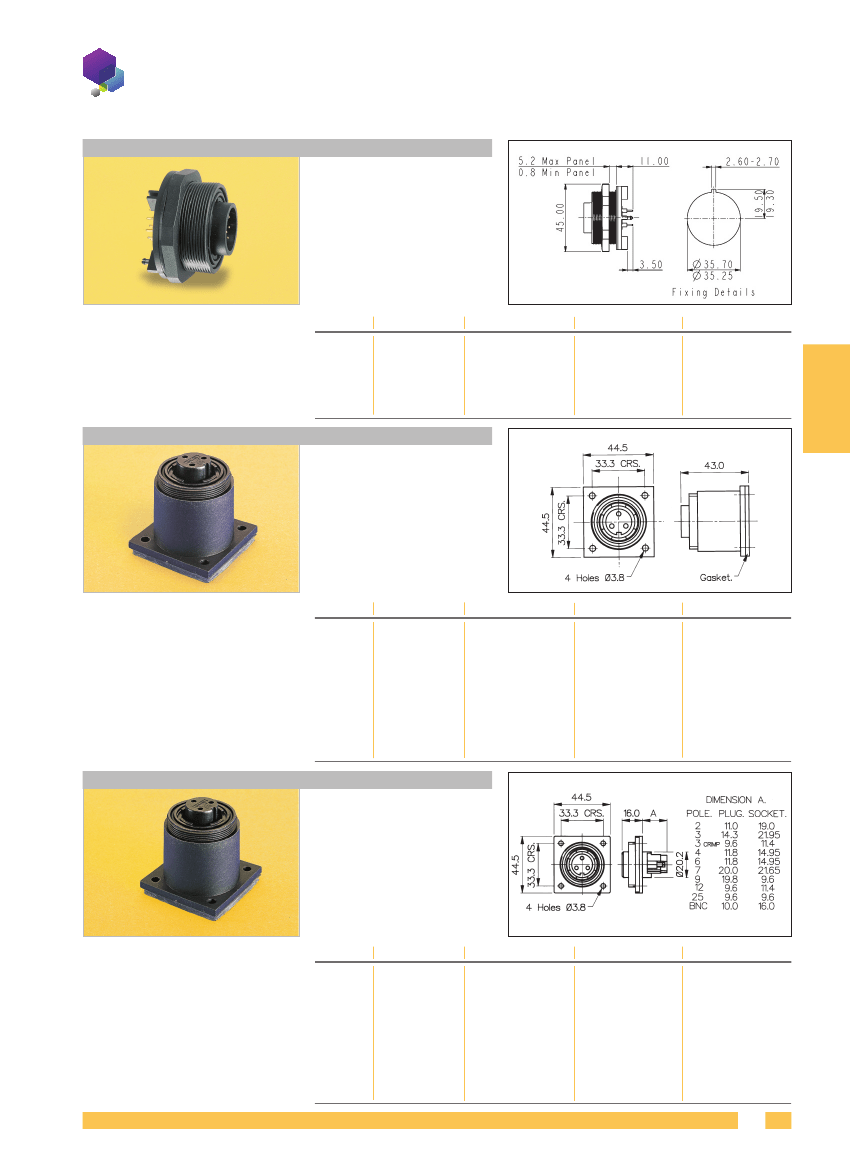

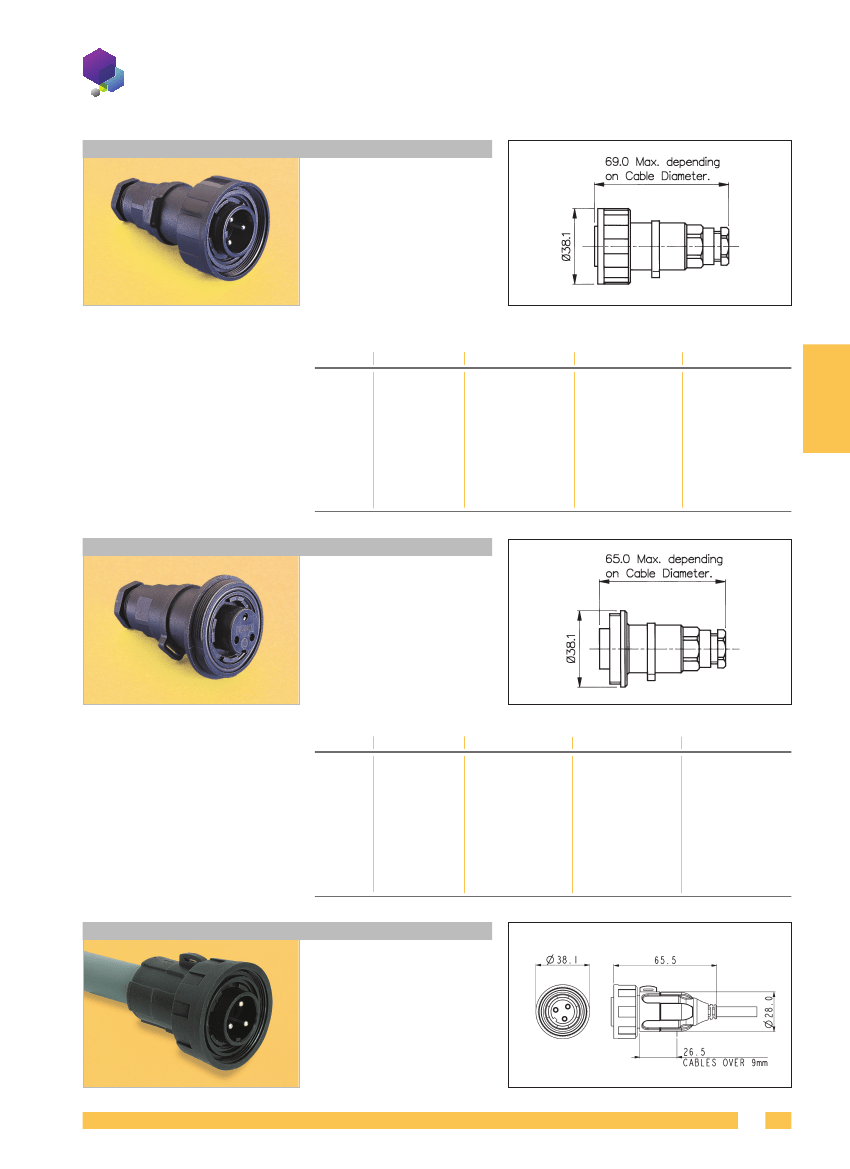

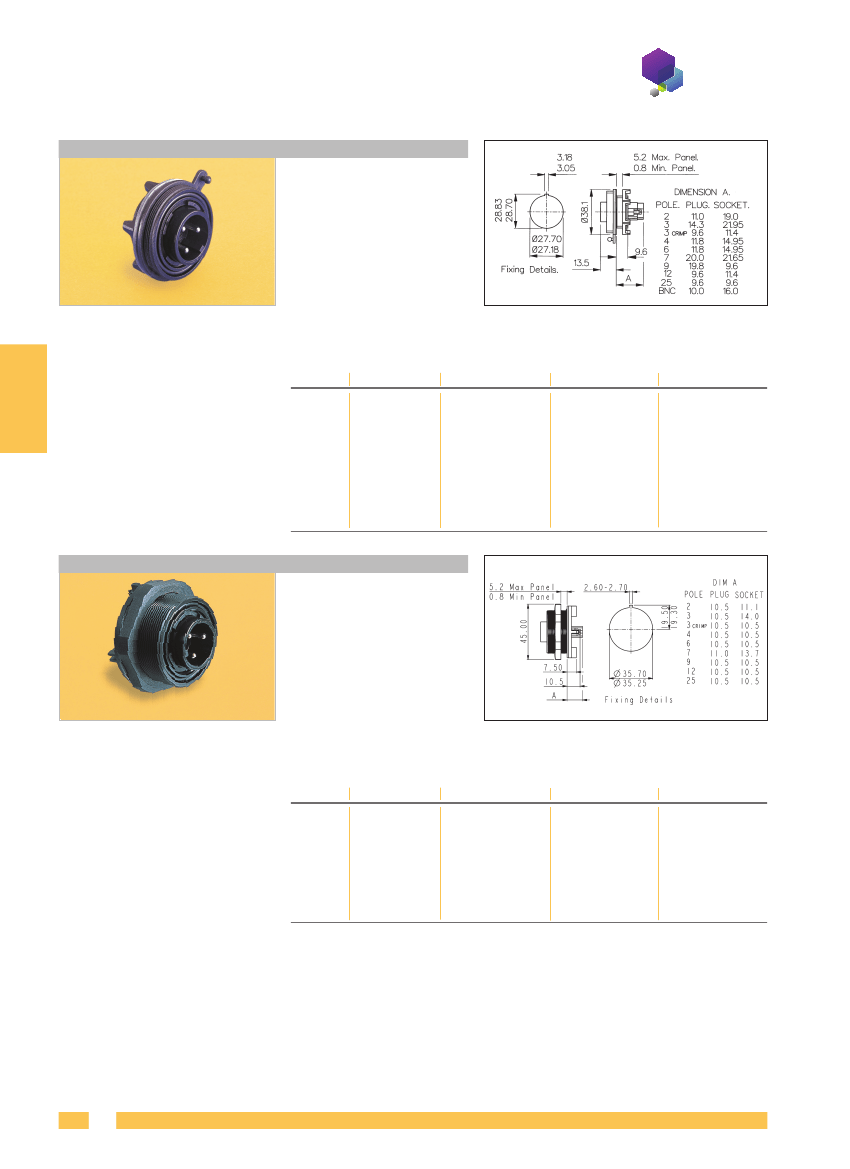

7 body styles - flex cable, in-line flex cable, panel

mount (front), panel mount (rear), PCB mount,

bulkhead and flange mount

Leading earth contact for 3 pole socket version

Positive locating keyways - cannot be mis-connected

Easy assembly - no special tools required on screw

terminal versions

Cable range from 3.5mm - 9mm

Colour coded identification variants

Pre-wired, overmoulded cable assemblies

UL, CSA and VDE approvals

www.bulgin.com

PX0741/S/50OHM Related Products

	PX0741/S/50OHM	PX0742-P-75OHM	PX0742/P/50OHM
Description	RF Connectors / Coaxial Connectors 50 OHM BNC SKT FRONT CAHS MOUNT	RF Connectors / Coaxial Connectors 75 OHM BNC PIN FLEX CABLE MOUNT	RF Connector/Coaxial Connector 50 OHM BNC PIN FLEX CABLE MOUNT
Is it Rohs certified?	conform to	-	conform to
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT
Reach Compliance Code	compliant	-	compliant
Other features	APPLICABLE CABLE: RG 58/CU	-	APPLICABLE CABLE: RG 58/CU
Body/casing type	SOCKET	-	PLUG
Characteristic impedance	50 Ω	-	50 Ω
Connector type	RF BNC CONNECTOR	-	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	-	MALE
Contact material	NOT SPECIFIED	-	BRASS
Coupling type	BAYONET	-	BAYONET
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
insulator material	GLASS FILLED POLYAMIDE	-	GLASS FILLED POLYAMIDE
MIL compliance	NO	-	NO
Installation method	STRAIGHT	-	STRAIGHT
Installation type	CABLE	-	CABLE
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Panel mounting	YES	-	YES
Termination type	CRIMP	-	CRIMP
Base Number Matches	1	-	1
