7: Ni plating on base, Au plating on surface (for Ni barrier available)
Packing
G: 3,000 pieces embossed tape and plastic reel
×
2 (for Ni barrier available)
3
7
G
panasonic-electric-works.net/ac

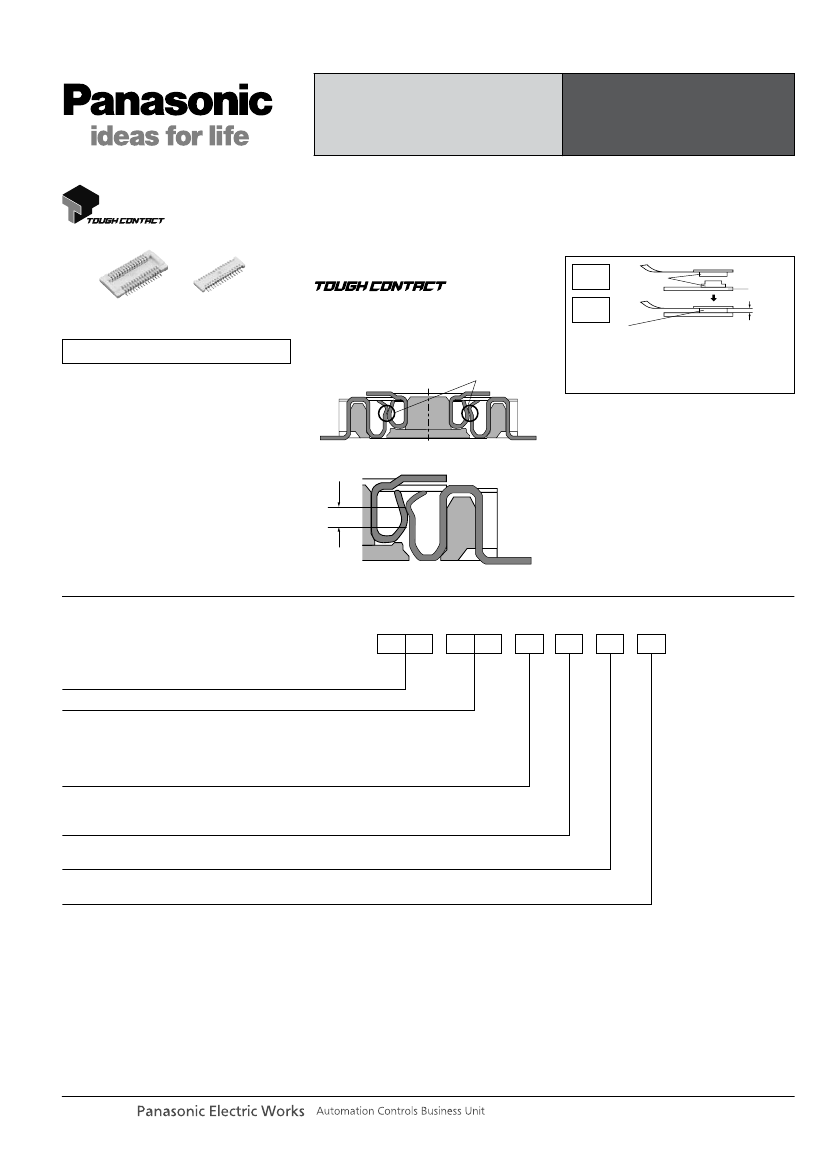

Narrow-pitch connectors
NARROW-PITCH
CONNECTORS FOR
BOARD-TO-BOARD
CONNECTION
AXK(5/6)L
Narrow-pitch connectors
PRODUCT TYPES
Part No.
Mated height
No. of contacts
10
12
20
24
1.2 mm
30
34
40
46
50
60
Socket
AXK5L10347G
AXK5L12347G
AXK5L20347G
AXK5L24347G
AXK5L30347G
AXK5L34347G
AXK5L40347G
AXK5L46347G
AXK5L50347G
AXK5L60347G
Header
AXK6L10347G
AXK6L12347G
AXK6L20347G
AXK6L24347G
AXK6L30347G
AXK6L34347G
AXK6L40347G
AXK6L46347G
AXK6L50347G
AXK6L60347G
3,000 pieces
6,000 pieces
(2-reel)
Packing quantity
Inner carton
(1-reel)
Outer carton
Notes) 1. Regarding ordering units: During production, Please make orders in 1-reel units. Samples for mounting confirmation: Please consult us. Samples: Small lot orders
are possible. Please consult us.
2. The standard type comes without positioning bosses. Connectors with positioning bosses are available for on-demand production.
For this type of connector, 9th digit of the part no. changes from 4 to 3. e.g. 10 contacts for sockets: AXK5L10337G
3. Previous non-
types and current
types are compatible for mating.
SPECIFICATIONS
1. Characteristics
Item
Rated current
Electrical
characteristics
Rated voltage
Breakdown voltage
Insulation resistance
Contact resistance
Composite insertion force
Composite removal force
Holding force of terminal
securing section
Ambient temperature
Soldering heat resistance
Specifications
0.5A/contact (Max. 10 A at total contacts)
60V AC/DC
150V AC for 1 minute
Min. 1,000MΩ (initial)
Max. 90mΩ
Max. 0.981N {100gf}/contacts
×
contacts (initial)
Min. 0.0588N {6gf}/contacts
×
contacts
Min. 0.981N {100gf}/contact
–55°C to +85°C
Max. peak temperature of 260°C (on the surface of the
PC board around the connector terminals)
300°C within 5 seconds
350°C within 3 seconds
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
Measuring the maximum force.
As the contact is axially pull out.
No freezing at low temperatures
Infrared reflow soldering
Soldering iron
Sequence
0
1. –55
–3
°C,
30 minutes
2. ~ , Max. 5 minutes
3. 85
+3
°C,
30 minutes
0
4. ~ , Max. 5 minutes
Bath temperature 40±2°C,
humidity 90 to 95% R.H.
Bath temperature 35±2°C,
saltwarter concentration 5±1%
Bath temperature 40±2°C, gas concentration 3±1 ppm,
humidity 75 to 80% R.H.
Repeated insertion and removal speed of
max. 200 times/hours
Detection current: 1mA
Using 500V DC megger
Based on the contact resistance measurement method
specified by JIS C 5402.
Conditions
Mechanical
characteristics
Environmental
characteristics
Thermal shock resistance
(header and socket mated)
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
120 hours, insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
24 hours, insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
48 hours, contact resistance max. 90mΩ
50 times
20 contacts; Socket: 0.05g; Header: 0.02g
Lifetime
characteristics
Unit weight
Insertion and removal life
2. Material and surface treatment
Part name
Molded portion
Contact/Post
Material
Heat-resistant resin (UL94V-0)
Copper alloy
Surface treatment
—
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Au plating on surface (Except for thick of terminal)
The section close to the soldering portion has a nickel barrier.
(The nickel base is exposed.)
panasonic-electric-works.net/ac
AXK(5/6)L
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://panasonic-electric-works.net/ac

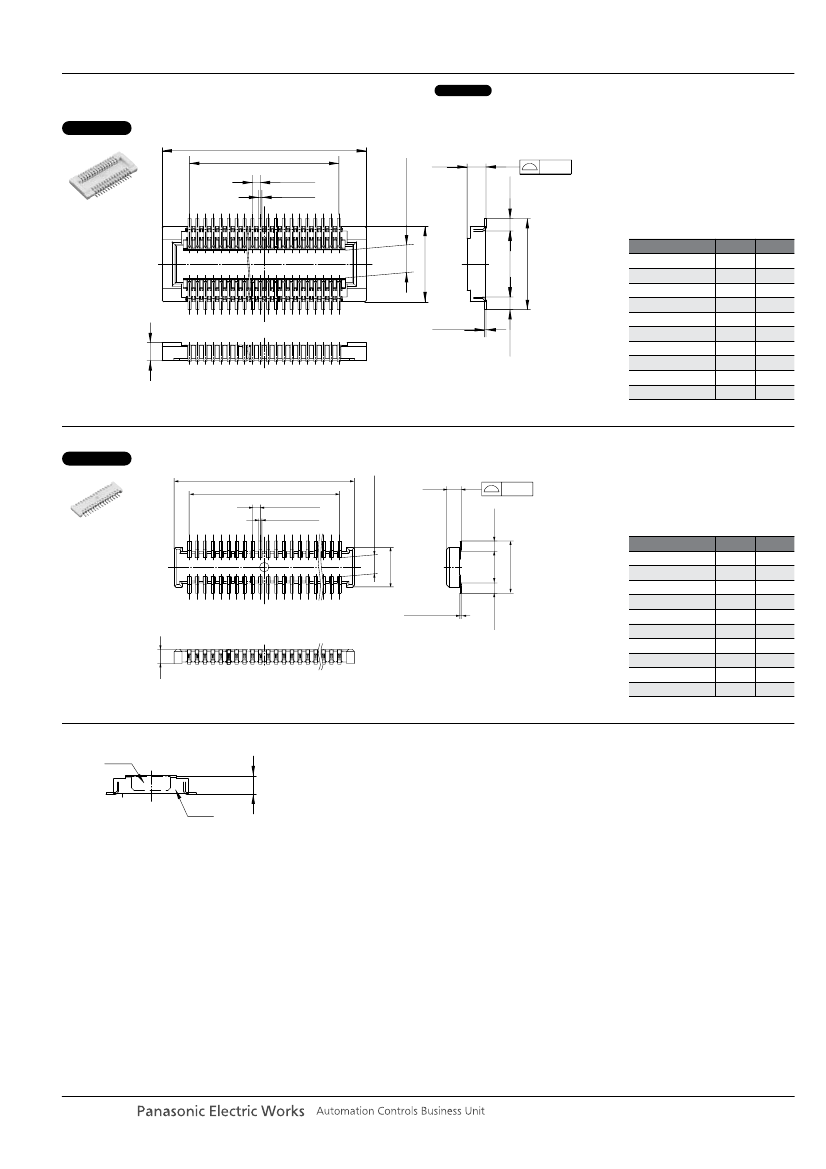

• Socket (Mated height: 1.2mm)
CAD Data
A
(Suction face) 1.60
B±0.1
0.50±0.05
0.20±0.03
1.20
(0.80)
Terminal
coplanarity
0.10
Dimension table (mm)
No. of contacts
4.80
A
5.50
6.00
8.00
9.00
10.50
11.50
13.00
14.50
15.50
18.00
B
2.00
2.50
4.50
5.50
7.00
8.00
9.50
11.00
12.00
14.50
10
12
20
24
30
4.20
0.10±0.03
1.15
(0.80)
5.80
34
40
46
50
60
General tolerance:
±0.2
• Header (Mated height: 1.2mm)
CAD Data
(Suction face) 1.20
A
B±0.1
0.50±0.05
0.20±0.03
0.95
Terminal coplanarity
0.10
(0.65)
Dimension table (mm)
No. of contacts
10
12
20
24
30
34
40
46
50
60
A
3.90
4.40
6.40
7.40
8.90
9.90
11.40
12.90
13.90
16.40
B
2.00
2.50
4.50
5.50
7.00
8.00
9.50
11.00
12.00
14.50
3.30
2.50
0.10±0.03
0.90
General tolerance:
±0.2
• Socket and header are mated
Header
1.20±0.15
Socket
(0.65)
2.00
panasonic-electric-works.net/ac
Narrow-pitch connectors
DIMENSIONS
(Unit: mm)
AXK(5/6)L
Narrow-pitch connectors

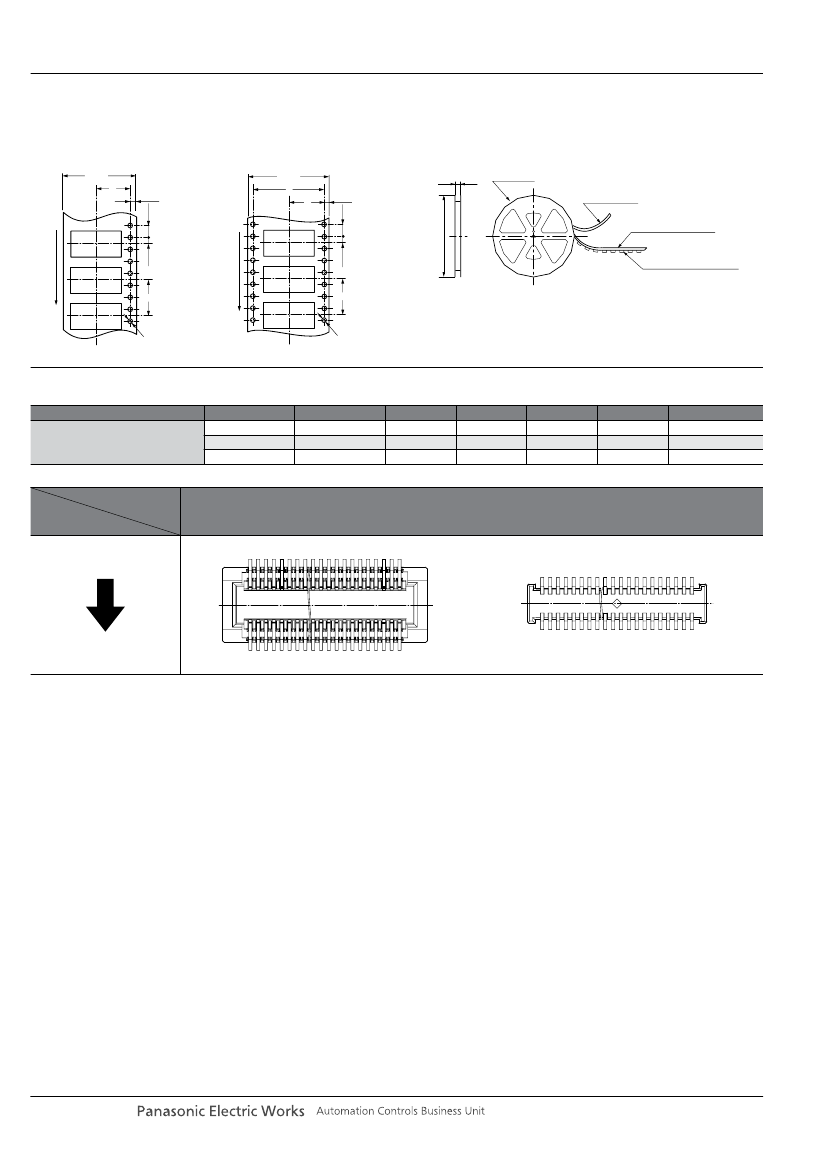

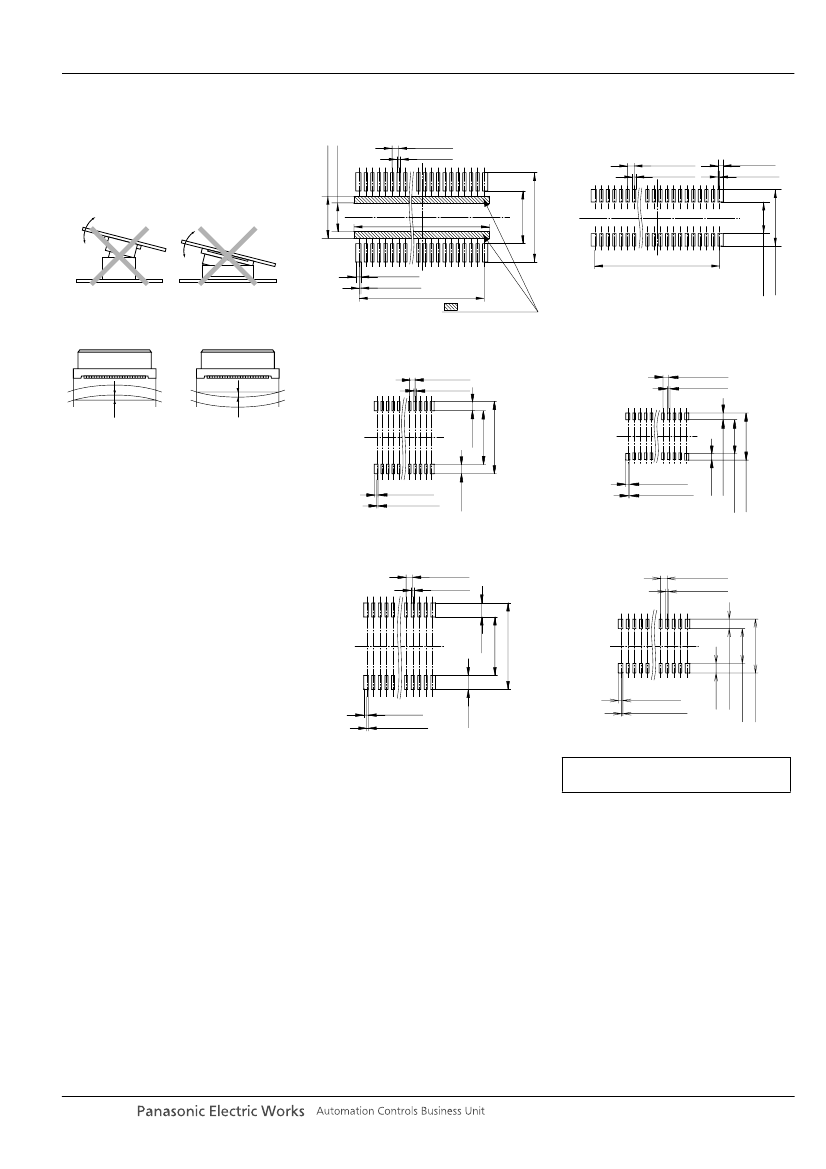

EMBOSSED TAPE DIMENSIONS
(unit: mm, Common for respective contact type, socket and header)
• Tape dimensions (Conforming to JIS C 0806-1990.
However, some tapes have mounting hole pitches that do
not comply with the standard.)
Tape I
Tape II
A±0.3
C
1.75
A±0.3
B
C
1.75
