Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5120

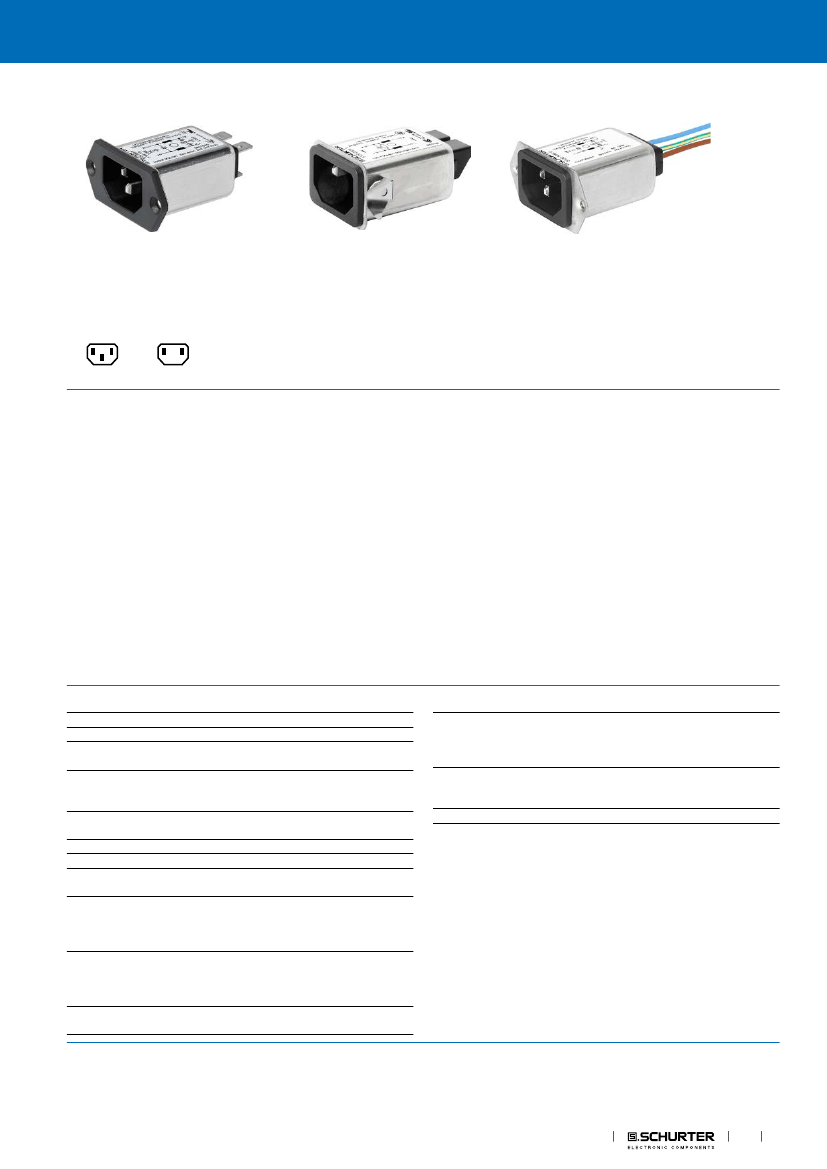

IEC Appliance Inlet C14 or C18 with Filter, ECO design, Front- or Rear Side Mounting
Front side mounting with plastic flange
Snap-in mounting
Quick connect terminals 6.3 x 0.8 mm
Protection class II
Screw-on mounting
with wires (stranded)
C14
70° C
C18
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on version from front or rear side, snap-in version from front
side, PCB Version from rear side
- 2 Functions :
Appliance Inlet protection class I or II , Line filter in standard and medi-
cal version
- Solder, quick connect or wire (stranded)
- PCB Mounting
- Earth Terminal
Characteristics
- Compact high performance filter
Optimal shielding due to completely closed filter case, unpotted
- Suitable for assembly in metal plated plastic housings
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
-
-
-
-
-
Unique Selling Proposition
-
-
-
-
Various variants
Metal flange for optimal shielding
Compact design
Variants for protection class I and II
Snap-in for panel thickness >2mm to 3mm
flexible wire with various lenghts
Class X1- and Y1-capacitors for enhanced withstand voltage
Medical version M80
Variant with notch for V-Lock mating Cordsets
References
Weblinks
Alternative: version without line filter
6100-3; 6100-4; 6102-3; 6102-5
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 15 A @ Ta 40 °C / 250 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Solder terminals
Flexible wire AWG18 (15A AWG16),
150 mm
Screw with plastic flange: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 2 mm
(all steps with one variant)
Themoplast / steel tin-plated, black /
metallic, UL 94V-0
appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I or II
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 3'000'000 h acc. to MIL-HB-217 F
Line Filter
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
MTBF
Panel Thickness S
Material: Housing
Approvals and Compliances
EMC Products
1
5120
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5120
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
Certificate Number: 40016382
UL File Number: E72928
CCC File Number: CQC17001171087
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5120

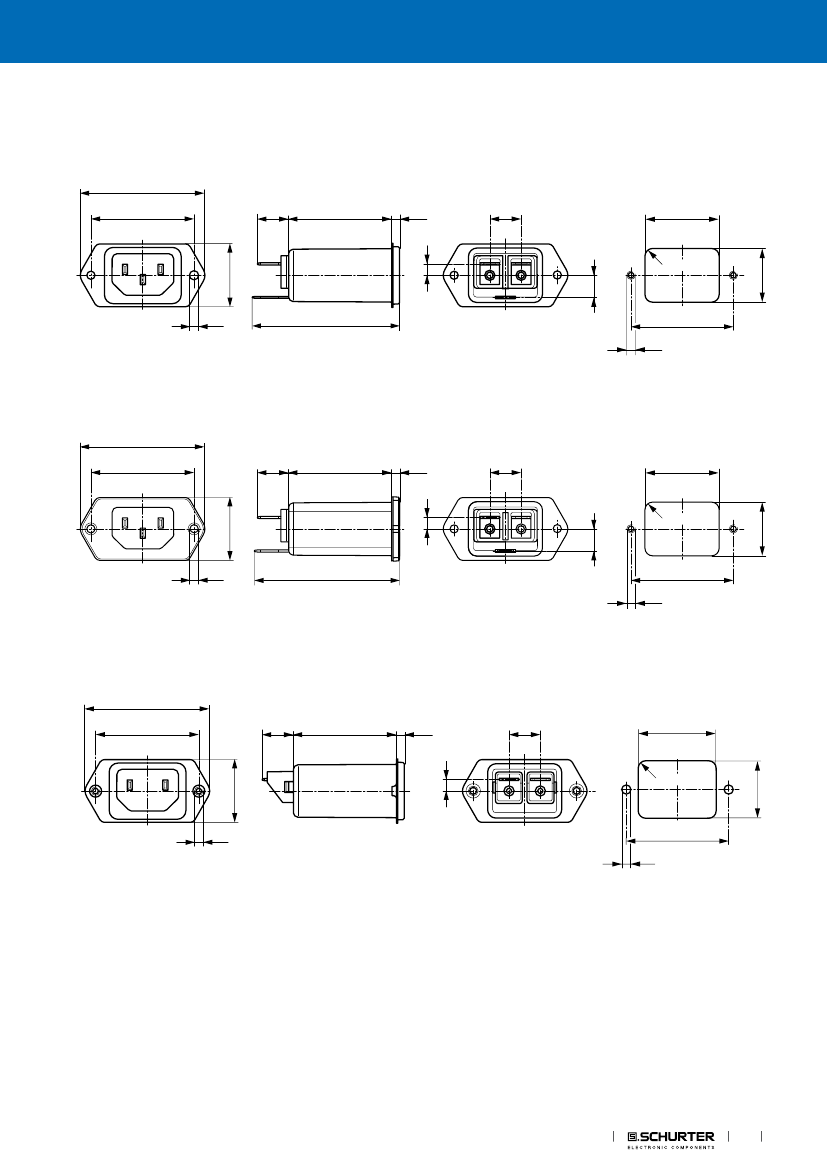

Dimensions [mm]
Front or rear side mounting for screws with nuts or blind rivets (panel cutout for frontside mounting)
48.6
40
12
39.5
2.9
12
29
±0.1
24.6
4.4
max.R3
8.5
3.6
54.9
M3
40
±0.10
Front side mounting with plastic flange
48.6
40
12
39.5
2.9
12
29
±0.1
24.6
4.4
max.R3
8.5
3.5
54.9
M3
40
±0.10
Rear side mounting with pre-formed, threaded holes for M3 screws (panel cutout for rear side mounting)
48.6
40
12
39.5
2.9
12
30.5
±0.1
24.6
4.4
max.R3
M3
3.6
40
±0.10
Dimensions for class II version also apply to class I
EMC Products
3
22.5
±0.1
21.5
±0.1
21.5
±0.1
5120
Power Entry Modules with Line Filter
https://www.schurter.com /PG06

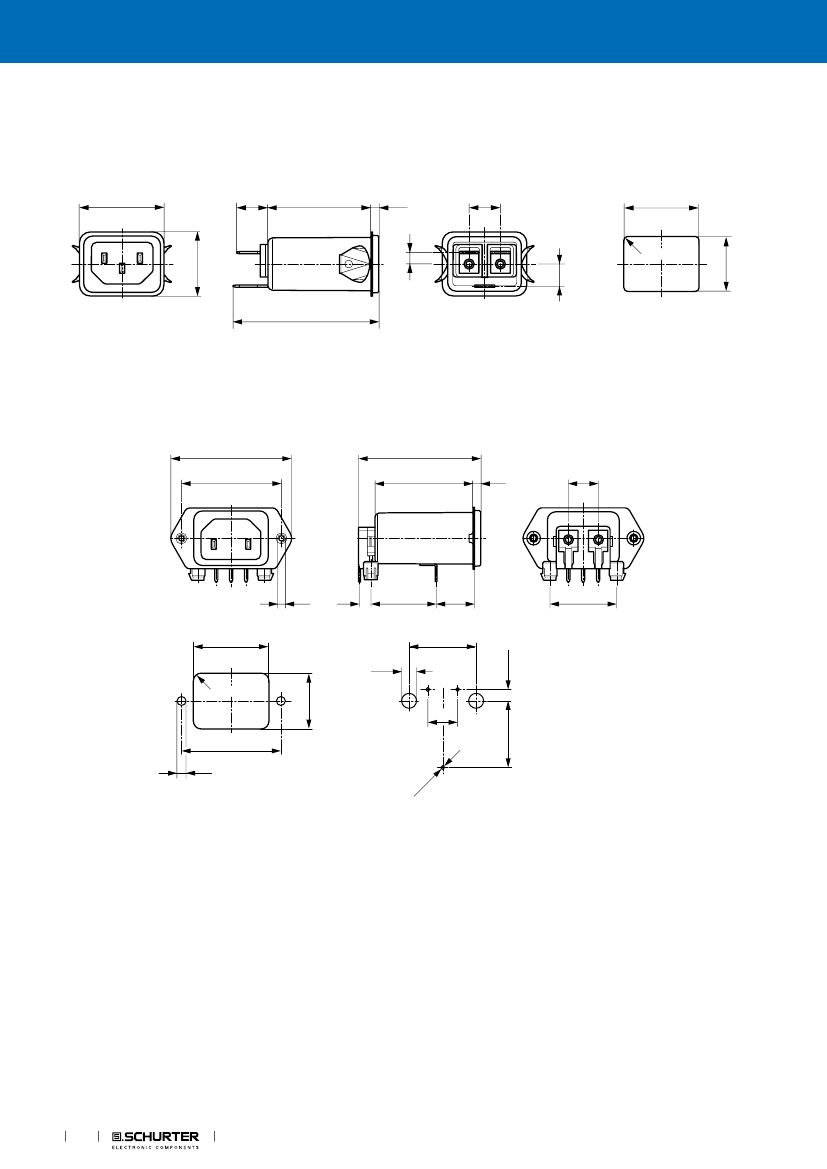

Snap-in mounting from front side
32.6
12
39.5
2.9
12
29.4
±0.10
24.6
4.4
max.R1.5
8.5
54.9
Dimensions for class I version also apply class II
PCB snap-in rear side mounting, protection class II
48.6
40
49.2
39.5
2.9
12
M3
4.6
26.2
15.5
27
30.5
±0.10
ø6
±0.05
max.R3
22.5
±0.10
27
±0.10
4.6
±0.05
12
±0.10
40
±0.10
+0
0 .10
ø3.6
4
EMC Products
ø1
.6
26.2
±0.10
21.5
±0.10
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5120

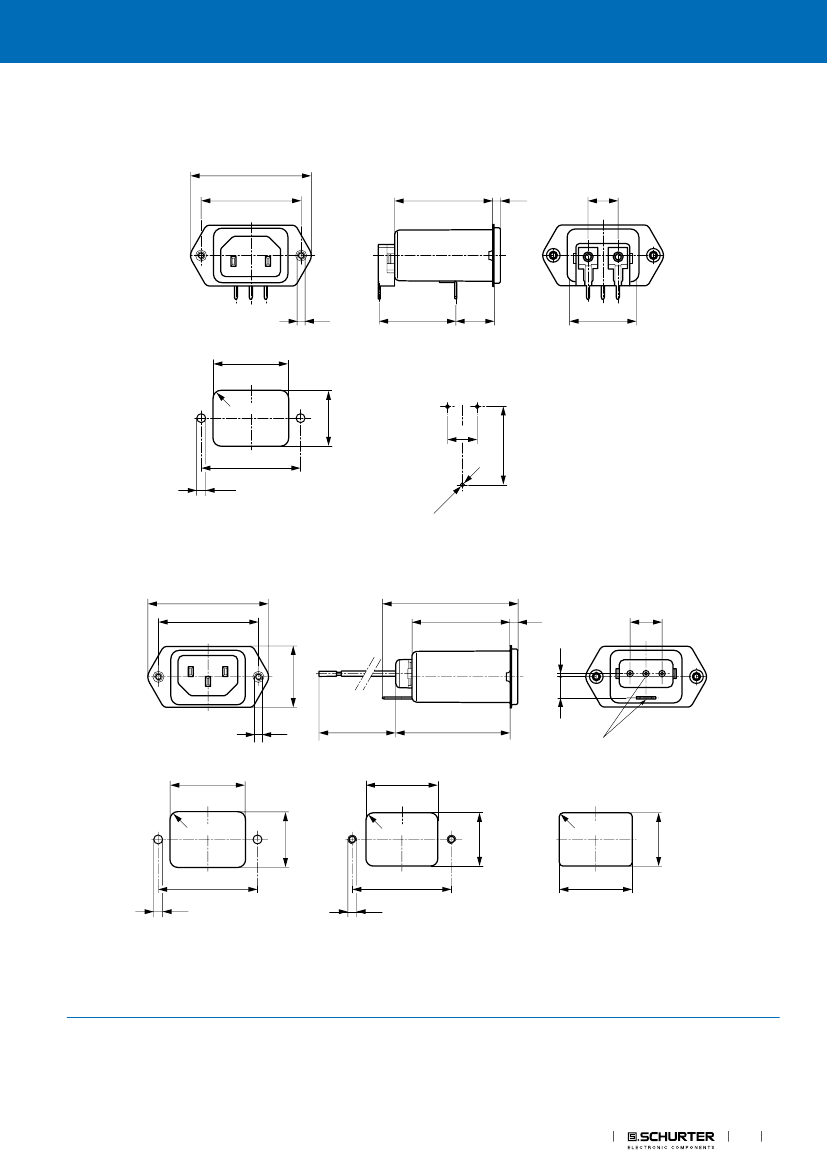

PCB rear side mounting, protection class II
48.6
40
39.5
2.9
12
M3
30.8
15.5
27
30.5
±0.10
max.R3
22.5
±0.10
12
±0.10
40
±0.10
+0
0 .10
ø3.6
Screw and snap-in mounting with flexible wire
ø1
48.6
40
.6
54.9
39.5
2.9
1.25
13
24.6
30.8
±0.10
M3
150
46.1
8.5
1)
30.5
±0.10
29
±0.10
2)
22.5
±0.10
21.5
±0.10
max.R3
max.R3
max.R1.5
40
±0.10
ø3.6
40
±0.10
M3
29.4
±0.10
3)
4)
5)
1) Flexible wire, standard length 150 mm or special length on request
2) Nonexistent for protection class II
3) Panel cut-out screw-on version, back-side mounting
4) Panel cut-out screw-on version, front- or back-side mounting
5) Panel cut-out snap-in version, front-side mounting
EMC Products
21.5
±0.10
5
