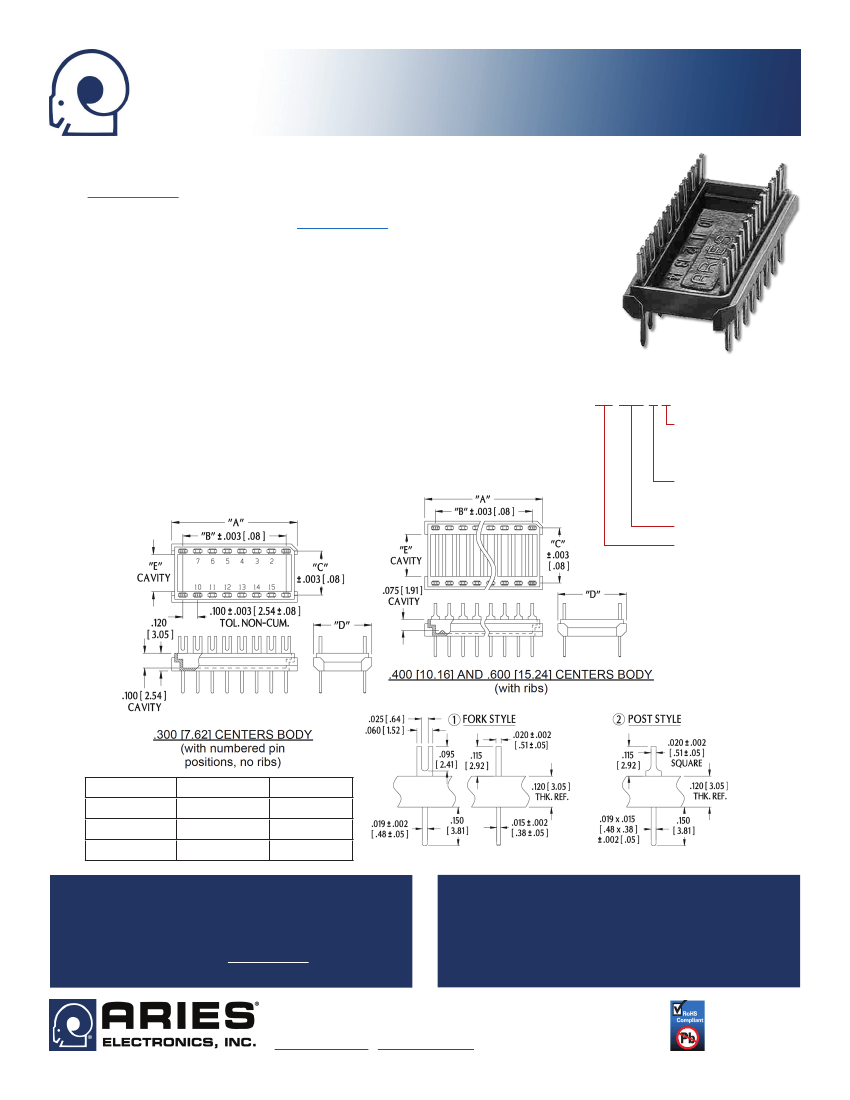

Series 600
DIP Headers w/Coined Contacts
FEATURES
• Aries offers a full line of DIP headers, available with either coined or screw machine contacts. Consult
Data Sheet 12035
for screw machine contacts.
• Snap-on, protective covers are available for all sizes shown below and accommodate 0.125 [3.18] to
0.750 [9.05] component heights. Consult
Data Sheet 12033
for snap-on protective covers.
• Body cavity design provides additional clearance for component mounting.
GENERAL SPECIFICATIONS
•
BODY MATERIAL:
Black UL 94V-0 Glass-filled 4/6 Nylon
•
COINED CONTACTS:
Brass,1/2-hard
•
CONTACT PLATING:
“0” = 200µ [5.08µm] min. matte Sn plating per ASTM B545-97 over 50µ [1.27µ]
min. Ni per QQ-N-290
–OR–
“0TL” = 200u”[5.08µm]90/10 Sn/Pb per MIL-T-10727 Type I over 50u”
[1.27µm] min. Ni per QQ-N-290
–OR–
“1” = 10u”[.25µm] Au per MIL-G-45204 over 50u”[1.27µm] min.
Ni per QQ-N-290
ORDERING INFORMATION
•
CONTACT CURRENT RATING:
2 amps
•
OPERATING TEMPERATURE:
-67°F to 221°F [-55°C to 105°C] for Sn and Sn/Pb plating; -67°F to
XX-600-X X
257°F [-55°C to 125°C] for Au plating
Plating
• FORK CONTACTS
ACCEPTS LEADS:
up to 0.025 [0.64] diameter
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.035 ±0.002 [0.89 ± 0.05] diameter
0 = Sn
0TL = Sn/Pb
1 = Au
Pin Style
1 = Fork
2 = Post
Series
No. of Pins
0.300 – 4 thru 20
0.400 – 22
0.600 – 24, 28, 40
See Table below
Centers “C”
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
Dim. “D”
0.395 [10.03]
0.495 [12.57]
0.695 [17.65]
Dim. “E”
0.252 [6.40]
0.352 [8.94]
0.552 [14.02]
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = (NO. OF PINS PER ROW x 0.100 [2.54]) +0.050 [1.27]
“B” = (NO. OF PIINS PER ROW -1) x 0.100 [2.54]
FOR SCREW MACHINE CONTACTS, SEE DATA SHEET 12036
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12032
Rev. 7.1
1 of 1
