11TW29-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 11TW29-1

11TW29-1: DescriptionToggle Switch, SPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size76KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

11TW29-1 Overview

Toggle Switch, SPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded

11TW29-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	13.59 mm
body height	18.8 mm
Body length or diameter	18.03 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	11TW29
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

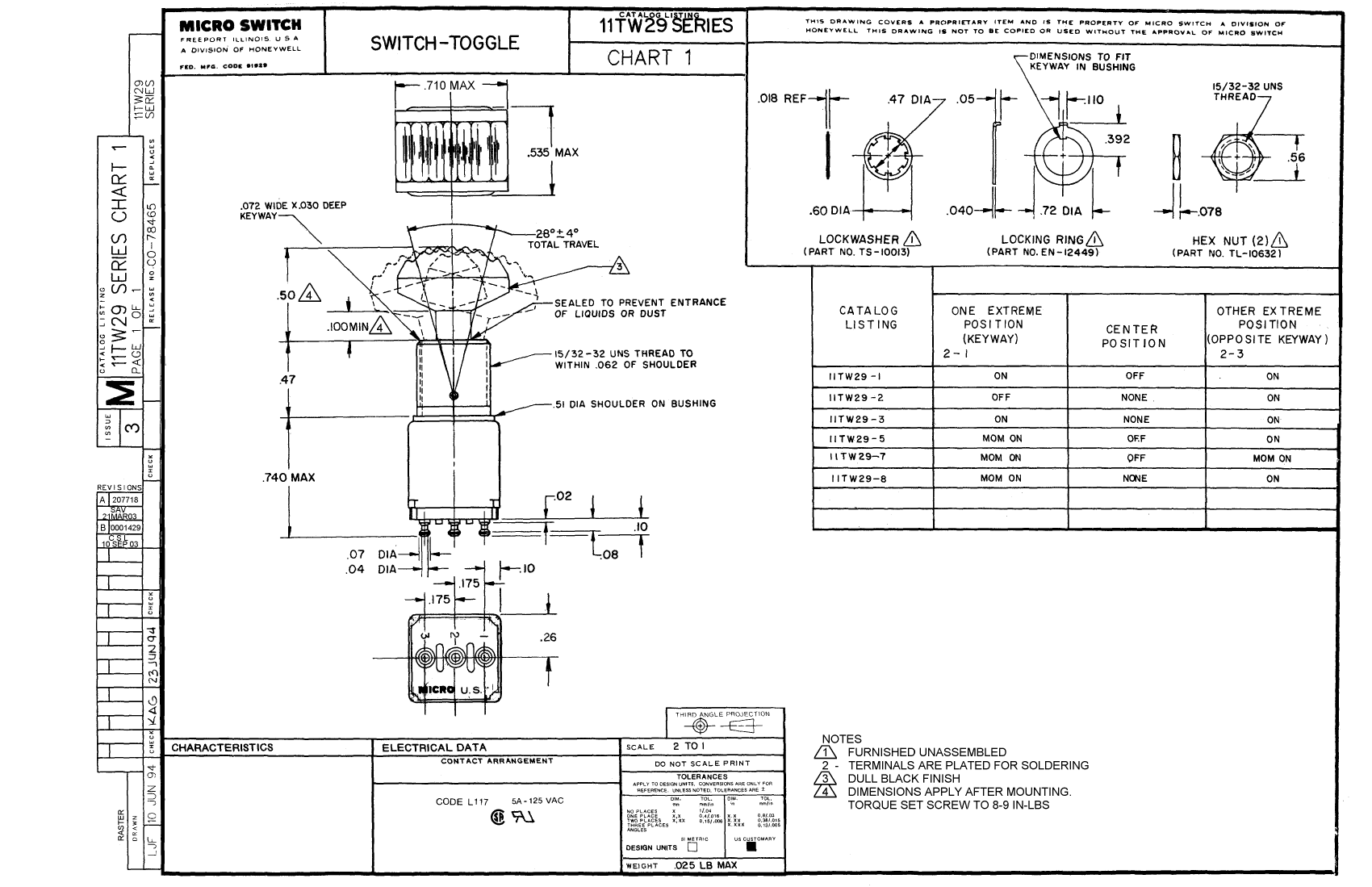

Preview

Download Datasheet

View All

11TW29-1 Related Products

	11TW29-1	11TW29-5	11TW29-7	11TW29-3	11TW29-2	11TW29-8
Description	Toggle Switch, SPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	switch toggle spdt 15a 125v	Toggle Switch, SPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER
body width	13.59 mm	13.59 mm	13.59 mm	13.59 mm	13.59 mm	13.59 mm
body height	18.8 mm	18.8 mm	18.8 mm	18.8 mm	18.8 mm	18.8 mm
Body length or diameter	18.03 mm	18.03 mm	18.03 mm	18.03 mm	18.03 mm	18.03 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V
Manufacturer's serial number	11TW29	11TW29	11TW29	11TW29	11TW29	11TW29
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED AND MOMENTARY	MOMENTARY	LATCHED	LATCHED	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPST	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	1	1	1
