SKM50GB123D: DescriptionIGBT Modules; CategoryDiscrete semiconductor The transistor; File Size761KB，5 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

SKM50GB123D Overview

IGBT Modules

SKM50GB123D Parametric

Parameter Name	Attribute value
Maker	SEMIKRON
Parts packaging code	DO-204
package instruction	CASE D61, SEMITRANS 2, 7 PIN
Contacts	2
Manufacturer packaging code	CASE D61
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Maximum collector current (IC)	50 A
Collector-emitter maximum voltage	1200 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Gate-emitter maximum voltage	20 V
JESD-30 code	R-XUFM-X7
Number of components	2
Number of terminals	7
Maximum operating temperature	150 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	310 W
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
transistor applications	POWER CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	445 ns
Nominal on time (ton)	130 ns
VCEsat-Max	2.7 V

Preview

Download Datasheet

View All

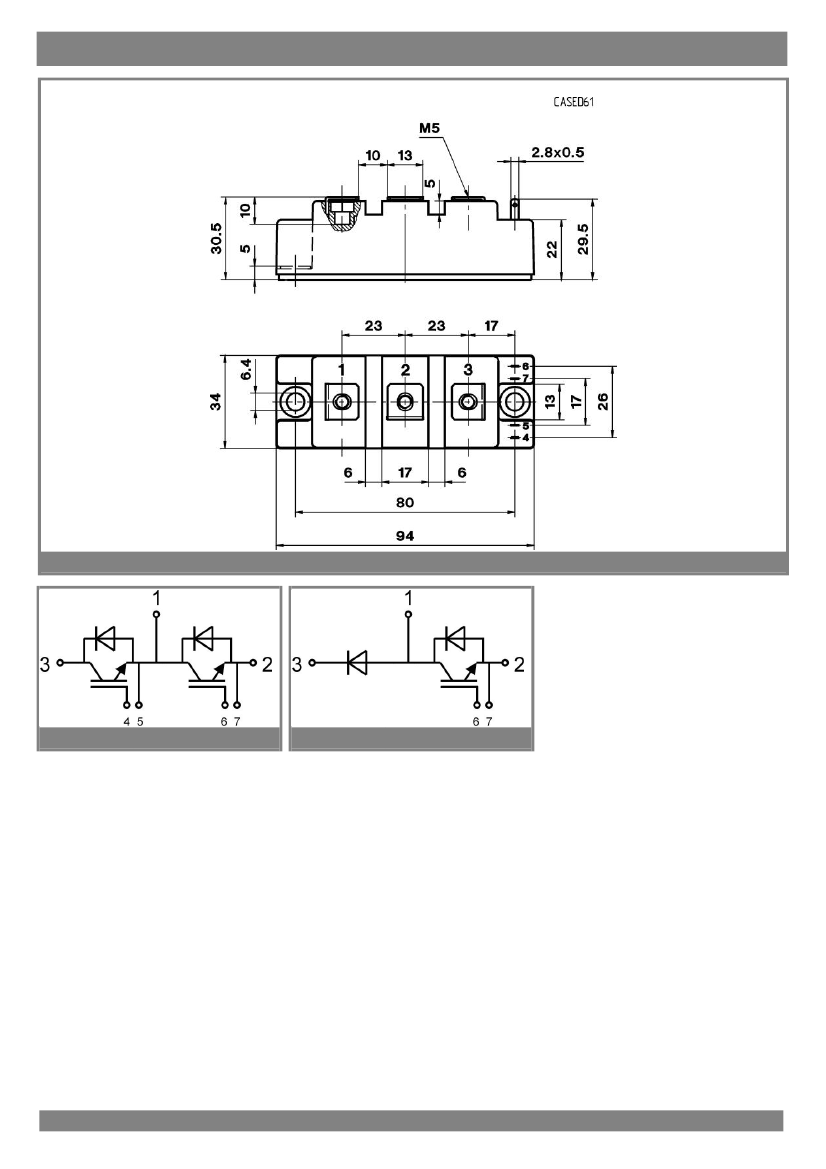

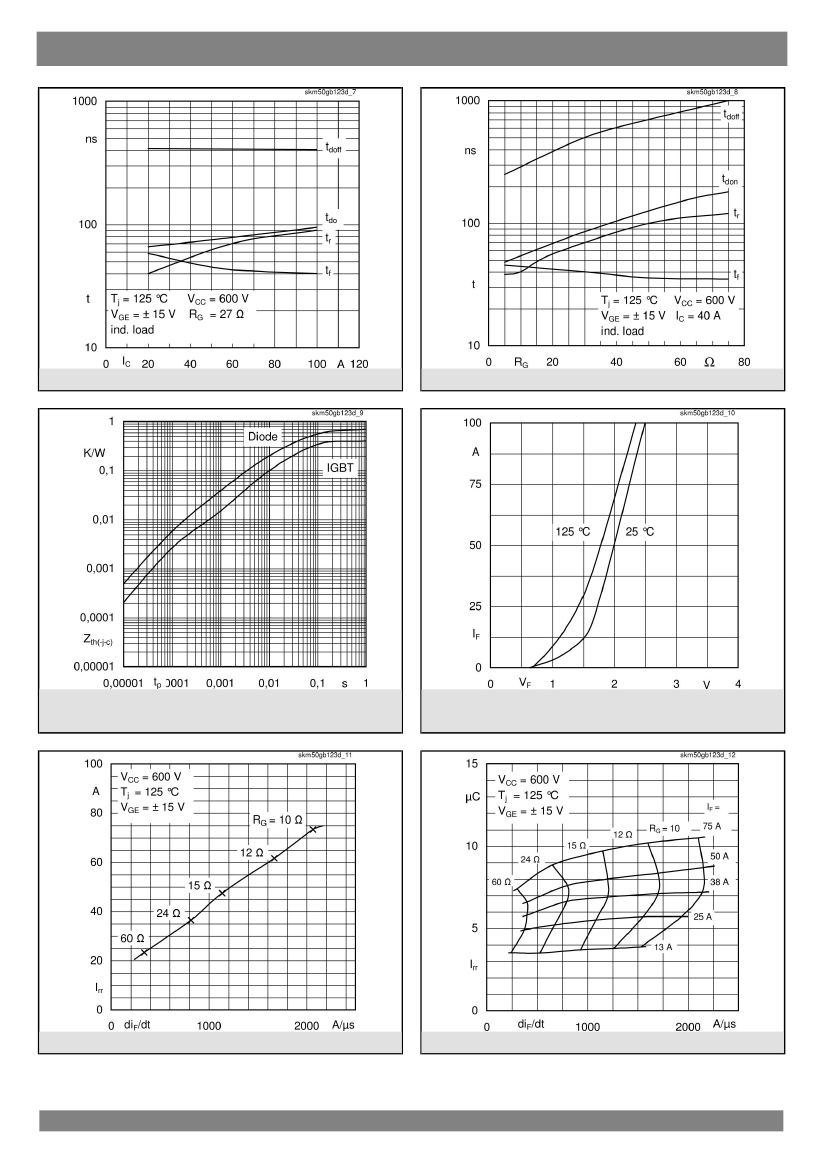

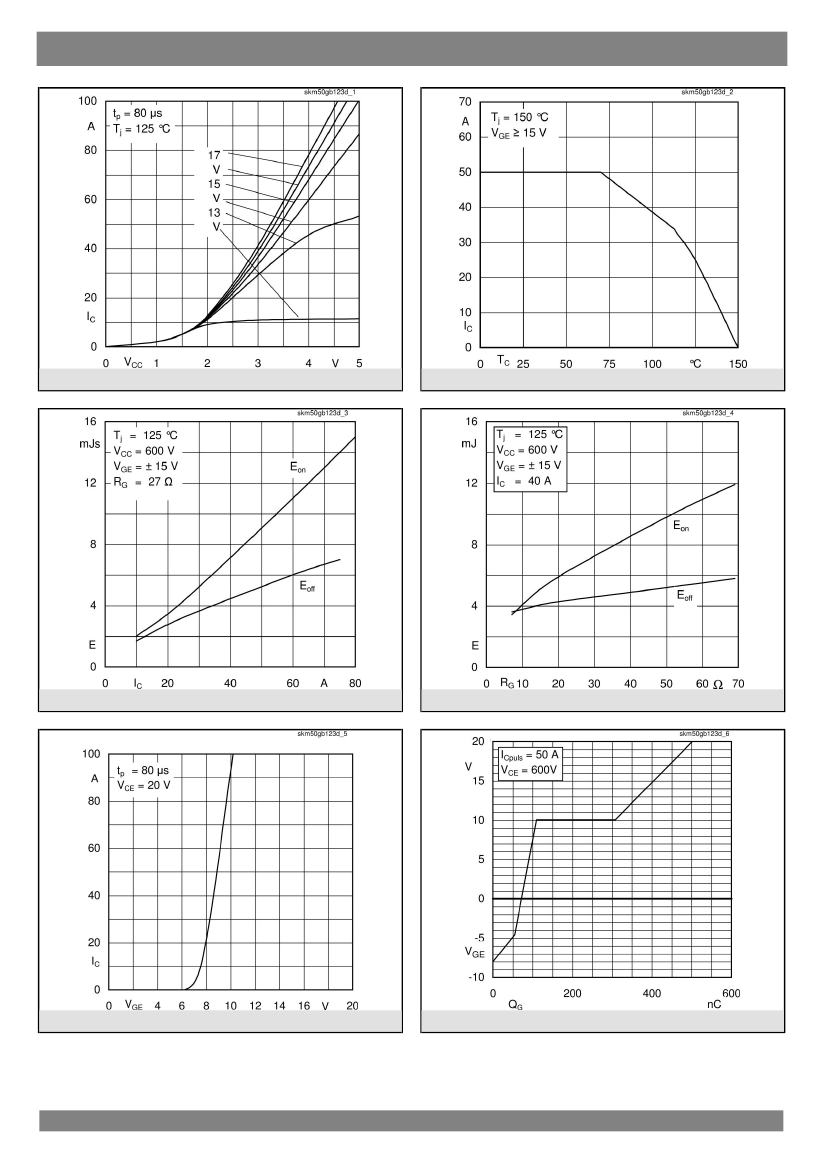

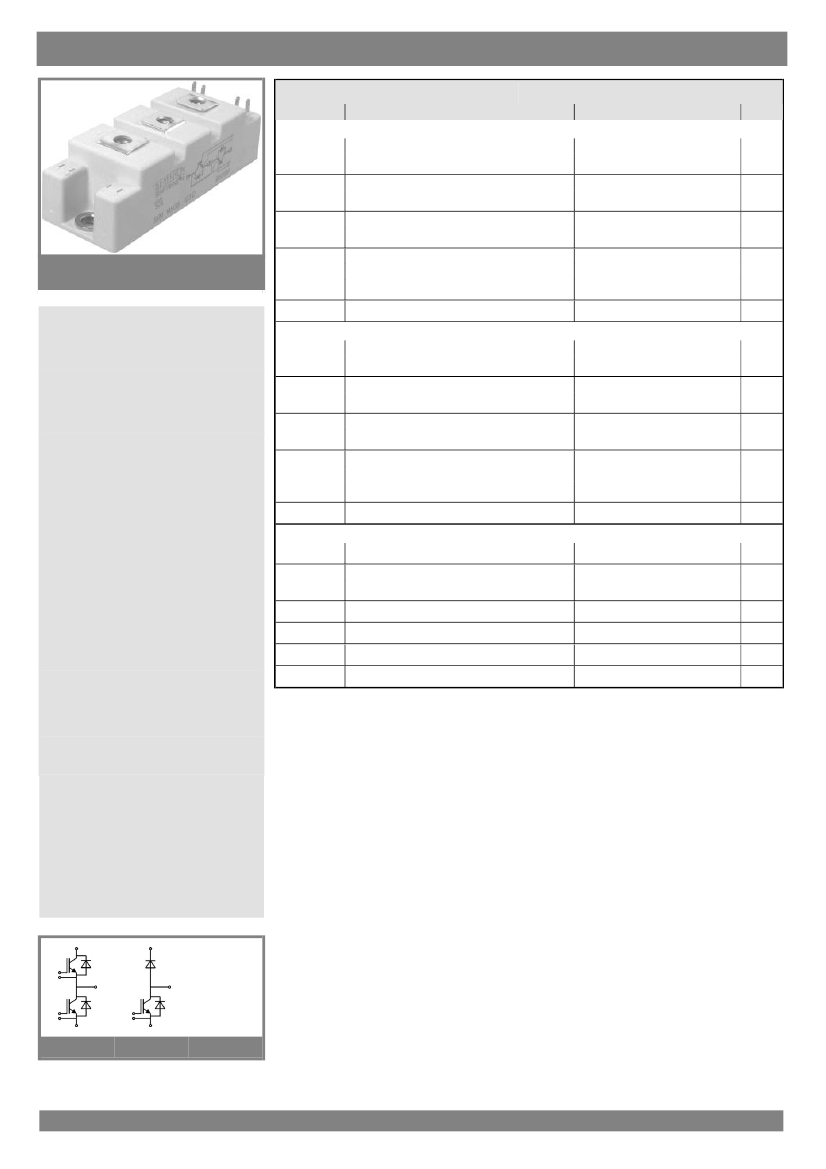

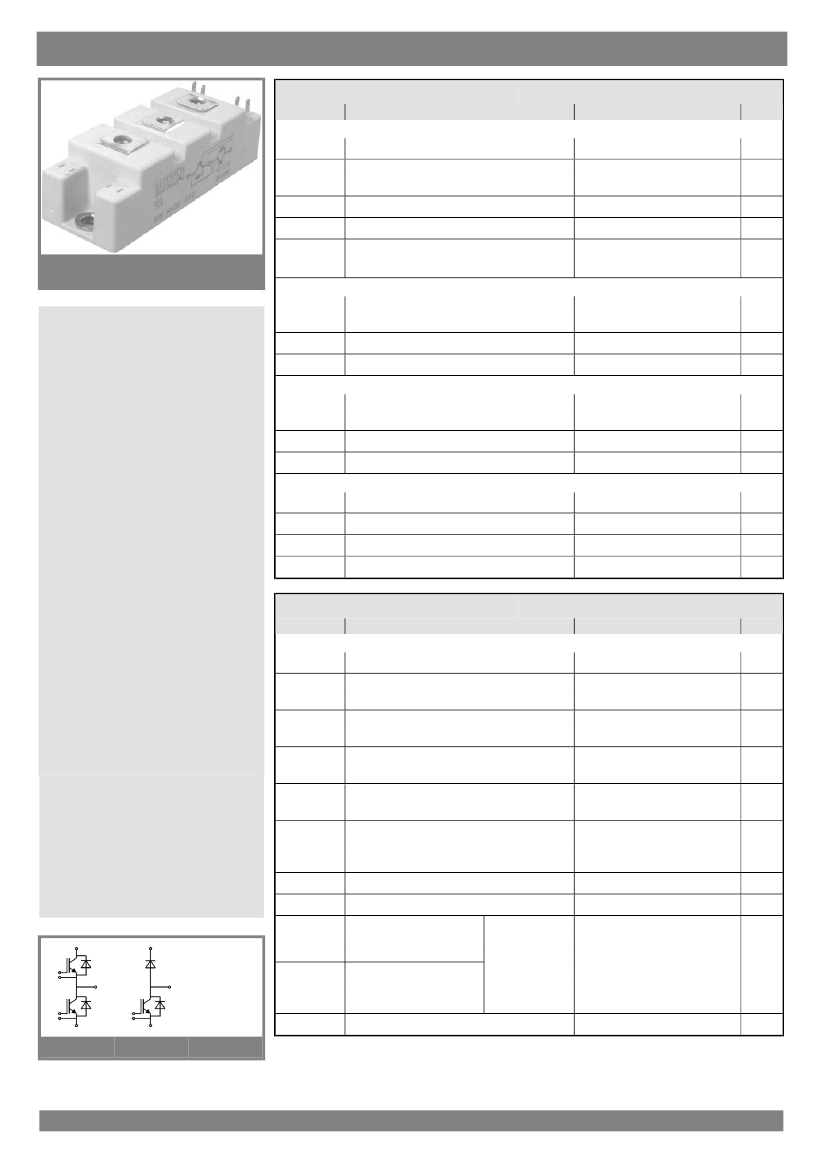

SKM 50GB123D ...

Absolute Maximum Ratings

Symbol Conditions

IGBT

Values

Units

SEMITRANS

®

2

IGBT Modules

SKM 50GB123D

SKM 50GAL123D

Inverse Diode

Freewheeling Diode

Features

Module

Characteristics

Symbol Conditions

IGBT

min.

typ.

max.

Units

Typical Applications

GB

GAL

1

23-11-2006 RAA

SKM50GB123D Related Products

	SKM50GB123D	SKM50GAL123D	SKM50GB123D_06
Description	IGBT Modules	IGBT Modules	IGBT Modules
Maker	SEMIKRON	SEMIKRON	-
Parts packaging code	DO-204	DO-204	-
package instruction	CASE D61, SEMITRANS 2, 7 PIN	FLANGE MOUNT, R-XUFM-X5	-
Contacts	2	2	-
Manufacturer packaging code	CASE D61	CASE D61	-
Reach Compliance Code	unknow	unknow	-
Other features	UL RECOGNIZED	UL RECOGNIZED	-
Shell connection	ISOLATED	ISOLATED	-
Maximum collector current (IC)	50 A	50 A	-
Collector-emitter maximum voltage	1200 V	1200 V	-
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	-
Gate-emitter maximum voltage	20 V	20 V	-
JESD-30 code	R-XUFM-X7	R-XUFM-X5	-
Number of components	2	1	-
Number of terminals	7	5	-
Maximum operating temperature	150 °C	150 °C	-
Package body material	UNSPECIFIED	UNSPECIFIED	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	FLANGE MOUNT	FLANGE MOUNT	-
Polarity/channel type	N-CHANNEL	N-CHANNEL	-
Maximum power dissipation(Abs)	310 W	310 W	-
Certification status	Not Qualified	Not Qualified	-
surface mount	NO	NO	-
Terminal form	UNSPECIFIED	UNSPECIFIED	-
Terminal location	UPPER	UPPER	-
transistor applications	POWER CONTROL	POWER CONTROL	-
Transistor component materials	SILICON	SILICON	-
Nominal off time (toff)	445 ns	445 ns	-
Nominal on time (ton)	130 ns	130 ns	-
VCEsat-Max	2.7 V	2.7 V	-
