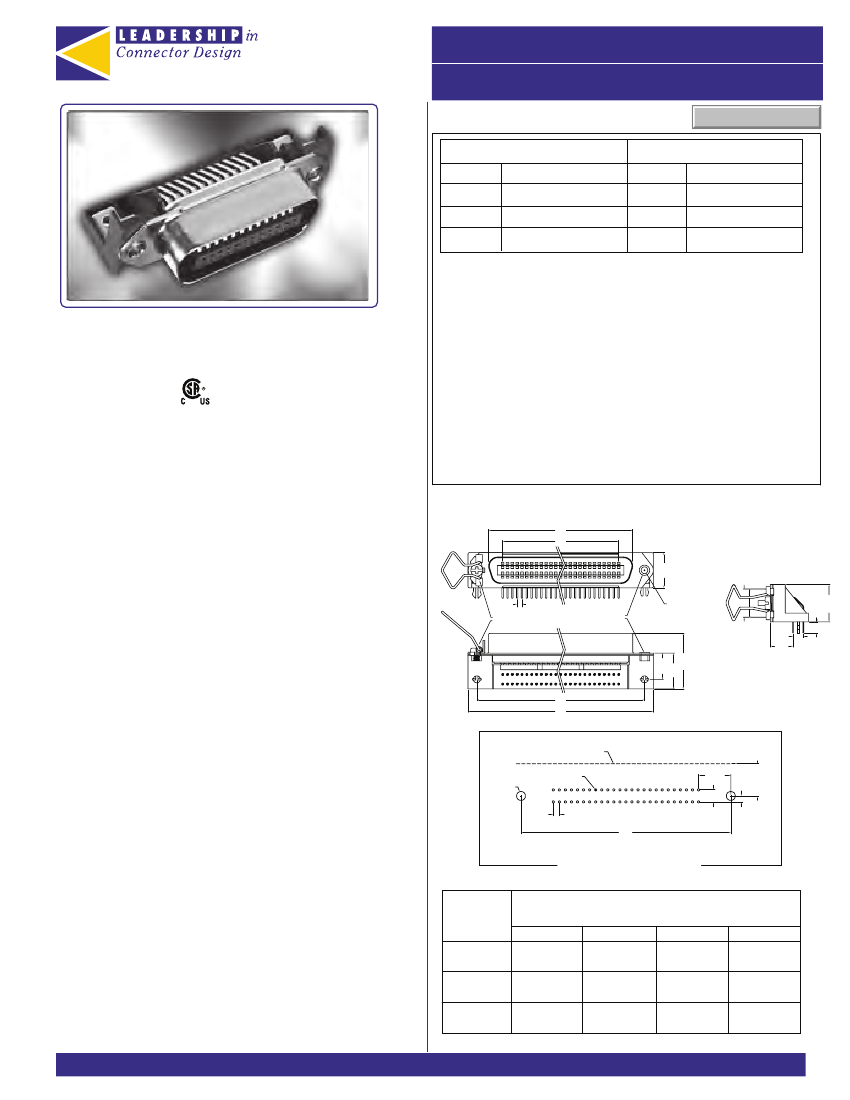

MINIATURE RIBBON CONNECTORS
KYCON
37X-9 Series
Ordering Information
Receptacles
Contacts
Part Number
Click here for more information
Plugs
Contacts
24
36
50
Part Number
24
36
50
37X-92240
37X-92360
37X-92500
37X-91240
37X-91360
37X-91500
Mounting Options (PCB)
12 - 4-40 Riveted Threaded Mounting Holes
24 - Grounding Brackets
37X-9 Series Right Angle PCB Mount
Miniature Ribbon Connectors
Features
LR78160
• Applications Include Computer Peripherals, Data Processing,
Telecommunications and Industrial Controls
• UL Recognized Material
• Design Meets the Requirements of IEEE-488 and SCSI
Applications
• Plug and Socket Available in 14, 24, 36, and 50 Positions
• Bright Nickel Plated Shells for EMI/RFI Shielding
• D Shaped Connector Mating and Polarization
• CSA/NRTL Certified File No. LR78160
Mounting Option (Panel)
Blank - With Spring Latches*
K - With 4-40 Riveted Threaded Inserts and Spring Latches*
X - With Pan Head Screws installed and without Spring Latches
XK - With 4-40 Riveted Threaded Inserts and w/out Spring Latches
XJ - Without Spring Latches and with Jack Screws Installed**
XJM - Without Spring Latches and with IEEE Standard
Metric Jack Screws Installed**
* Spring Latch Option Only Available for Receptacle
** Removal of Jack Screws Will Cause Disassembly of XJ Option
37X Series Dimensions
Dimensions in mm
A
D
15.7
11.90
Performance Specifications
Materials and Finish
Shell :
Steel Material, Nickel Finish
Insert :
PBT Thermoplastic, Blue, 30% GlassFilled,
Self-Extinguishing, 94V-0 Rated
Contact Material :
Phosphor Bronze
Contact Finish :
Gold Flash Over 0.0001 (0.00254) Nickel
2.16 Typ.
Spring Latch
Option
"XK" Mounting
Option
#4-40 UNC
Riveted
Threaded
Inserts
4.29
9.60
11.76
16.0
24.77
B
C
PCB Edge
2-Ø3.20
±0.05
Ø0.80±0.05
11.53
Electrical Characteristics
Contact Current Rating :1
Amps
Dielectric Withstanding Voltage :
1000 V AC Min
Insulation Resistance :
1000 Megohms Min
Temperature Rating :
-55°C to + 105°C
2.16 Typ.
B
Recommended PCB Layout
Number
of Contacts
(Shell Size)
24
36
50
Dimensions (
mm
)
A
1.427
36.30
1.941
49.30
2.545
64.45
B
1.843
46.80
2.350
59.70
2.949
74.90
C
2.150
54.70
2.638
67.70
3.264
82.80
D
.935
23.76
1.446
36.72
2.041
51.84
2007
2
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
11.43Max.
4.29
±0.08
2.15
4.20±0.25
15.70
