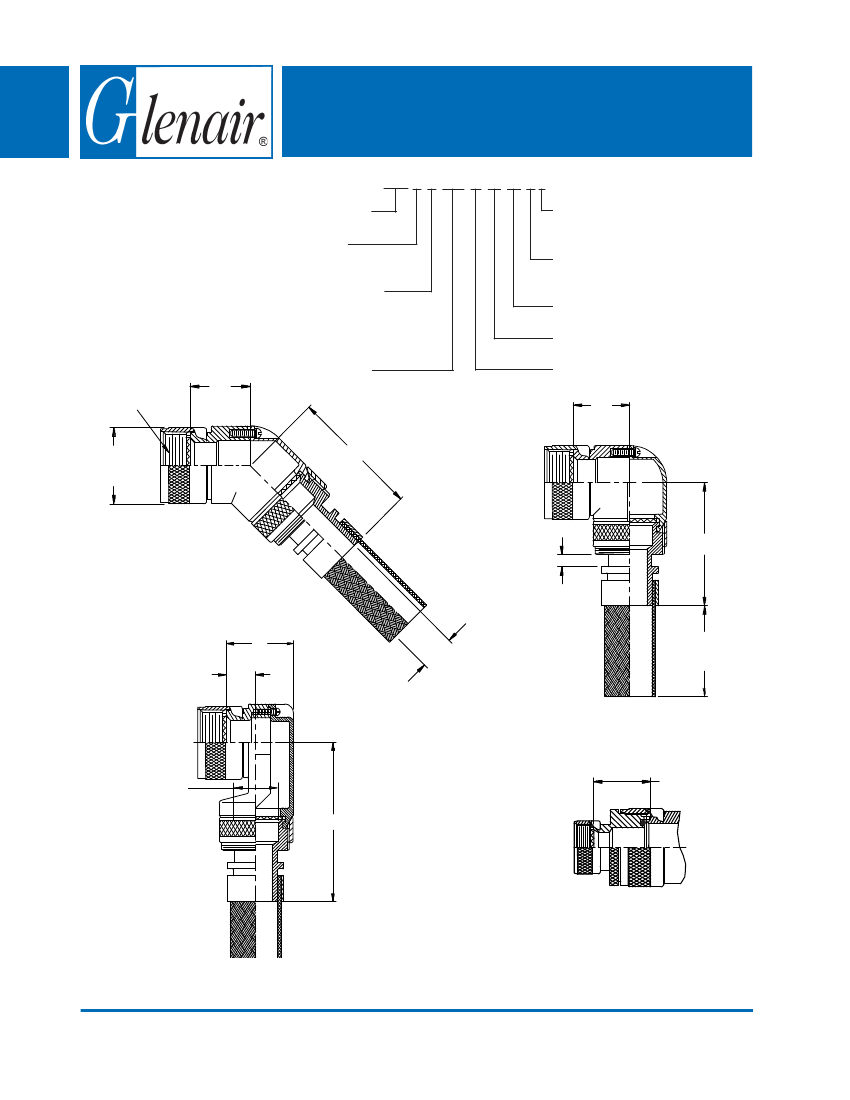

319-001
EMI/RFI Shield Sock Shrink Boot Adapter
with Optional Shrink Boot
Split Shell - Rotatable Coupling
319 F C 001 M 16 06-6 T
319
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
C = Ultra-Low Split 90°
D = Split 90°
F = Split 45°
Basic Part No.
Shrink Boot (Table V -
Omit for None)
Shield Length (1 inch increments:
Minimum 6 inches)
Cable Entry (Table V)
Shell Size (Table I)
Finish (Table II)
F
(Table III)
A-F-H-L-S
ROTATABLE
COUPLING
A Thread
(Table I)
D
(Table III)
C Typ.
(Table I)
E (Table III)
Split 45°
.140/.130
(3.6/3.3)
Typ.
K
(Table IV)
G (Table III)
Cable Entry
Shield Length
(Approx.)
H (Table IV)
Split 90°
.88 (22.4)
Max
Max Wire
Bundle
(Table IV,
Note 4)
J (Table IV)
Ultra Low-
Profile
Split 90°
STYLE 2
(See Note 4)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 319 - Page 6
with Optional Shrink Boot
Split Shell - Rotatable Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
SHELL SIZE
A-F-L-S
H
09
08
10
11
12
13
14
15
16
17
19
18
21
20
23
22
24
25
TABLE III: SPLIT 90° and SPLIT 45°
F
D
E
Max
Max
Max
.680 (17.3)
.440 (11.2)
1.500 (38.1)
.750 (19.1)
.500 (12.7)
1.560 (39.6)
.810 (20.6)
.560 (14.2)
1.630 (41.4)
.870 (22.1)
.620 (15.7)
1.660 (42.2)
.930 (23.6)
.680 (17.3)
1.760 (44.7)
1.000 (25.4)
.750 (19.1)
1.820 (46.2)
1.060 (26.9)
.820 (20.8)
1.880 (47.8)
1.120 (28.4)
.880 (22.4)
1.940 (49.3)
1.180 (30.3)
.940 (23.9)
2.000 (50.8)
TABLE IV: ULTRA LOW-PROFILE SPLIT 90°
K
H
J
Ref.
Max
Max
.340 (8.6)
.681 (17.3)
1.780 (45.2)
.731 (18.6)
.270 (6.9)
1.940 (49.3)
.270 (6.9)
.731 (18.6)
1.940 (49.3)
.831 (21.1)
.280 (7.1)
2.010 (51.1)
.420 (10.7)
2.060 (52.3)
.981 (24.9)
.640 (16.3)
2.090 (53.1)
1.181 (30.0)
1.181 (30.0)
.640 (16.3)
2.090 (53.1)
.540 (13.7)
1.181 (30.0)
2.240 (56.9)
.540 (13.7)
2.240 (56.9)
1.181 (30.0)
G
Max
1.440 (36.6)
1.500 (38.1)
1.570 (39.9)
1.600 (40.6)
1.700 (43.2)
1.760 (44.7)
1.820 (46.2)
1.880 (47.8)
1.940 (49.3)
SHELL SIZE
A-F-L-S H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1. Cable Entry is defined as the
accomodation range for the wire
bundle or cable. Dimensions
shown are not intended for
inspection criteria.
2. See Shrink Boot Reference
Information Sheet (page 40).
3. Metric dimensions (mm) are
indicated in parentheses.
4. When maximum entry (page
21) is exceeded, Style 2 will be
supplied (not available for
Function C). Dimensions D, E,
F, & G will not apply. Please
consult factory.
5. Angular function "C", low-profile
split elbow, not available with
"S" connector designator.
Max Wire
Bundle
.250 (6.4)
.375 (9.5)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.625 (15.9)
.625 (15.9)
.750 (19.1)
.750 (19.1)
GLENAIR
SYMBOL
B
M
NF
TABLE II: STANDARD FINISHES
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options
TABLE V: CABLE ENTRY/BOOT
Dash
Shrink
Cable
Boot
No.
Entry
01
N/A
.188 (4.8)
02
N/A
.250 (6.4)
03
.312 (7.9) 770-001S103
04
.375 (9.5) 770-001S103
05
.438 (11.1) 770-001S103
06
.500 (12.7) 770-001S104
07
.562 (14.3) 770-001S104
08
.625 (15.9) 770-001S104
09
.688 (17.5) 770-001S105
10
.750 (19.1) 770-001S105
11
.812 (20.6) 770-001S105
12
.875 (22.2) 770-001S106
13
.938 (23.8) 770-001S106
14 1.000 (25.4) 770-001S106
