35715-L010-B00AK: DescriptionHeaders & Wire Housings BRANCH CONN TYPE-Y; CategoryThe connector; File Size467KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

35715-L010-B00AK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35715-L010-B00AK	-	-	View	Buy Now

35715-L010-B00AK Overview

Headers & Wire Housings BRANCH CONN TYPE-Y

35715-L010-B00AK Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	3M
Product Category	Headers & Wire Housings
RoHS	Details
Product	Headers
Type	Power
Number of Positions	15 Position
Pitch	3 mm
Number of Rows	2 Row
Mounting Style	Cable
Termination Style	IDC
Mounting Angle	Straight
Contact Gender	Pin (Male), Socket (Female)
Contact Plating	Gold
Accessory Type	-
Contact Type	-
Housing Material	Nylon
Contact Material	Copper Alloy
Latching Type	Latched
Factory Pack Quantity	100

Preview

Download Datasheet

View All

3M

™

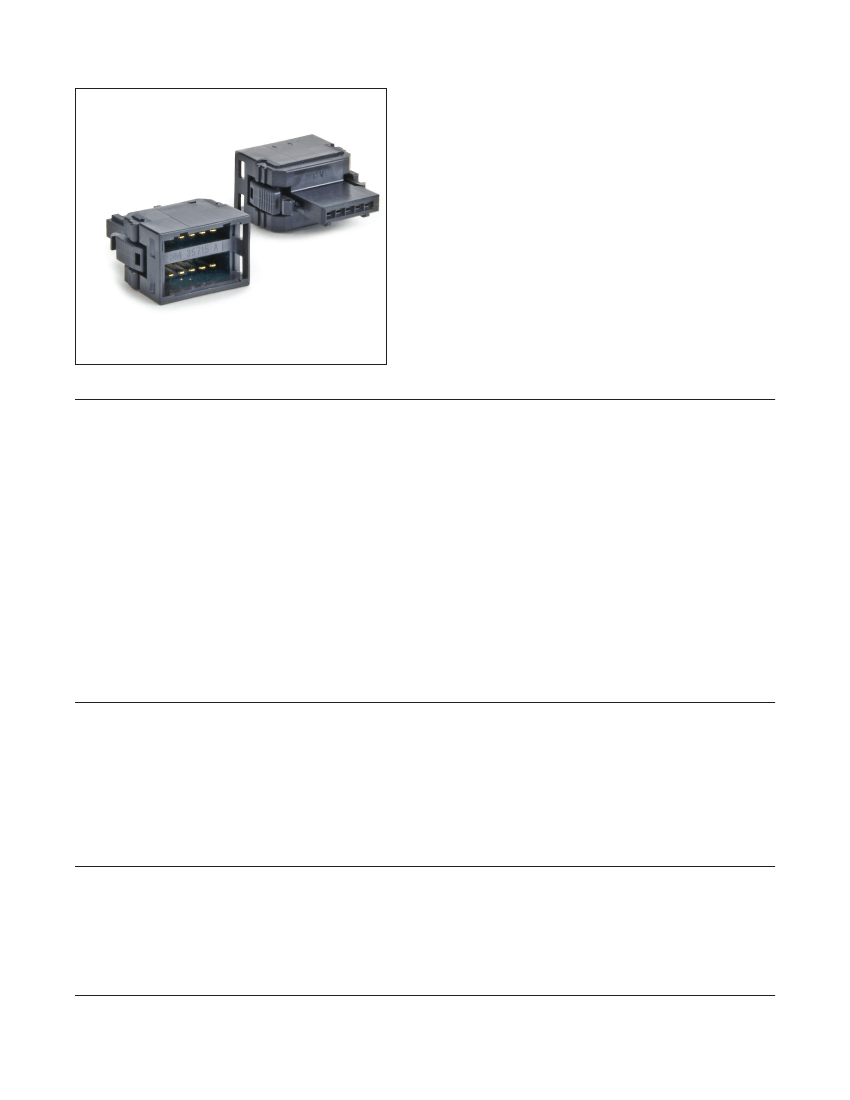

Power Clamp Branch Connector

3 mm, Branch, Y-Type, 1 Socket and 2 Plugs, 5 Positions x 3

357 Series

• Branch Interconnect takes one input and splits it into

2 outputs

• Latching clip retains the Branch Connector to the

header

• CC-Link Communication Interconnect Standard

• One-Touch latching mechanism maintains a reliable

interconnection in demanding field applications and

requires only one hand to easily mate and unmate

• Polarization ensures proper interconnecting of mated

pairs

• RoHS Compliant. See the Regulatory Information

Appendix (RIA) in the "RoHS compliance" section

of www.3M.com/Interconnects for compliance

information (RIA E1 & C1 apply).

Date Modified: December 20, 2009

TS-2304-B

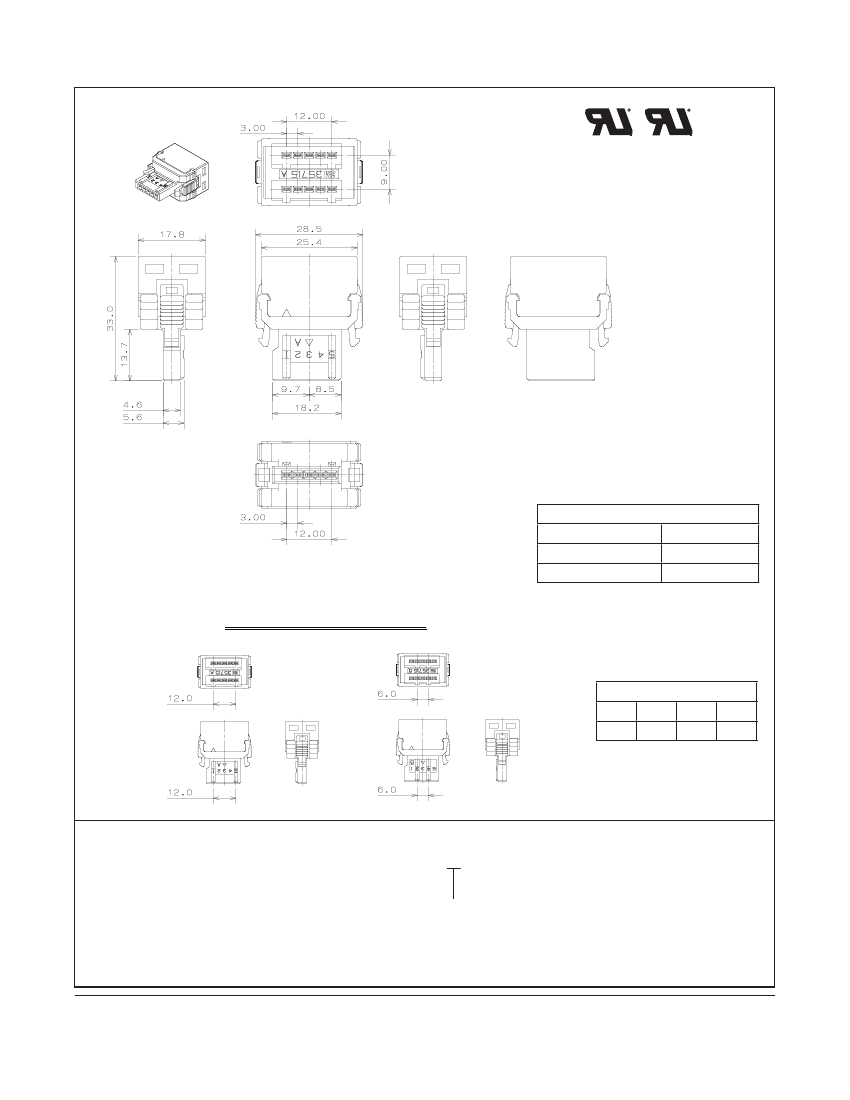

Sheet 1 of 2

Physical

Insulation:

Body Material:

Latch material:

Flammability:

Body Color:

Latch Color:

PBT

UL 94V-0

Black

Contact:

Material: Copper Alloy

Plating:

Underplating: 2.5 µm Ni minimum

Header Wiping Area: 0.5 µm Au minimum

Socket Wiping Area: 0.5 µm Au minimum

Mating Compatability:

355, 35T, 356, and 358 series products (with same polarization)

Electrical

Current Rating:

18 AWG: 10A (1 contact/socket); 7A (2 - 5 contacts/socket)

20 AWG: 9A (1 contact/socket); 6A (2 - 5 contacts/socket)

Rating Conditions: 30° C maximum temperature rise

Voltage Rating:

250 V

Insulation Resistance:

10

3

MΩ min. at 600 V

DC

Withstanding Voltage:

1,000 V

RMS

for 1 minute

Environmental

Temperature Rating:

-20°C to +75°C ambient

UL Rating: 65° C

UL File No: E68080

3

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

35715-L010-B00AK Related Products

	35715-L010-B00AK	35715-L010-A00AK
Description	Headers & Wire Housings BRANCH CONN TYPE-Y	Headers & Wire Housings 15P 1 SOCKET/2 PLUGS PWR CLMP BRNCH CONCT
Product Attribute	Attribute Value	Attribute Value
Manufacturer	3M	3M
Product Category	Headers & Wire Housings	Headers & Wire Housings
RoHS	Details	Details
Product	Headers	Headers
Type	Power	Power
Number of Positions	15 Position	15 Position
Pitch	3 mm	3 mm
Number of Rows	2 Row	2 Row
Mounting Style	Cable	Cable
Termination Style	IDC	IDC
Mounting Angle	Straight	Straight
Contact Gender	Pin (Male), Socket (Female)	Pin (Male), Socket (Female)
Contact Plating	Gold	Gold
Housing Material	Nylon	Nylon
Contact Material	Copper Alloy	Copper Alloy
Latching Type	Latched	Latched
Factory Pack Quantity	100	100
