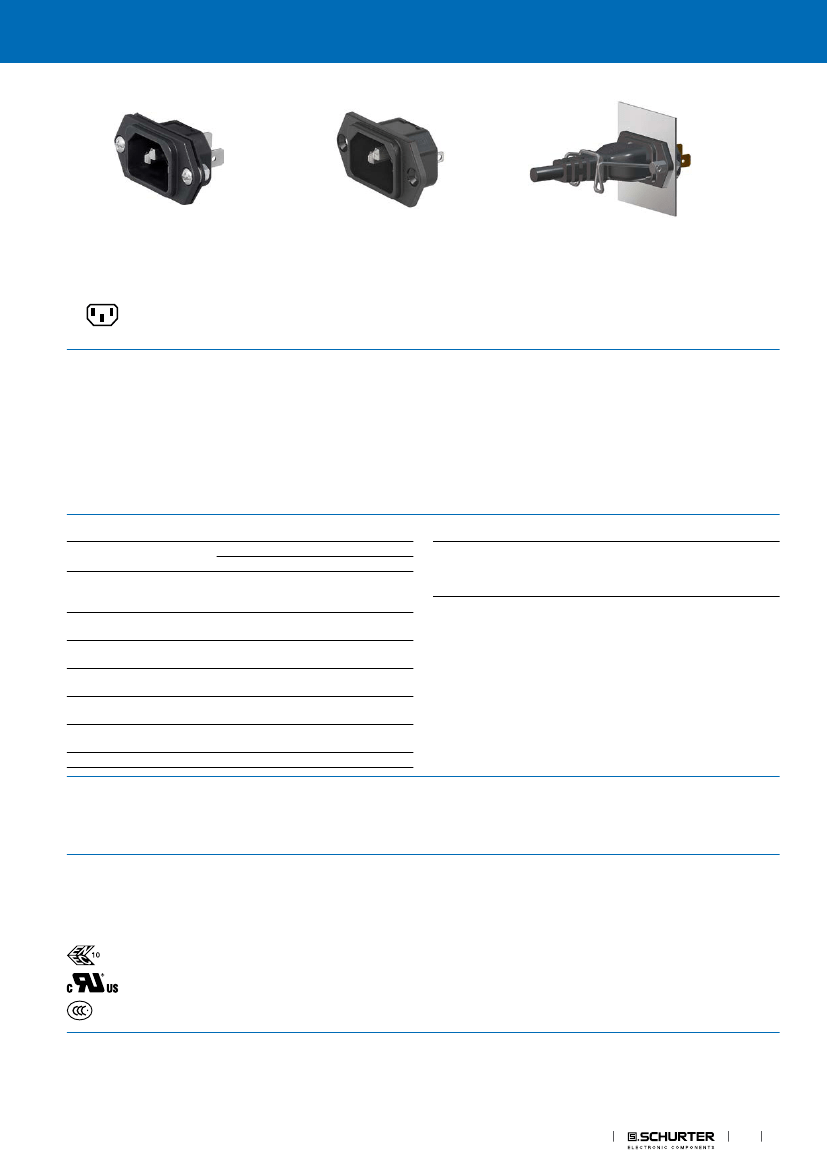

IEC Appliance Inlet C14, Screw-on Mounting, Front or Rear Side, Solder or Quick-connect Terminal
6100 with sealing to appliance
6100-3
6100-3 with sealing kit IP 54
C14
Approvals and Compliances
70° C
See below:
Description
- Panel Mount :
Screw-on mounting from front or rear-side
- Appliance Inlet , Pin temperature 70 °C , Protection class I
- Variants with factory mounted inlet gasket and sealing kit for IP 54 into
the equipement and the pluggable power supply
- Solder terminals or quick connect terminals
Other versions on request
- Types for rivet mounting available upon request
- Types for enhanced glow wire test requirements acc. IEC 60695-2-
12 and -13 for the use in unattended household equipment acc. IEC
60335-1
References
Weblinks
Alternative: protection class II version
6102-3
Alternative: version with line filter
5110; 5120
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 or IP 54 with
sealing kit acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Solder terminals or quick connect ter-
minals
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 10 A, Protection Class I
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 6100-3
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
Certificate Number: 40015595
UL File Number: E96454
CCC Certificate Number:
Connectors
1
6100-3
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
UL 60320-1
CSA C22.2 no. 60320-1
Description
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Meets the requirements of IEC 60335-1 for appliances in unattended use.
This includes the enhanced requirements of glow wire tests acc. to IEC
60695-2-12 and -13.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
White paperGlow wire test
SCHURTER AG
Dimensions [mm]
6.3x90°
3.5
2.5
20.5
28
40
48
E: Solder terminals 20.5 mm
E: Quick connect terminals 23.5 mm
19.5
23
E
5
27.5
2
Connectors
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
6100-3
Ø 3.5 / M3
Ø 3.5
20
+0.2
0
1)
max.R3
2)
max.R3
28
+0.2
0
40
±0.2
1) mounting from front-side
2) mounting from rear-side
28.5
+0.2
0
40
±0.2
Assembly Instructions
6100-3 incl. sealing kit for IP 54
Mating cordsets to sealing kit
Part no
6000.0214
6003.0215
6004.0215
6007.0212
6007.0214
6004.0114
6026.0215
6009.1315
6047.6414
6009.1214
6011.0215
6044.0215
Country plug
open end
EURO plug
EURO plug
EURO plug
IEC plug
EURO plug
Italy
North America
Japan
North America
Switzerland
United Kingdom
Cable length
2.0 m
2.5 m
2.5 m
1.0 m
2.0 m
2.0 m
2.5 m
2.5 m
2.0 m
2.0 m
2.5 m
2.5 m
Cross section
3x1 mm2
3x1 mm2
3x1 mm2
3x1 mm2
3x1 mm2
3x0.75 mm2
3x1 mm2
3x18 AWG
3x0.75 mm2
3x18 AWG
3x1 mm2
3x1 mm2
Color
black
black
black
black
black
black
black
black
black
black
black
black
5)
4)
8)
7)
6)
3)
1)
2)
1) Appliance inlet 6100-3 with factory-mounted inlet gasket
2) Flat gasket
3) Chassis
4) Pillar
5) Gasket ring
6) Crinkle washer
7) Nut
8) Retaining clip
All Variants
Type
6100-3
6100-3
6100-3
6100-3
6100-3
6100-3
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
The variants IP54 (6100.xxxx.33) include the inlet with factory mounted inlet gasket and the kit for IP protection to the equipment and for the power connector incl. a cord
retaining for a specific cord connector. Samples can be ordered with suffix ".H" (e.g. 6100.3100.33.H).
Articles for enhanced glow wire test requirements acc. IEC 60695-2-12 and -13 can be ordered with ending ".15" (xxxx.xxxx.15). They are suitable for the use in unattended
household equipment acc. IEC 60335-1.
Protection Class
I
I
I
I
I
I
Panel mounting
Screw
Screw
Screw
Screw
Screw
Screw
Panel Thickness
s [mm]
-
-
-
-
-
-
Terminal
Quick connect terminals 4.8 x 0.8 mm
Quick connect terminals 4.8 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Solder terminals 3.5 x 0.8 mm
Solder terminals 3.5 x 0.8 mm
IP Protection Class
Front Side
IP 40
IP 54
IP 40
IP 54
IP 40
IP 54
Order Number
6100.3200
6100.3200.33
6100.3300
6100.3300.33
6100.3100
6100.3100.33
█
█
█
█
Packaging unit
50 Pcs
Connectors
21
+0.2
0
3
6100-3

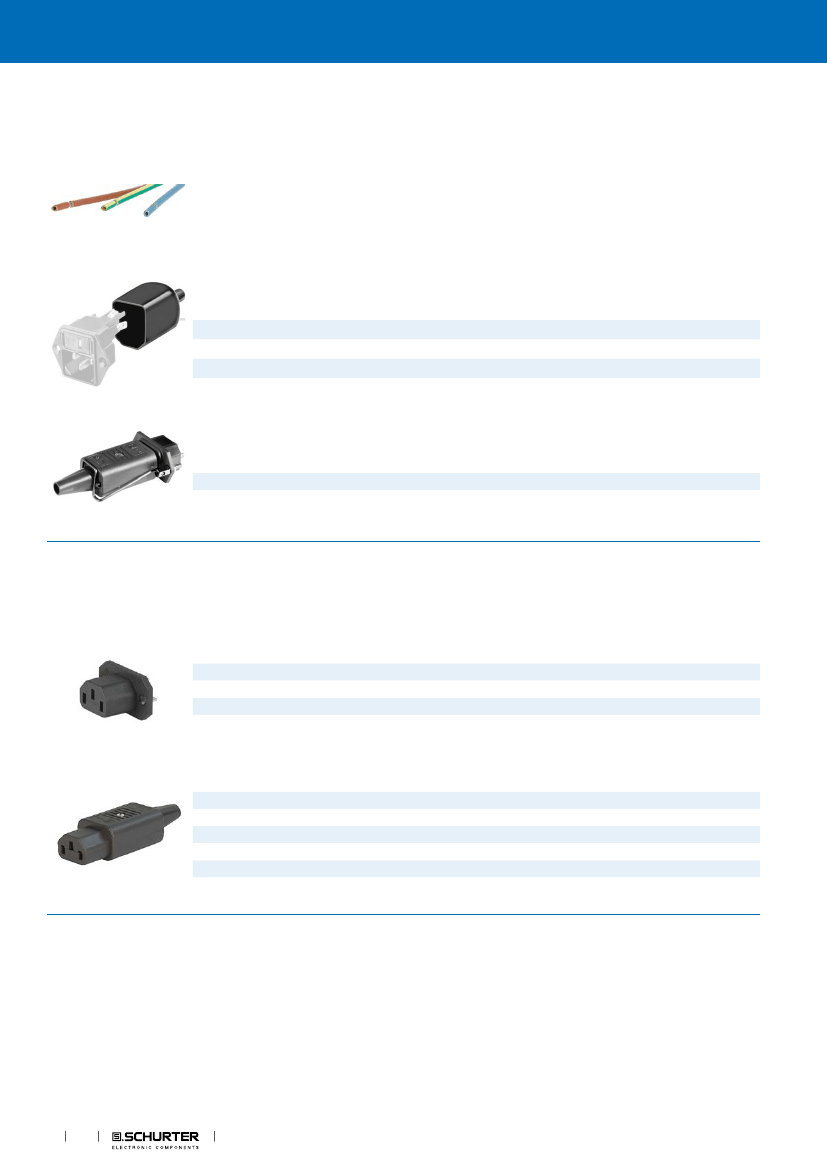

Accessories
Description
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
Wire Harness
Wire harness for SCHURTER products
Assorted Covers
Rear Cover
0859.0048
4311.9401
4311.9402
Cord retaining kits
Cord retaining strain relief
Flat head, A
4700.0001
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to 6100-3
4787
4788
5091
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4022 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4012 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
Connector further types to 6100-3
4782
4022
4785
4300-06
4012
...
4
Connectors
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
