39981-0309 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 39981-0309

39981-0309: DescriptionPluggable Terminal Blocks SR BTS PLUG 9 ASY DE BTS PLUG 9 ASY DELTA; CategoryThe connector terminals; File Size30KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39981-0309 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39981-0309	-	-	View	Buy Now

39981-0309 Overview

Pluggable Terminal Blocks SR BTS PLUG 9 ASY DE BTS PLUG 9 ASY DELTA

39981-0309 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCHED, POLARIZED, POLYAMIDE, 94V-0
Fastening method	SCREW
Manufacturer's serial number	39981
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	9
Rated current	10 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

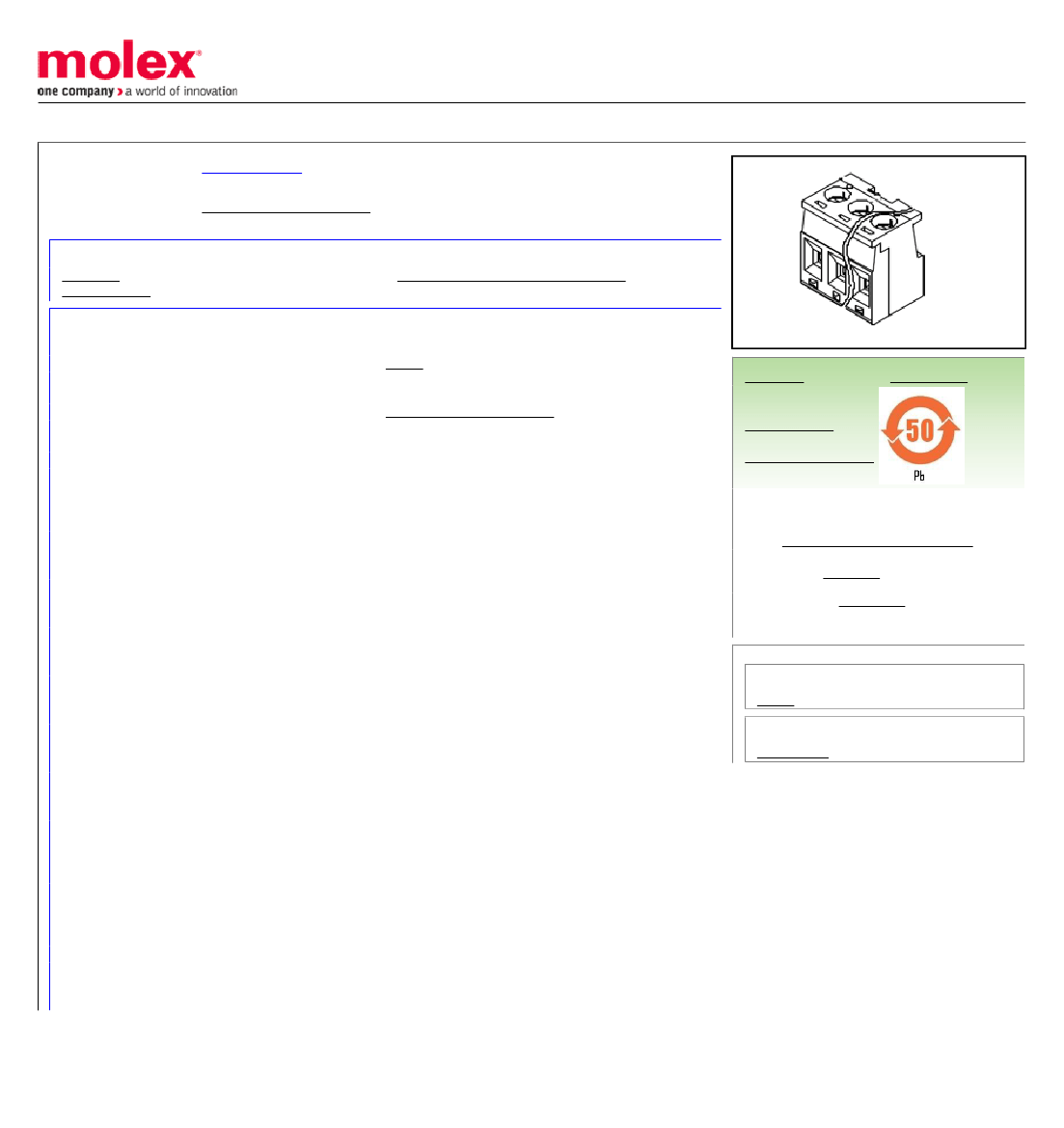

Preview

Download Datasheet

View All

This document was generated on 04/24/2015

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

39981-0309

Active

Eurostyle™ Terminal Blocks

5.08mm Pitch Beau™ Eurostyle™ Screw Clamp Plug, Gold (Au) Plated, 9 Circuits

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

UPC

Terminal Blocks

39981

N/A

Plug

Eurostyle™ Terminal Blocks

Eurostyle™Pluggable

Euro Block

756054586266

Series

image - Reference only

EU RoHS

RoHS Compliant by

Exemption

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Circuits (Loaded)

Color - Resin

Entry Angle

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Black

Horizontal

Yes

Brass

Gold

Nylon

Vertical

N/A

5.08mm

1.270µm

Yes

Fully

110°C

Surface Mount

12, 14, 16, 18, 20, 22, 24

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39981Series

Mates With

39981-0409

Electrical

Current - Maximum per Contact

Voltage - Maximum

10.0A

300V

Material Info

Old Part Number

980909-G30

Reference - Drawing Numbers

Sales Drawing

SD-39980-010

This document was generated on 04/24/2015

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
